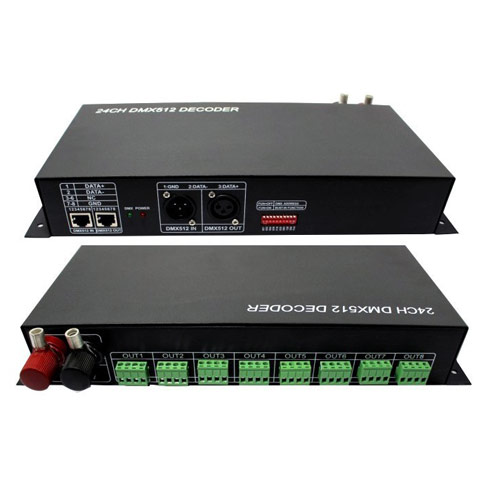

DC12/24V 24Channel, High Quality 256 Gradations of Controlling Universal standard DMX512 Controller Decoder for buildings & lights applied LED

DC12/24V 24Channel, High Quality 256 Gradations of Controlling Universal standard DMX512 Controller Decoder for buildings & lights applied LED

Model: CONDMX512-CH-02

$189.99

DHL Free Shipping On Order Over $199

Please Choose:

Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$189.99
5-9
$186.19
10-14
$180.49
15+
$172.89
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Summarization

      The decoder adopt the advanced micro-computer control technology and converted the DMX512 digital signal widely used in international to the analog control signal. 1~24 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.





    Technical Parameters

    Working temperature: 0-70℃

    Decode channel: 24 channel

    Supply voltage: DC, +12~24V

    External dimension:L340*W142*H57 mm

    Packing size:L350*W180*H65 mm

    Net weight: 1.5kg

    Gross weight: 1.6kg

    Power consumption: <0.25A(12V); <0.30A(24V)

    Signal input: DMX-512 Standard digital signal

    Signal output: 0~24V, Max. 2A /CH

    Power output: 12V:<576W, 24V:<1152W

    Specifications Download

    External Dimension



    Typical Applications
