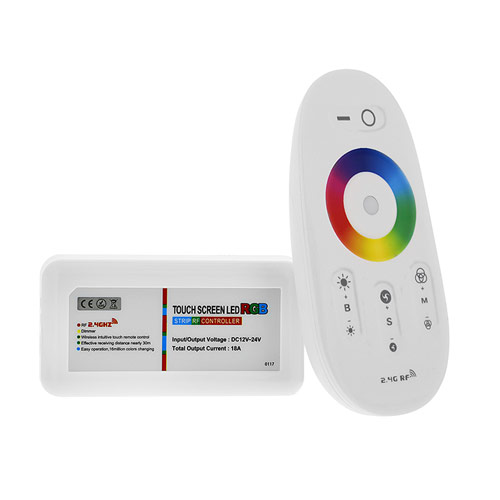

DC12/24V Max 24A 6A4CH, LED RGB Controller 2.4GHz RF Touch Color Remote For RGB LED Light Strips or Modules

Model: CONRGB-RF-03

$18.99

Free Shipping Worldwide On Order Over $199

Please Choose:

Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$18.99
5-9
$18.61
10-14
$18.04
15+
$17.28
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Universal DC12/24V Red / Green / Blue ( RGB ) LED WiFi Compatible Controller with hand held RF Touch Color Remote. Can control any 12/24V DC RGB color change LED tape light products. Synchronization function allows single remote can control an unlimited number of receivers. Color selection wheel provides thousands of options from pure white mode and 19 dynamic color-changing modes with speed, brightness and ON / OFF controls. Radio frequency remote control works through walls with range of about 100 feet.

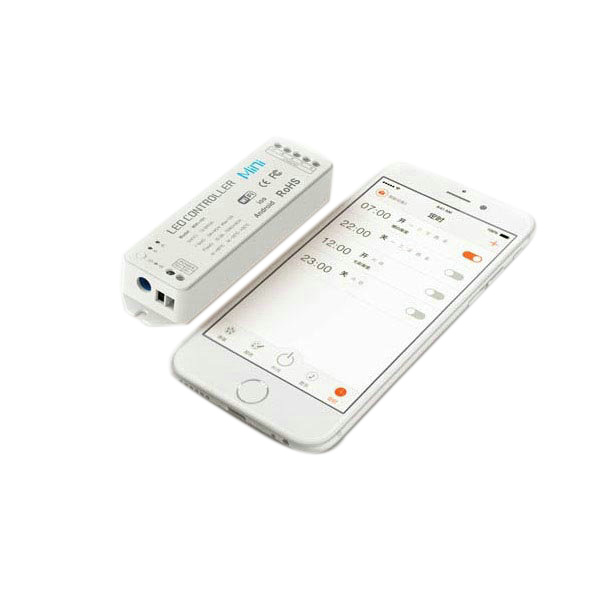

    Must be paired with WiFi LED Controller Hub(search CONRGB-WIFI-08 on superlightingled.com) for adjusting all control functions using Smartphone or Tablet running Android or iOS using free app 'WiFi Controller' .


    Standards and Certifications





    Product Specification

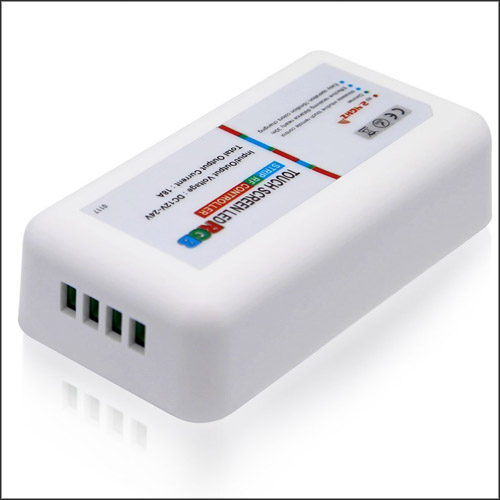

    Controller:

    Size:   85 x 45 x 23 mm

    Working voltage:   DC 12V ~ 24V

    Operating Temperature:   -25~60°C

    Control way:   R/G/B three channels

    Max load:   6A/channel, 18A/3 channels

    Output Power:   216W @ 12V / 432W @ 24V

    Output connection:   Common Anode(+)

    Control distance:   30 meters

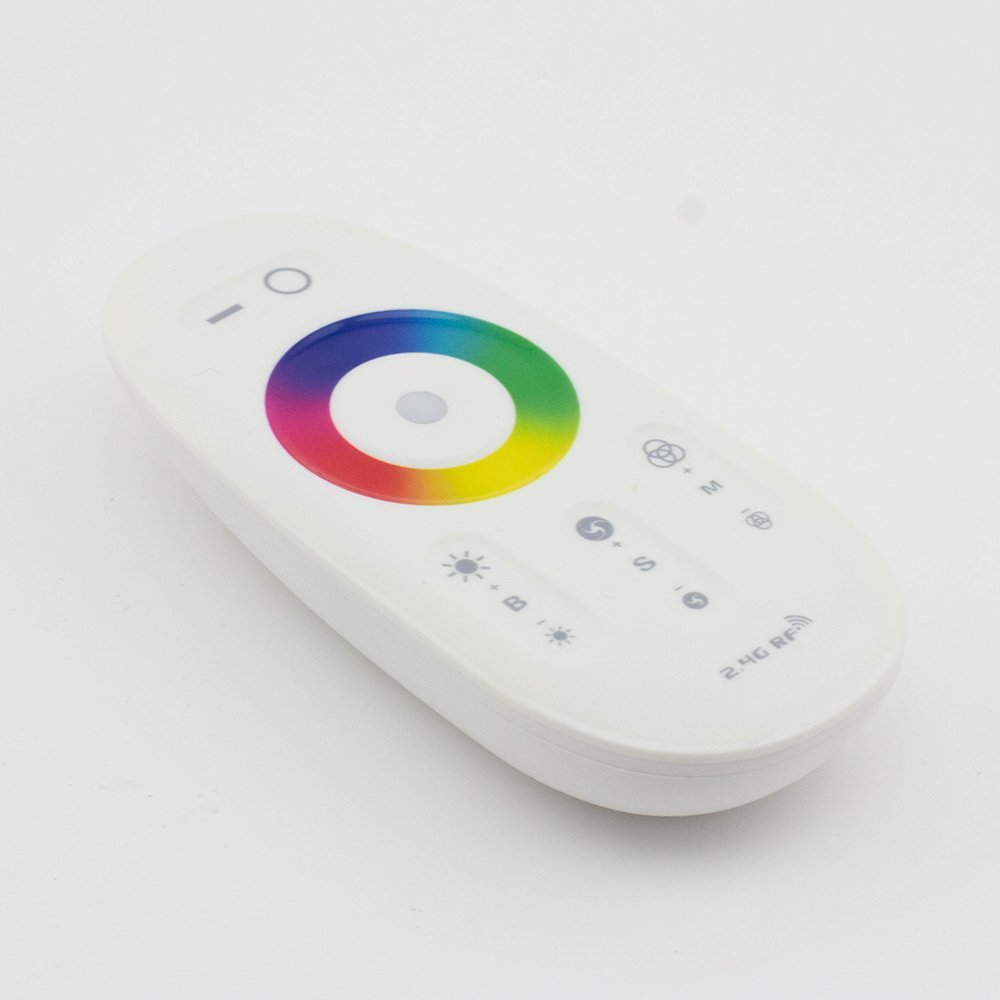

    IR Remote Control:

    Power:   AAA battery*2pcs (not including)

    Fabrication processing:   Multicolor printing & UV varnish

    Functions:   color changing and brightness dimming



    Applications

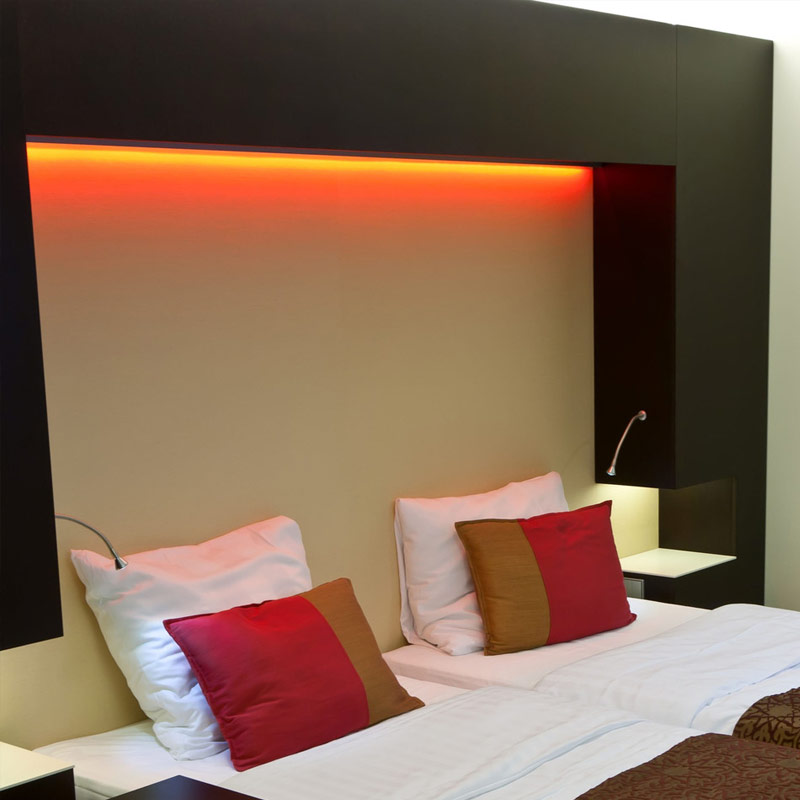

    Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday etc.

    Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, etc

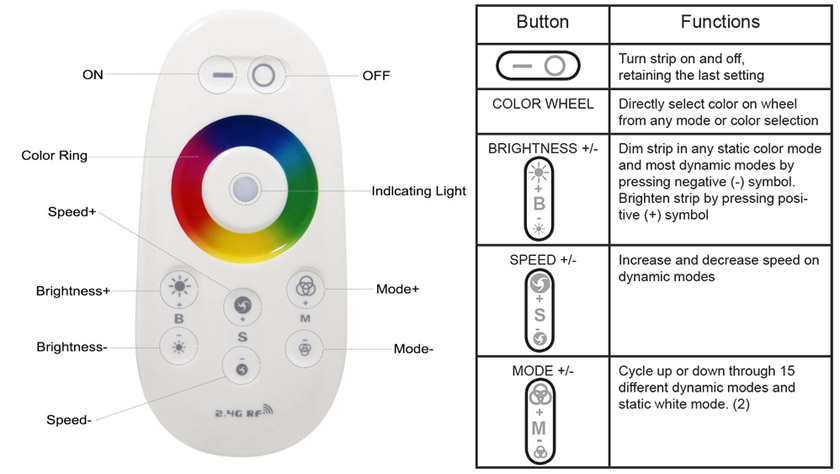

    IR Remote Control



    Connection Diagram



    Safety

    Supply voltage of this product is 12/24 Volts DC, do not exceed.

    Shorting output wires my cause damage to dimmer.

    Always observe proper polarity when connecting power and load.

    For indoor use only - this product is not waterproof or weatherproof.



    Note

    QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

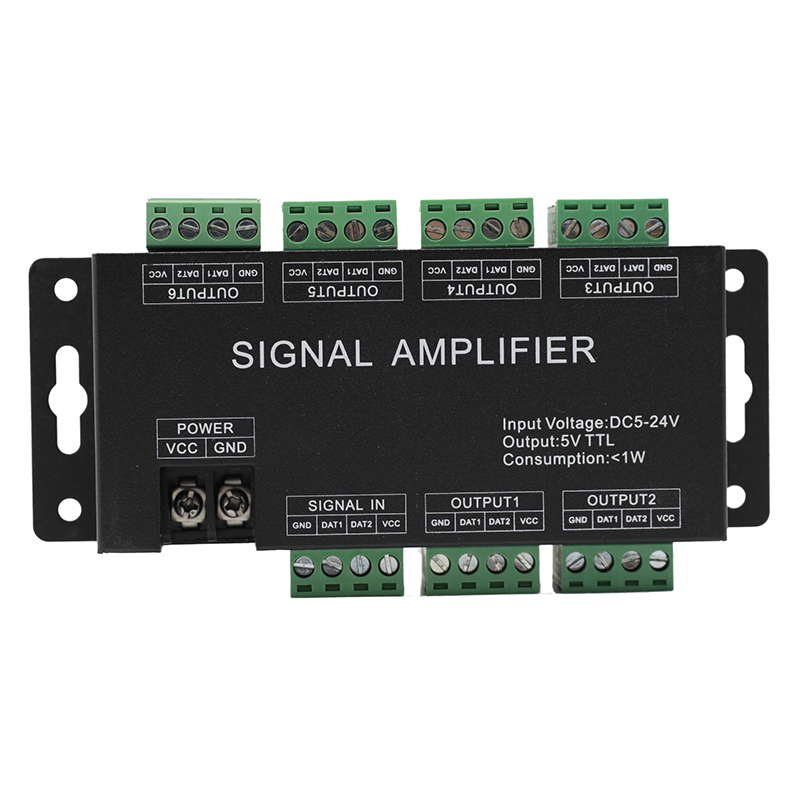

    Controller can control a maximum of 48 meters of our Flexible RGB LED Strip. Over 48 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 30 meters of additional LED Strips.

    Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.



    Package including

    1 X 2.4G Wifi Compatible RGB LED Controller Wireless RF Remote and Wifi Phone Adapter

    1 X User Manual
