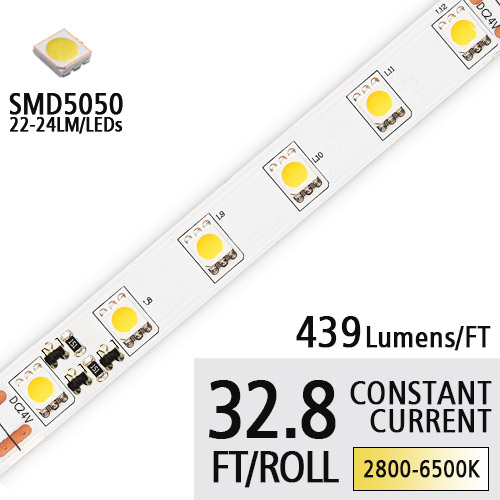

DC24V 5050SMD 90 High CRI LED Tape Lights - Constant Current Flexible LED Strip Lights - 32.8Ft/Roll, Apply For Trademark Lighting
  • DC24V 5050SMD 90 High CRI LED Tape Lights - Constant Current Flexible LED Strip Lights - 32.8Ft/Roll, Apply For Trademark Lighting
  • DC24V 5050SMD 90 High CRI LED Tape Lights - Constant Current Flexible LED Strip Lights -  32.8Ft/Roll, Apply For Trademark Lighting
  • DC24V 5050SMD 90 High CRI LED Tape Lights - Constant Current Flexible LED Strip Lights -  32.8Ft/Roll, Apply For Trademark Lighting

DC24V 5050SMD 90 High CRI LED Tape Lights - Constant Current Flexible LED Strip Lights - 32.8Ft/Roll, Apply For Trademark Lighting

Model: FSLCC-10-5050X60

Starting at: $89.00

DHL Free Shipping On Order Over $199

Please Choose:



Input Voltage:



Length:





Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Our DC24V 10 meters(32.8Ft) constant current led strip lights are specially designed and produced for where need long term brightness and high quality and high CRI 90 .Each LED has it's own built-in micro circuit regulating both voltage and current .It will not have the problem of led lighting brightness difference for long lighting transmission . All the lighting will look the same for 10 meters . It has cutting points every just 33mm making it ideal for installations where accurately cut lengths are required. For this lighting , we have IP 20 IP 65 IP67 IP68 waterproof standards to meet your indoor or outdoor use .

    Constant Current Single Colour LED Tape has drivers on the circuit board regulating the current and voltage to each of the LEDs. This ensures maximum operating brightness and a lifetime in excess of 50,000 hours.

    As it is good quality constant current led tape lights, our products have been verified onsite by world-leading inspection company SGS, and have owned the CE , RoHS, ETL and TUV quality certificates now. LED strip application scope is very wide, including LED animation light box, advertising industry, media & films industry, promotion and public service etc.



    Standards and Certifications




    Product Specification

    LED Strip Type:  10 meters(32.8Ft ) constant curent led strip light

    LED Chip:   Epistar Chip

    CRI (Ra>):  90+

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Cut Length:  every 6 LEDs can be cut

    Color Temperature CCT(White):  Warm White(2800-3200K), Natural White(4000-4500K), Daylight White(6000-6500K)

    LED Quantity:   60 LEDs per 1meter (3.28 ft) ,600 leds /roll

    Lifespan:   50,000+hours

    Warantty:   3 years

    Input Voltage(V):   24VDC

    Working Power:   5A 120/roll 32.8 ft  Max

    Lamp Luminous Flux(lm):   22~24lm/LEDs   1380LM/meter

    Highest Brightness:    Up to 439 Lumen/FT (1,440/Meter)

    Efficiency up to:    115 Lm/W

    Product size:  L10000mm/394in*W10mm/0.39in*H3mm/0.12in       32.8 Ft /Roll

    Beam Pattern:   120 degree

    Water Proof:   IP20 / IP65 / IP67 / IP68



    Color Temperature And CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.

    Consider the look and feel you want your project to have.

    What other color lights will be present? What material and color are the materials you wish to light?



    CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);



    Installation Instruction

    create_a_Large_flexible_led_strip_light_Installation.jpg                       create_a_Large_flexible_led_strip_light_Installation.jpg                       create_a_Large_flexible_led_strip_light_Installation.jpg

     You can cut the strip every few inches,                      The back of the strip is fitted with a strong                    IP67/IP68 type which will come with

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements                 to many different surfaces.



    We sell led strips in spools of 32.8 Ft (10 meters).If your want to used with more than 32.8 Ft length, we recommend the following instruction:

     Direct connecting

     Multiple connecting

     Two-way connecting



    1. LED Strips with direct connecting diagram


    2. Multiple Strips connecting diagram


    3. Strips with two-way connecting diagram




    4. How does it work

    create_a_Large_flexible_led_strip_light_Installation.jpgcreate_a_Large_flexible_led_strip_light_Installation.jpgcreate_a_Large_flexible_led_strip_light_Installation.jpgcreate_a_Large_flexible_led_strip_light_Installation.jpg

    The basics are all the similar. You will need a led strip light, a power supply(Pls use a DC24V 200Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, length required, and dimming option required.We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question , please let me know:  sales@superlightingled.com

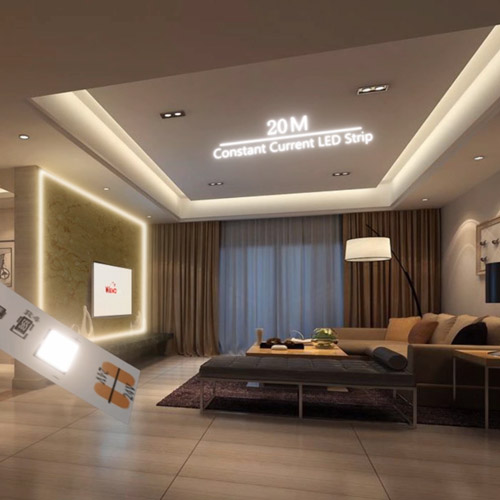

    Application

     Trademark lighting                              Logo lighting

     Channel letters lighting                       Light boxes lighting

     Landscape layout lighting                    Stage decoration lighting

     Sign cabinets                                       Channel lights

     Cove LED lighting                                Edge lit signs

     Canopy illumination                            Off grid lighting



    How to choose led strip lights

    Step 1: Get a clear vision! Because each project is unique, there is no all-in-one solution.

    Different projects require different types of LED strips. When place order , please clear following answers :

     What is the Constant Current LED strip lights.

    Its main advantage is that can reach to 32.8Ft/65.6Ft/98.4Ft and the brightness is nearly same at the head and the end. It can also ensure the stability of light output. And it can help you save the installation cost.

     What will you be lighting?

    This tape light can be replace normal T8 tube or blub .

     Where will it be installed (Indoor or outdoor)?

    Indoor or outdoor ? This  may related to waterproof grade choose .

     Do you want to dim your lights or control them with a remote or wall switch?

    If you have dimmer , then you can use a remote controller or mobile APP to control and adjust your lighting .

     What overall look do you want to achieve?

    This lightings that you going to buy can be daily use or decoration use.

     What color do I need?

    This led tape lights has warm white , daylight white and nature white 3 colors ,each color temperature is different , please choose the color you need .

     What materials am I looking?

    Material of this lighting is using recycle material , friendly to environment , our product have certificate of  CE, RoHS, ETL and TUV .

     Are there other lights in the area and if so, what color are they?

    In our company , we have single color ,color changing RGB RGBW led strips , high voltage led strips , programable full color led strip lighiting , please choose the lighting you like
