08*07mm Silicone Diffuser LED Strip Tube For 5mm Light Strip - Three-Sided Illumination
Related Products
08*07mm Silicone Diffuser...
$1.99
DC5V SK6812 3.28Ft 60LEDs...
$12.99
24V 2216 5mm Narrow CCT...
$24.98
Super Narrow 5mm 2216SMD...
$36.98 $34.985% off
DC12/24V Ultra Narrow 5mm...
$17.98
SK6812 RGB 3535SMD...
$19.98
High CRI 90 5MM...
$26.98 $12.9852% off-
Special Price: $1.99

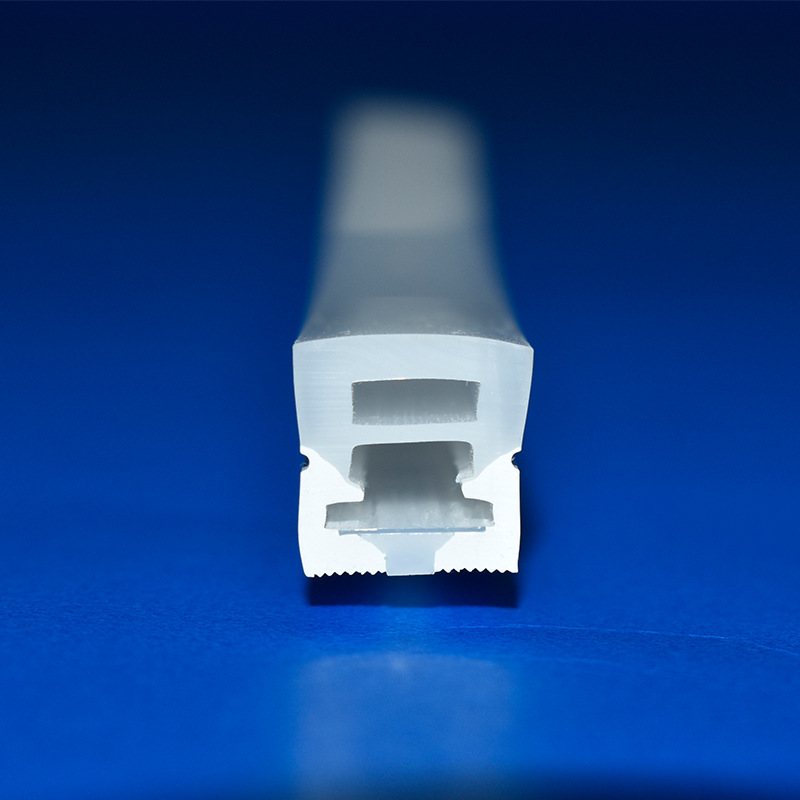

Want your place to be different? With the help of lighting is a good way to do so. This is a silicone diffuser tube for LED strip lights, 8mm/0.3inch wide by 8mm/0.3inch high, with top three sides illumination. The small size makes it easy to hide under cabinets or other places. Any 5mm wide LED strip light can be tucked into this silicone tube.
The silicone LED strip has a very good light effect, uniform light, and no light spots. It is made of high quality silicone material, soft and bendable, and can be cut at will. Sealing the end caps with glue, it can achieve IP67 waterproof rating.
Note:
1) This product is for silicone diffuser channel only, it doesn't include LED strip.
2) If you buy the silicone sleeve and light strip on our website, we can make neon lights for you for free.
Standards and Certifications
Product Specifications
| Tube Material: | Food-grade Silicone |
| Suitable LED Strip Width: | 5mm/0.2" |
| Lighting Direction: | Top emitting |
| Tube Size: | 8mm/0.3" X 8mm/0.3" |
| Length: | 1m/3.28ft, 2m/6.56ft, 5m/16.4ft |
| Beam Angle: | 180° |
| Accessories: | End Caps (come with), Mounting Clips (Please choose in the "Kit" option) |
| Waterproof Rating: | IP67 |
| UV Resistant: | Yes |
| Working Temperature: | -50°C to 200°C |
| Knowledge Source: |
Flex LED Silicone Tube Installation:
There are three installation methods for the silicone led profile:
One is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.
The second is to put the soft silicone tube into the aluminum channel, this installation method is suitable for linear lighting projects.
And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
If you insist on completing the production by yourself, you can read: How To Put A Flexible LED Strip Light Into A Silicoen Diffuser Tube?
We are not responsible for any damage caused by your own operation!
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
