Special Price: $33.98 $30.989% off

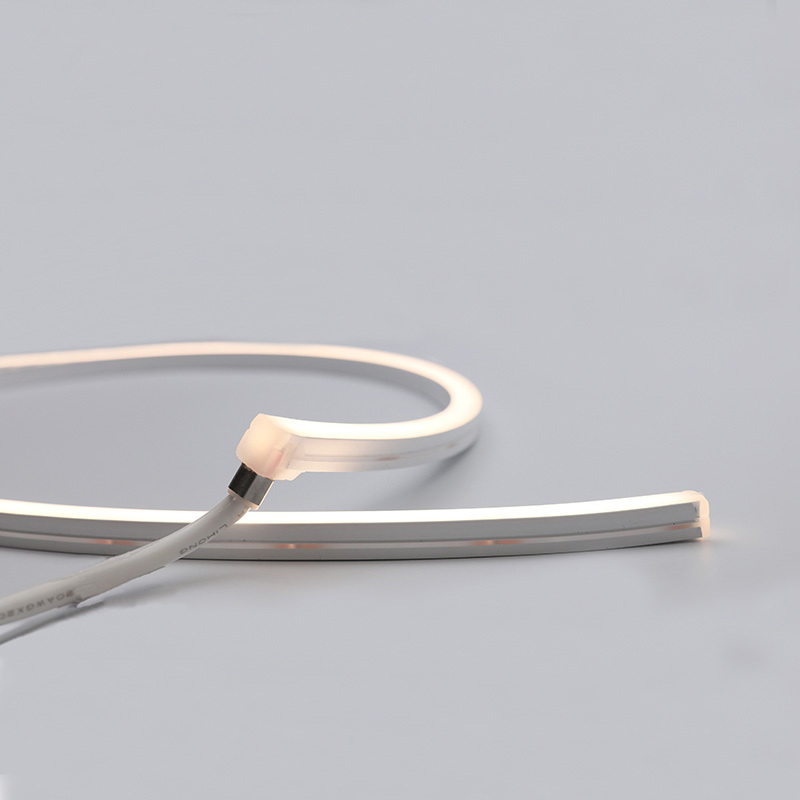

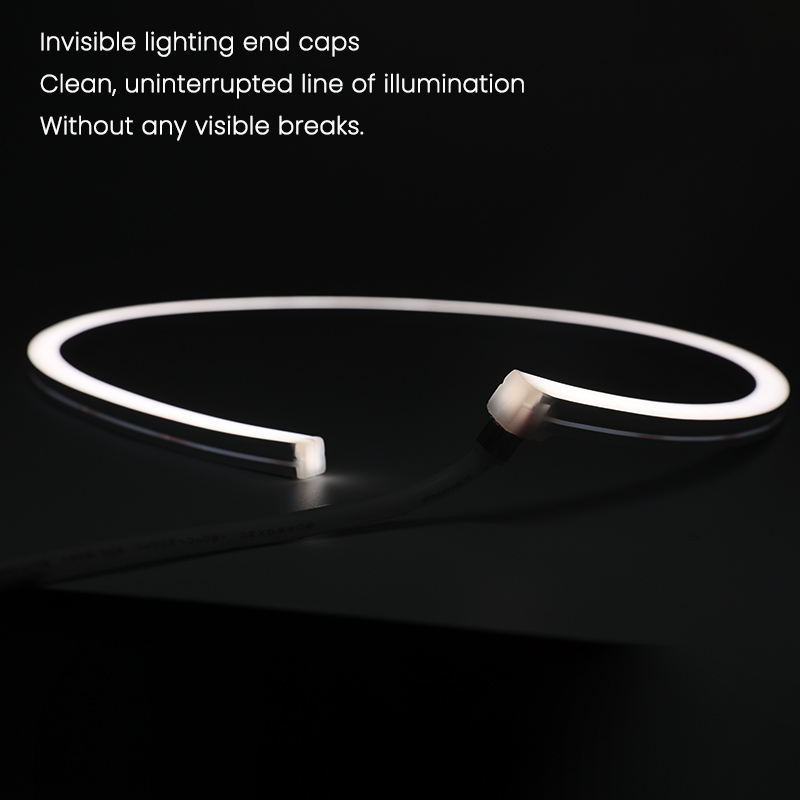

Revolutionize your outdoor lighting with our innovative 10x10mm side-emitting LED injection molding neon lights, designed for those seeking slim neon lighting solutions with high aesthetic standards. Through exclusive high-temperature and pressure molding process, end caps seamlessly integrate with LED neon light tube, so the connection points are virtually unnoticeable when lit, achieving a truly seamless lighting effect.

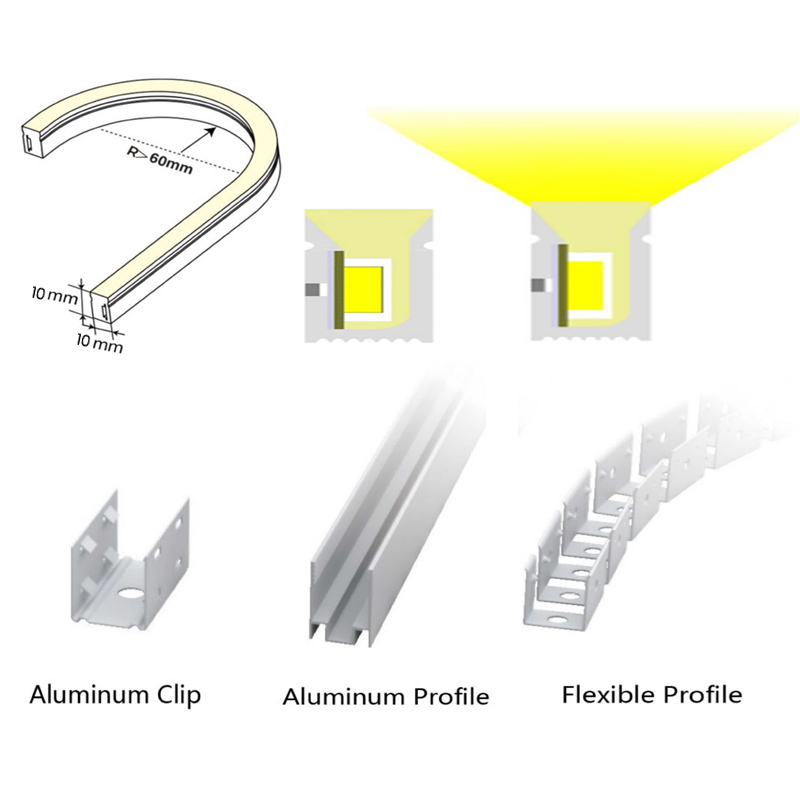

Compared to traditional hand-glued end caps, the new connected parts are smooth to touch without any protruding edge. Able to be bent horizontally, our LED neon rope lights help you discover infinite shapes to customize your neon signs with ease. To prevent strip from breaking during bending process, we additionally place an impact-resistant plastic sheet under each LED strip PCB inside tube, making it more durable. Using gas-phase silica gel as material, these flexible neon led strip lights combine both advantages of high tearing resistance and anti-yellowing, built for long-term service so you don’t need to replace them frequently, very cost-effective.

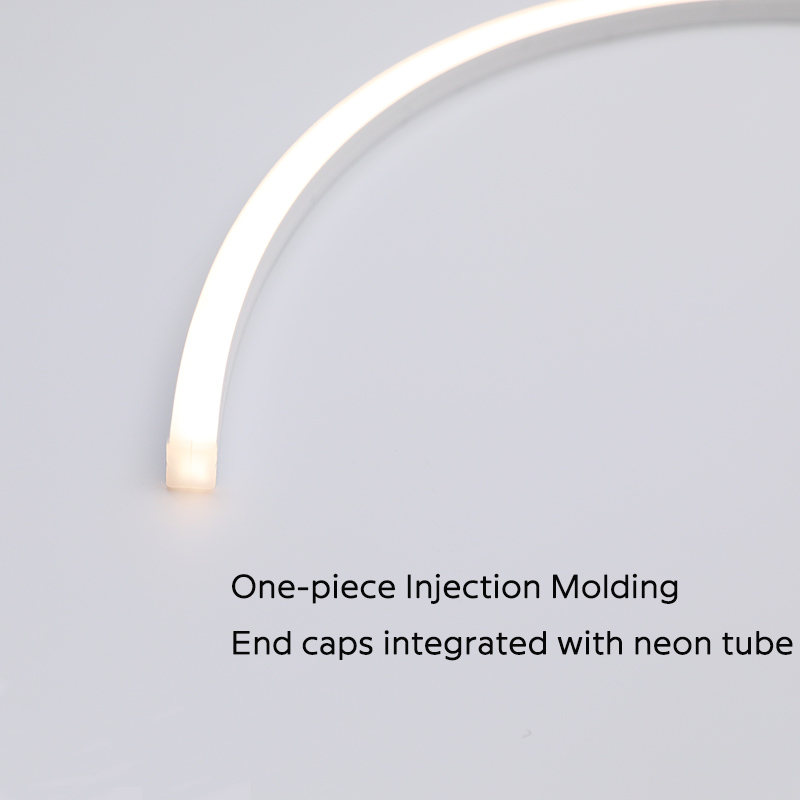

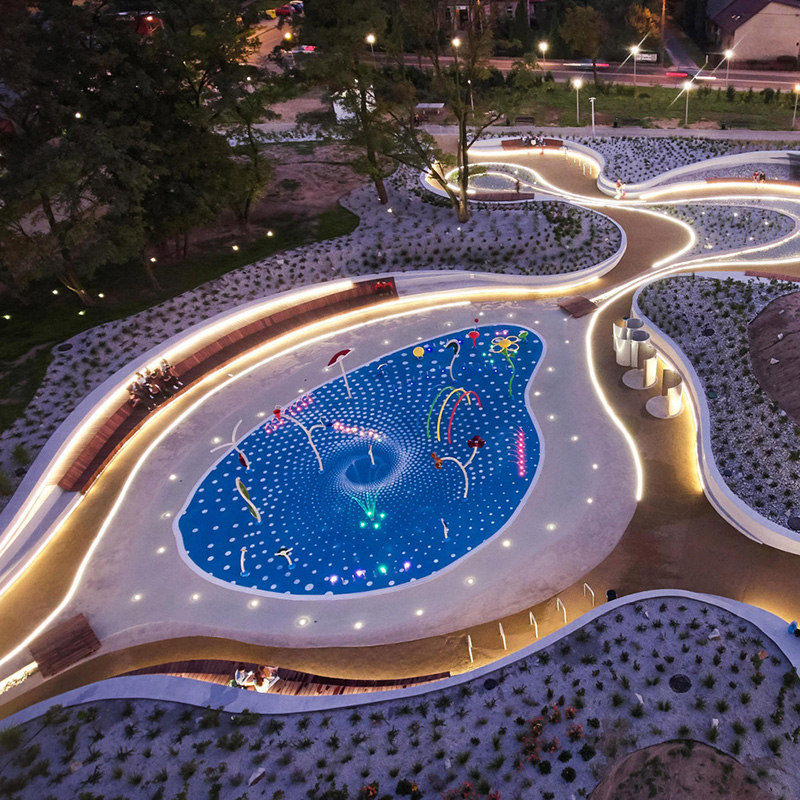

Injection molding technology ensures neon tubing is filled with solid silicone, which the LED strip is tightly surrounded with, making these strips perfectly stabilized. End caps are securely sealed, so it has the high waterproof rating of IP 67, can be applied to outdoor environments and withstand any weather condition. Able to effortlessly fit into narrow gaps and irregular recesses, these exterior neon lights are perfect for accent lighting projects. Shop our LED neon flex lights and experience seamless illuminous beauty.
Note: Adopting the newest technology, the endcap is integrated into tube when made, so please select end caps types.
If select kit, for single color LED neon flex, we will ship PSWP-12V-100W power supply. We will automatically match the power supply and controller based on the voltage and wattage of neon lights to make sure they can be used together. If you want to buy a dimmable driver, try YSV100W12V-IP67 with T2-L touch panel dimmer.
Product Specifications
| Product Type: | 10X10mm Flexible Injection Molding Neon Lights |
| LED Chip: | SMD2835 |
| Beam Angle: | 120° |
| Lighting Direction: | Side Emitting |
| Light Colors: |
1800K Amber Color, 2300K Warm White, 2700K Warm White, 3000K Warm white 4000K Natural White, 5000K Daylight White, 6000K Daylight White, 7500K Cool White |
| Length: | 16.4ft/roll or 32.8ft/roll |
| LED Quantity: |
Single color: 120 LEDs per meter |
| Lumen: | 24-26lm/LED |
| Section Size: | 10x10mm (0.39x0.39in） |
| Input Voltage: | DC 12V/24V |
| Working Power: |
Single color: 60W /16.4ft |
| Material: | Gas-phase silica gel |
| Waterproof Rating: | Waterproof IP67 |
| CRI(Ra>): | 90 |
| Lifespan: | 50,000+hours |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
