Special Price: $18.98
LED channel diffuser with excellent bending properties creates attractive curved shapes both horizontally and vertically. Our 1212FB fully curved led strip channel bends left-right and up-down, smoothly connecting the curvature between two walls, no longer limited to straight line lighting.
Extremely mini size design allows for easy installation by simply cutting a slot in the wall. Ideal for new architectural designs and lighting upgrades in existing homes. Comes with a soft, translucent silicone led cover for even, comfortable and pleasant lighting. The silicone material also offers excellent durability for long term use.

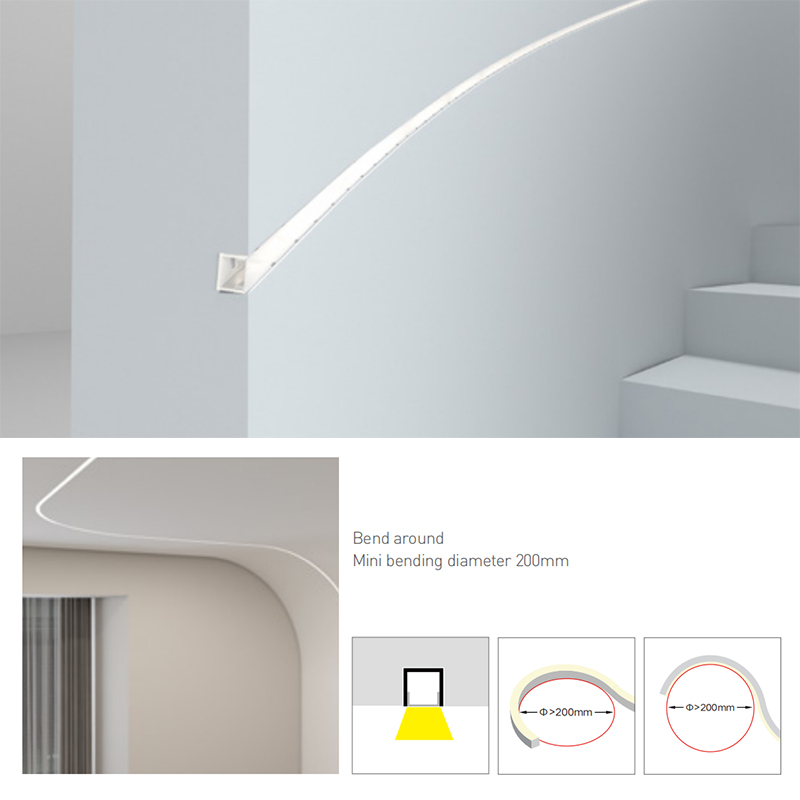

This 1212FB flexible led light channel has a minimum bend diameter of 200mm (7.87inch). 1212FB can be considered as a combination of the left-right bend 1212LR and the up-dowm bend 1212UD. We also offer the straight version 1212R.
You can choose a long diffuser cover piece or several diffuser covers to meet your installation needs, e.g. you purchase 10pcs 1m 1212FB channels, we will send you 10pcs 1m diffuser covers or 1pcs 10m diffuser cover.
For up-and-down bend installation: light strip is applied to the bottom; accommodates light strips up to 10.3mm wide.
For left-and-right bend installation: the light strip is attached to the side; accommodate light strips up to 6mm wide.
Please determine the light strip type according to your bending needs.
Note: We recommend purchasing a minimum of 10pcs of the 2-meter and 3-meter 1212FB led flexible aluminium profiles. Smaller quantities will be charged an extra fee for extra-long transportation.
Product Specification
Product Type: | 1212 Most Flexible LED Channel Diffuser - Fully Bending |
Material: | 6063-T5 Aluminum Alloy |

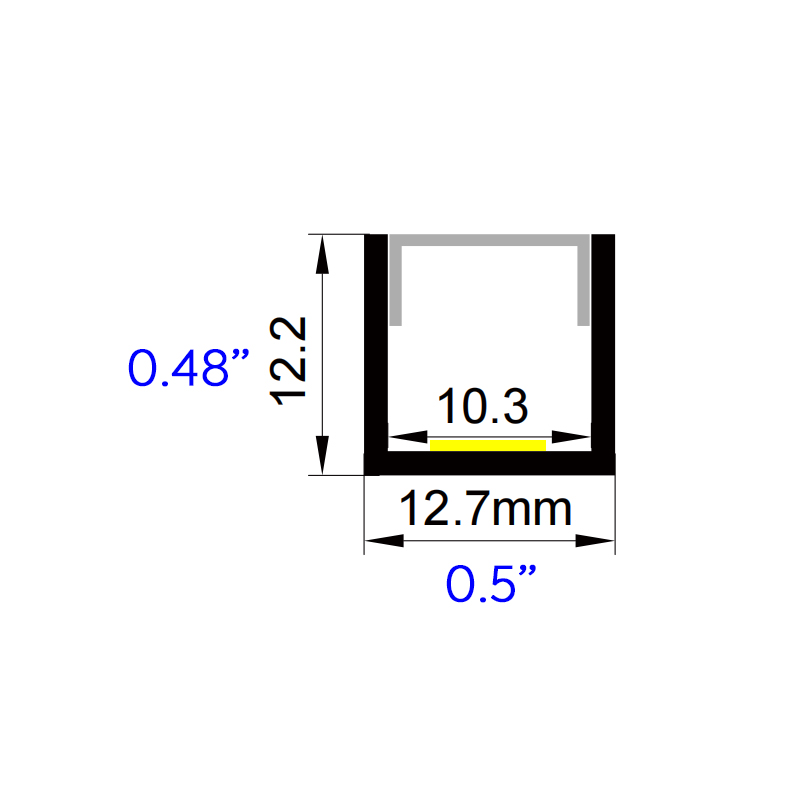

Channel Size:
|
W12.7mm(0.5")*H12.2mm(0.48")
|
Inner Width: | 10.3mm(0.4") |
Color: | Anodic silver oxidation |
LED Diffuser: | Semi-clear silicone diffuser cover |
Length: | 1m(3.28ft), 2m(6.56ft), 3m(9.84ft) |
Accessory: | 1*flexible extrusion profile, 1*silicone cover, 2*end cap |
Installation: | Recessed |
Apply to: | 5mm/6mm led tape lights for fully bending |
Min. Bend Diameter: | 200mm/7.87" |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
