Special Price: $105.98
Check our DC12-24V Individual Addressable SK6812 LED Strip with incredible versatility and performance. This is a unique 12V and 24V individually addressable led strip, that adapts to a wide range of application scenarios. Compatible with both 12 volts and 24 volts input, it can make good use of your unused or redundant 12V or 24V electrical systems.

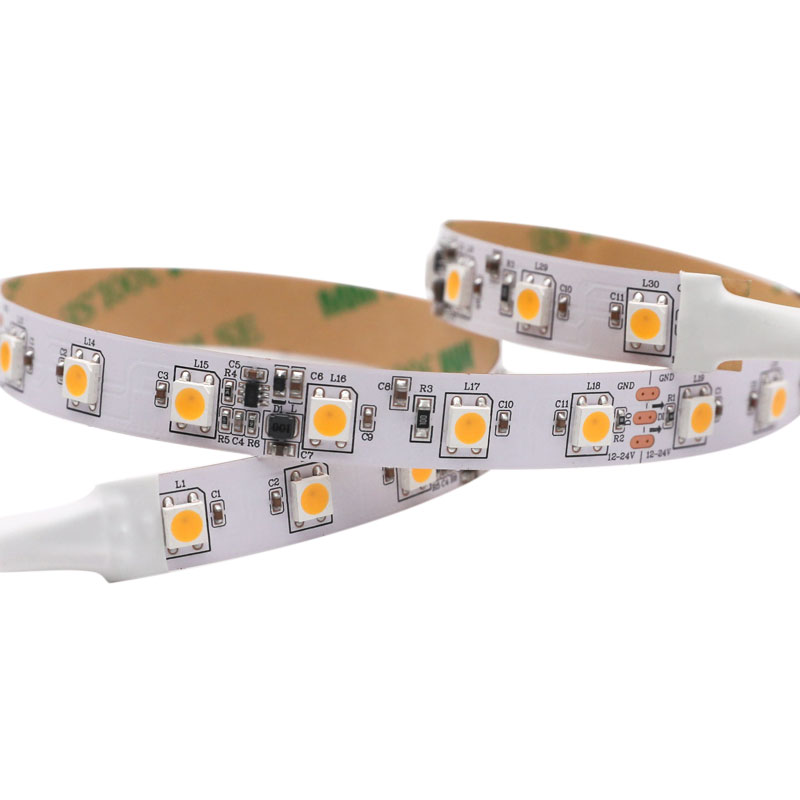

With 300 SMD5050 LEDs spanning the 12mm wide 5-meter length (16.4ft) strip, 60 LEDs per meter, and 18 LEDs per foot, this SK6812 LED strip brings exceptional flexibility to your dream color LED lighting project.
Since there is no spot stock for Daylight, Warm White, Natural White, WWA, and RGB+Natural White type, a minimum quantity of 100 meters / 328ft is required for production.
Product Features
1. DC12-24V Wide Voltage Input: Our SK6812 white LED strip can work at any voltage between 12V and 24V, which has strong adaptability and compatibility.

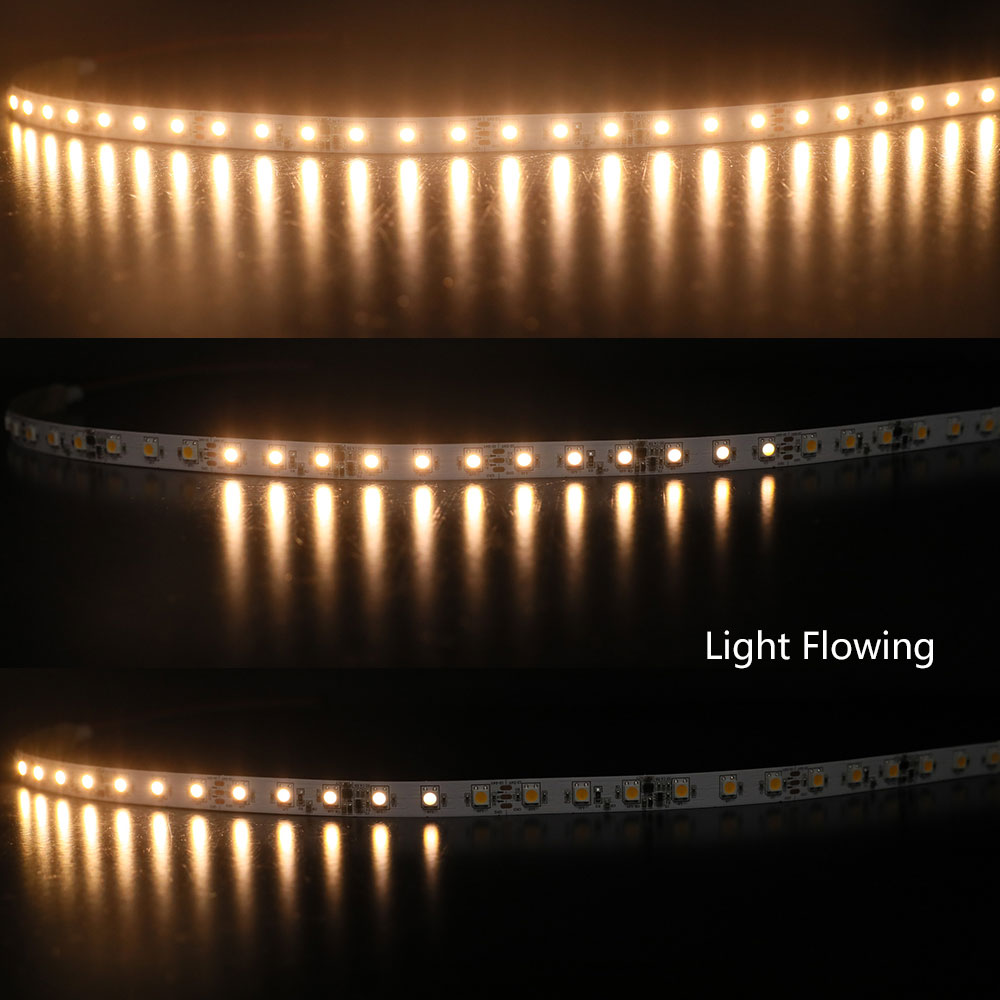

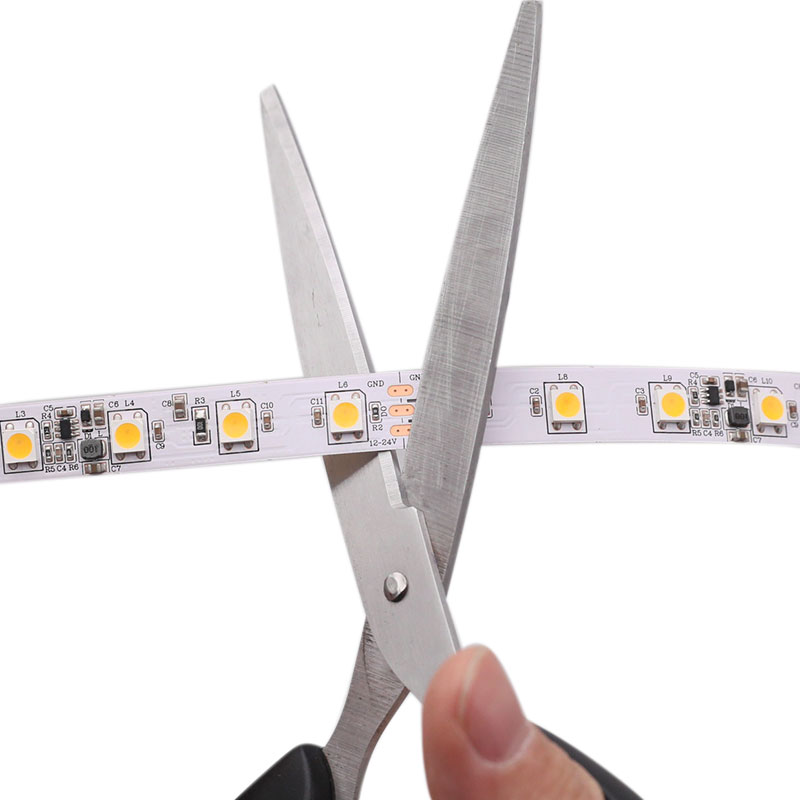

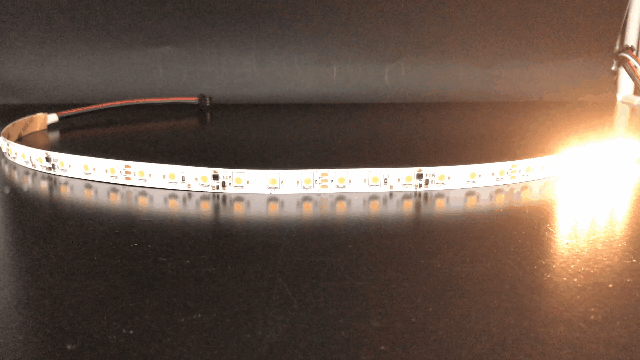

2. Individually Addressable LEDs But With A Special Cuttable Design: You can individually set the brightness and switch status of each LED diode to achieve the single-color dynamic effect you want. Every 6 LEDs (100mm/3.93in) can be cut.
3. Built-In SK6812 IC Chips: We offer a variety of color options, 3000K, 4000K, 6000K, WWA, RGB, and RGBW, better adapt to your project needs.
4. Constant Current Circuit Design, 10m/32.8ft No Voltage Drop, Friendly For Engineering Use: A single such strip can be up to 20 meters/65.6ft long (requires power supply at both ends), making it a good choice for commercial projects.
Select a compatible running water led strip controller here.
SK6812 Single White LED Datasheet Download
Standards and Certifications
Specification
| LED Strip Type: | 12-24V Wide Voltage Input Individually Addressable SK6812 LED Strip |
| LED Chip: | SK6812 built-in IC + 5050SMD |
| Input Voltage: | DC12V/DC24V |
| Power: | 14.4W/m, 72W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | Warm White 3000K, Natural White 4000K, Daylight 6000K, WWA, ARGB, ARGBW |

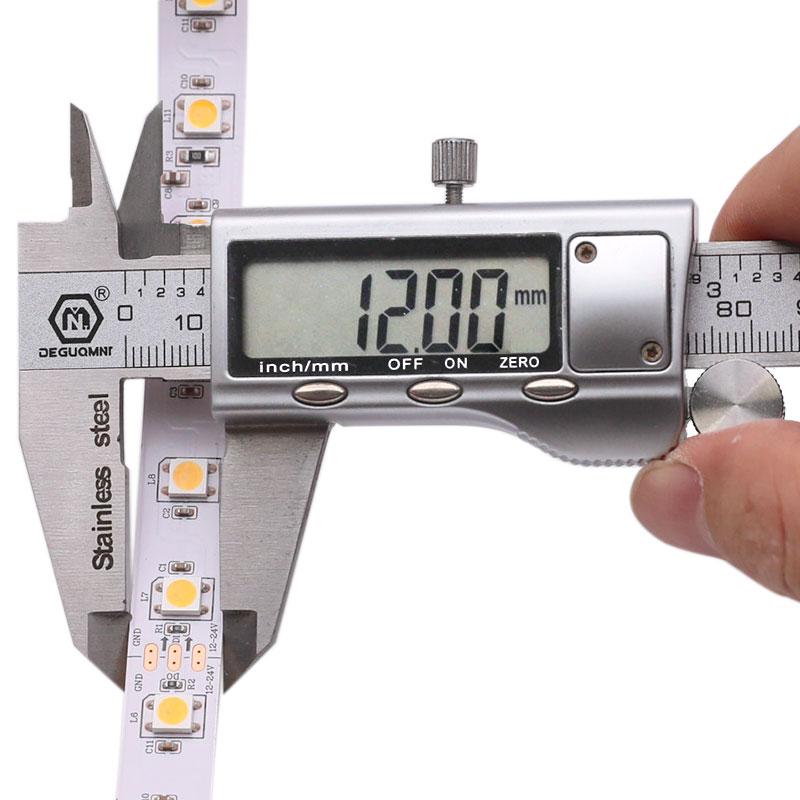

| PCB Width: | 12mm/0.47" |
| LED Quantity: | 60LEDs/m, 300LEDs 16.4ft |
| IC Quantity: | 300 ICs/roll (1 IC drives 1 LED) |
| Cuttable: | 6-LED, 100mm/3.93" |

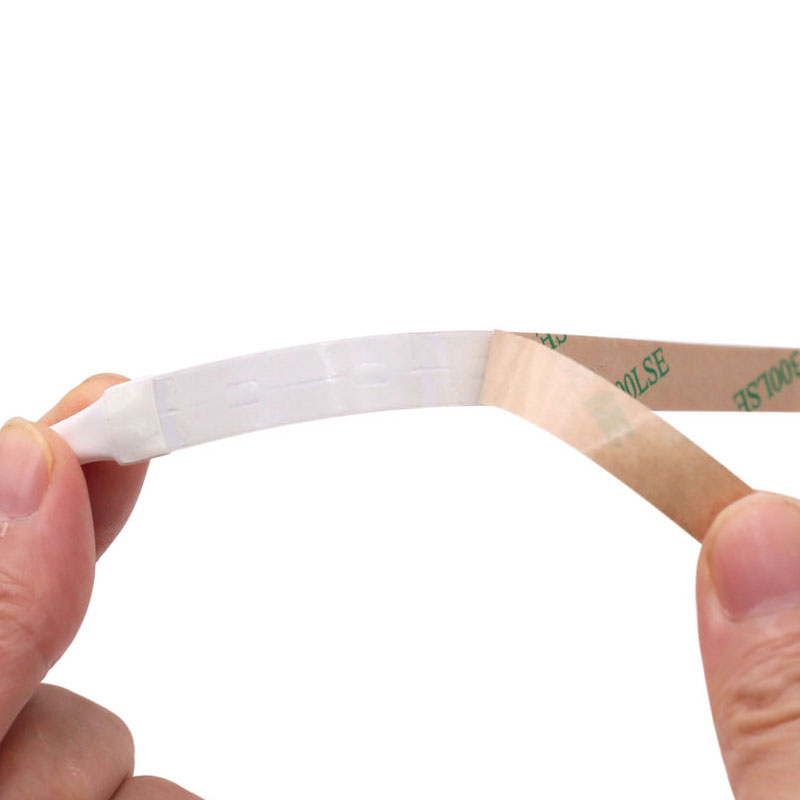

| Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68 |
| Strip Length: | 5m/16.4ft |
| Beam Angle: | 120° |
| Lumen: | 20-22 lm/LED |
Wiring Diagram:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
