Special Price: $169.98 $159.986% off

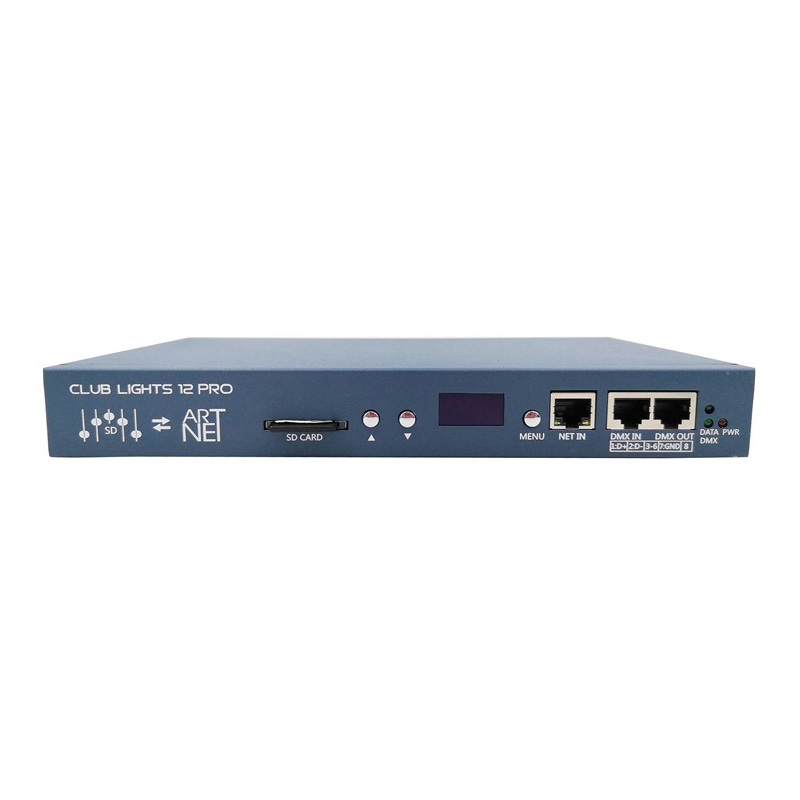

GC-6612-PRO MADRIX lighting controller is a 12-port SD card offline and Artnet online DMX/TTL/SPI controller. With 12 groups of output ports, support DMX512 and SPI light fixtures, such as TM1812, WS2811, UCS2903, UCS9812, SM17512, and other addressable ICs.
GC-6612-PRO DMX/SPI controller uses FPGA as the core processor, realizes high load, high frame rate, high gray scale, and high synchronization control with the super parallel data computing capability of FPGA. The realization of a single channel carrying 12K pixels is very conducive to the construction of the engineering site wiring.
GC-6612-PRO controller has an Ethernet interface, supports ART-NET, and GC-NET standards. Users can connect to this controller via Ethernet and preview online. In ART-NET mode, it supports 72 DMX512 universes.

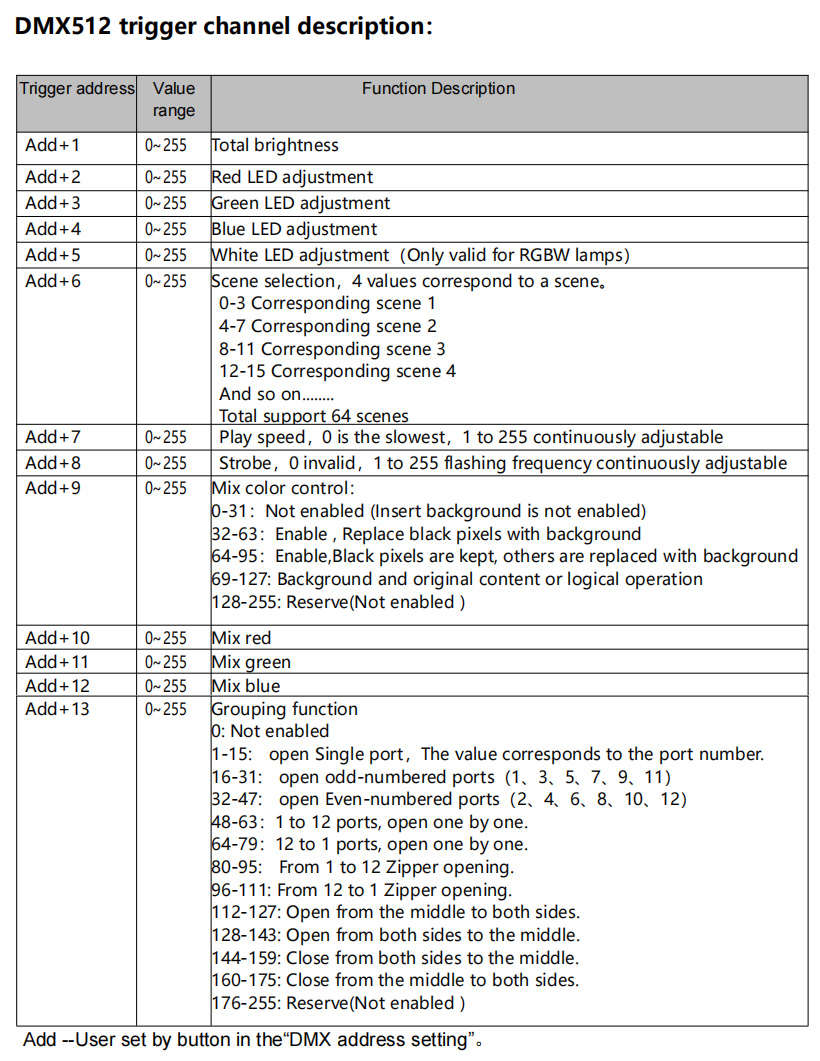

GC-6612-PRO light controller has an external DMX512 trigger function, can access the DMX console, GC-102A music control, and DMX-WiFi-Mini mobile APP control, very suitable for bar, KTV room lighting control, accept the command call program, adjust speed, brightness, special effects, support up to 13 channels Of DMX512 instruction.

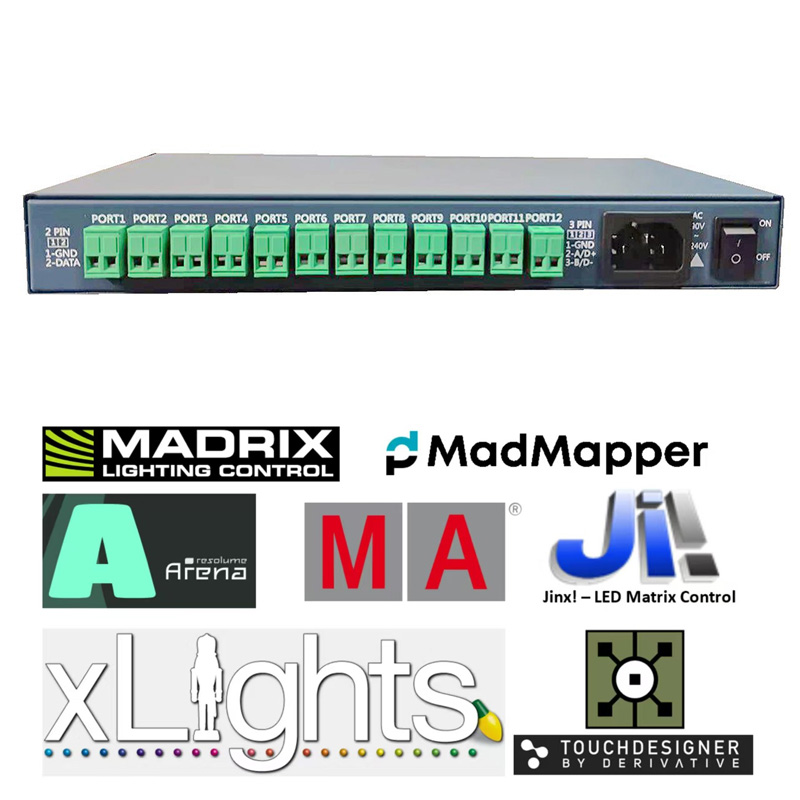

GC-6612-PRO DMX/SPI light controller supports the multi-function editing software "ShadowDraw", "Resolume", and "Madrix", which allows users to simply record MADRIX effect files for offline playback. It can be widely used in KTVs, bars, office buildings, hotels, shop signs, and other LED lighting projects.
Note: GC-6612-PRO itself has no address function. You need to configure a dedicated encoder.
Software Download: https://www.superlightingled.com/PDF/Madmapper 5.1 Install.zip
https://www.superlightingled.com/PDF/madrix-5.0.zip
https://www.superlightingled.com/PDF/MadrixWygInstall.exe
https://www.superlightingled.com/PDF/2021-LedEdit_setup.rar
https://www.superlightingled.com/PDF/ArtnetSettingTools.exe
Madrix Offline Program Recording Software Download
https://www.superlightingled.com/PDF/CaptureArtnetTools%20V1.49.1-EN.rar
Mardix Software setup demo video
GC-6612 Pro Madrix Online Recording SD Card Offline Playback:
Function Features:
1. FPGA as the core processor, to achieve high load, high speed, high gray, high synchronization control.
2. Offline SD card controller, plug and play. Support SD cards of various capacities, such as 128M-32GB, and supports a maximum of 64 scenario files.

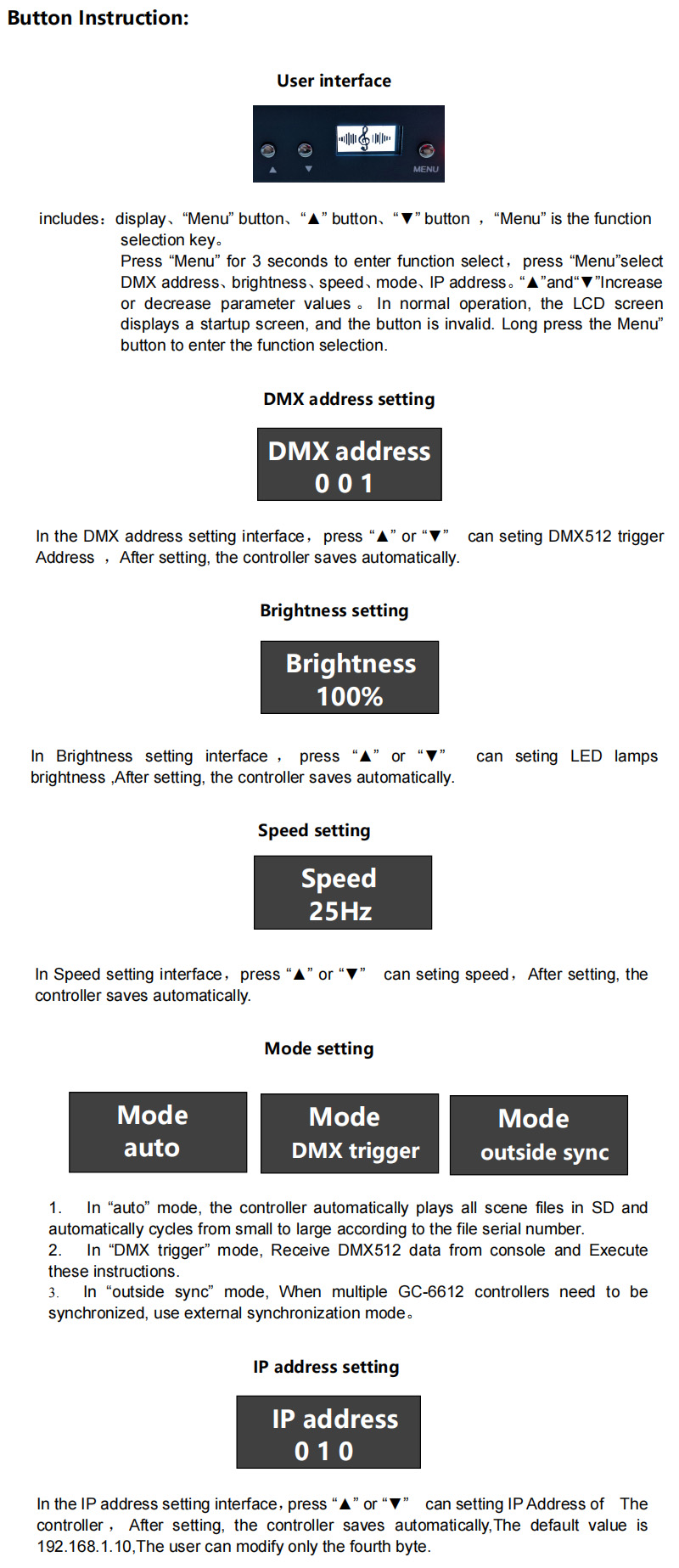

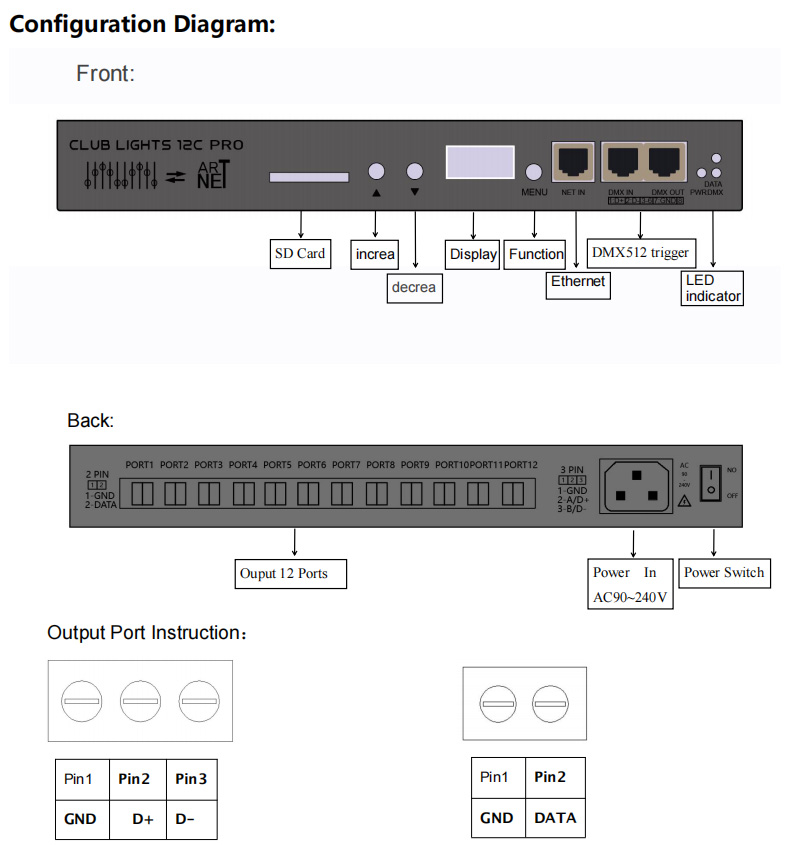

3. OLED display screen, display parameters and address code, quick button setting address code and parameters.
4. Support 12 port output, each port support 1024 pixels, single support 12K pixels.
5. Support a variety of lighting driver IC: DMX512, UCS series, TM series, LX series, GW series, TLS series, MY series, and so on.

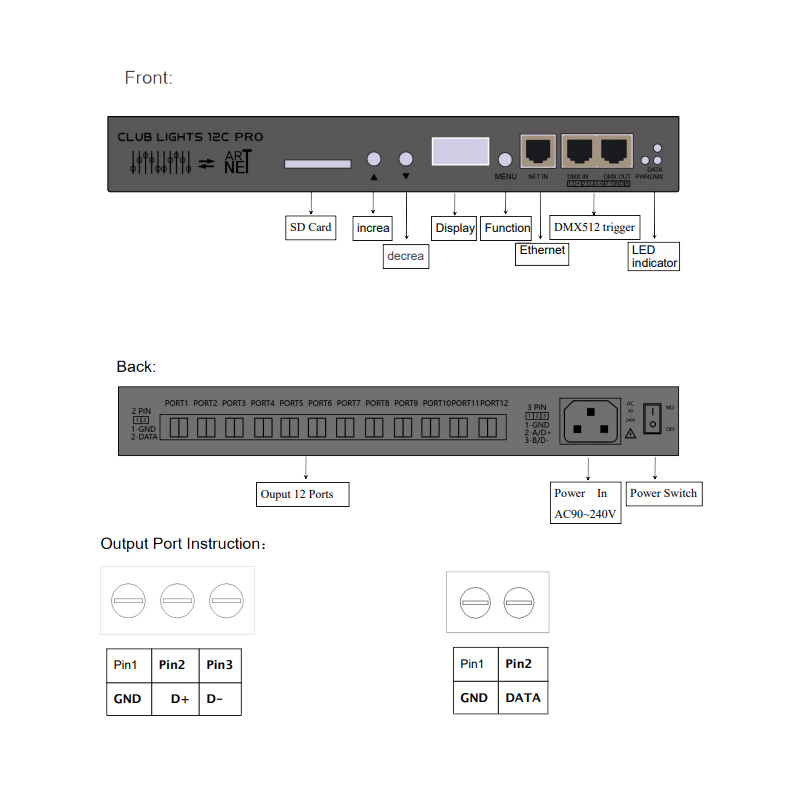

6. The output interface is compatible with RS485 signal and SPI (TTL) signal.
7. Support RGBW four-color control and a variety of special control, RGBW can choose the energy-saving mode and brightening mode.
8. Up to 65536 gray level control, built-in user-defined gamma correction curve.

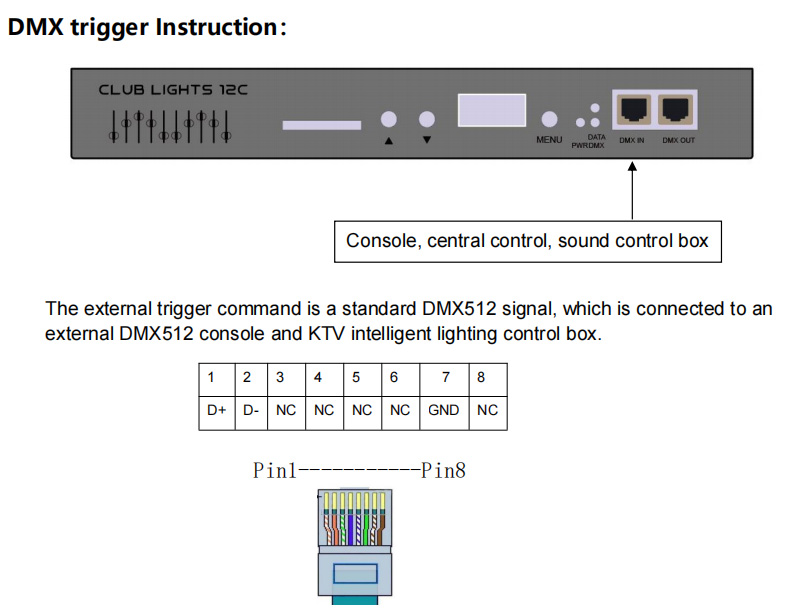

9. Can be triggered by external DMX512 console for extended use.
10. Support MIX、Grouping by external DMX512 console.

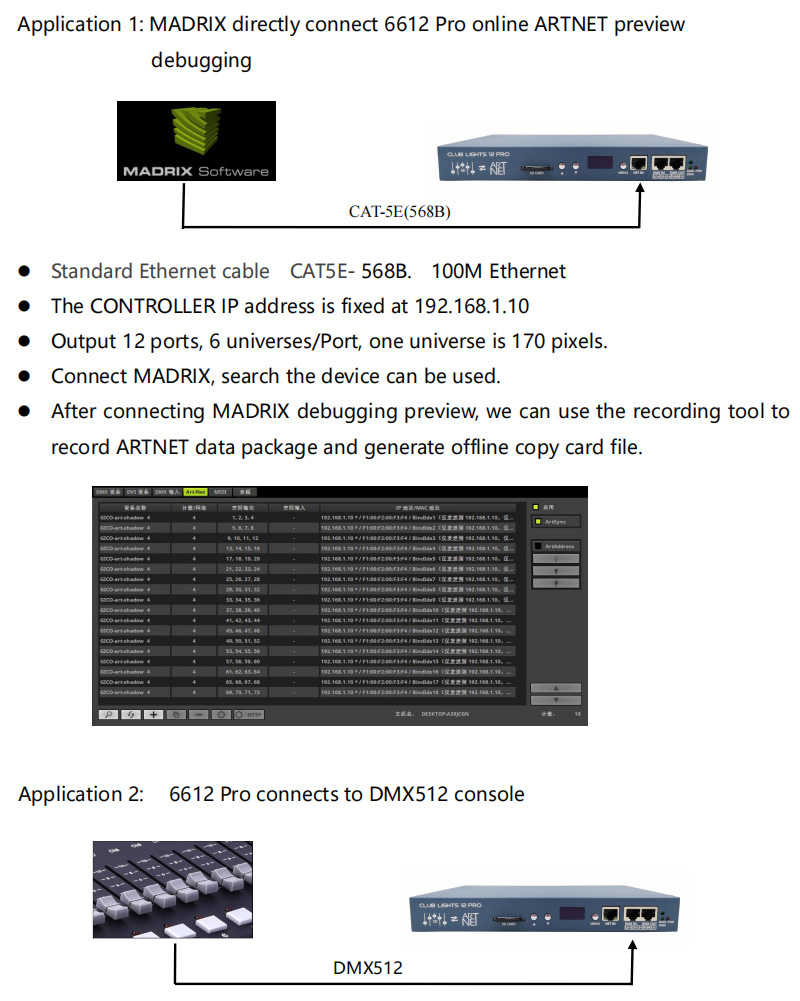

11. Support MADRIX online preview, can record ARTNET scene files.
12. Support LEDview online preview, can generate SD scene file.
GC-6612-PRO PDF Download
Standards and Certifications
| Working Voltage: | AC 90-240V |
| Power Consumption: | 3W |
| Input Trigger Interface: | RJ45 (DMX512) |
| Ethernet Interface: | RJ45 (10M/100M) |
| Output Port: | 12 |
| Control Qty/Port: | 1024 pixels |
| Output Signal: | DMX512/SPI(TTL) |
| Working Temperature: | -20℃～65℃ |

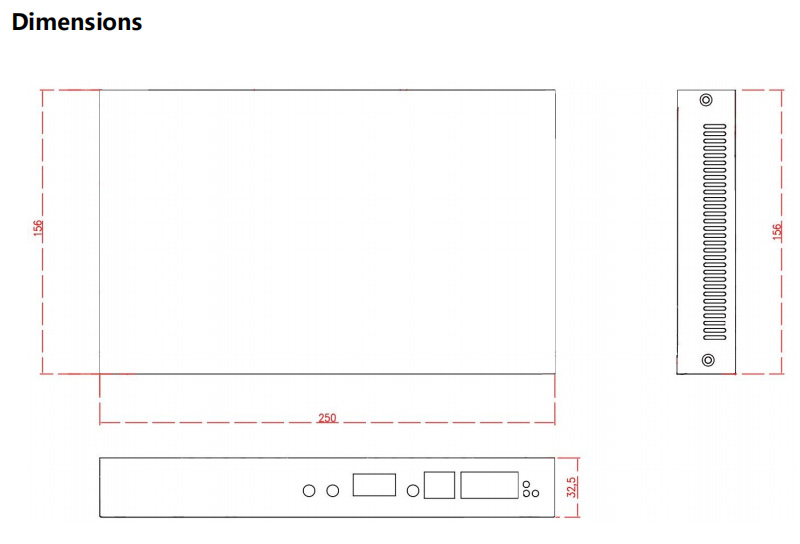

| Dimension: | L250×W175×H35 mm |
| Weight (G.W): | 1.3 Kg |
Scene file description:
File format: XXXXXXXX - XX . RGB
(1) The default is two characters “SC”, user can also define other characters, note that the maximum is eight characters. (No special need, modification is not recommended).
(2) Reserve, The default is “-”, User cannot modify.
(3) The default: 01、02、03 etc, scene serial number, when the controller is in auto mode, it will play in sequence according to this value, Users can modify as needed, it is recommended to copy to SD after modification on PC.
Note: It is recommended to format the SD card before copying the card.
