Special Price: $15.98

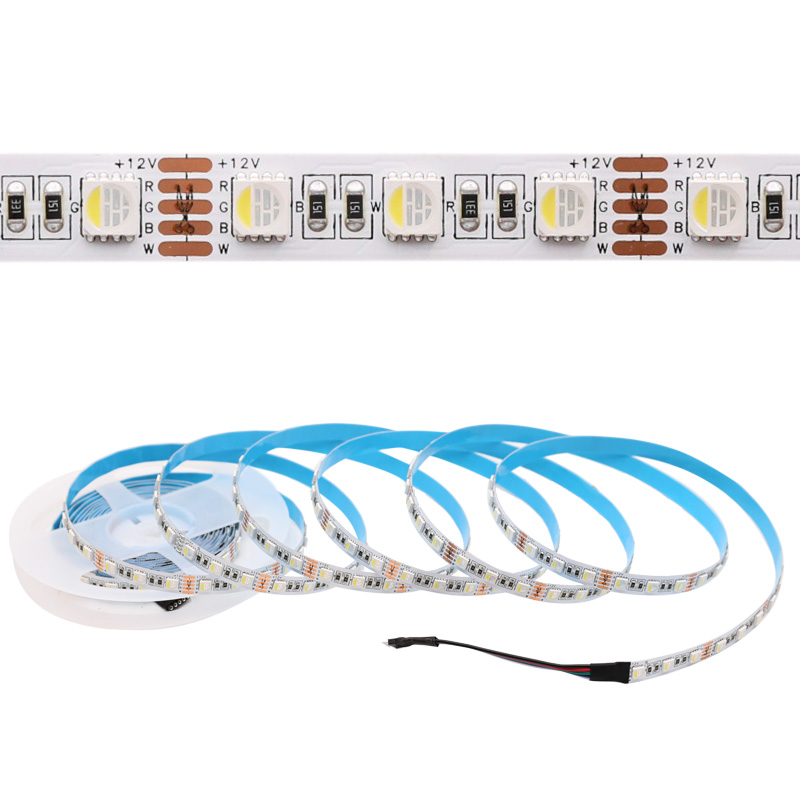

DC12V input 10mm wide 72LEDs/m RGB 3000K warm white or RGB 6000K daylight white 4 in 1 5050 RGBW led strip light, 5m 16.4ft per roll. With high density, high flexibility and good color performance, this RGB white led strip is suitable for decorative projects that require rich colors and even illumination.

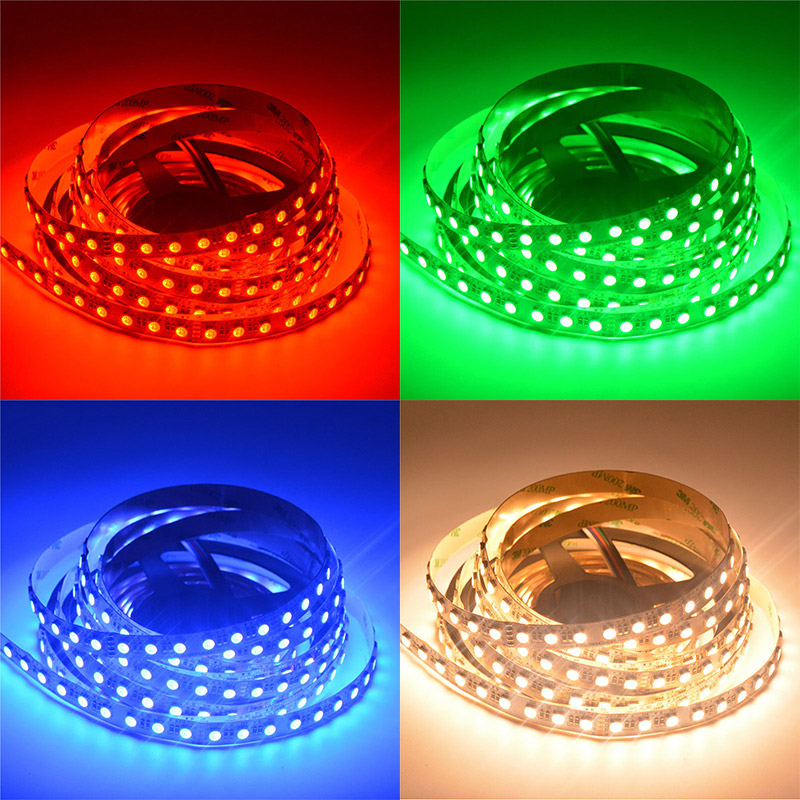

The RGBW 4-in-1 led tape light contains red, green, blue and white LED colors, providing a wider range of color expression and purer white light to improve the overall lighting effect. Moderate 10mm strip width is both adequate for heat dissipation and suitable for more decorative scenes.
RGBW color changing via an RGBW led controller (V4-K 4 knob red green blue white adjustable light controller in the kit)
High-density design of 72 lights per meter provides more even lighting effect.

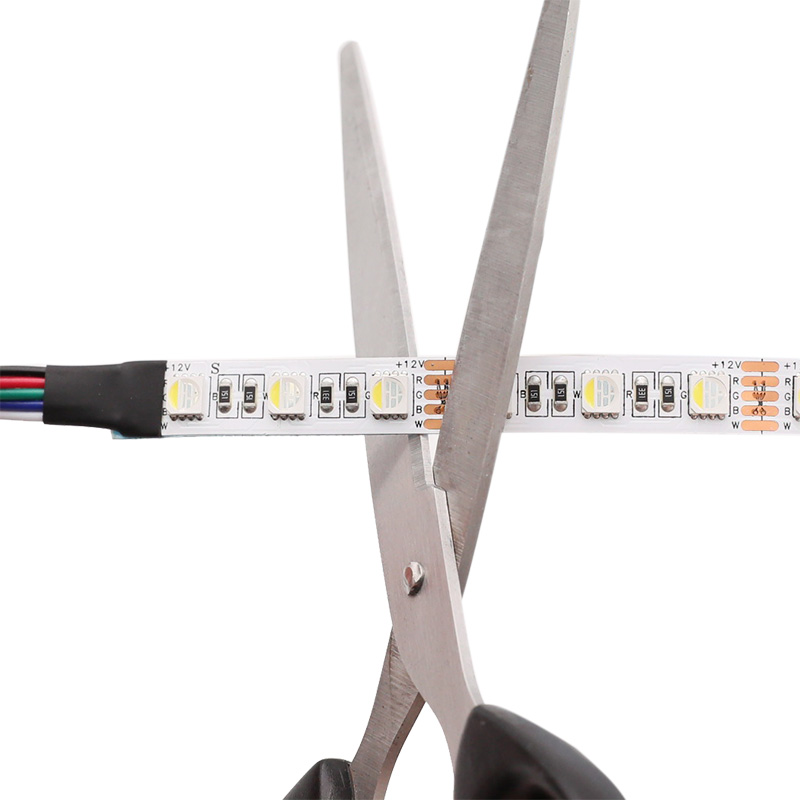

Each three LEDs can be cut, 41.66mm/1.64" cut length, the length of the RGBW strip can be customized according to actual needs.
Powered by DC 12V power adapter or switching Meanwell power supply (PSPS-12V-120W power adapter or LRS-100-12 power supply in the kit)
Adhesive-backed for easy fixing on different surfaces.
5pin quick connectors on both ends for easy installation.
Two waterproof ratings are available, IP20 for interior dry environments and IP67 for exterior wet or waterproof applications.
Product Specification
| LED Strip Type: | 5050 RGBW 4 In 1 LED Strip |
| LED Chip: | SMD 5050 |

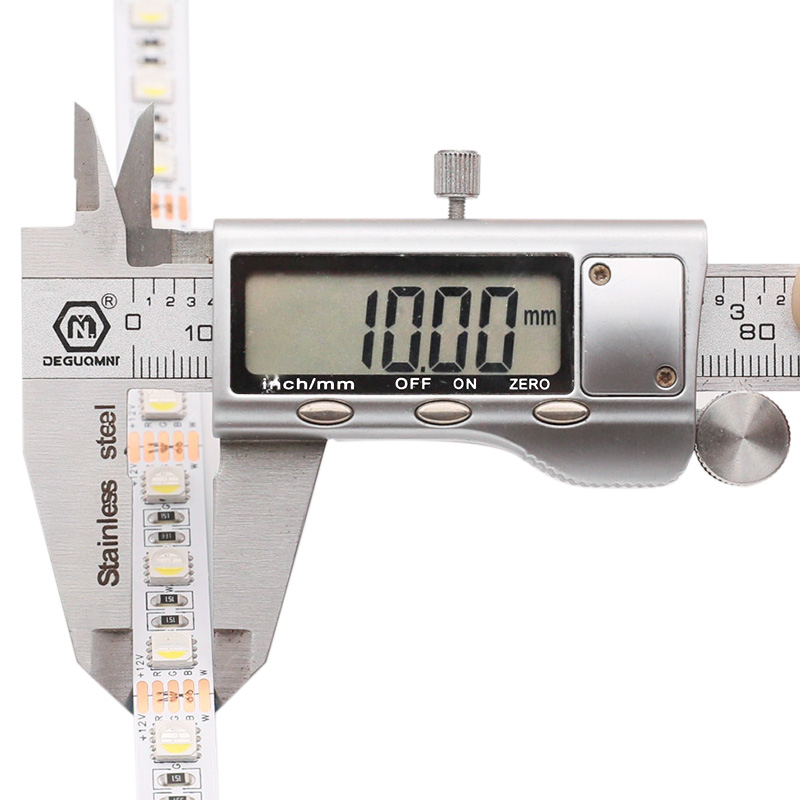

| Strip Width: | 10mm (0.39in) |
| Input Voltage: | 12V DC |
| Light Color: | RGB+W3000K, RGB+W6000K |
| Dimension: | 16.4ft/roll |
| LED Quantity: | 72 LEDs per meter |

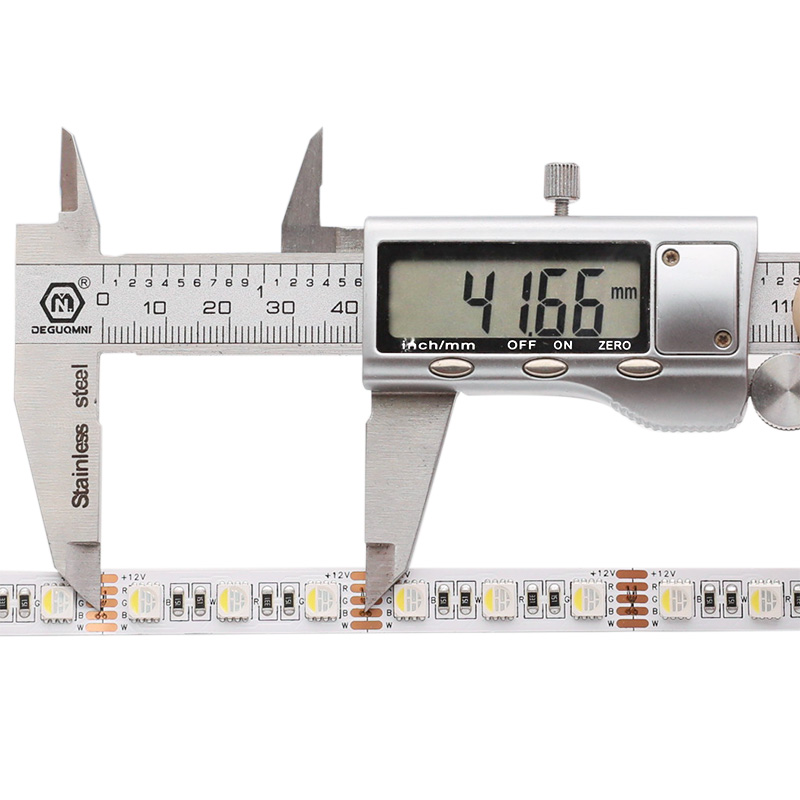

| Cuttable: | 3 LEDs, 41.66mm (1.64in) |
| Power: | 17W/m |
| Lifespan: | 50,000+ hours |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Beam Pattern: | 120 degree |
| Waterproof Rating: | Non-waterproof IP20, waterproof IP67 |
Color Change RGBW LED Strip Wiring Diagram
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
