12V 5050 WS2815 Programmable RGB Pixels LED Light Sheet 10X10
Related Products
12V 5050 WS2815...
$27.98
24V 5054 Flexible RGB LED...
$34.98
Wifi ESP32 WLED...
$25.98
24V 2835 CCT Flexible...
$30.98
Mean Well LRS-75-12 DC12V...
$22.99
UL 1569 Standard...
$14.98 $9.9833% off
DC5-30V Tuya Wifi Music...
$49.98 $44.9810% off-
Special Price: $27.98
This RGB pixel LED sheet uses a WS2815 built-in IC to control each 5050SMD individually, making it possible to point-to-point control color and brightness, providing dynamic colorful light effect. Featuring dual signal transmission, this color changing flexible LED sheet programmable ensures continuous transmission at breakpoints, very stable.

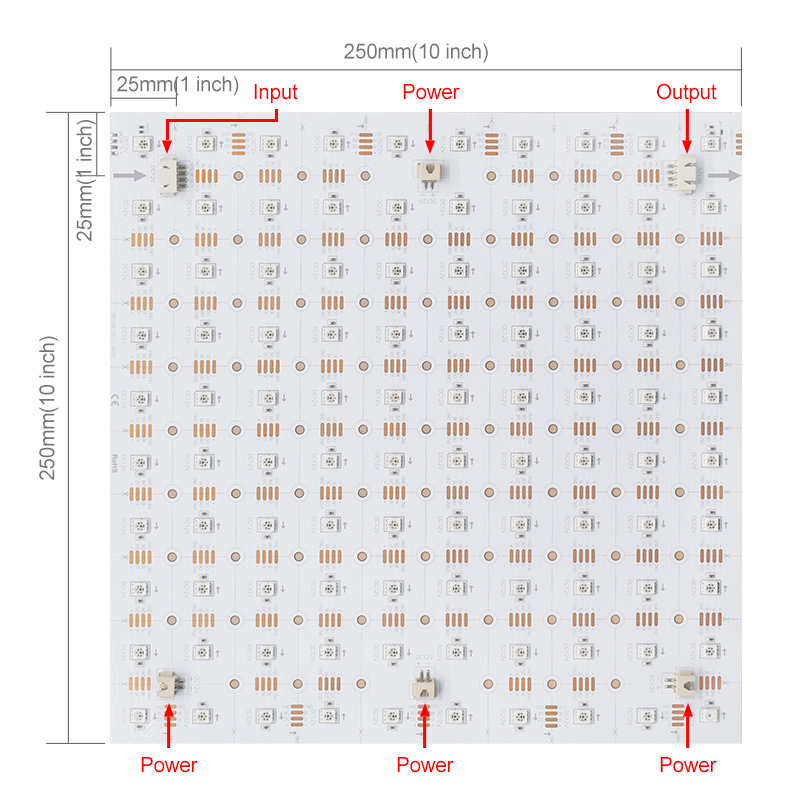

The square-shaped LED paper sheet requires a 12V power supply and an addressable controller to operate. There are totally 100 LEDs installed on this digital LED sheet lighting, 10 in each row, totaling 10 rows. Each LED is cuttable, so this LED lighting sheet panel can also be DIY into different shapes for letter lighting. Multiple LED dimming sheets can be connected together through soldered wirest or connectors mounted on board to provide large-scale lighting, suitable for billboard lighting and marble backlighting.
Thin LED sheet is flexible and lightweight, easy to be curved and conform to irregular curved surface. Each pixels LED light sheet has an adhesive backing and screw mounting holes for simple installation. To make installation more convenient, two connection pieces, two connecting lines, four screws, four screw shims and four anti-collision silicone particles will be shipped with this RGB LED sheet.
Features:
1. Programmable LED sheet controlled by WS2815 IC, with breakpoint resume functionality.
2. RGB full color, dynamic color changing lighting effect.
3. 100 pcs of 5050 SMDs are mounted on each LED sheeting, every LED is an individual cutting segment (25x25mm/ 0.98"x0.98).
4. Thin and flexible, conforms easily to irregular surfaces
5. Support both adhesive installation and screw installation.
6. Available in IP20 non-waterproof version and IP54 splash-proof version.
The "10X10" specified in the title indicates that there are 10 units in a row, with a total of 10 rows.
Single Power supply connects to the controller, allowing up to 4 sheets to be connected. If powered separately, up to 20 sheets can be connected. For details, please refer to the PDF below.
RGB Pixels LED Light Sheet Manual Download
Video showcasing the CCT color LED sheet used for marble wall backlighting.
Kindly note that the product featured in the video is different from the one offered here. (mainly color difference) We appreciate your attention to this detail.
Product Specifications
| LED Strip Type: | 12V 5050 WS2815 RGB Pixel LED Sheet for Backlighting |
| LED Chip: | SMD 5050 |
| IC Type: | WS2815 |
| Pixels: | 100 Pixels |
| Input Voltage: | 12V DC |
| Product Size: | L9.8 "x W9.8"X0.3" (250mm*250mm*8mm) |
| Light Color: | RGB+IC |
| Current: | 1.08A |
| LED Quantity: | 100 LEDs per sheet |
| Working Power: | 13W per sheet |
| Cut Unit: | 1 LED (0.98”X0.98”/ 25mm*25mm) |
| Lifespan: | 36,000+hours |
| Beam Pattern: | 120 degrees |
| IP Rating: | Non-waterproof IP20/ Splash-proof IP54 |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
