2 Pin Waterproof Electrical LED Connector Male Female Power Wire Plug

Model: 2PIN-WC-MF
2 Pin Waterproof Electrical LED Connector Male Female Power Wire Plug

Select Specifications:

Starting at: $2.59

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-99
$2.59
100-499
$2.54
500-999
$2.49
1,000+
$2.43
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

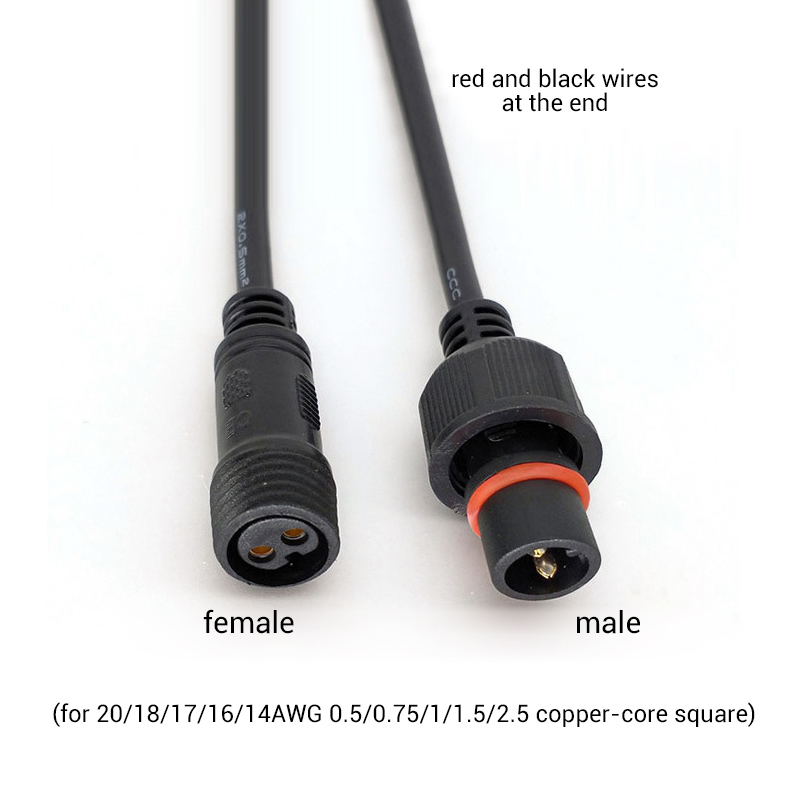

    A pair of male and female 2 pin outdoor waterproof power wire plug connector with IP67/IP68 waterproof quick connects on one end and red and black bare wires on the other. Both the male and female 2 pin connectors are 20cm/7.87inch long, and when connected together the 2 pin cable is a total of 40cm/15.75inch long. All electrical components are encased in a black environmentally friendly PVC jacket for excellent protection.

    This 2 pin male and female led power connector can be used to connect anywhere you need to make an electrical connection, such as connecting light strips to a power source, connecting multiple static LED light strips in series or parallel, etc.

    Used together with this 2 pin 20 inch waterproof extension wire 2PIN-WC-EX-50CM and 10m 33ft extra long outdoor extension cord 2PIN-WC-EX-10M



    Product Features

    • Good waterproof performance

    • Simple installation

    • Stable and reliable electrical connection

    • One 20cm/7.87in 2-pin black male wire connector and one 20cm/7.87in 2-pin black female wire connector

    • Multiple wire gauges and sizes available, 0.3 sq. mm (22 gauge) to 2.5 sq. mm (14 gauge)

    • For powering LED lights or connecting single color led strips to each other



    Copper Wire Size Cable Diameter Rated Current Rated Voltage 220V Reference Wattage
    0.3mm² (22awg) Small 3.8mm 2.4A 1-300V 500W
    0.5mm² (20awg) Medium 5.4mm 4A 1-500V 800W
    0.75mm² (18awg) Medium 5.8mm 6A 1-500V 1300W
    1.0mm² (17awg) Large 6.8mm 8A 1-500V 1700W
    1.5mm² (16awg) Large 7.8mm 12A 1-500V 2600W
    2.5mm² (14awg) Enlarge 9.4mm 20A 1-500V 4400W



    Product Specifications

    Product Type: Waterproof connector

    Wire Core: 2 pin

    Wire Gauge: 0.3mm² (22awg), 0.5mm² (20awg), 0.75mm² (18awg), 1.0mm² (17awg), 1.5mm² (16awg), 2.5mm² (14awg)

    Color: Black

    Package: Male and female wire plug

    Wire Length: 20cm/7.87in, total 40cm/15.75in

    Protection Level: IP67-IP68

    Working Temperature: -20~75°C

    2 Pin Waterproof Electrical LED Connector Male Female Power Wire Plug

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    2 Pin Waterproof Electrical LED Connector Male Female Power Wire Plug
