24V UCS2904 5050 4in1 RGBW Addressable LED Strip Lighting
Related Products
24V UCS2904 5050 4in1...
$40.98
DC5-24V SP107E Wireless...
$16.98
Mean Well LRS-150-24 ...
$32.00 $29.986% off
Flex Silicone LED Light...
$9.99
DC5-30V Tuya Wifi Music...
$49.98 $44.9810% off
Black Extruded Aluminum...
$10.00 $7.9920% off
Alexa SPI LED Controller...
$15.98-
Special Price: $40.98

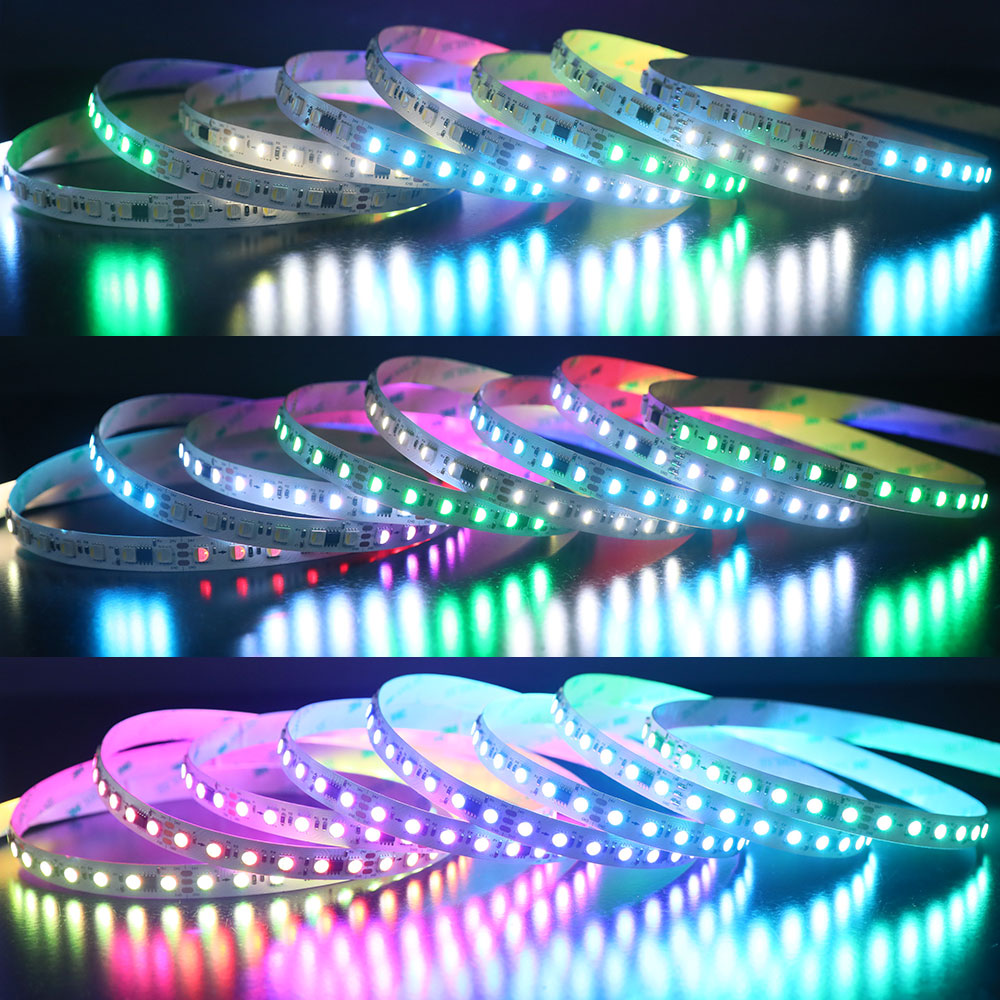

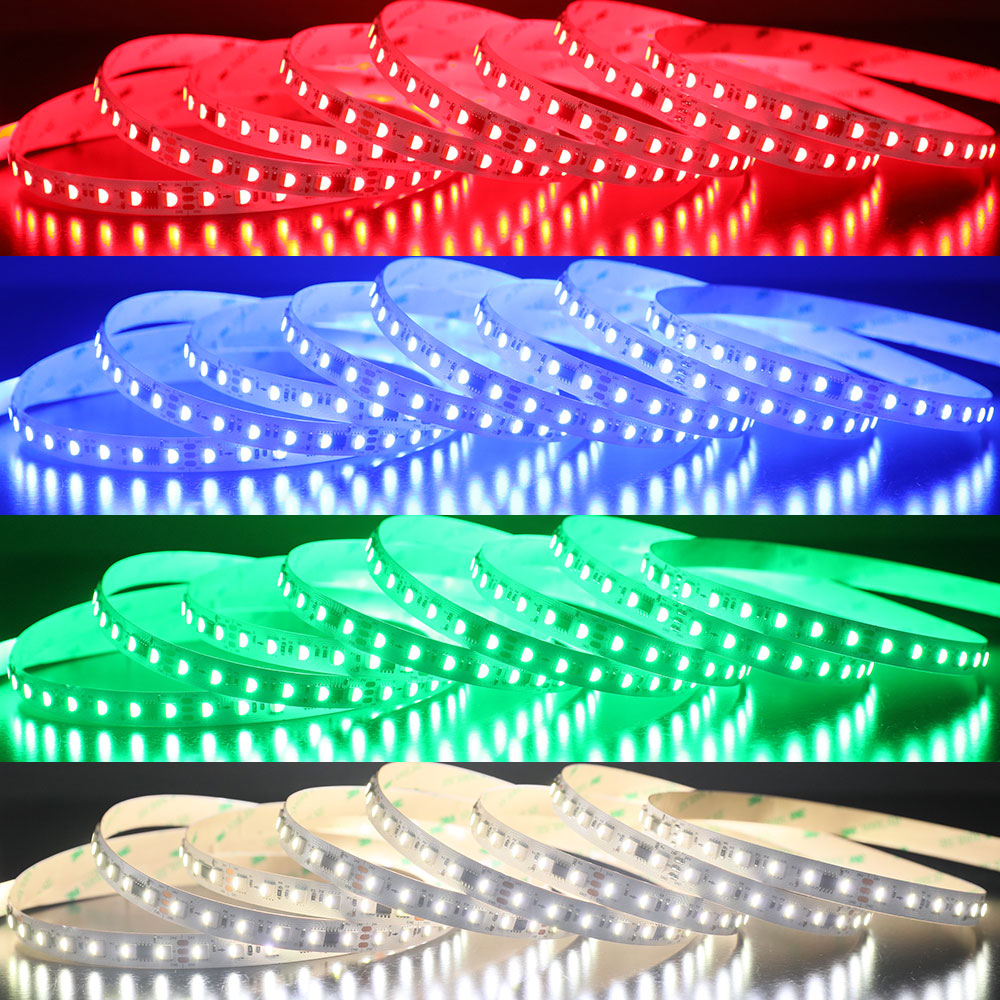

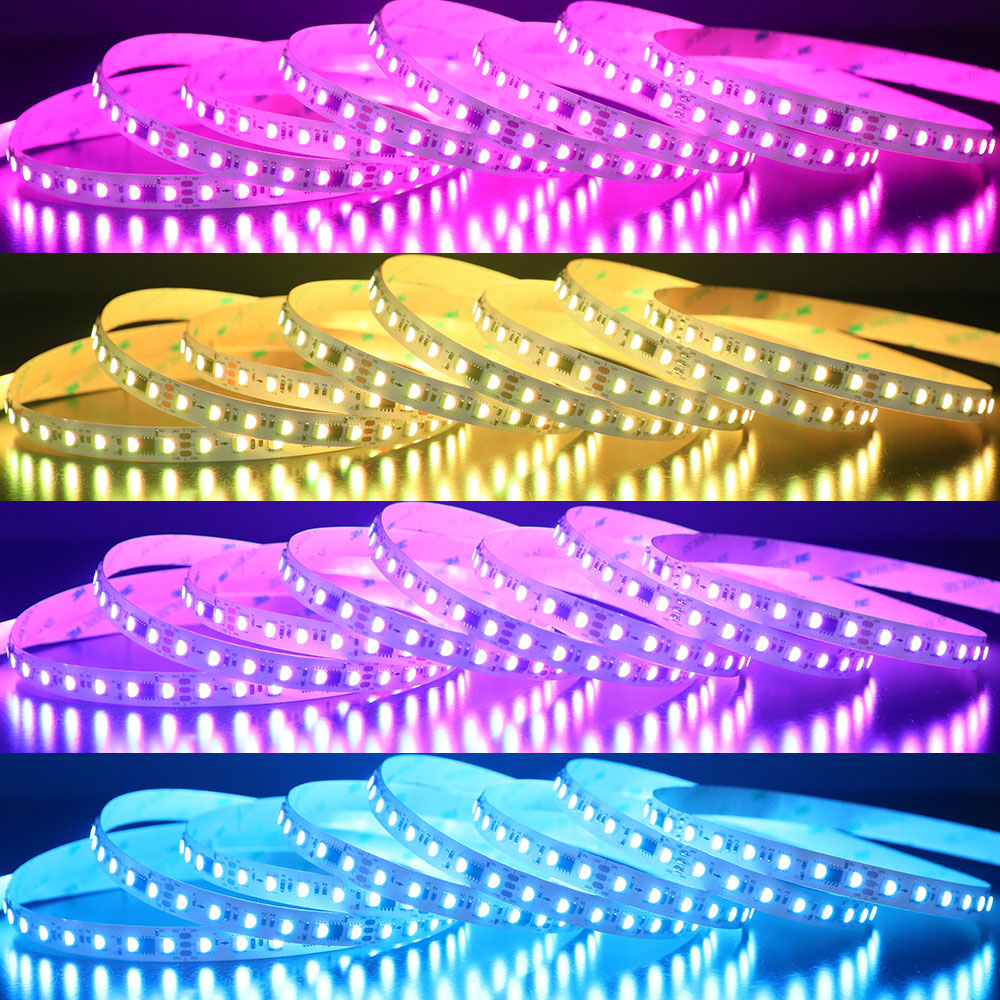

UCS2904 RGBW IC is very similar to SK6812 RGBW IC, and UCS2904 is more stable in use, only 1 digital output pin to send data down. One IC controls 3/6 lights, each IC area can be different color. RGB color and white light dynamic effects can be displayed. RGBW addressable LED controller is required to control this light.
DC24V input, 72/84 LED lights per meter, and 12/14 pixels per meter, total 360/420 LEDs and 60/70 pixels in a 5m/16.4ft light strip. Running the 5m addressable RGBW led strip light comsumes 110W, and you need an LED power supply with at least 132W compacity.

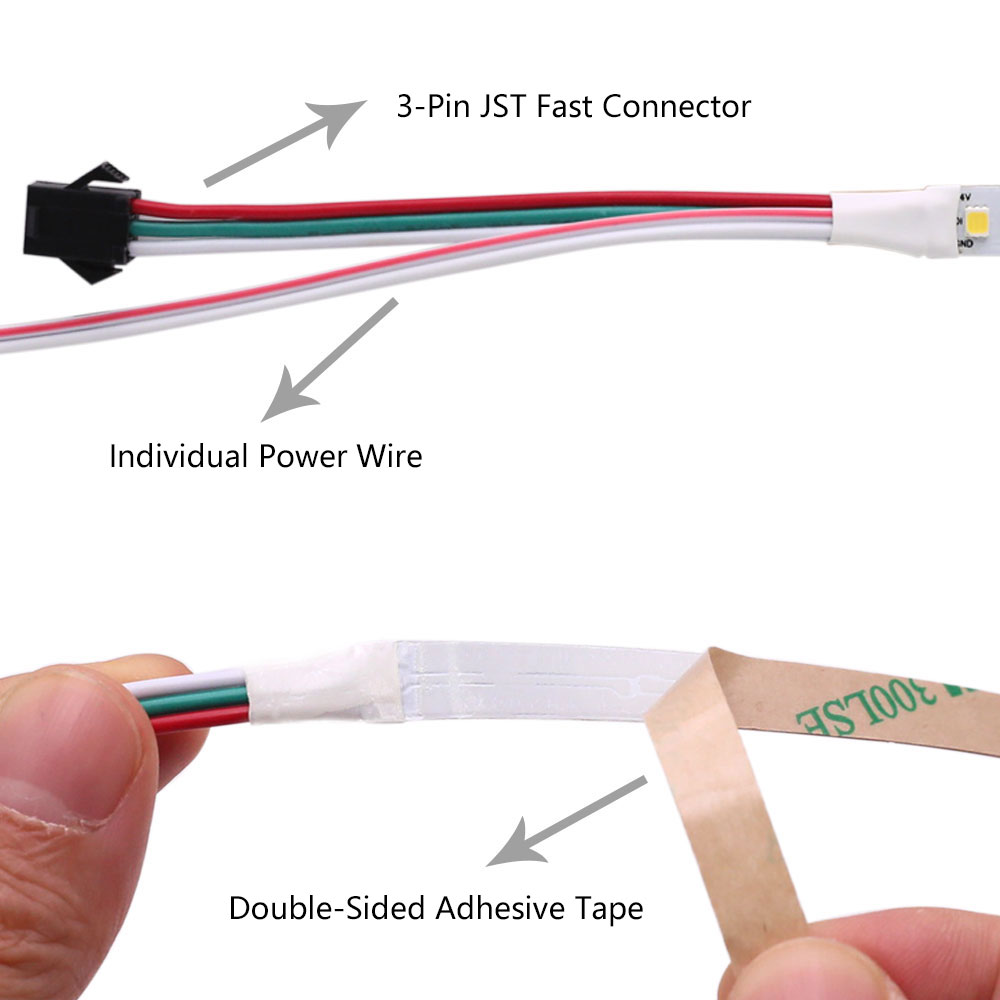

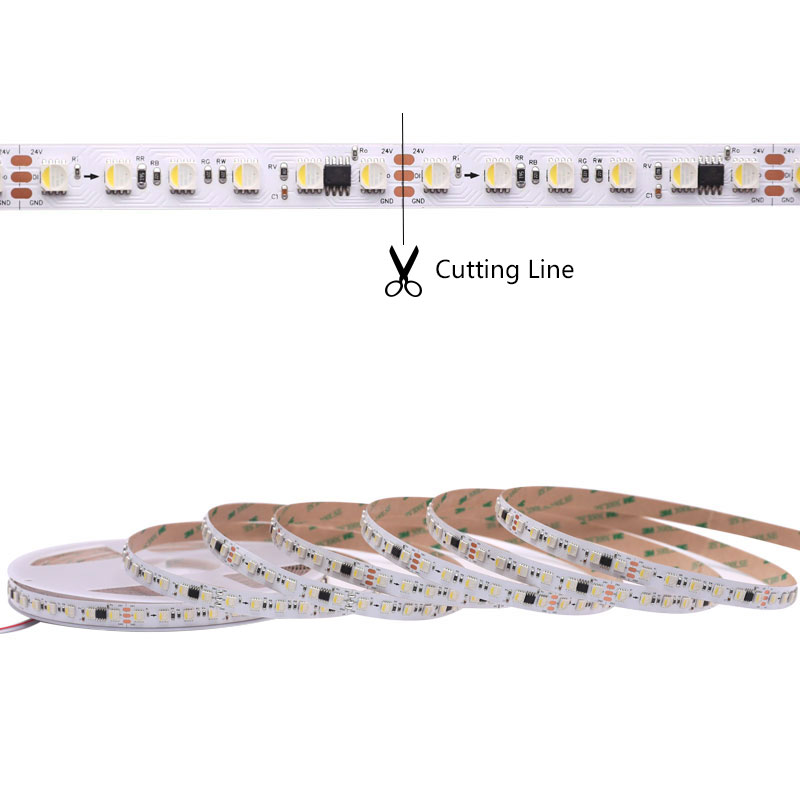

This RGBW dream color led strip comes with a 3-pin JST connector on each end. With cutting lines, you can shorten or lengthen the strip. It can be free to bend the shape, and fixed in the uneven surface by using the 3M self-adhesive, easy to install. To power this 24V led strip, you need a 24V power supply.
Note: The BLACK ARROWS on the strip tell the transmitting direction of the signal. It should be run strictly follow the Arrow point direction. If connected oppositely, the strip light will not work.
UCS2904 Chips Specifications Download
Standards and Certifications
| LED Strip Type: | 3-Pin UCS2904 RGBW Addressable Strip Light |
| LED Chip: | 5050 4in1 RGBW SMD LED |
| Input Voltage: | DC24V / DC12V |
| Power: | 22W/m, 110W/16.4ft |
| IC Type: | UCS2904 IC (1 IC drives 6 led chips) |
| Q'ty of IC: |
72LEDs/m: 12 pixels/m - 24V, 24 pixels/m - 12V 84LEDs/m: 14 pixels/m - 24V, 28 pixels/m - 12V |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | Addressable RGB + 6000K Daylight White / 3000K Warm White |

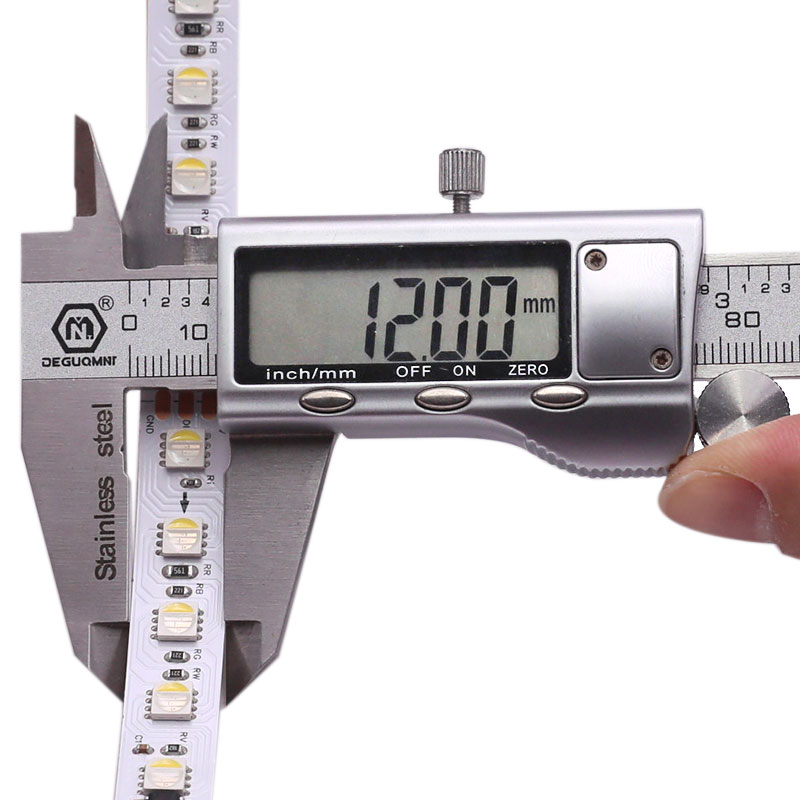

| PCB Width: | 12mm/0.47" |
| LED Quantity: |
72 LEDs/m, 360 LEDs/16.4ft 84 LEDs/m, 420LEDs/16.4ft |

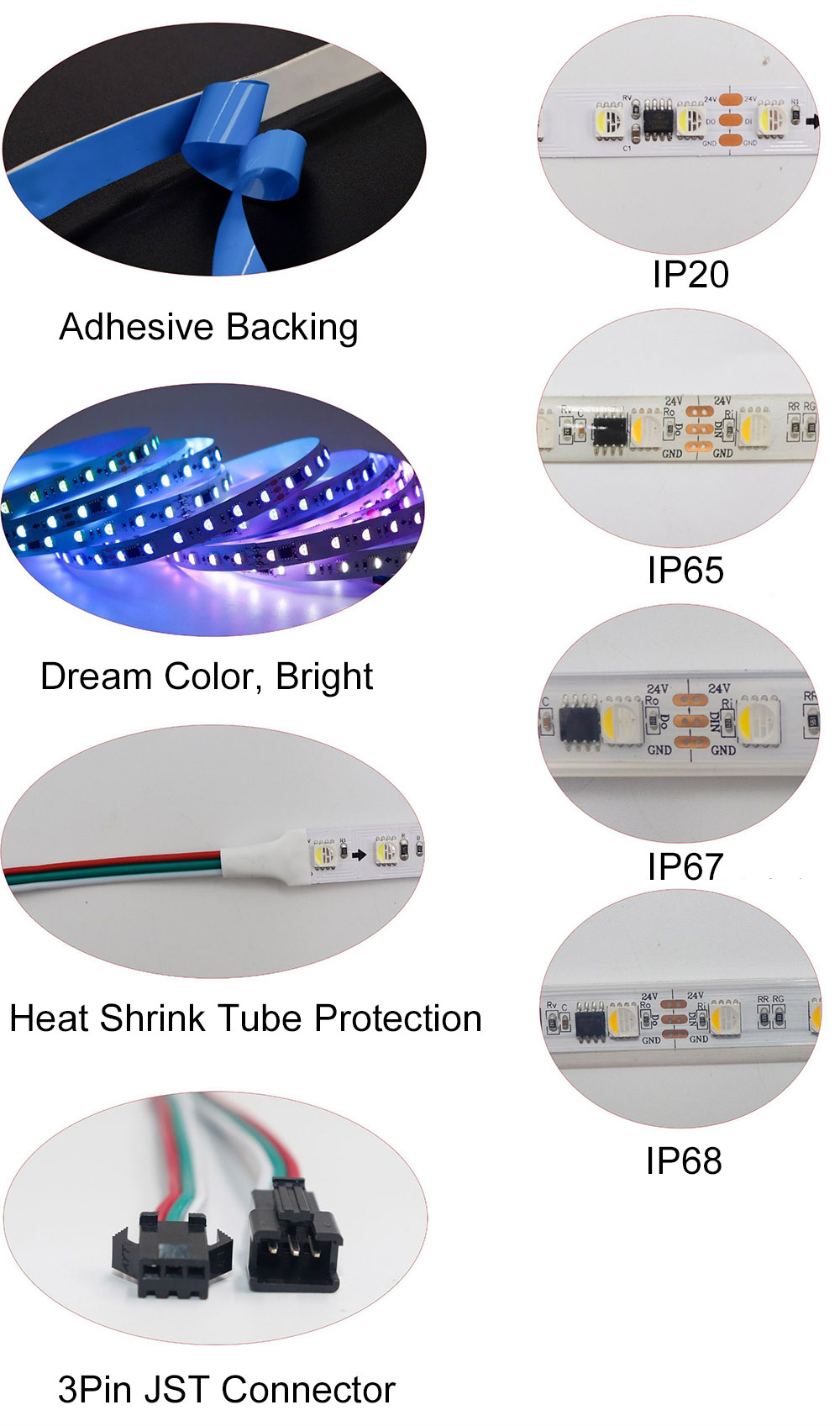

| Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68 |
| Lumen: | 23 lm/LED |
| Cut: |

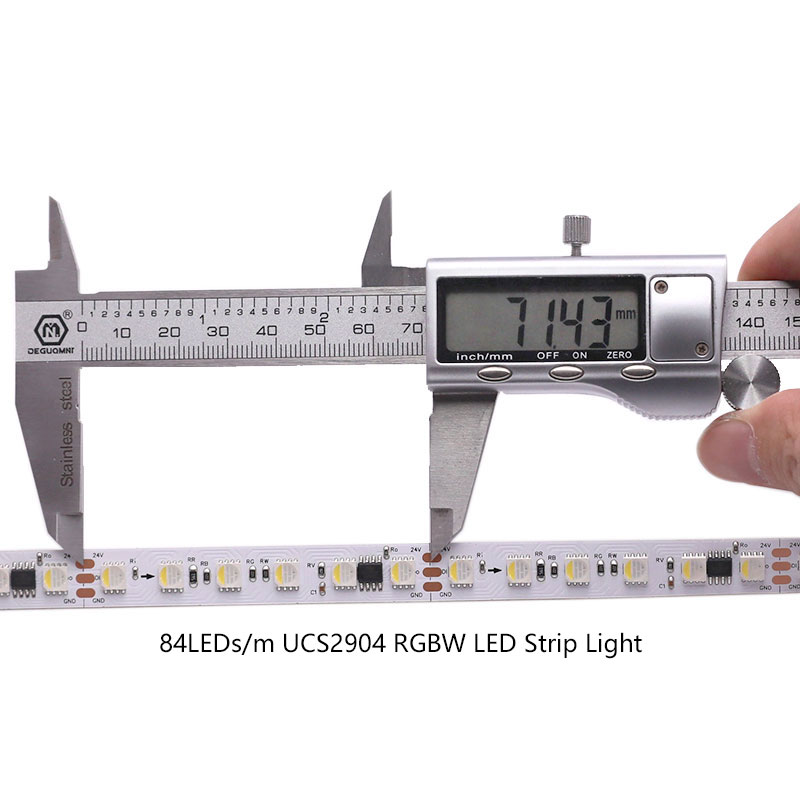

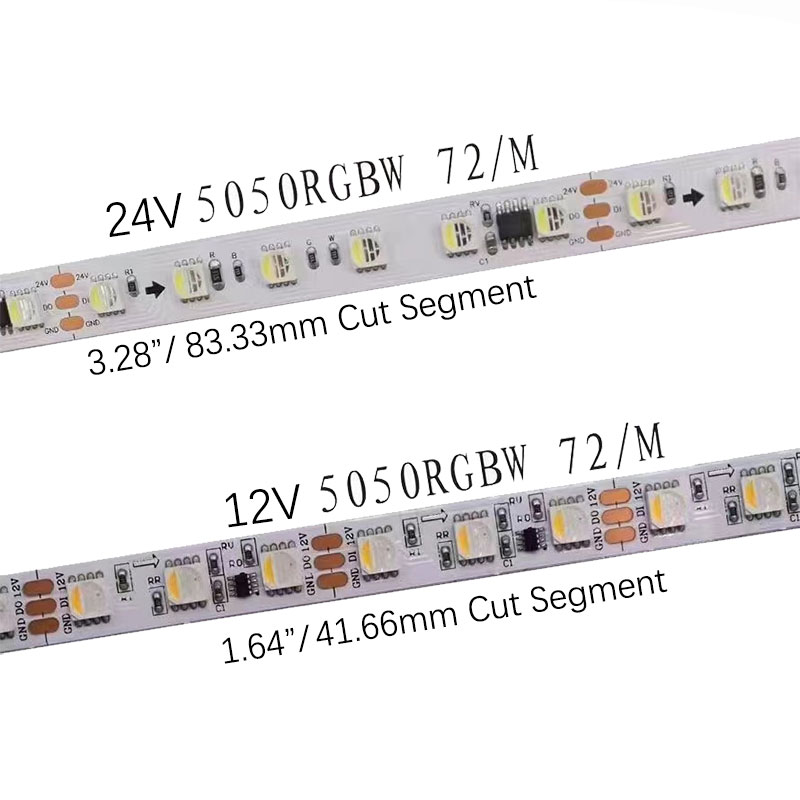

72LEDs/m: 83.33mm/3.28" - 24V, 41.66mm/1.64" - 12V 84LEDs/m: 71.42mm/2.8" - 24V, 35.71mm/1.4" - 12V |
| Color Rendering Index: | Ra＞85 |
| Beam Angle: | 120° |
| Strip Length: | 5m/16.4ft |
How to Wire Addressable LED Strip Lights?
3-Pin Single Signal Addressable LED Strip Light Wiring Diagram:
Lighting Effects controlled by Tuya LC2000B-TY01:
Available LED Strip Lights Fixtures:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type.
Aluminum LED channel also has multiple types to create your linear lighting, surface mount, recessed mount, or suspended mount, etc. And they all evenly diffuse the LED strip lighting and protect the strip lights.
Applications
These Digital Addressable LED Strip Lights are applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
