480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights

Model: PSDB-12V-40A18CH
480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
  • 480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
  • 480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
  • 480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
  • 480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
  • 480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
  • 480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights

Select Specifications:

$99.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$99.98
5-9
$97.98
10-14
$94.98
15+
$90.98
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    This 18 ways CCTV Distribution Box power supply panel is specially designed for multiple Monitoring equipment cameras system installers. Power supply panels for up to 18 cameras offer a more professional alternative to individual power adapters, , allowing you to consolidate Camera Power in a central location. Powering multiple cameras could not be easier! The most special feature is that each outlet is individually fused protected, with LED indicators. Additionally, this is a 12V DC 18 cameras panel, 18 ports power supply comes with a locker & keys. Output 40 amp Max.

    This CCTV Distribution Box Low price and high reliability, Compact size, light weight, Universal AC input, Soft-start current can reduce the AC input impact effectively, Automatic Overload cut-off, Over Voltage cut-off, Automatic Thermal cut-off, Short circuit protection. built-in EMI filter, 100% full-load burn-in test ,Full range of input voltage, output voltage accurate and stable, Output over-voltage,  over-current and short-circuit protection, Output low ripple and noise. Our line of Professional CCTV Power Supplies give installers what they expect when it comes to power supplies, quality and reliability. Every channel is protected with Auto-Reset PTC fuses, which means these fuses will not blow.

    This item is power adapter (transformer) of Low Voltage for 12V multiple Mini Dome IR Camera, HD-CVI Cameras, HD-CVI DVR, Monitoring equipment, security equipment, Wireless router, modem, Single color RGB or dream color LED strip lights and led module string.

    Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage of this adaptor.

    CCTV power supply

    CCTV power supply


    Product Features

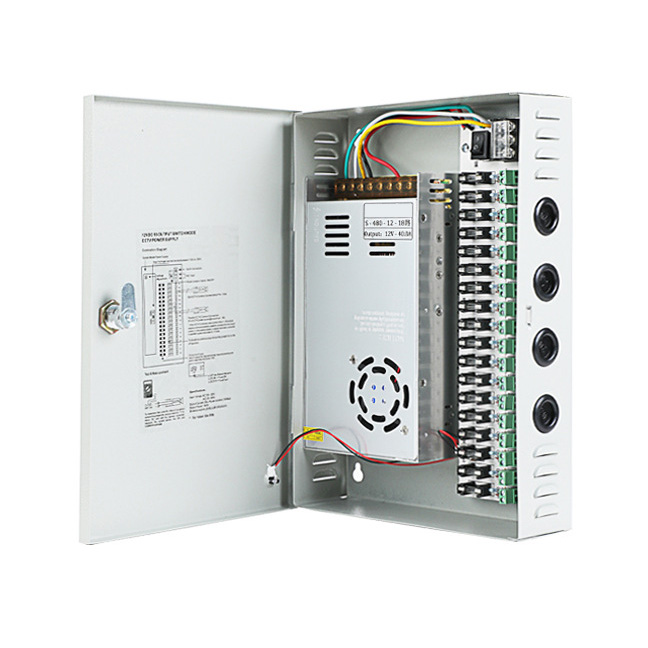

    1. Switching power supply

    Built-in original power module, with short circuit and overload protection.

    Double filter capacitor, small ripple, stronger filter magnetic ring capacitor power is bigger and more powerful.

    Copper coil design, control the resistance to increase the durability, stability, and greater carrying capacity of the product.

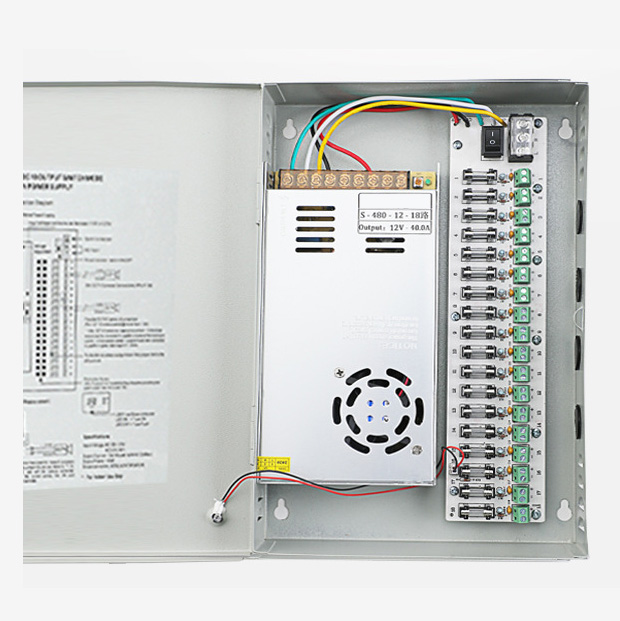

    2. Multiple channels

    The use of double-cap core fuse and enclosed terminal blocks can effectively prevent electric shock.

    When the protection is started, the fuse is damaged and does not affect the performance of other output lines. At this time, you only need to replace the fuse for that road DC to return to normal.

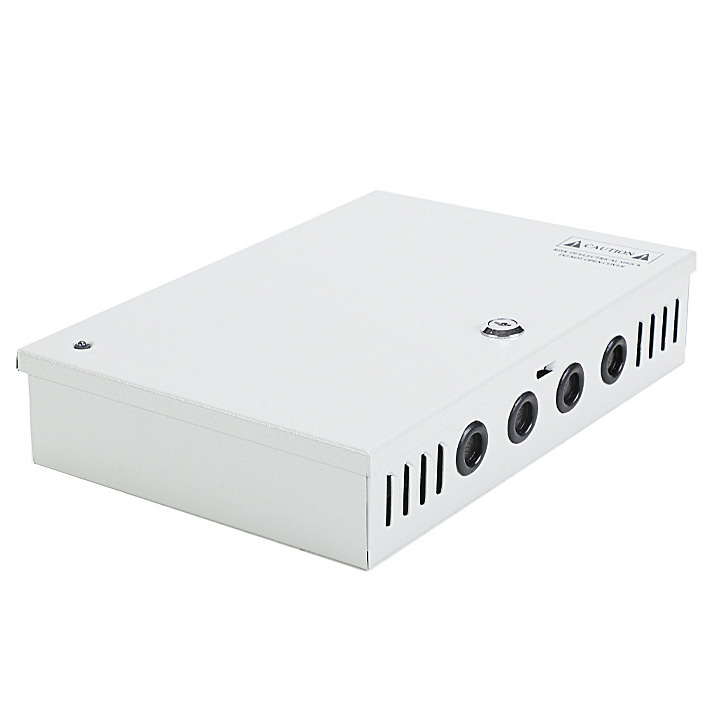

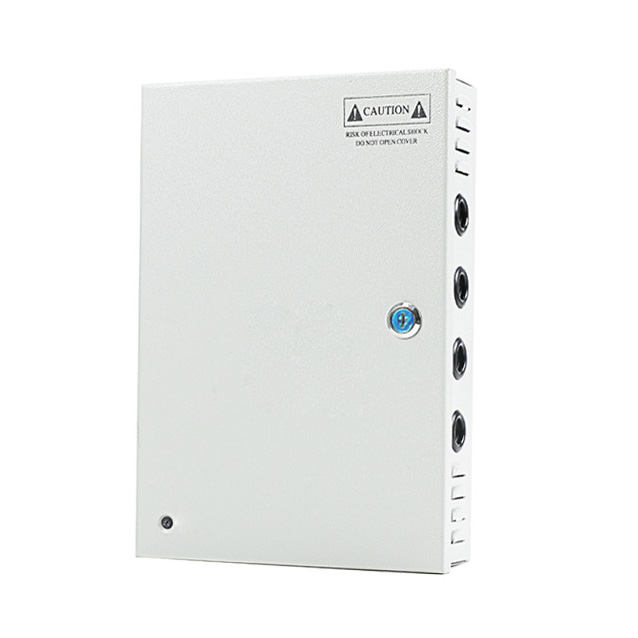

    3. Metal case

    It adopts all-metal baking paint chassis design, which is anti-fall and impact-resistant, and better protects the internal components of the machine.

    The power box is equipped with an independent lock and key, which can lock the case, which can better prevent rain and theft and prevent electric shock.

    Both sides are equipped with downward rain-proof cooling vents, which effectively improve the heat dissipation function of the power supply and make the power supply more durable.


    Standards and Certifications

    CE FCC UL RoHS ISA SGS ISO warranty




    Product Specification

    Power Supply Type LED CCTV Distribution Box Power Supplies
    Input Voltage AC 100~260V
    Input Frequency Range 47 ~ 63 Hz
    Output Voltage DC 12 VDC
    Output voltage accuracy ±2%
    Voltage adjustment range -5%~+10% of rated output voltage
    Output Power 12V/40A     480Watts
    Output Channels 18 channel
    Working temperature - 15 ° ~ 55 ° c / 20% ~ 90% RH (no frost)
    Average working no trouble >50, 000 hours
    Overload protection 105% - 150% rated power,  automatic recovery
    Over-voltage protection 100% - 135% of the rated voltage
    Ripple 120-140MVP-P
    Work efficiency 80%
    Dimension 315*215*60mm
    Weight 2.7 KG/PCS
    Product accessories Safety key, installation screw




    How to use CCTV Power Supply?



    CCTV led power supply wiring diagram

    480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights480W 40A 18CH DC12V Output Switch Mode CCTV Distribution Box Portable Power Supply For IR Camera Monitoring Equipment LED Tape Lights
