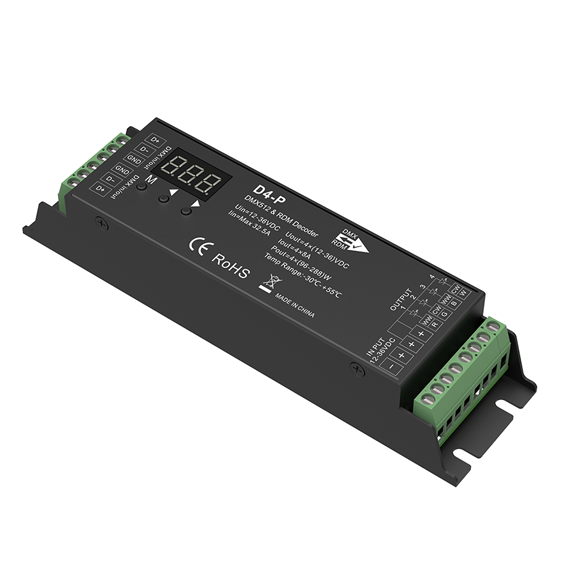

4CH Constant Voltage DMX512 & RDM Decoder D4-P For LED strip lighting kit

Model: D4-P
4CH Constant Voltage DMX512 & RDM Decoder D4-P For LED strip lighting kit

$22.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-29
$22.98
30-99
$22.52
100-199
$21.83
200+
$20.91
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

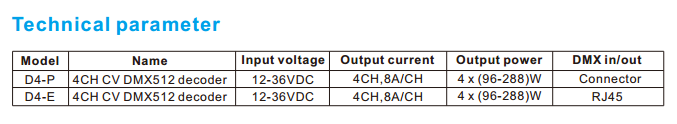

    arrow D4-P or D4-E is an industrial level constant voltage DMX512 & RDM controller which features full support to the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols. The RDM controller is designed with 4 channels, 8A per channel constant voltage output.


    Feature

    arrow 4 channel PWM constant voltage DMX decoder with digital display.

    arrow DMX address display, set DMX address freely.

    arrow RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example, you can set DMX decoder address by DMX master console.

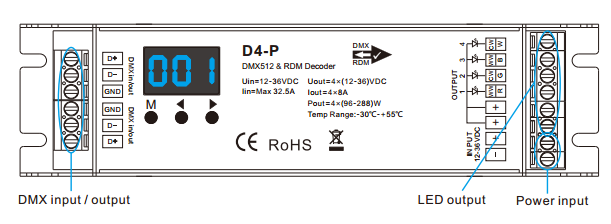

    arrow Two kinds of DMX signal input: connector or RJ45 port.

    arrow Work with power repeater to expand output unlimitedly.


    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO  warranty-5-year



    Specifications Download    PDF



    4CH Constant Voltage DMX512 & RDM Decoder D4-P For LED strip lighting kit

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    4CH Constant Voltage DMX512 & RDM Decoder D4-P For LED strip lighting kit
