4CH*3A 12-24VDC CV Controller V4-S
Related Products
4CH*3A 12-24VDC CV...
$14.99
65.6ft Long LED Light...
$170.00 $109.9835% off
Mean Well LRS-200-24 ...
$39.00 $36.985% off
4 Zones RF 2.4G LED RGB...
$14.98-
Special Price: $14.99
Features

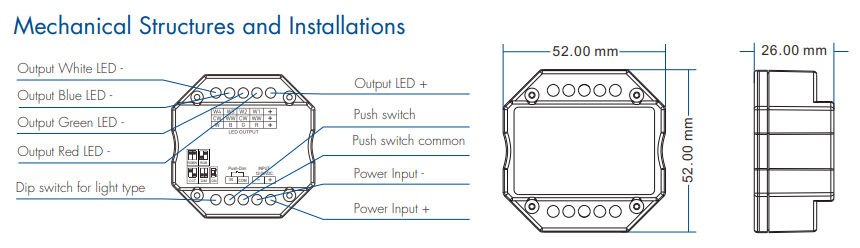

Mechanical Structures and Installations
RGBW/RGB/CCT/Dimming 4 Channel LED RF Controller
RF + Push LED controller, 4 channel constant voltage output.
Match with Skydance’s 2.4G single color, dual color and
RGB/RGBW remote control.
One RF controller accepts up to 10 remote control.

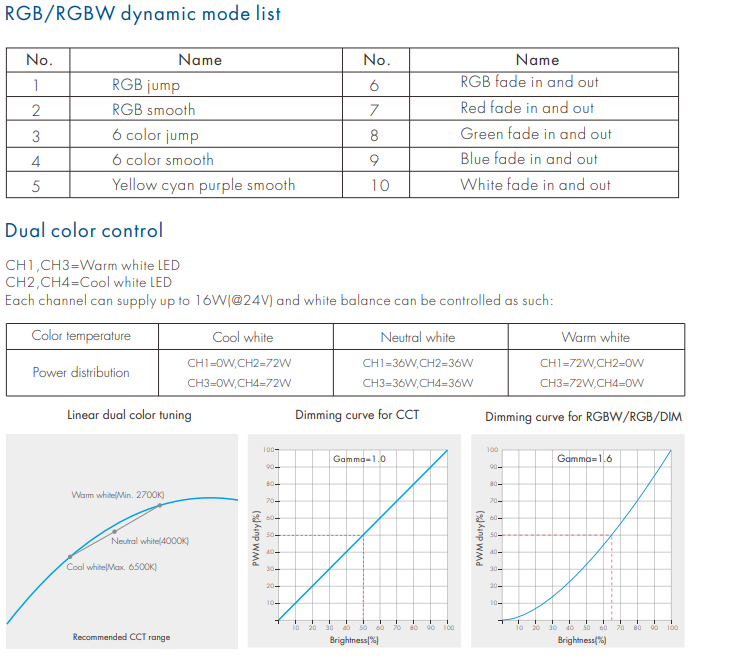

When using with RGB/RGBW light, built in 10 dynamic modes,
include a jump or gradual change style.
Auto-transmitting function: Controller automatically transmits the signal to another controller with 30m control distance.
Synchronize on multiple numbers of controllers.

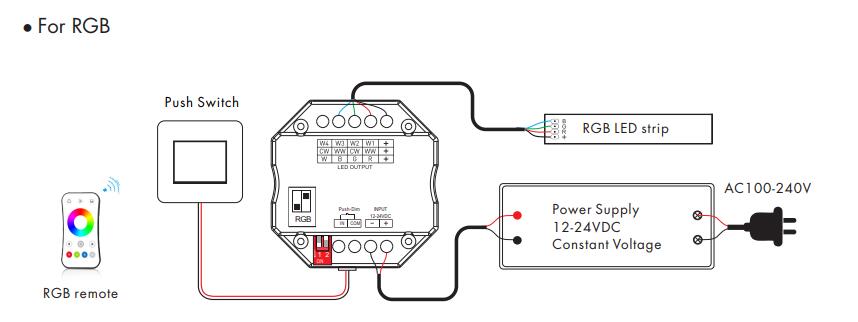

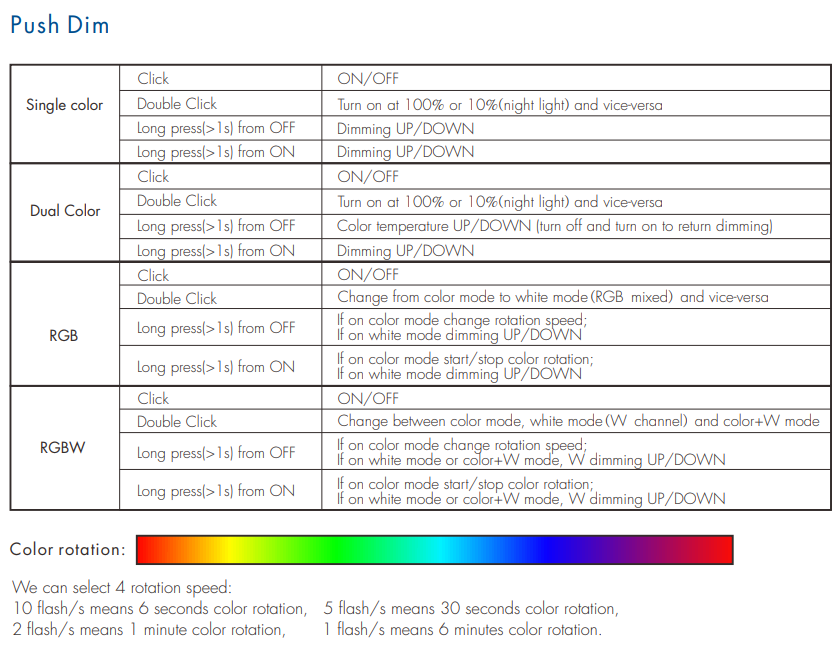

Connect with external push switch to achieve on/off and dimming function.

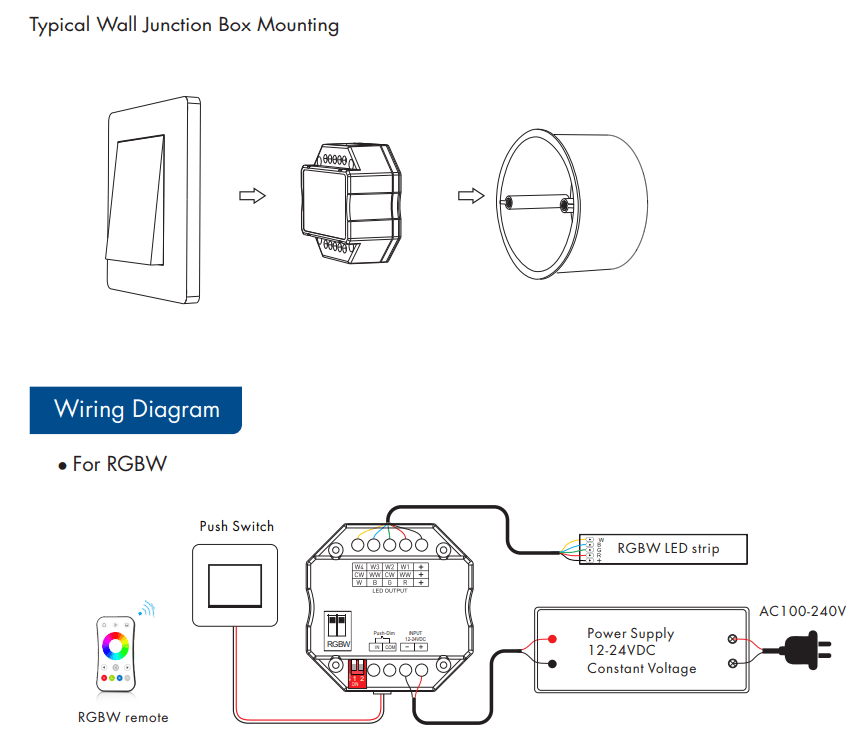

Easy to be placed in the standard wall junction box behind a push switch.
Standards and Certifications
Specifications Download
Input and Output
Input voltage: 12-24VDC
Input current: 12.5A
Output voltage: 4 x (12-24)VDC
Output current: 4CH,3A/CH
Output power: 4 x (36-72)W
Output type: Constant voltage
Dimming data
Input signal: RF 2.4GHz + Push Dim
Control distance: 30m
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Safety standard(LVD): EN60950
Certification: CE,EMC,LVD,RED
