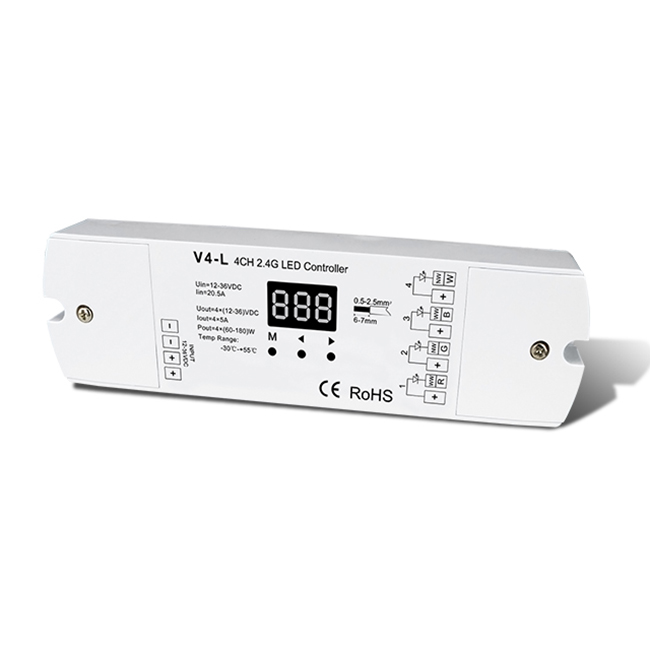

4CH*5A 12-24VDC CV Controller V4-L

Model: V4-L
4CH*5A 12-24VDC CV Controller V4-L

$17.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$17.98
10-99
$17.62
100-199
$17.08
200+
$16.36
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    arrow  Summary

    arrow 4CH PWM constant voltage controller with digital numeric display and easy key operation.

    arrow Can work under Stand-alone mode or RF mode.

    arrow Under Stand-alone mode(no need remoter), can set as 1ch dimmer, 4ch dimmer, dual color controller or RGB/RGBW controller.

    arrow Under RF mode, full compatibility with a variety of single color dimming, dual color and RGB/RGBW remoters.

    arrow PWM achieve 4096 levels flicker-less dimming.

    arrow When control RGB/RGBW lamp, built in 30 change mode optional.

    arrow Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.

    arrow Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

    arrow Work with power repeater to expand output unlimitedly.



    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO  warranty-5-year



    Specifications Download   PDF



    Technical parameters

    arrow Input voltage: 12-24VDC

    arrow Output type: PWM constant Voltage

    arrow Output current: 4CH, 5A/CH

    arrow Output power: 240-720W

    arrow Grey levels: 4096/CH

    arrow Dimming range: 0-100%

    arrow Remote distance: 30m

    arrow Working temperature: -30℃~55℃

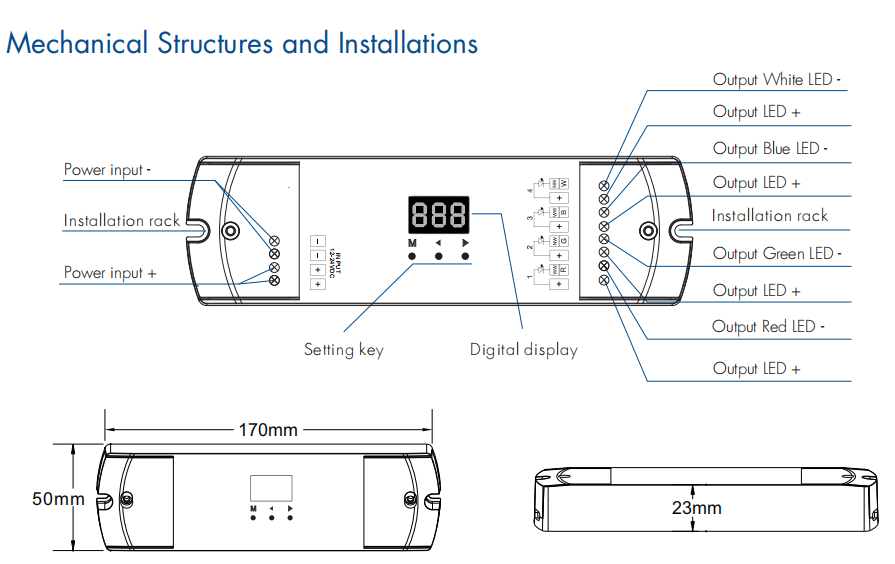

    arrow Product size: L170×W50×H23mm

    arrow Packing size: L172×W53×H27(mm)

    arrow Net weight: 125g



    Features

    RGBW/RGB/CCT/Dimming 4 Channel LED RF Controller

    ● Digital numeric display and easy key operation.

    ● Can set as 1 channel dimmer, 4 channel dimmer, dual-color, RGB or RGBW controller.

    ● Match with Skydance’s 2.4G single color, dual-color, and RGB/RGBW remote control.

    ● One RF controller accepts up to 10 remote control.

    ● When using with RGB/RGBW light, built-in 10 dynamic modes, include jump or gradual change style.

    ● PWM frequency 2000/500Hz is selectable.

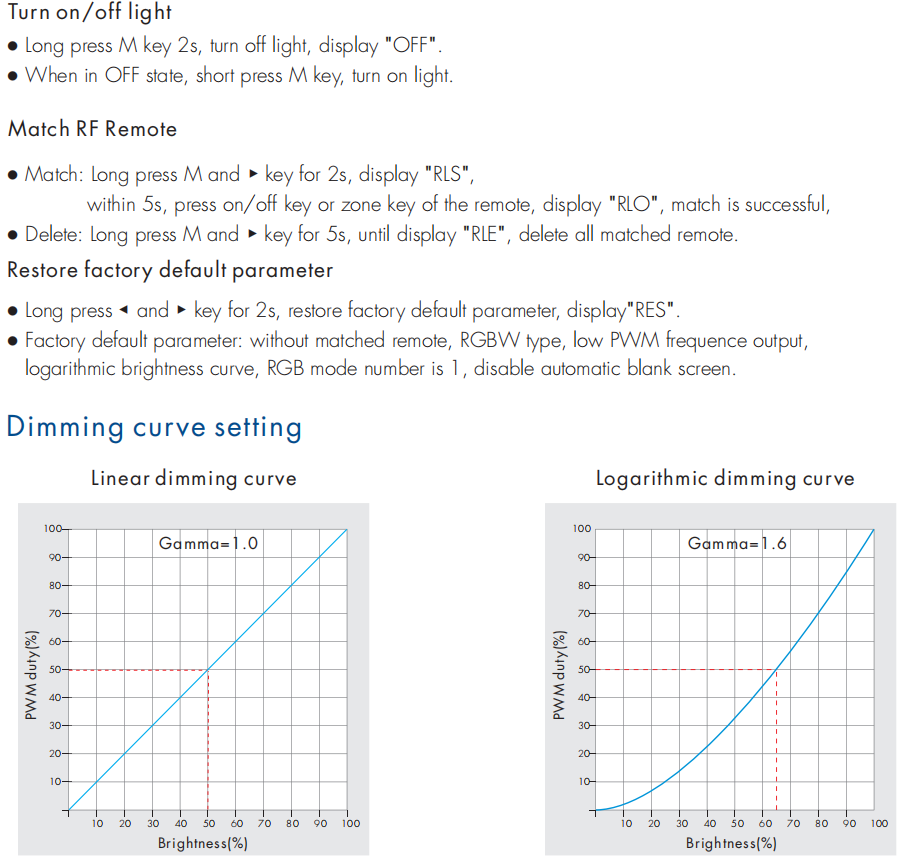

    ● Logarithmic or linear dimming curve selectable.

    ● Auto-transmitting function: Controller automatically transmits a signal to another controller with 30m control distance.

    ● Synchronize on a multiple controllers.



    Operation

    Light type and another parameter setting

    ● Long press M and ◀ key for 2s, prepare for setup system parameter: light type, output PWM frequency,  output brightness curve, automatic blank screen. short press M key to switch four items.

    ● Light type: short press ◀ or ▶ key to switch five kinds type: 1 channel dimmer("Ch1"), dual color temperature("Ch2") , RGB("Ch3"), RGBW("Ch4") and 4 channel dimmer("CH4").

    ● Output PWM frequency: short press ◀ or ▶ key to switch 500Hz("F-L") or 2KHz("F-H"). Higher PWM frequency will cause lower output current, higher power noise, but more suitable for the camera.

    ● Output brightness curve: short press ◀ or ▶ key to switch linear curve("C-L") or logarithmic curve("C-E").

    ● Automatic blank screen: short press ◀ or ▶ key to switch enable ("bon") or disable("boF") automatic blank screen.

    ● Long press M key for 2s or timeout 10s, quit system parameter setting.

    1 Channel Dimmer

    ● Four-channel output connect four single colors LED strip, realize synchronous dimming.

    ● Short press M key to switch coarse dimming and fine dimming.

    ● Coarse dimming: short press ◀ or ▶ key to adjust 10 levels brightness(b-1, b-9, b-F).

    ● Fine dimming: short press ◀ or ▶ key to adjust 256 levels brightness(b01~bFF)

    Dual color temperature controller

    ● Four-channel output connect two groups dual-color LED strip(WW and CW).

    ● Short press M key to switch color temperature or brightness adjustment.

    ● Press ◀ or ▶ key to setup the value of each item.

    ● Color temperature: 2700-6500K, display "270~650",short press 11 levels, long press 256 levels.

    ● Brightness: 1-10 level brightness(b-1,b-9,b-F).

    RGB/RGBW Controller

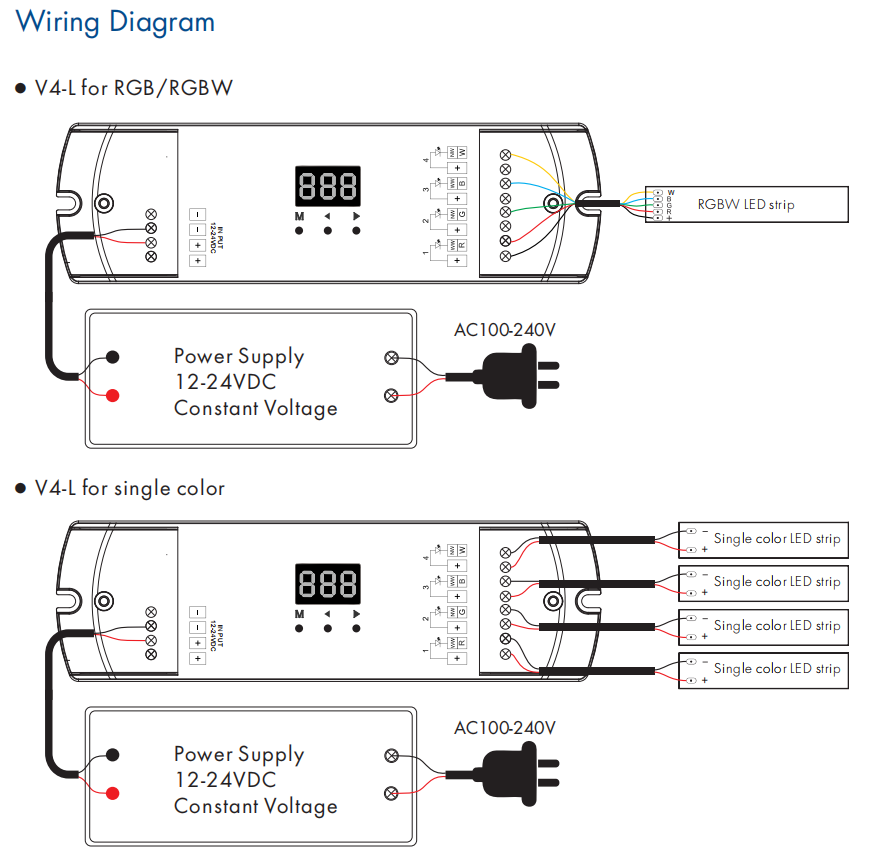

    ● Four-channel output connects RGB/RGBW LED strip.

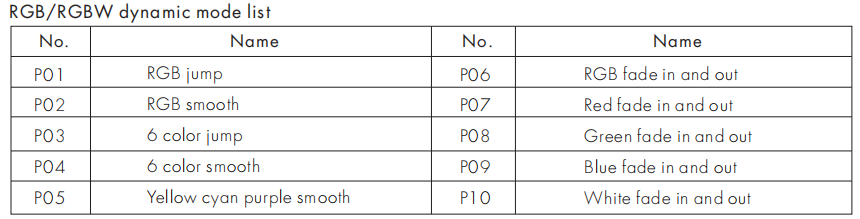

    ● Short press M key, switch static adjustable mode(P-H)

     and 10 change modes (P01~P10).

    ● When running static adjustable mode, can adjust three/four-channel brightness respectively. Short press M key switch three/four-channel dimming

     (100~1FF, 200~2FF, 300~3FF, 400~4FF), Press ◀ or ▶ key adjust each channel brightness.

    ● When run 10 change mode, can adjust each mode speed and brightness,

     W brightness(Only RGBW).

     Short press M key to switch speed and brightness item.

     Mode speed: 1-10 level speed(S-1, S-9, S-F).

     Mode brightness: 1-10 level brightness(b-1, b-9, b-F).

     W channel brightness: 0-255 level brightness(400~4FF).



    4 Channel Dimmer

    ● Four-channel output connects four single colors LED strip, realize individual dimming.

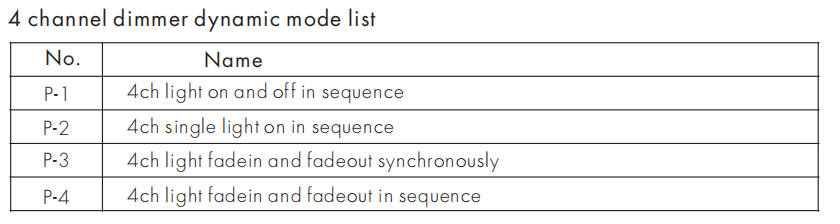

    ● Short press M key, switch static adjustable mode(P-H) and four dynamic modes (P-1~P-4).

    ● When run static adjustable mode, can adjust four-channel brightness respectively. Short press M key switch four-channel dimming(100~1FF, 200~2FF, 300~3FF, 400~4FF),

     Press ◀ or ▶ key adjust each channel brightness.

    ● When run four dynamic modes, can adjust each mode speed and brightness.

     Short press M key to switch speed and brightness item.

     Mode speed: 1-10 level speed(S-1, S-9, S-F).

     Mode brightness: 1-10 level brightness(b-1, b-9, b-F).
