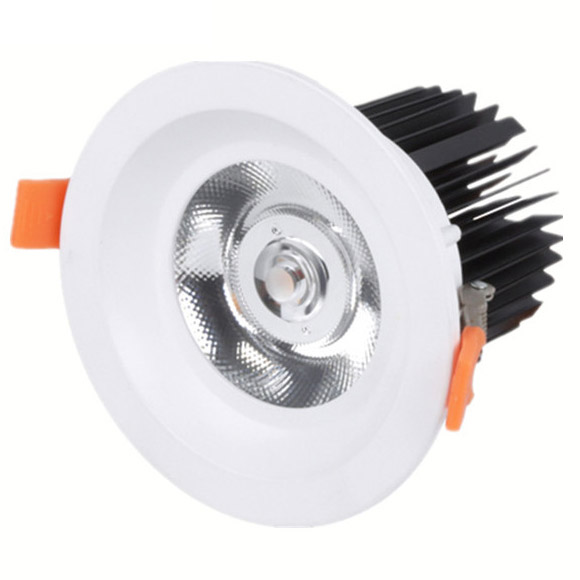

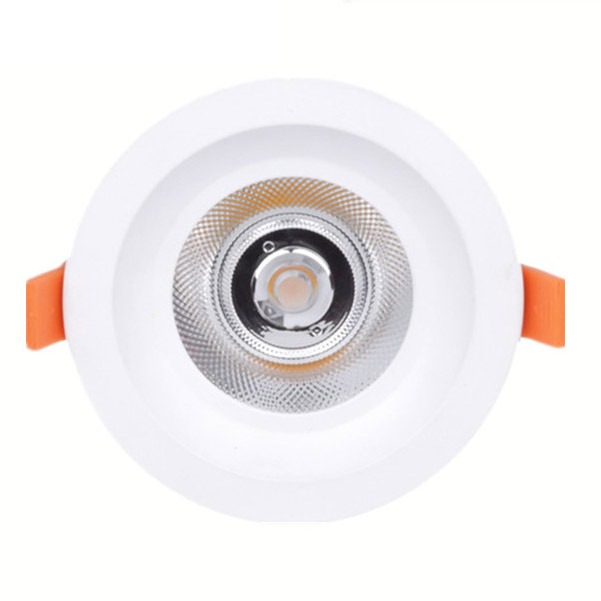

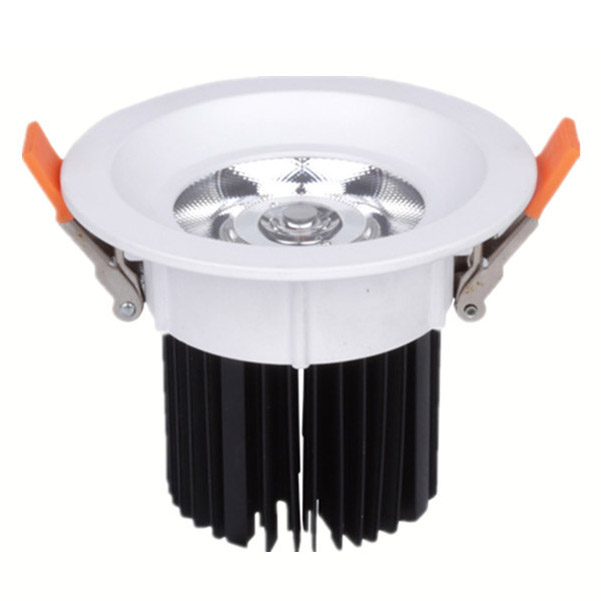

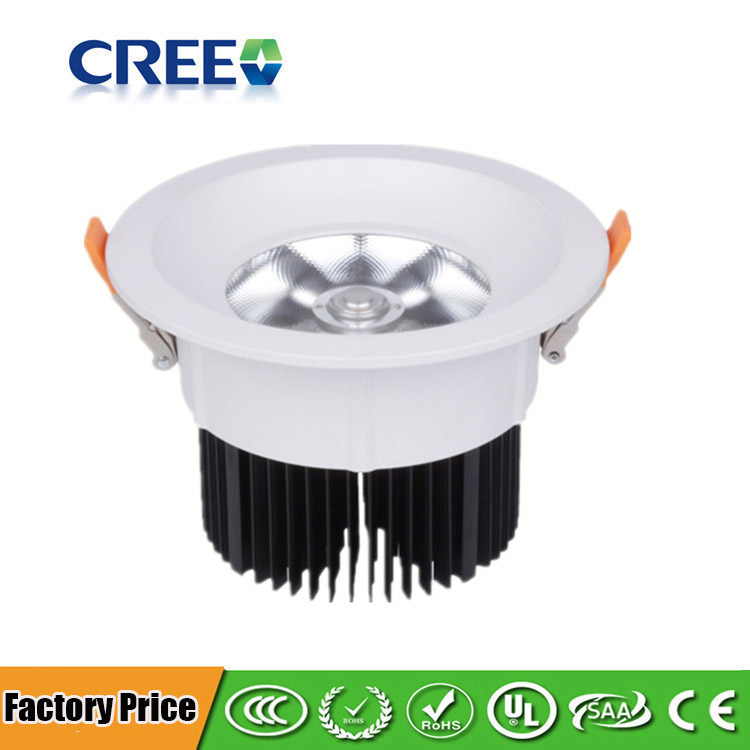

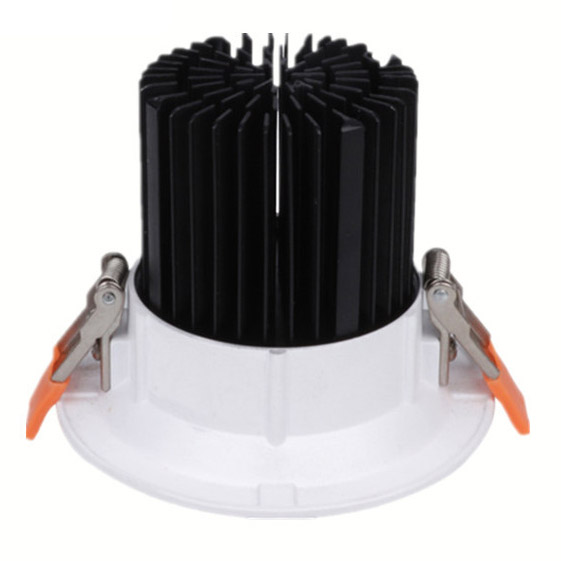

5~35W LED COB Ceiling Light - Triac Dimmable-Flush Mount LED Downlight-1600LM-12/24°Light speed angle
Related Products
5~35W LED COB Ceiling...
$12.98
Rotary Panel AC Triac RF...
$21.98
1CH*1.2A AC Triac Rotary...
$21.98
Touch Panel AC Triac RF...
$21.98
Rotary Panel AC Triac RF...
$17.98-
Special Price: $12.98
Photoelectric technology parameters:
LED Light Source : COB CREE
Color Temperature: 3000k/4000k/5700k
Voltage: AC 85~265V 50/60Hz
Power factor: >0.9
Luminous Flux (lm): 1600 lm ± 5%
Color Render Index: >80 or >90Ra
Light speed angle: 12/24°
Lifespan: >30000hours
Certification Certificate: CE, ROHS
IP rating : IP42
Surface: Φ95mm/3.74"*H59mm/2.32" Opening Hole: Φ75mm/2.95"
Surface: Φ95mm/3.74"*H79mm/3.11" Opening Hole: Φ75mm/2.95"
Surface: Φ115mm/4.53"*H60mm/2.36" Opening Hole: Φ95mm/3.74"
Surface: Φ142mm/5.59’*H101mm/3.98” Opening Hole: Φ125mm/4.92“
Surface: Φ160mm/6.3”*H104mm/4.09“ Opening Hole: Φ140mm/5.51"
TRIAC Dimmable
This LED downlights support AC Triac dimming, please use our Triac dimmer controller
Features
Imported Epistar LED COB Celling lights source.
Installation method: embedded, spring bracket fixed.
High color rendering index, strong color reproduction, suitable for high-end commercial lighting applications.
Light speed angle: 12/24°
LED COB Celling lights have passed the CE certification and RoHS certification.
Materials and processes
Lamp body: LED COB Celling light is extruded with aluminum anodizing to make the heat dissipation better.
Adopting the original imported light source from the United States, the specific brightness is high,LED downlight decay is small, the current margin is large, and the quality is guaranteed.
Applicable place
Commodity display, commercial lighting, such as car display, jewelry display, brand clothing display and star-rated hotels, high-end clubs, cultural relics, chain stores, brand business halls, boutique windows, walls and other key lighting, wall washing and leisure Atmosphere lighting in entertainment venues.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
