Special Price: $50.00 $36.9826% off

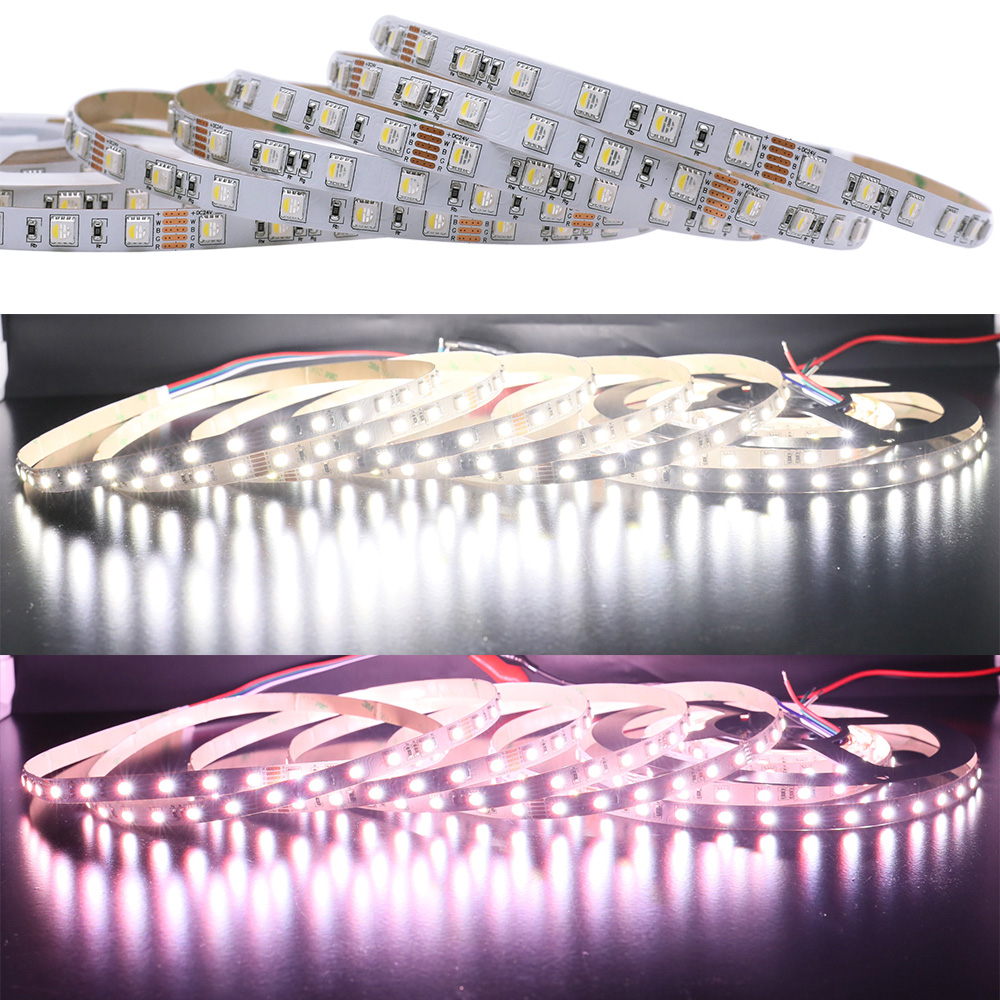

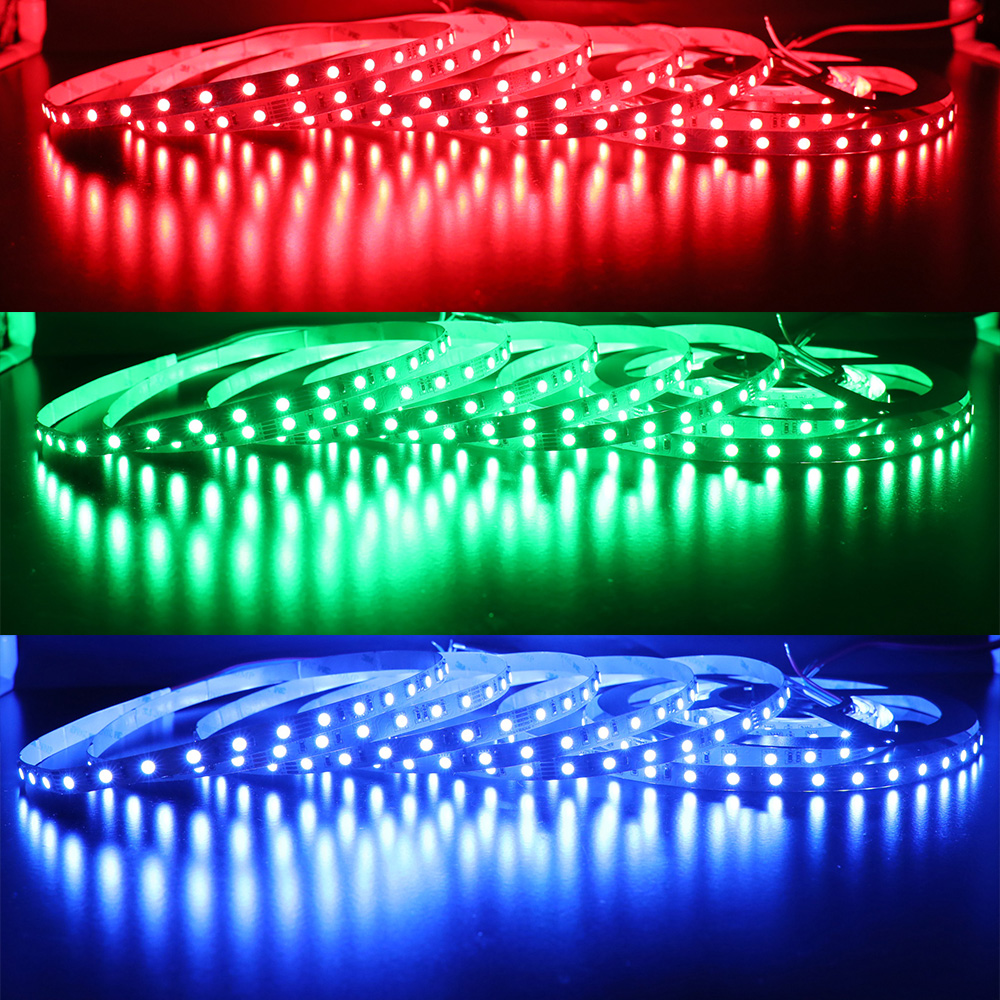

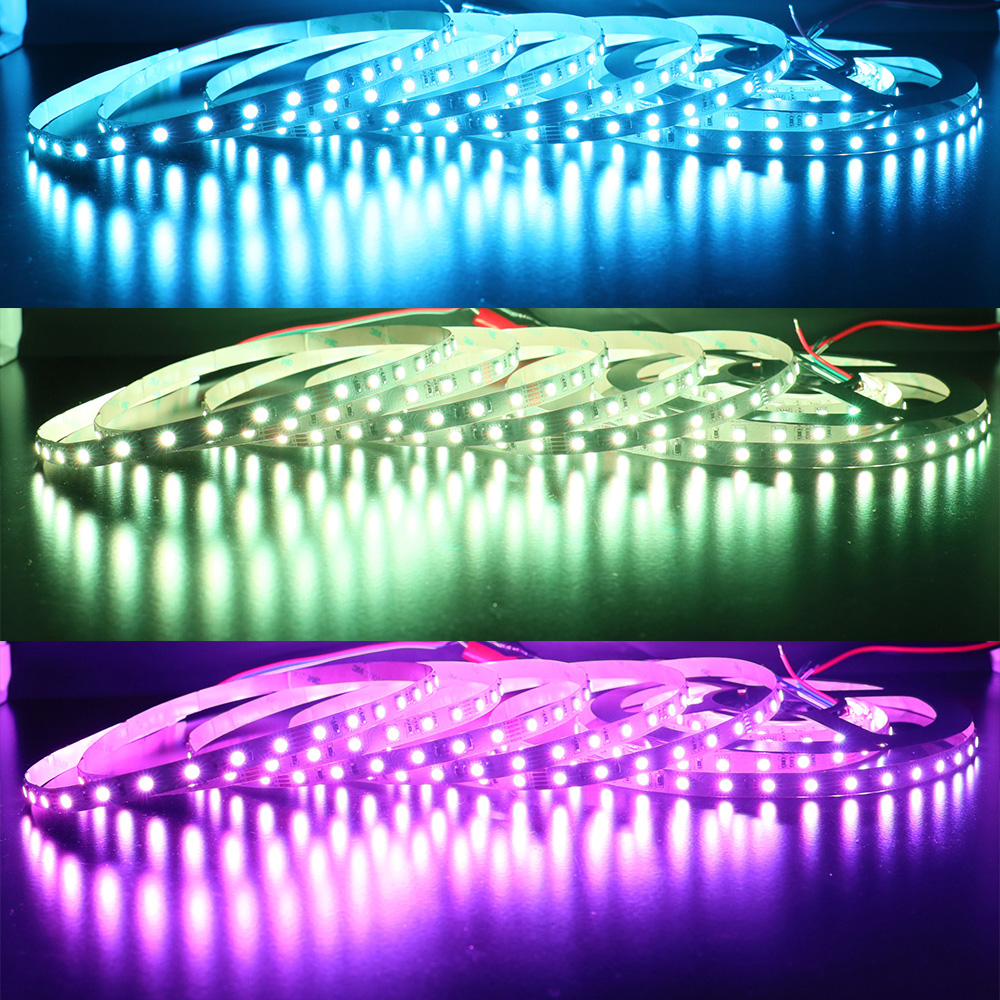

RGB color changing lights and white lights mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the light color, LED brightness, and mode. White light can be selected from 2700K, 3000K, 4000K, and 6000K. 2700K and 3000K warm white are suitable for indoor bedroom and kitchen lighting; 4000K neutral white is suitable for bathroom; 6000K daylight white is suitable for living room lighting.
-
DC12/24V low voltage input
-
3/6 LEDs cuttable, customize length
-

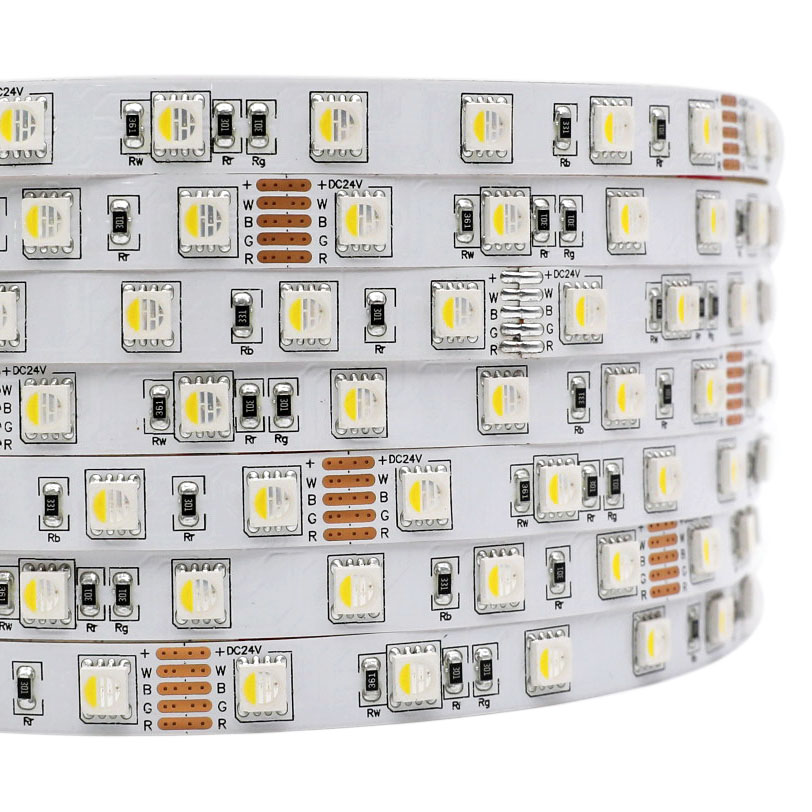

SMD5050 high-brightness LED
-
18LEDs/Ft high-density
-

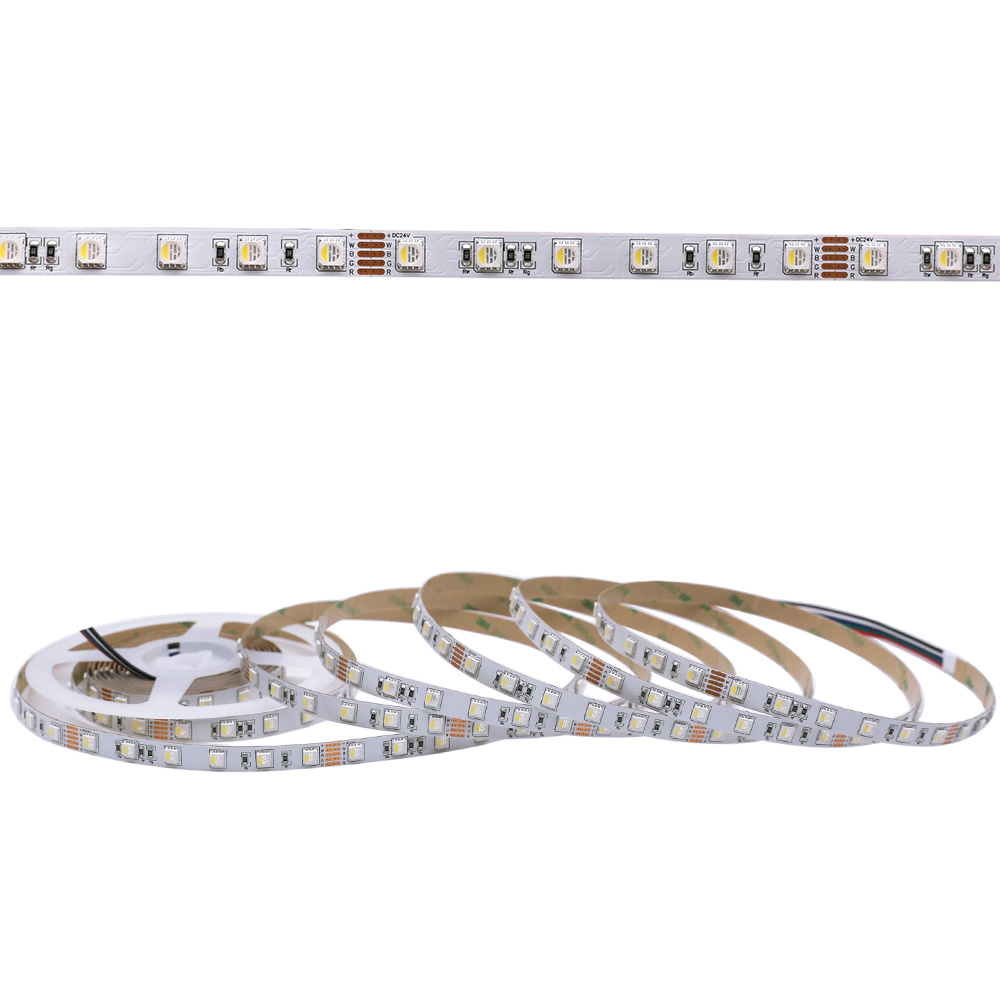

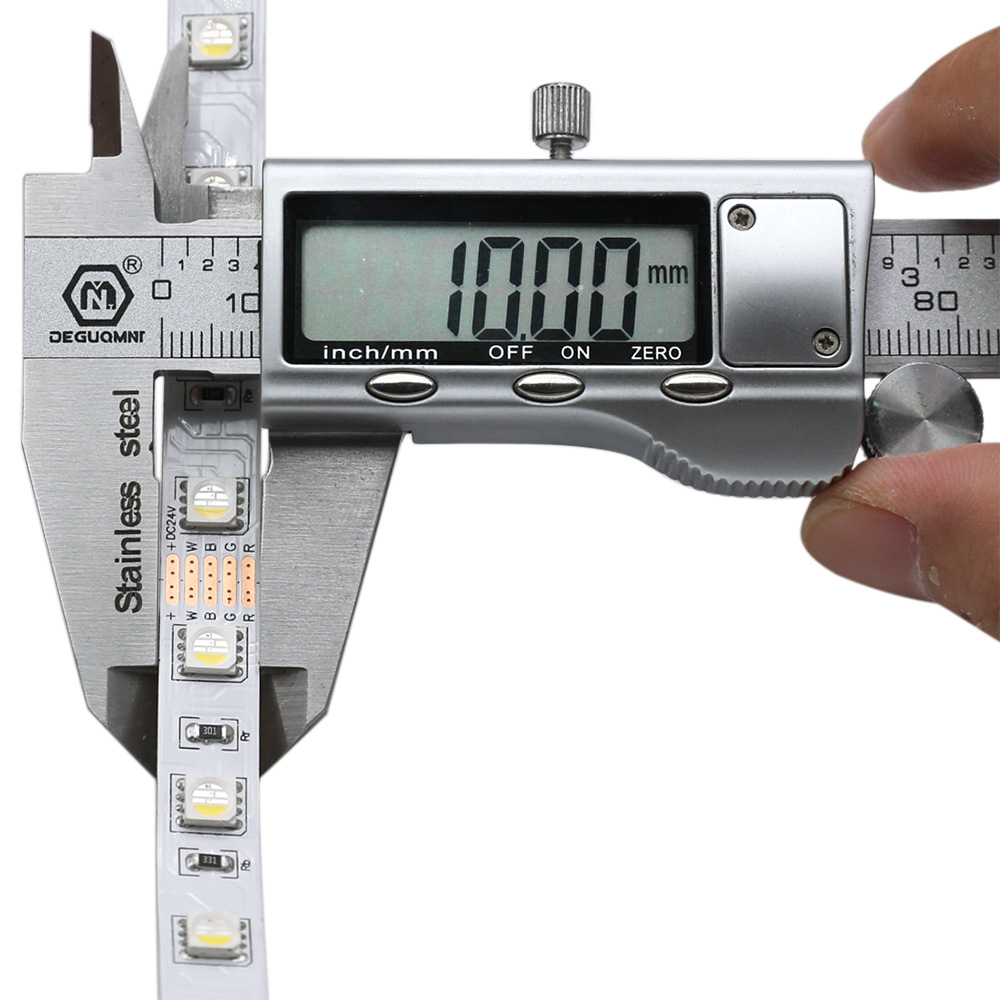

10mm/0.39in wide RGBW LED strip
-
RGB+Warm White 2700K/3000K / Natural White 4000K / Daylight White 6000K
-
IP20/65/67/68 waterproof available
-
For indoor & outdoor decorative lighting
-
Working with LED neon tube has a wide application

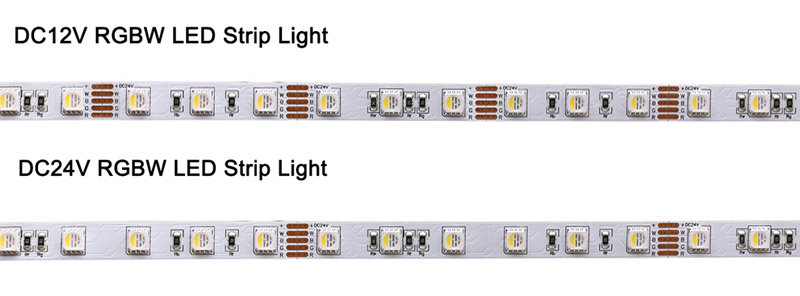

12V RGBW LED Strip vs 24V RGBW LED Strip
DC12V and DC24V led strip lights are consistent in power and LED quantity. In addition to the difference in voltage, the biggest difference is:

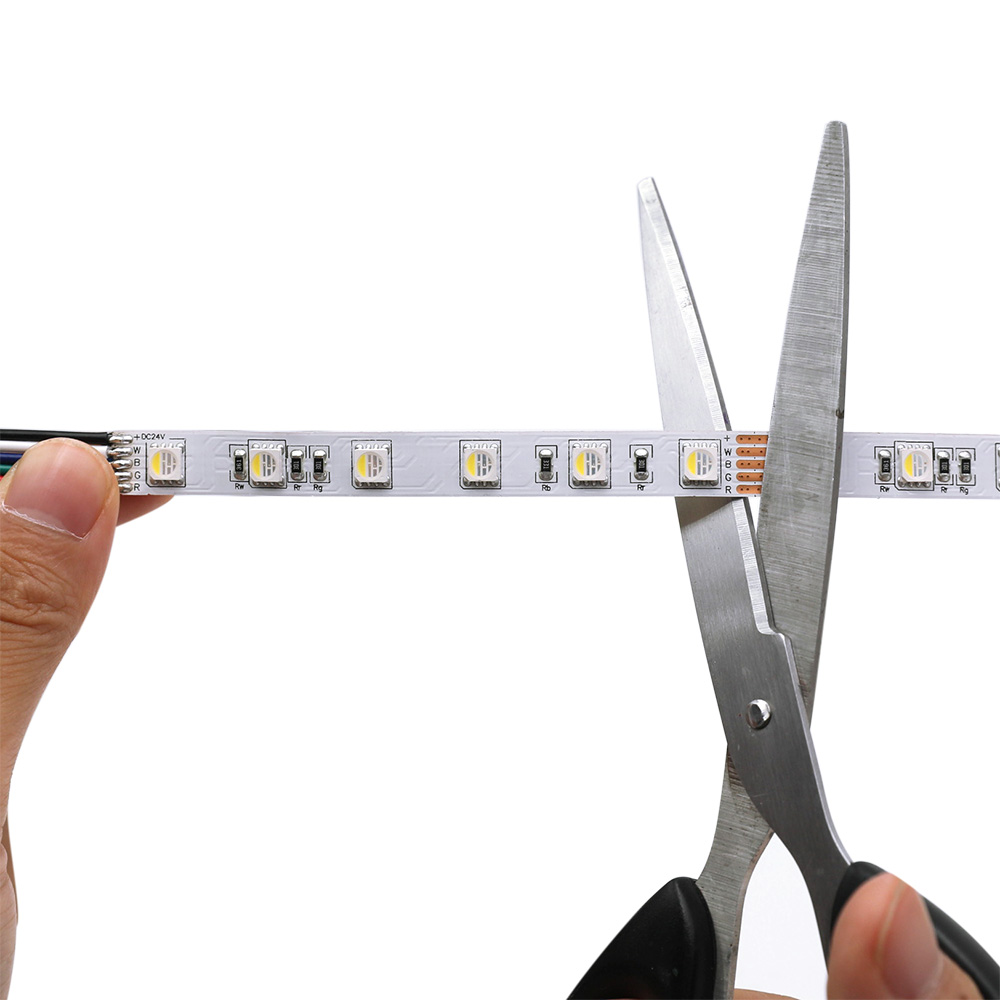

DC12V RGBW led strip lights integrate 3LEDs between the two PCB cut lines, each 50mm/1.97in can be cut (3LEDs cuttable)

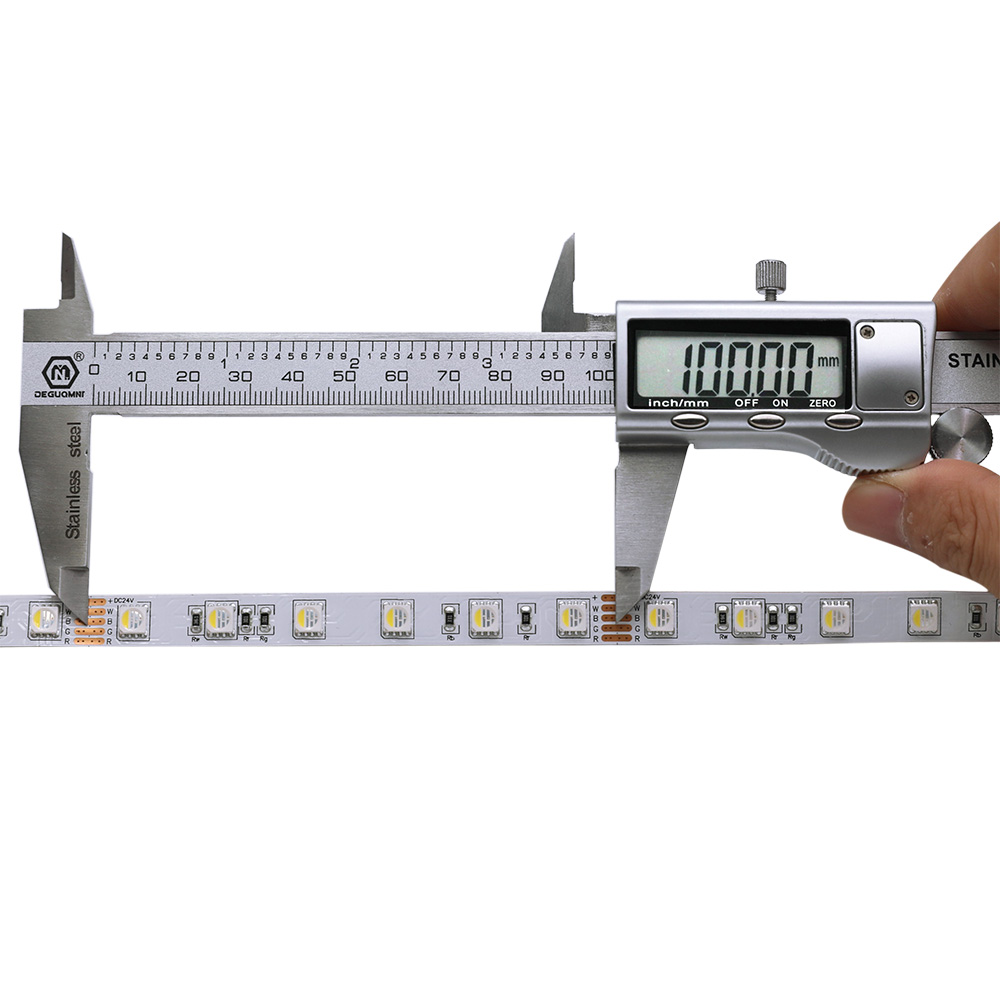

DC24V RGBW led strip lights integrate 6LEDs between the two PCB cut lines, each 100mm/3.94in can be cut (6LEDs cuttable)
LED Lights Kit:
For indoor environment, If you choose the LED controller in the kit, we will send you YL5/WL5 (support samrtphone app, Amazon Alexa, Google Assistant control)
For outdoor environment, if you choose the waterproof LED controller in the kit, we will send you WL5-WP(the waterproof version of YL5/WL5 LED controller)
To avoid the power load, the power of the LED power supply is 1.2 times the power of the LED strip light, for the 96W LED strip light, we recommend that you use the power of the LED power supply is above 115W. Otherwise, it will affect the brightness of the LEDs and the service life of the power supply.
| LED Strip Lights | Non-waterproof LED Power Supply | Waterproof LED Power Supply |
| 5m DC12V RGBW LED Strip | LRS-100-12 | PSWP-12V-120W |
| 5m DC24V RGBW LED Strip | LRS-100-24 | PSWP-24V-120W |
Standards and Certifications

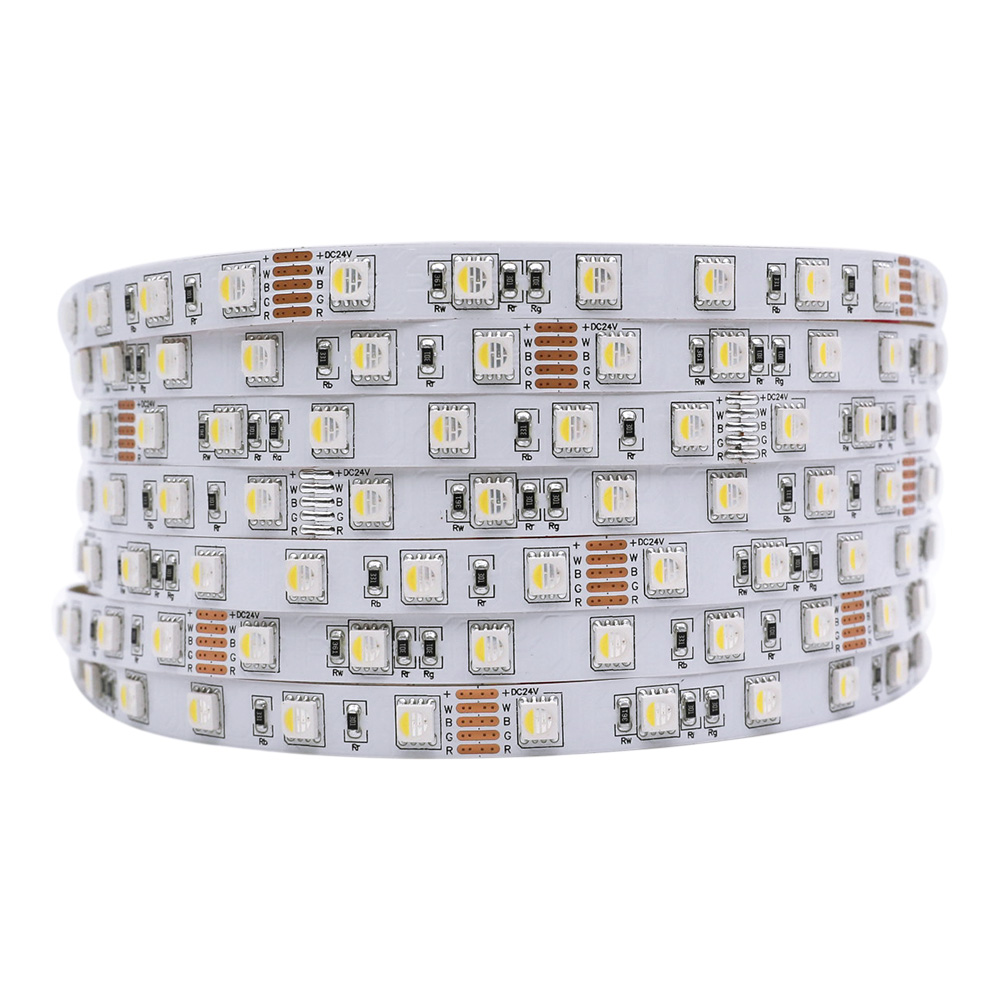

| LED Strip Type: | SMD 5050 4in1 RGBW 300LEDs/16.4ft |
| LED Chip: | Epistar Chip |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | RGB+W2700K, RGB+W3000K, RGB+W4000K, RGB+W6000K |
| Dimension: | 16.4ft/roll, every 3/6 PCS LED can be cut |
| LED Quantity: | 60 LEDs per 1meter (3.28 ft) |
| Lifespan: | 50,000+hours |
| Strip Width: | 10mm (0.39 in ) |
| Input Voltage(V): | 12/24 VDC |
| Working Power: | 96W /16.4ft Max |
| Lamp Luminous Flux(lm): | 20~22Lumen 6600lm Max /16.4ft 402lm/feet 68.75lm/watt |
| Wavelength NM(RGBY): | 2000-2500mcd |
| Beam Pattern: | 120 degree |
| Waterproof: | Non-waterproof IP20, waterproof IP65 IP67 IP68 |
Waterproof Level Description

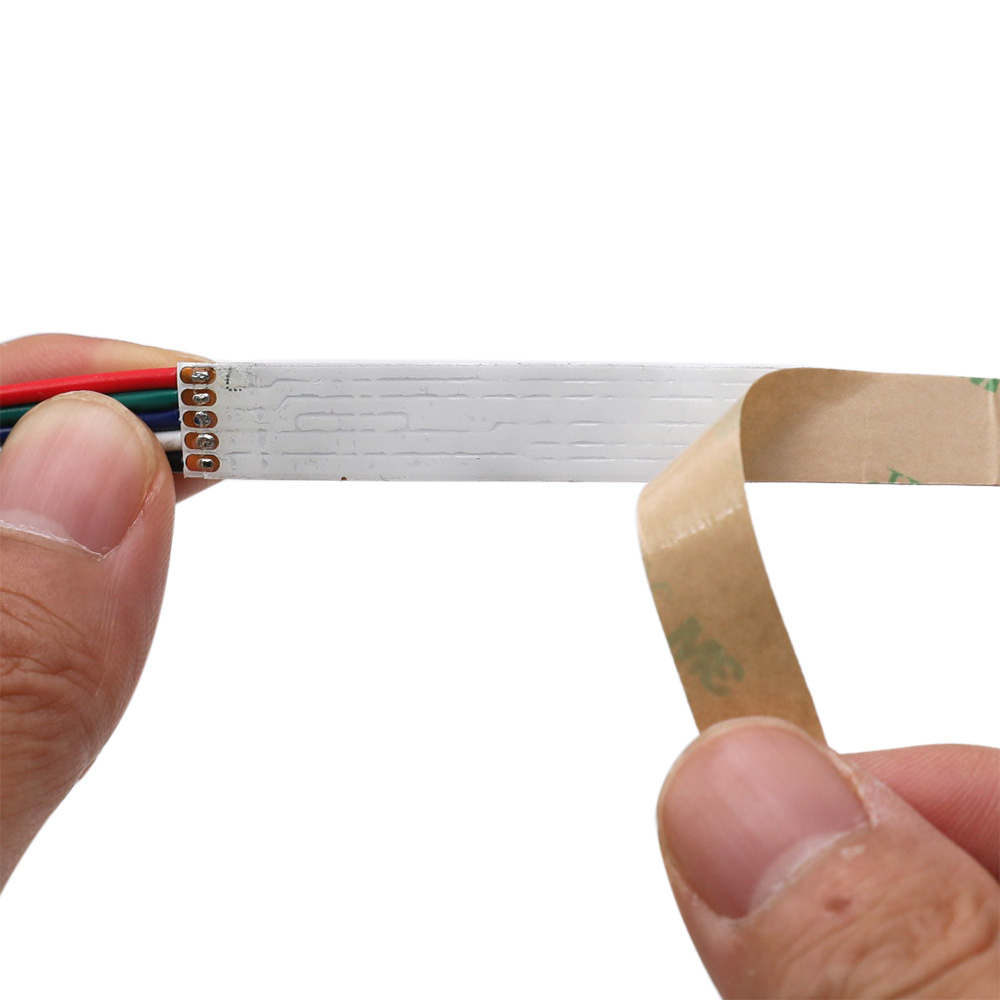

IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
LED Light Strip Accessories
60 density RGBW led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
|
|
|
