Special Price: $118.98

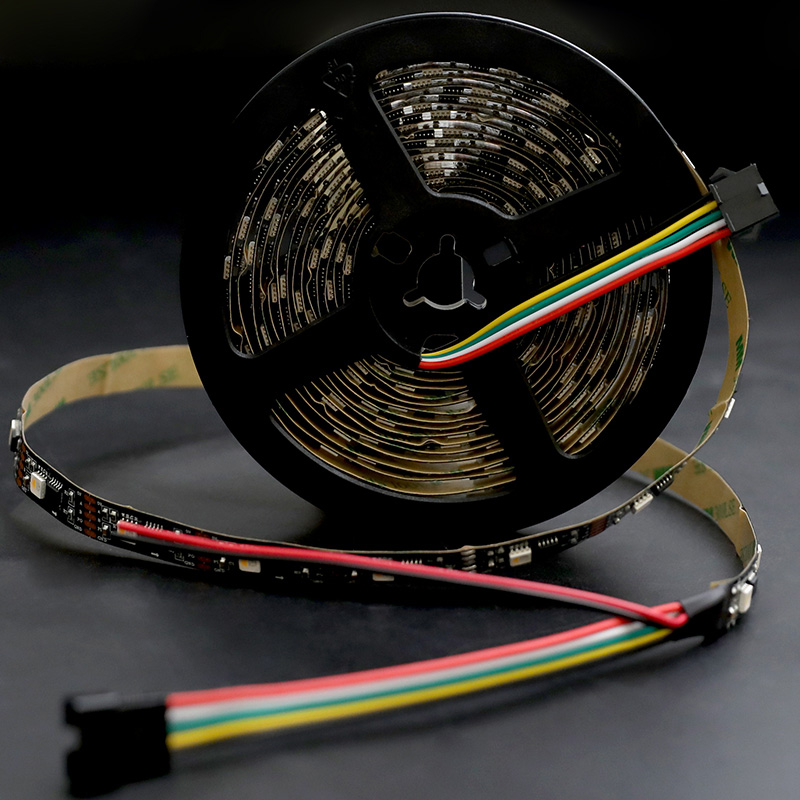

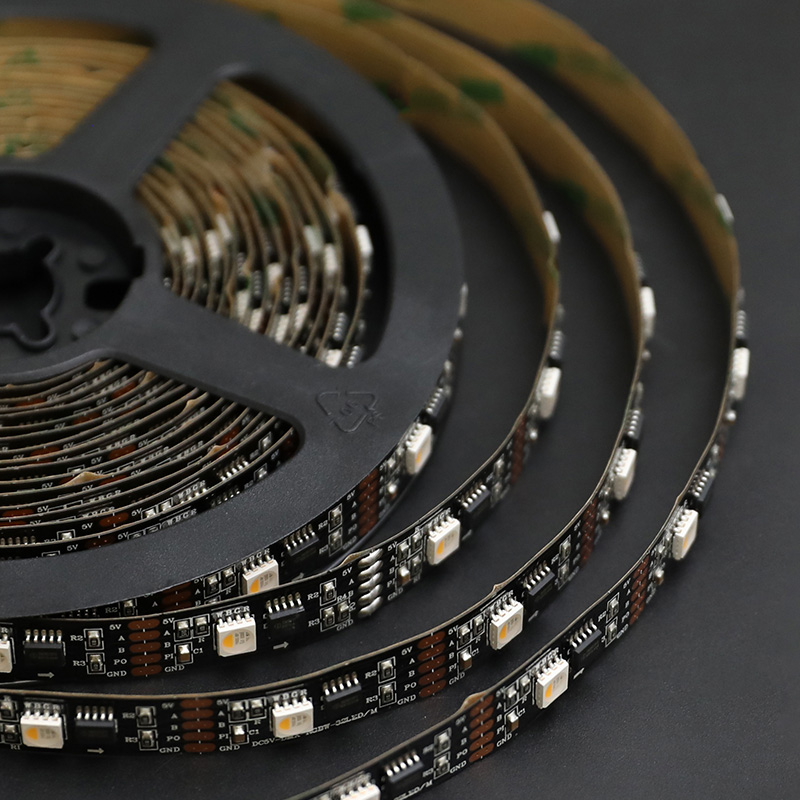

The latest LED tape light DMX is equipped with two signal lines and one address line, supporting breakpoint resume function. 4in1 RGBW colors are integrated in 5050SMDs, available in 3000K warm white and 6000K daylight white. Compared to RGB DMX LED tape, it can display purer white light, suitable for professional lighting projects that have a high requirement for white light. Each lamp bead is controlled by an SM18512PS chip. Point-to-point control can show a more detailed and vivid color-changing effect.

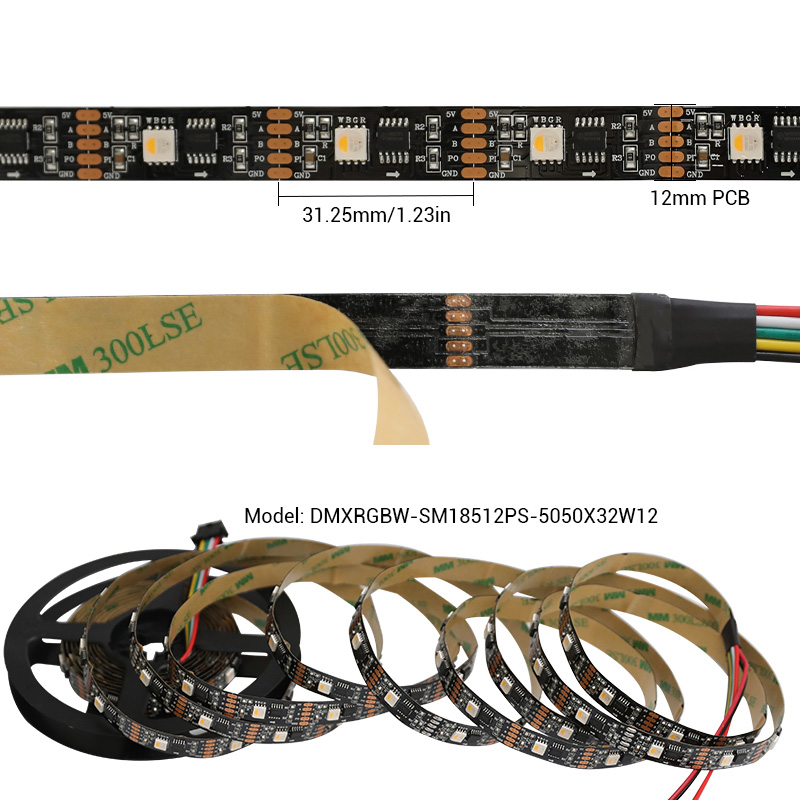

This RGBW DMX LED strip works under 5V low voltage, needs a 5V power supply, safe to touch. The black PCB blends more easily into the black background for a concealed effect. There are 32 light beads across each meter and 160 light beads in one roll. (5m/16.4ft) Each LED bead can be cut, and the smallest cutting distance is 31mm. (1.2in) Using scissors you can easily customize the length of the individually addressable LED strip DMX.
Flexible and bendable, the strip can be shaped to meet the needs of personalized lighting effects, such as curved paths or artistic displays. The back of the LED strip RGB DMX is pre-applied with 3M adhesive, making it easy to install. If you prefer a smooth and spotless light effect, you can try an aluminum channel or a neon tube, but please note that the inner width needs to be more than 12mm (because the width of this RGB LED DMX strip is 12mm). We also offer DMX controller, but currently they do not support DC5V input. If purchased, please power the controller and the DMX LED strips separately.
Features
1.5V DMX LED Tape, individually controllable, supports breakpoint resume function.
2.RGBW color, white light available in 3000K warm white and 6000K daylight white.
3.5050 SMD, density of 32 LED beads per meter, 160 beads per roll. (5m/16.4ft)
4.Black color PCB, with adhesive backing for quick installation.
5.Flexible and bendable, each LED bead can be cut. (31mm/1.2in)
6.5pin GST connectors at both ends.
7.Different waterproof ratings including IP20 non-waterproof, IP65 splash-proof, IP67 outdoor-waterproof and IP68 underwater.
Standards and Certifications
Product Specification
|
LED Strip Type:
|
Individually Addressable RGBW DMX Controlled LED Tape |
| IC Chip: | SM18512PS, 32 chips per meter |
| Input Voltage: | DC 5V |
| PCB Width: | 12mm / 0.47in |
| Power: | 9.6W/m |
| LED Color: | RGBW (3000K/ 6000K) |
| LED Quantity: | 32 LEDs/m, 160 LEDs per roll |
| LED Chip: | SMD5050 |
| Cut Length: | 31mm / 1.2in |
| Beam Angle: | 120° |
| Lumen: | 18-22 LM/ LED |
| Length: | 5m/16.4ft |
|
Waterproof Rating:
|
IP20 / IP65 / IP67 / IP68
|
