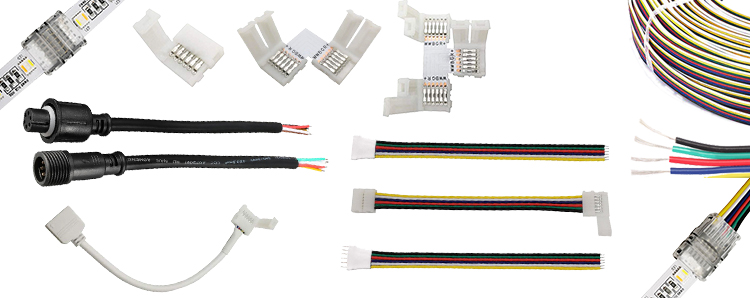

Components for RGB CCT LED Strip Lights, including extension wires, strip to strip connectors, strip to wire connectors, waterproof led strip connectors, male and female accessroies, and more.
LED Light Strip Accessories
Sponsors
Sponsors
6-Pin RGB+CCT LED Strips Parts
(0)Model:WSC-CONNECTOR1930-CAPS-6PIN
10 Pcs Transparent 6 Pin Electrical Wire Extension Connectors for 20 to 24 AWG Cable
- Gauge: 20-24 AWG
- Material: PC
- Waterproof Rating: IP20
- Quantity:10 Pieces
- Port: 6 Ports /Side
- Connection:Wire to Wire
- Size:10mm(L)X16.7mm(W)X6mm(H)
6 port push in wire connectors are suitable for extending wire-to-wire connection of RGBCCT LED strip lights and RGBTW LED sheet lights . They can also connect sensor lights and other electronic devices with voltages between 5V and 48V. 10 pieces of transparent very small wire connectors are included in one package, compatible with single stranded wires, multi-stranded wires and solid wires....
(0)Model:SC-ACCESSORIE-ULCABLE-1430
UL 1430 Stranded Copper Electric Hook up Wire 20AWG to 26AWG 65ft
- Rated Voltage: 300V
- Withstand Temperature: 105℃
- Length: 20m/65.6ft per roll
- Size: 20/22/24/26 AWG
- Jacket Color: Multiple
- Conductor: Tinned Copper Wire
- Insulation: XLPVC
This stranded copper wire is UL1430 certified and the conductors inside use tin-plated copper to prevent oxidation, thus extending the life of this electric hook up wire. The outer layer of the wire uses XLPVC as an insulating material, which improves heat resistance and can withstand temperatures up to 105 °C . UL 1430 wire is not only suitable for LED light strip connections, but also for...
(0)Model:SC-ACCESSORIE-ULCABLE
UL 1569 Standard Electrical Wire For LED Lights 18 AWG to 24 AWG 65ft
- Wire Size: 18/20/22/24AWG
- Length: 20m/65.6ft
- Waterproof Rating: IP20
- Colors:Multiple
- Material: Pure copper
- Coating: PVC
This LED wire is certified to UL 1569 standard, available in a range of gauge sizes from 24 AWG to 18 AWG. Up to 10 electrical wire colors for selection, allowing for easy distinction of LED cables during LED lighting connection process, very convenient. UL listed cable is made of high-density tinned pure copper core, ensuring high conductivity, low loss, and resistance to oxidation for an...
(0)Model:SC-ACCESSORIE-ULCABLE-3122
UL 3122 Heat Resistant Silicone Wire with Glass Braid 12AWG to 20 AWG 65ft
- Rated Voltage: 600V
- Withstand Temperature: 200℃
- Length: 20m/65.6ft per roll
- Size: 12/14/16/18/20 AWG
- Jacket Color: Multiple
- Conductor: Tinned Copper Wire
- Insulation: Silicone + Glass Fiber Braid
This silicone jacketed cable is UL3122 certified for high temperature-resistance and safety. The heat resistant silicone cable is rated at 600V and can withstand temperatures up to 200℃, making it safe to use. The inner part of this UL 3122 wire is made of a tinned pure copper core, which is evenly distributed and not eccentric. The outer part is insulated with silicone, which is flexible and...
(0)Model:RGB/CCT-ACCESSORIE-3
6-Pin 20/22AWG Power Wire Extension Cable 3.28ft/1m For RGB+CCT LED Strip Lights
- Applicable Width:12mm
- Type: 6-Pin 20AWG Copper Core
- Packing: 3.28ft
- Applicable Color: RGB+CCT
RGB+CCT Power Connection Wire Cable with 6-Pin 20AWG Copper Core For RGBW/RGBWWW LED Strip Lights 3.28ft/1meter by sale. Product Features: Connect led strips within any angle. Time-saving, smoothly, and easy. Reliable and conveniently to connect. 20AWG- 6*0.5MM Wires; UL-Listed; Application: for bare board 12mm PCB RGB+CCT 5050 led strip light. If you order Qty of 20, we...
(0)Model:RGBCCT-ACCESSORIE-6PIN
6-Pin 20/22AWG RGB+CCT White Waterproof Power Cable 3.28Ft/1m
- AWG:20/22
- Applicable Color: RGBCCT
- Packing: 3.28Ft/1m by sale
- Type: 6-Pin 6*0.5mm
- Outer Color: White/Black
6-Pin 20AWG/6*0.5mm RGB+CCT Copper Core RVV White PVC Jacket Waterproof Power Cable For High Power RGB+CCT LED Strip Lighting, 3.28Ft/1m by sale. Product Type: Waterproof LED Wire for RGBCCT led strip lights Pins: 6-pin Wire Gauge: 20wag/0.5mm², 22awg/0.3mm ², 18awg/0.75mm ², 17awg/1.0mm ² Cable Diameter: 7.5mm, 5.5mm, 9.5mm, 11.5mm Cable Color: White, Black,...
(0)Model:WSC-CONNECTOR1930-CAPS
LED Wire to Wire Quick Splice Connector with Caps
- Gauge: 20/22/24
- Material: Plastic
- Size: L1.5mm*W0.7mm*H1.1mm
- IP Rating: IP20
- For LED Strip: White/CCT/RGB/RGBW/RGBTW
- Package: 10 pcs
This led wire to wire connector, featuring 1.8mm hole diameter, is suitable for connecting 20-24AWG wires, available in 2pin, 3pin, 4pin, 5pin and 6pin version. Quick splice connectors come with transparent caps, easy to use. Just insert the wires into the corresponding holes, then use pliers to press the gold protruding part to ensure that the wires are securely connected to each other. The last...
(0)Model:SMD-RGBCCT-6P
6-Pin SMD RGBCCT LED Light Strip Connector For 12mm, Strip to Strip / Strip to Wire
- Pins: 6
- PCB: 12mm/0.47"
- Type: Strip to Strip/Strip to Wire
- LED: SMD LED
Check this type of 6-Pin LED Strip Connector for your 12mm wide RGBCCT LED Strip, with strip to strip and strip to wire connectors. This solderless connector allows you to quickly and safely to attach the RGB CCT LED strip light to another or to the RGBCCT controller. Product Type: 6-Pin RGBCCT LED Light Strip Connector Connector Type: Strip to Strip, Strip to Wire Feature: No...
(0)Model:SMD-RGBCCT-L
6Pin Quick L-Shape RGBCCT SMD LED Strip Corner Connector For 12mm Tape
- Pins: 6
- Color: RGBCCT
- PCB: 12mm
- Type: For Corner
Check this L-Shape Connector for your 6-Pin RGB+CCT SMD LED Strip with 12mm wide, it is designed for corner installation. This solderless 6-Pin LED Connector allows you to quickly make a secure connection of two RGBCCT strips. Product Type: 6-Pin RGBCCT LED Corner Connector Connector Type: L-Shape Feature: No block SMD LED design PCB Width: 12mm/0.47" Apply to: 6-Pin SMD...
(0)Model:RGBCCT-COB-6Pin
6-Pin 12mm Board to Board COB RGBCCT LED Strip Light Connector
- Pins: 6pin
- PCB Board: 12mm
- Type: Board to Board
- LED Type: COB
With a board-to-wire design, the 6-Pin COB RGBCCT LED Strip Light Connector is to quickly connect your two segments of LED strip lights together with no solder. It applies to 12mm COB RGBCCT LED strip lights. The solderless 6-Pin COB LED Connector provides a reliable and secure connection for your LED light installation. How to Use: Insert your 6-pin COB light tape into the...
(0)Model:RGBCCT-COB-6Pin-W
6-Pin RGBCCT COB LED Strip Board to Wire Connector, For 12mm
- Pins: 6pin
- PCB Width: 12mm
- Type: Board to Wire
- LED Type: COB
- Size: 13.76*12.16*4mm
The 6-Pin RGBCCT COB LED Strip Board to Wire Connector is an essential component for quickly connecting your 6-Pin COB LED strip to RGBCCT controller or driver with no solder. This 6-Pin LED connector features a 12mm board-to-strip design, is easy to install and provides a reliable and secure connection. How to Use: Insert your 6-pin COB strip and...
(0)Model:RGBCCT-ACCESSORIE-IL
6 Pin Connector Board to Board Type For 12mm RGBCCT LED Strip
- Pin Type: 6pin RGBCCT
- PCB Width: 12mm
This is a 6-pin LED connector for 12mm wide RGB CCT color changing LED strip lights , used to connect two sections of light strips. It's 2 inches in length, and 0.64 inches wide. It can be stright connected or L-shape connected. The role of each wire is determined by your RGBCCT led strip.
(0)Model:RGBCCT-ACCESSORIE-L
6 Pin L-Shape Connector Board to Board Type For 12mm RGBCCT LED Strip
- Pin Type: 6pin RGBCCT
- PCB Width: 12mm
This is a 6-pin LED strip connector for 12mm wide RGB CCT color changing LED strip lights , used to connect two sections of led strips with 90-degree derection changed. The role of each wire is determined by your RGBCCT led strip.
(0)Model:RGBCCT-ACCESSORIE-EX
6 Pin LED Strip to Strip Connector For 12mm RGBCCT LED Strips, Extension Type
- Type: 6 Pin Connector
- Type: Strip to Strip
- PCB Width: 12mm
- Length: 100mm/4in
This is a 6-pin LED strip connector to connect two sections of led strips together to extend running length or jump obstacles, for 12mm wide RGBCCT LED str ip lights . 100mm (4 inches) long Strip to Strip type
(0)Model:RGBCCT-ACCESSORIE-SW
6 Pin LED Strip to Wire Connector For 12mm RGBCCT Light Strips
- Type: 6 Pin Connector
- Type: Strip to Wire
- PCB Width: 12mm
- Length: 120mm/4.7"
This component is for RGB+CCT LED strip light installation. Its function is to connect the strip to controller or dimmable led driver. 6pin LED connector 120mm (4.7 inches) long Strip to Wire type For 12mm RGBWW LED Strips
(0)Model:RGBCCT-ACCESSORIE-JST
RGBCCT LED Strip 6pin JST Connector Male to Female - 1 Pair
- Applicable Color: RGBCCT
- Length: 15cm
- Applicable Width: 12mm
- Packing: 1 pair
Male to female 6 pin connector for RGBCCT led strip lights, one pair for sale. Note: The color of the wire sometimes does not indicate the connected line. Please be careful in identifying. Material: PVC plastic; Tinned copper wire Wire gauge: 22AWG Length: Male wire:about 16cm; Female wire:about 15.2cm Rated voltage: 1-2V Rated current: 5-24A Ambient temperature: -20 ° C ~ 80...
(0)Model:RGB/CCT-ACCESSORIE-1
6pin RGB CCT LED Easy Connector 6 pin 12mm Width Solderless Adapter For RGB+CCT LED Strip Lights 1 Clip
- Applicable Color: RGB CCT
- Length: 15cm
- Applicable Width: 12mm
- Packing: 1 Piece
Product Features: Connect led strips within any angle. Time-saving, smoothly, and easy. Reliable and conveniently to connect. Iterm :15cm length,12mm width 6 pin Application: for bare board 12mm PCB RGB+CCT 5050 led strip light
(0)Model:RGB/CCT-ACCESSORIE-2
6pin RGB CCT LED Easy Connector 6 pin 12mm Width Solderless Adapter For RGB+CCT LED Strip Lights 2 Clip
- Applicable Color: RGB CCT
- Applicable Width: 12mm
- Length: 15cm
- Packing: 1 Piece
Product Features Connect led strips within any angle. Time-saving, smoothly, and easy. Reliable and conveniently to connect. Iterm :15cm length,12mm width 6 pin Application: for bare board 12mm PCB RGB+CCT 5050 led strip light
(0)Model:RGB/CCT-ACCESSORIE-13
6 Pins LED Connector for 12mm RGB+CCT Non-Waterproof LED Strip Lights- Strip to 1.64ft Wire Quick Connection, 20-22 AWG Wire No Stripping
- Packing: 1 Piece
- Applicable Color: RGB+CCT
- Applicable Width: 12mm
- Waterproof Level: IP20/IP65
Features: 1. One end for RGB+CCT 6 Pins extension wire and another end for RGB+CCT strip light. Connect to wire without stripping insulation (insulation-piercing-contact) 2. DIY RGB+CCT connector wire with the length you want, no more worry distance from strip light to Controller or power supply 3. As much as 10A ( R, G, B, dual White 5 channel ) supported, allowing you to connect longer LED...
(0)Model:RGB/CCT-ACCESSORIE-7
RGB+CCT 6 Pins LED Strip Connector Terminal 12mm Board to Board for Non-Waterproof Tape Light Splice Between 2 Segment Strip Lights
- Applicable Color: RGB+CCT
- Pin Quantity: 6 pin
- Applicable Width: 12mm
- Working Voltage: DC 3 - 24V
Applicable to non-waterproof 5050 RGB+CCT LED strip light that is 12mm wide As a middle connector between 2 segments of LED tape light extending your tape light longer running Simply place strip light above pin and press cap down, the connection is made instantly Powerful with as much as total 5A current supported, allowing you to connect longer LED strip by one connector, reducing cost and...
