Special Price: $149.98
GC-6808 is a LED light controller based on ART-NET protocol. Compatible with MADRIX3, MADRIX5 software. Support international standard ART-NET 3, and backward compatible with ART-NET, ART-NET 2. This MADRIX Artnet LED controller provides standard 8 sets of DMX512 output and 2 RJ45 network interfaces. It converts network packets into standard DMX512 signals and various SPI signals. An output port can be extended to support 850 points. The output electrical standard includes RS485 and TTL.
GC-6808 DMX controller adopts FPGA as the core processor and is equipped with a gigabit network transmission interface. The strong data computing ability of FPGA combined with the transmission rate of the gigabit network, receiving DMX512 packets from the network and extending the decoding output. It supports various single-wire, dual-wire addressable ICs, such as TM1812, UCS2903, TLS3001, and so on.
GC-6808 DMX lights controller provides a one-button parameter setting tool, that can quickly set the IP address, Port address, and other system parameters. The DMX control system can support various ART-NET software, widely used in stages, bars, KTVs, TV recording halls, all kinds of theme exhibition halls and all kinds of landscape lighting LED projects.
Performance Characteristics:
1. FPGA core processor, gigabit network transmission technology
2. Based on the international standard ART-NET 3 protocol, it can be backward compatible with ART-NET and ART-NET 2 protocols

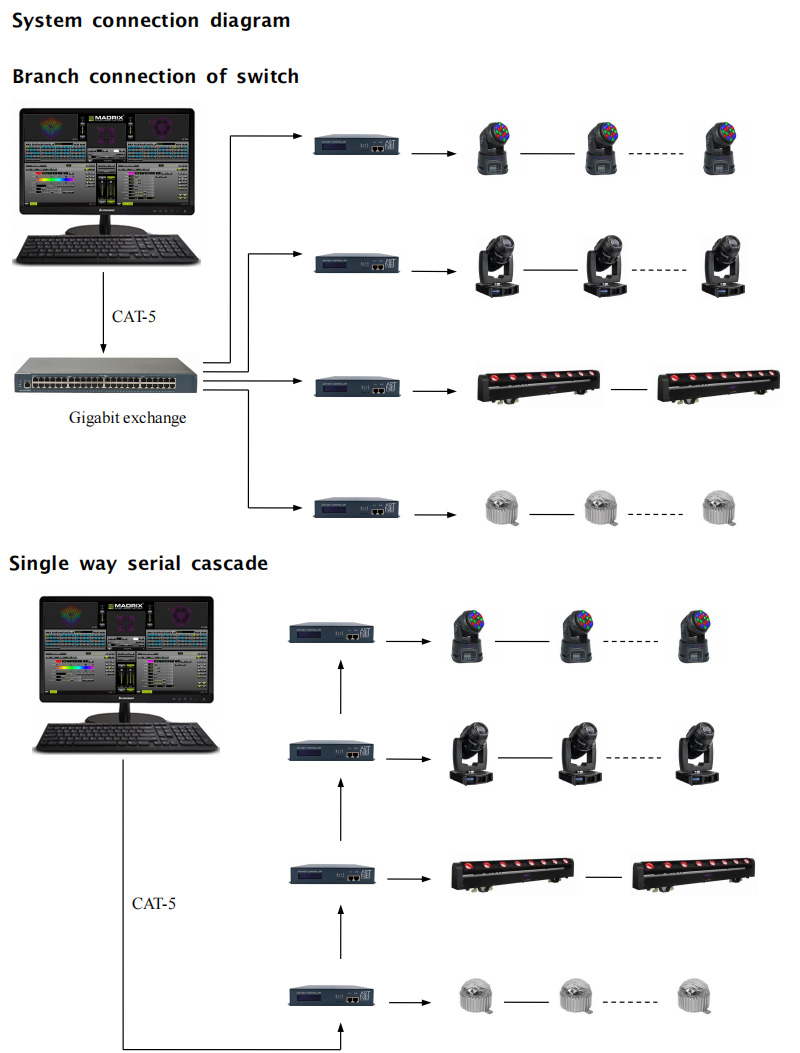

3. ART-NET network terminal network cable cascading, can use HUB branch parallel, can also be a single network series
4. Support optical fiber, switch, and other standard network equipment, to meet the needs of various applications
5. Network interface adaptive input/output, no distinction, plug and play
6. Support ART-NET unicast and ART-NET broadcast mode
7. Data optimization and reorganization, provide 8 channels of data output, can support DMX512, TTL, SPI, and other lighting industry in all kinds of lighting signal types

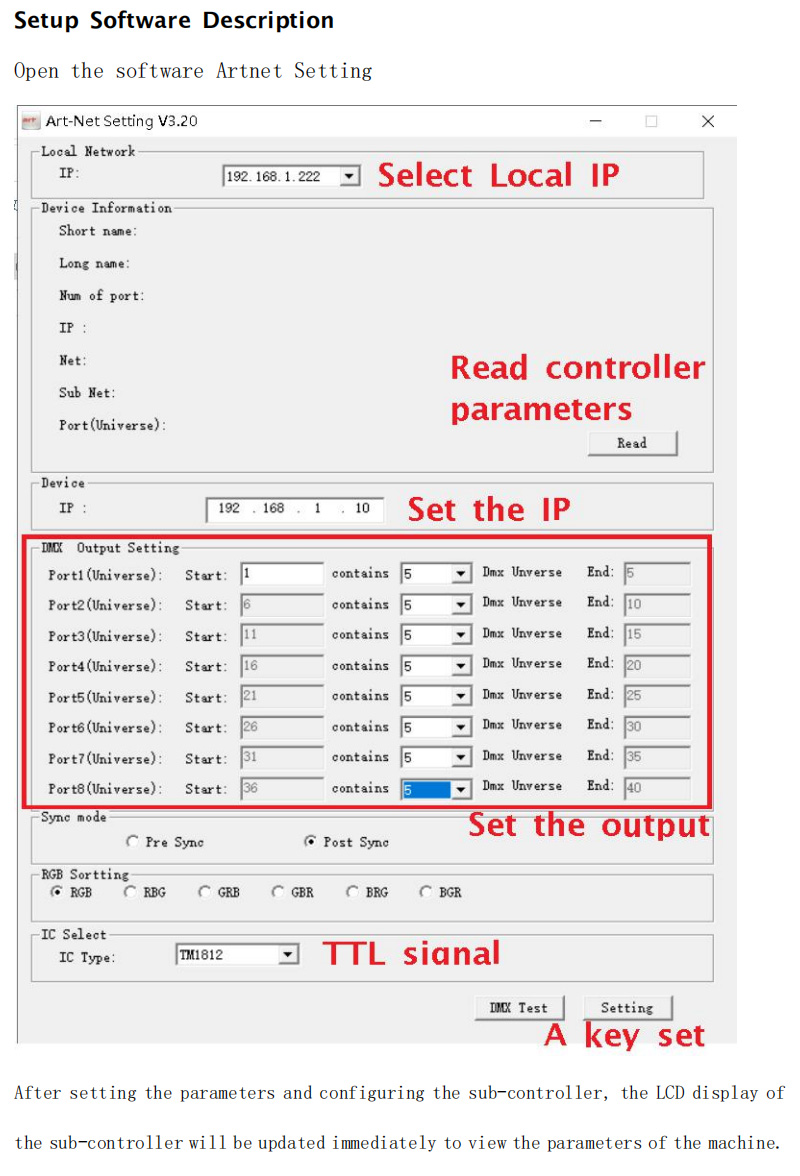

8. Provide special parameter setting tools, one key set IP address, Port address, and other system parameters
9. Eight/8 outputs, each channel can output 5 DMX fields, namely 850 pixels, support single-wire, dual-wire driver ICs, such as UCS2903, TM1812, TLS3001, UCS8904, etc.
10. Up to 16bit gray level dimming can be supported

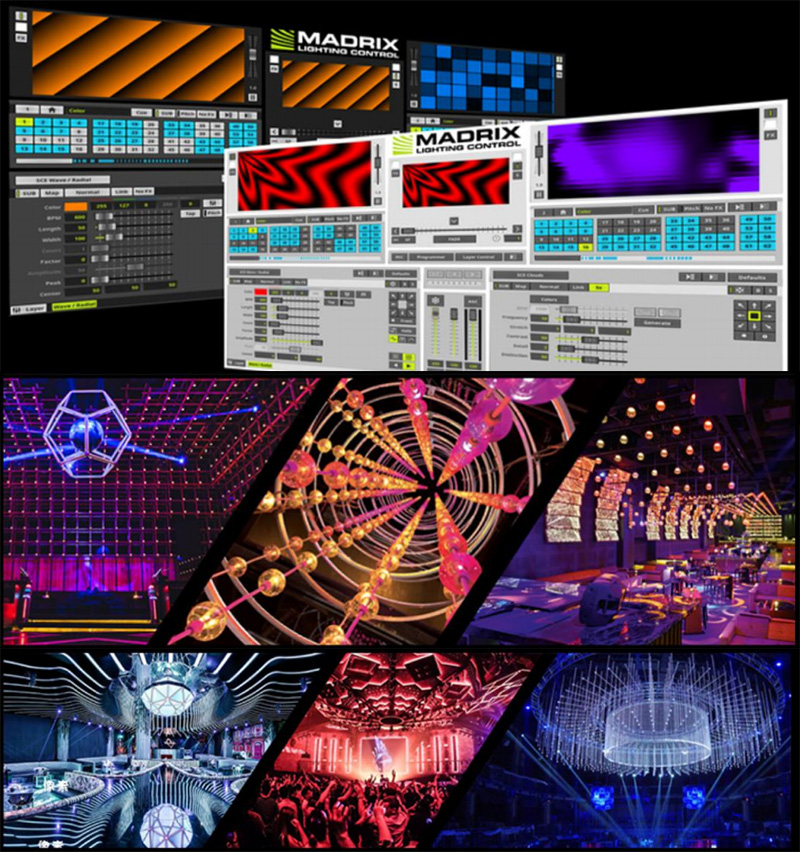

11. With the use of software, various kinds of landscape lighting, 3D meteor, music synchronization, and other effects can be achieved
PDF DownloadSoftware Download: https://www.superlightingled.com/PDF/Madmapper 5.1 Install.zip
https://www.superlightingled.com/PDF/madrix-5.0.zip
https://www.superlightingled.com/PDF/MadrixWygInstall.exe
https://www.superlightingled.com/PDF/2021-LedEdit_setup.rar
https://www.superlightingled.com/PDF/ArtnetSettingTools.exe
Madrix Offline Program Recording Software Download
https://www.superlightingled.com/PDF/CaptureArtnetTools%20V1.49.1-EN.rar
Mardix Software setup demo video
GC-6612 Pro Madrix Online Recording SD Card Offline Playback:

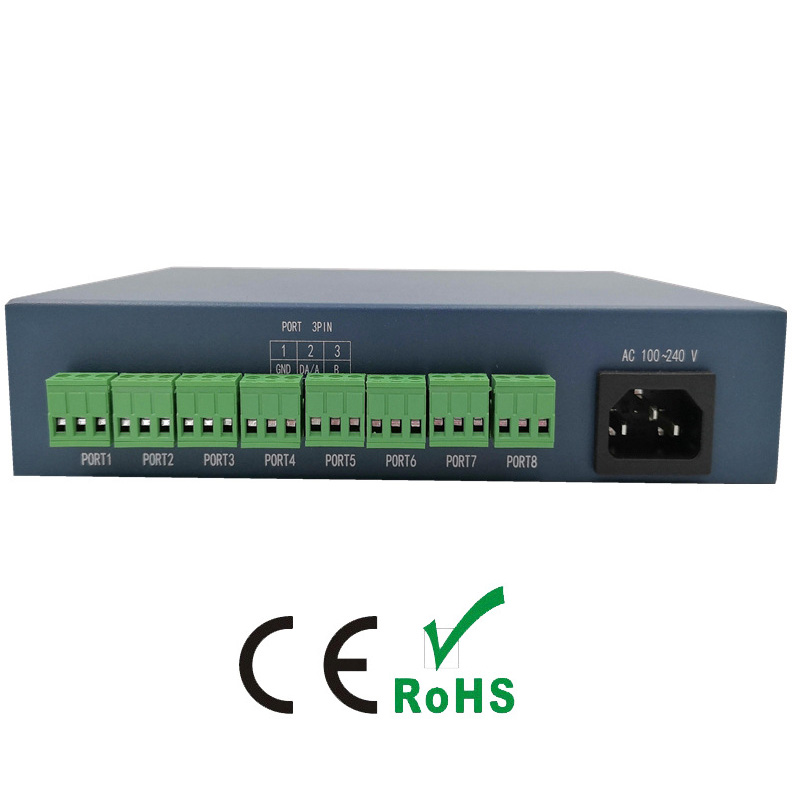

Standards and Certifications
| Model: | GC-ARTNET |
| Power Input: | AC 90~240V |
| Power Consumption: | 5W |
| Input Signal: | Artnet network package |
| Network Interface: | 1Gbps gigabit network (568B) |
| Output Signal: | DMX512, TTL, SPI |

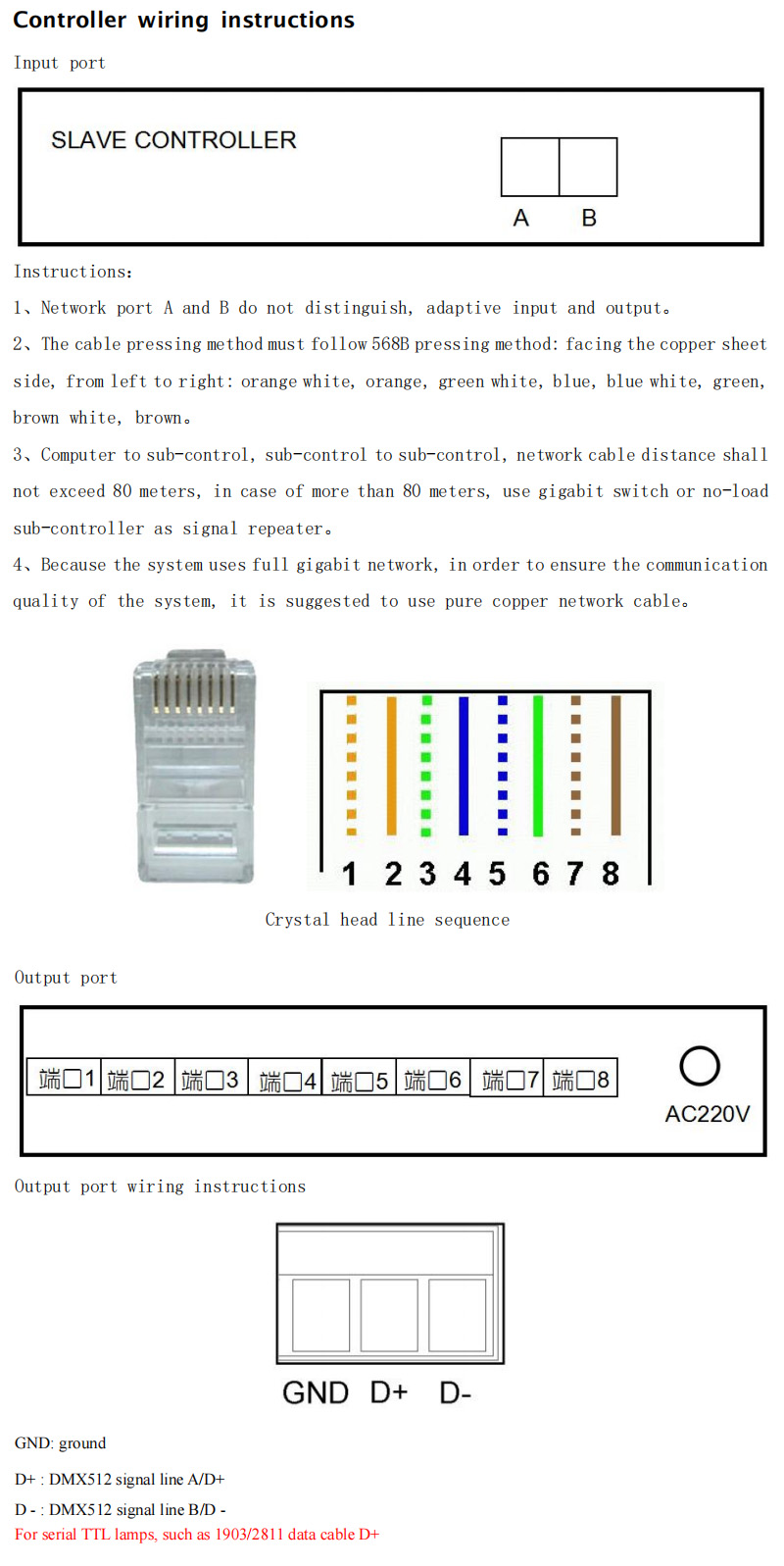

| Output Interface: | 8 sets of 3 PIN terminals（GND，DA/D+，D-） |
| Output Port: | 8 port |
| Output data: | 8 x 850 pixels |
| Operating Temperature: | -20℃-65℃ |

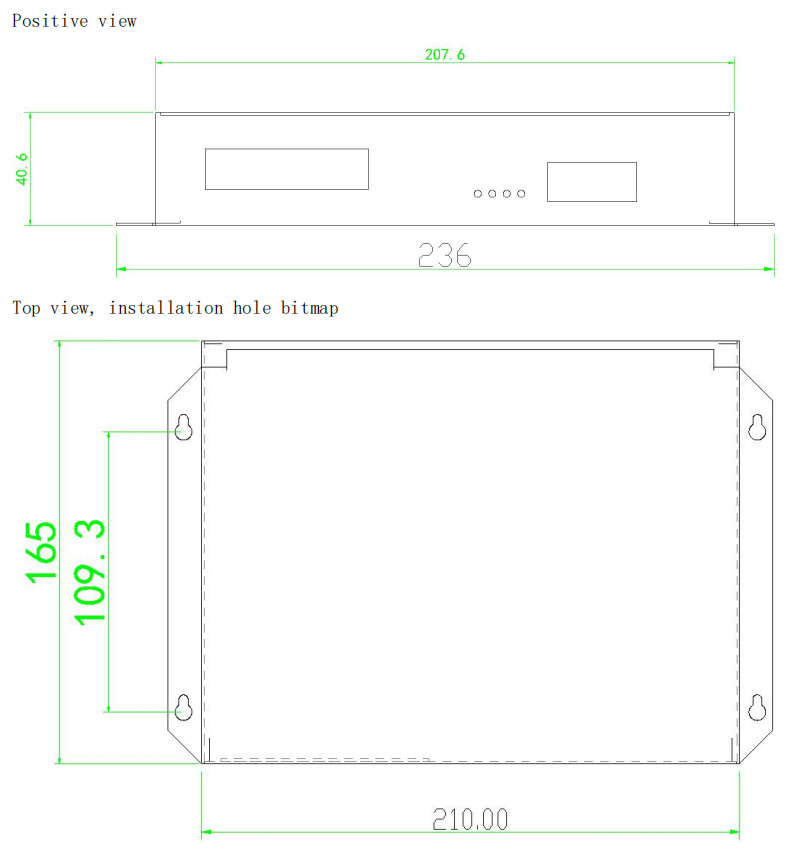

| Product Size: | L234×W165×H42mm |
| Weight (gross weight) : | 1.4kg |
| LED Brightness Levels: | 256 (8bit / CH) |
