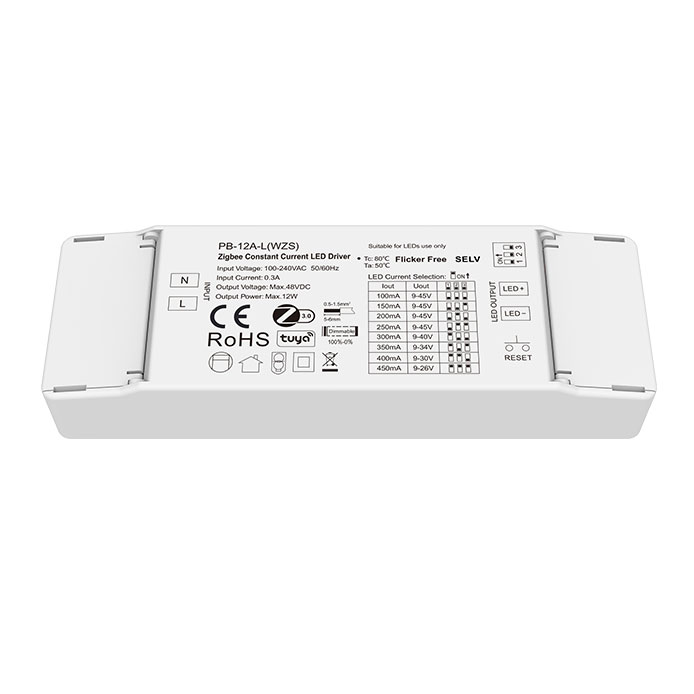

9-45VDC 1CH*(100-450mA) 12W Zigbee Constant Current Dimable LED Driver PB-12A-L(WZS)
Zigbee 3.0 or WiFi Constant Current LED Driver for smart lighting applications. Unlike traditional LED drivers, smart LED drivers have integrated smart features - wireless connectivity, allowing for remote control and management of the LED lights.
This Smart LED Driver uses Zigbee 3.0 wireless communication technology and can be controlled by a smartphone or other compatible devices. It also integrates with voice assistants such as Amazon Alexa or Google Assistant.
Smart Dimmable Constant Current LED Drivers offer greater convenience, versatility, and customization than traditional driver power supplies, making them a popular choice for modern lighting solutions.
Features
● 1 channel constant current output, configurable current via DIP switch.
● Tuya APP cloud control, support brightness adjustment, delay turn on/off, timer run, scene edit, sleep wake-up, and biorhythms functions.
● Support Philips HUE APP control by connecting with the Philips HUE bridge.
● Voice control available, support Alexa, Google, Amazon ECHO, and TmallGenie smart speakers.
● Can relay and route to each other, up to 15 hops.
● Can match with Zigbee 3.0 remote or scene panel control.
● RESET button for clearing network connection.
● Universal AC input / Full range.
● Flicker - Free.
● Synchronize on multiple LED drivers.
● Over-heat / Over-load / Short circuit protection, recover automatically.
● Full protective plastic case.
● Suitable for indoor LED lighting applications.
● 5 Year, 50,000 hours warranty.
Applications
● Suitable for downlight, spotlight, and decorative applications.
● Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail, and Display.
● Use for retrofit upgrades & new luminaire designs.
Zigbee PB-12A-L(WZS) Manual Download

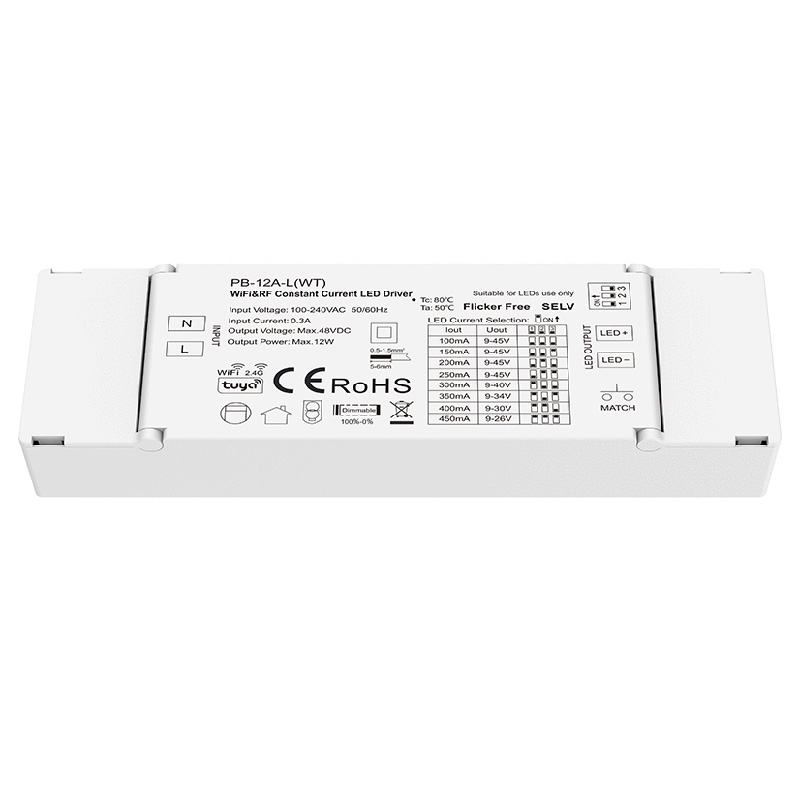

WiFi PB-12A-L(WT) Manual Download
Product Specification
| Model: | PB-12A-L(WZS) |
| Output Voltage: | 9～45VDC |
| Output Current: | 100~450mA |
| Output Power: | Max.12W |
|
Max Output Voltage:
|
48VDC
|
| Dimming Range: | 0~100％, dimming depth 0.5% |
| PWM Frequency: | 4000Hz |
| Current Accuracy: | ±5％ |
| Input Voltage Range: | 100~240VAC |
| Frequency Range: | 50/60Hz |
| Efficiency: | >80% / 230VAC |
| Alternating Current: | 0.3A/115VAC, 0.15A/230VAC |
| No Load Power: | <2W |
| Woking Temperature: | -20℃~50℃ |
-1.jpg)
-2.jpg)
Note:
1. The above distance is measured in a spacious (no obstacle) environment, Please refer to the actual test distance before installation.
2. Please check if the WiFi router net is in the 2.4G band, the 5G band is not available, and do not hide your router network.
3. Please keep the distance between the LED driver and router close, and check the WiFi signals.
4. Users must use the Tuya ZigBee gateway to realize remote control and voice control (The smart panel integrates the Zigbee gateway function).
App Operating Instructions
1. Network pairing
● Download the Tuya APP and register an account, search and add the Tuya Zigbee gateway device.
● Quickly press the "RESET NET" button five times or repeat power on and off five times to clear the previous network connection, and enter pairing mode with the output light breathes blinking.
● Under the gateway, search and add a new device. If the network connection is successful, you can find ZBS-DIM devices in Tuya APP.
2. Lighting control settings
After pairing the light device, click the device and change brightness by touching the brightness slide.
-2.jpg)
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
