Model: CONFULL-H802TB

$349.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Applied to:



Qty Discounts Off Price
1-4
$349.98
5-9
$332.48
10-19
$314.98
20+
$279.98
* Discounts may vary based on options above
Qty: -+
ContactUs

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Item Type:RGB Controler

    Voltage:220V

    Certification:CE,RoHS,CCC

    Power Source:AC

    Connection Mode:crossover network cable

    Features:Master Controller

    Remote Distance:none

    Controled Method:SD card control

    Warranty:1 year

    Max. Load Power:10W

    Applicable Lights:full color lights

    Model Number:H802TB

    Material:metal

    Wattage:1

    drive pixels number:40960

    control slaves number :64



     1. Features

    (1). H802TB is a master controller that works offline, and reads data from SD card to control multiple slave controllers.

    (2). Two ports control maximum 64 slave controllers, drive maximum 40960 pixels.

    (3). H802TB can be connected to DMX console and occupies 3 channels, so you can switch files, adjust speed and brightness with DMX console.

    (4). Slave controllers are H801RA, H802RA and H801RC.

    (5). Software is “LED Build Software”.

    (6). Transmit data based on Ethernet protocol, nominal transmission distance is 100 meters.

    (7). SD card supports FAT32, FAT16 format, maximum capacity is 64G bytes, stores up to 64 DAT files.

     2. Supported Driver Chips

     LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

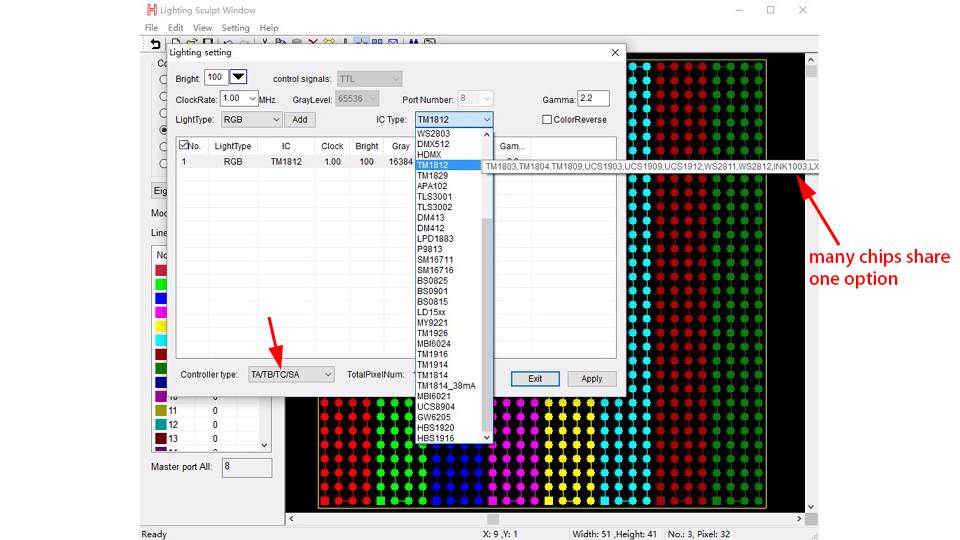

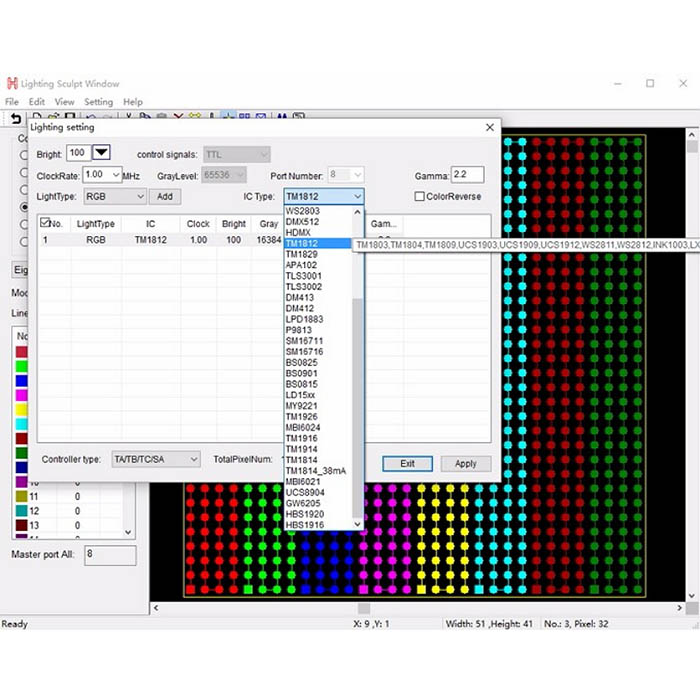

     Note: H802TB can support more than the chips listed above(some chips have the same sequence diagram, for example: UCS512,



    For example:

    if you want to control WS2812B strip, just connect GND, DI on strip to GND, DAT on slave controller.WS2821 and DMX512 have the same protocol, H802TB supports them all).

    3. Basic Workflow

     Work with SD card(offline)

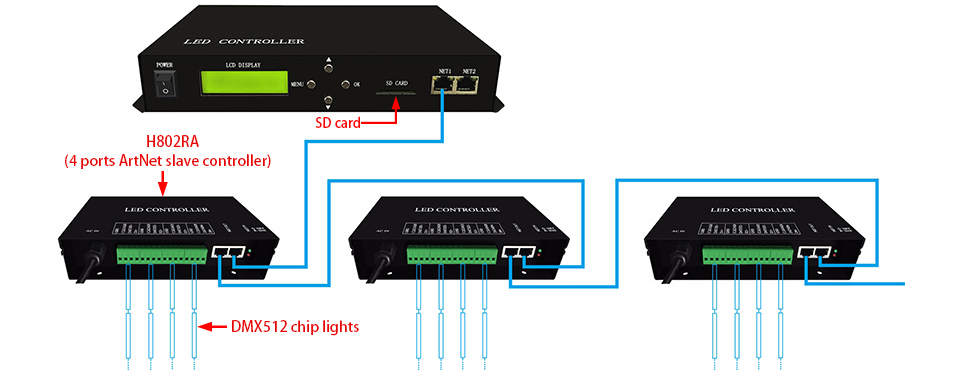

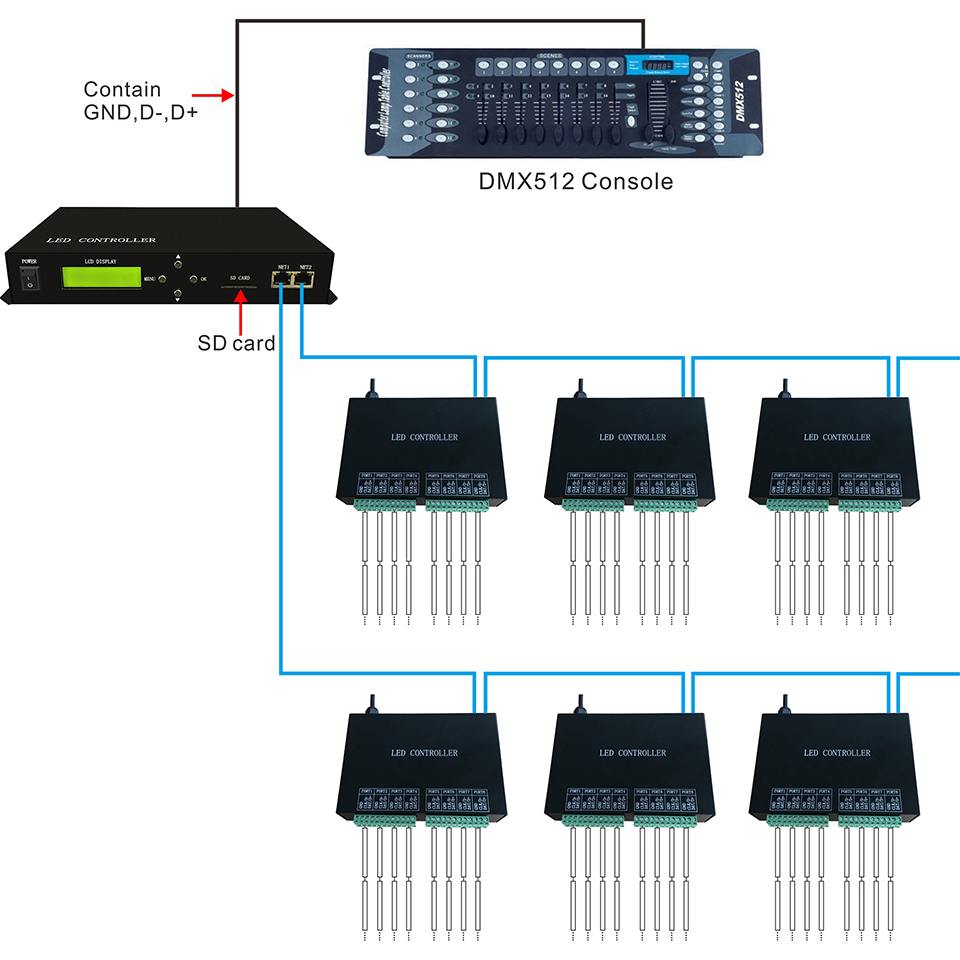

     Step1. Connect lights, slave controller and H802TB like the following image.(I didn't draw power supply)

     I use NET1 and NET2, you can also just use NET1.




    Step2. Download and Install LED Build Software

     In offline mode, you will need LED Build Software.

     LED Build Software Download: https://drive.google.com/open?id=0B1gzqyV6hfOgUDZBVl84SmRDV28

     LED Build Software Tutorial Video: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA

     Step3. Program in LED Build Software

     Basic software workflow

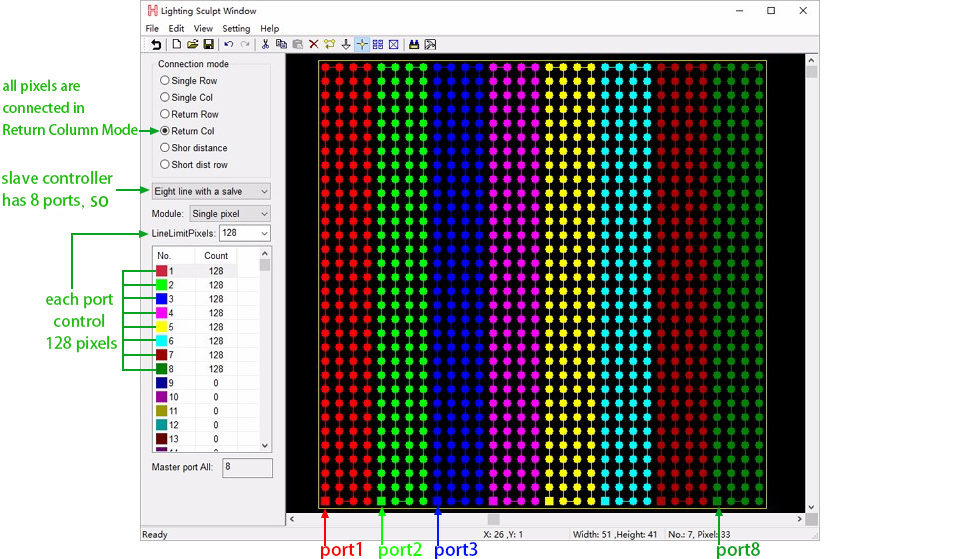

     1. Place Pixels

     For example there are 1 slave controller(H801RC) connected to H802TB

     2. Light Setting
    3. Make Effects

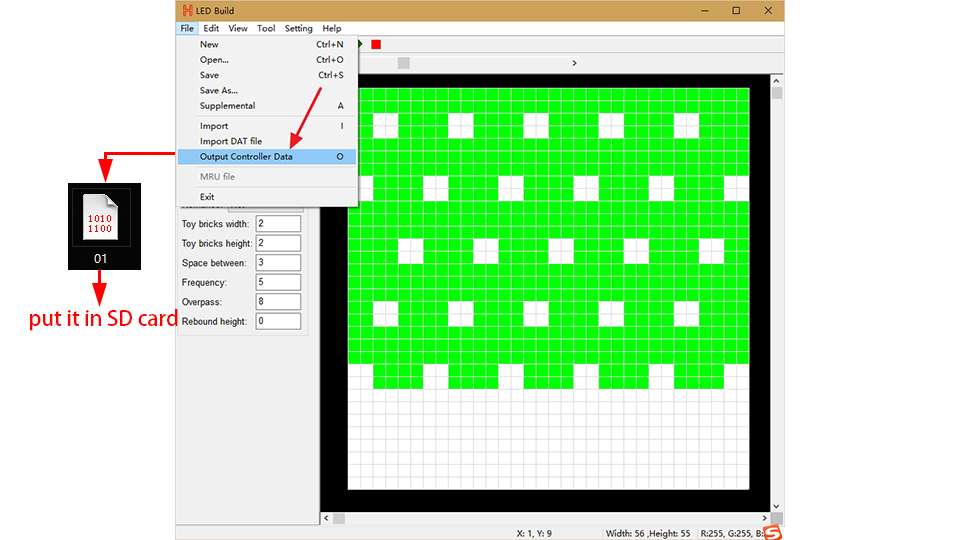

    4. Output controller data and put it into SD card


    For more details of software operation, please refer to the video post above.

     Step4. Configure H802TB with 4 buttons

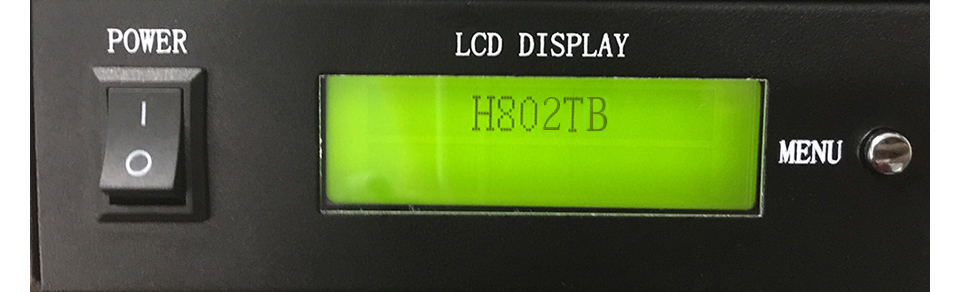

     Power H802TB on

     Long press "MENU" button to switch to English

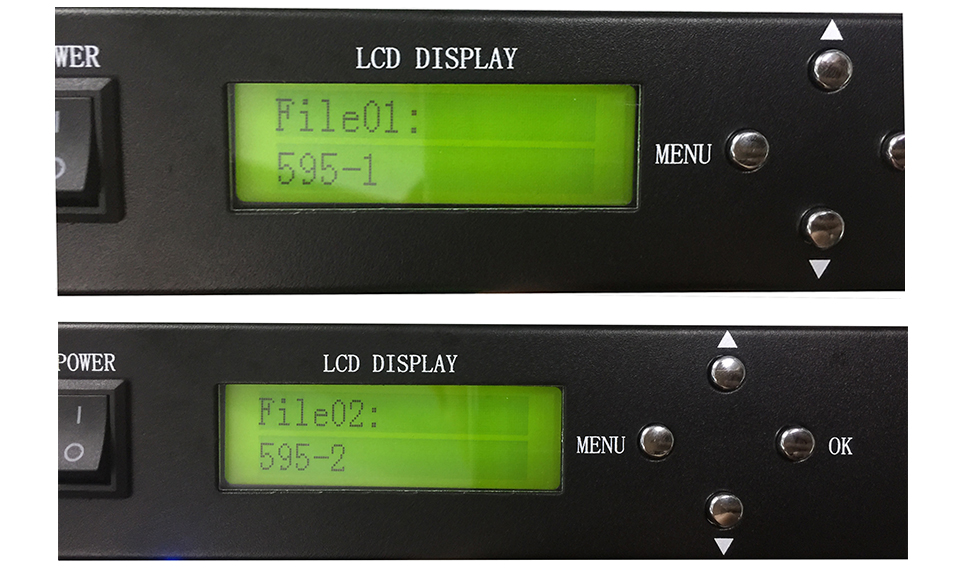

    Switch files

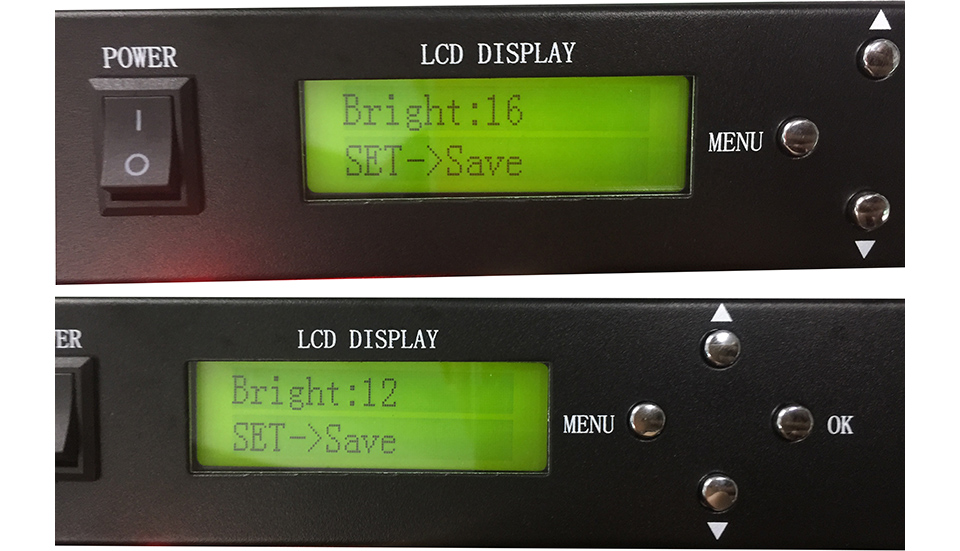

    Set Playback Mode, press "OK" to save

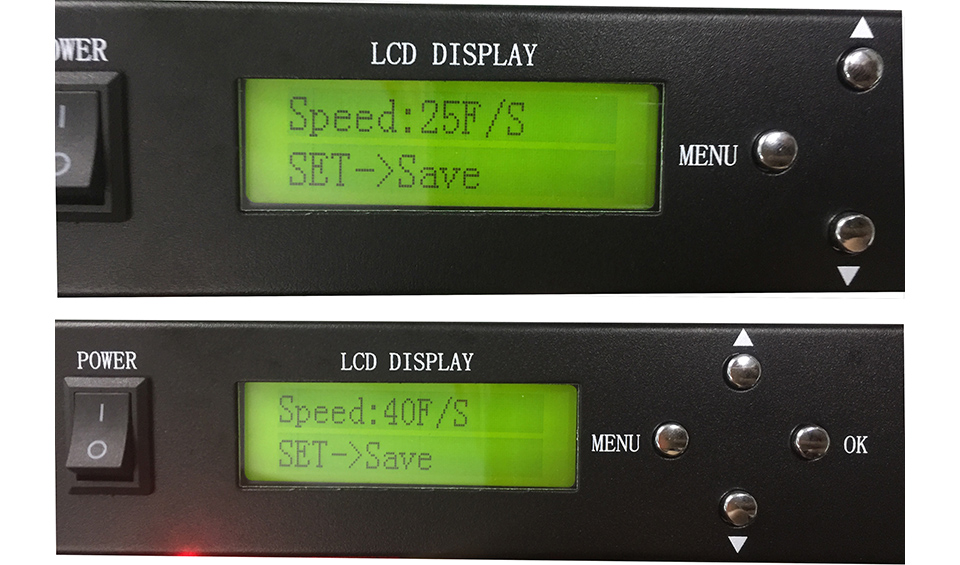

    Set speed, press "OK" to save

    Set brightness

    Set DMX Address for H802TB

     This function is used when H802TB is connected to DMX console
    For example:

    If DMX Address is 1, you can use channel 1,2,3 on DMX Console to switch files, change speed and brightness.

     If DMX Address is 3, you can use channel 3,4,5 on DMX Console to switch files, change speed and brightness.

     In a word, the DMX Address is the starting channel on DMX Console.

     Press "OK" to start addressing.
    4. Control DMX512 chip lights

     H802TB can control H801RC, H802RA and H801RA three kinds of slave controllers(they all support DMX512 protocol),

     but by using H802TB + H802RA, you can set DMX address for DMX512 chips.

    Take TM512 strip for example:


    Step1. Set them up

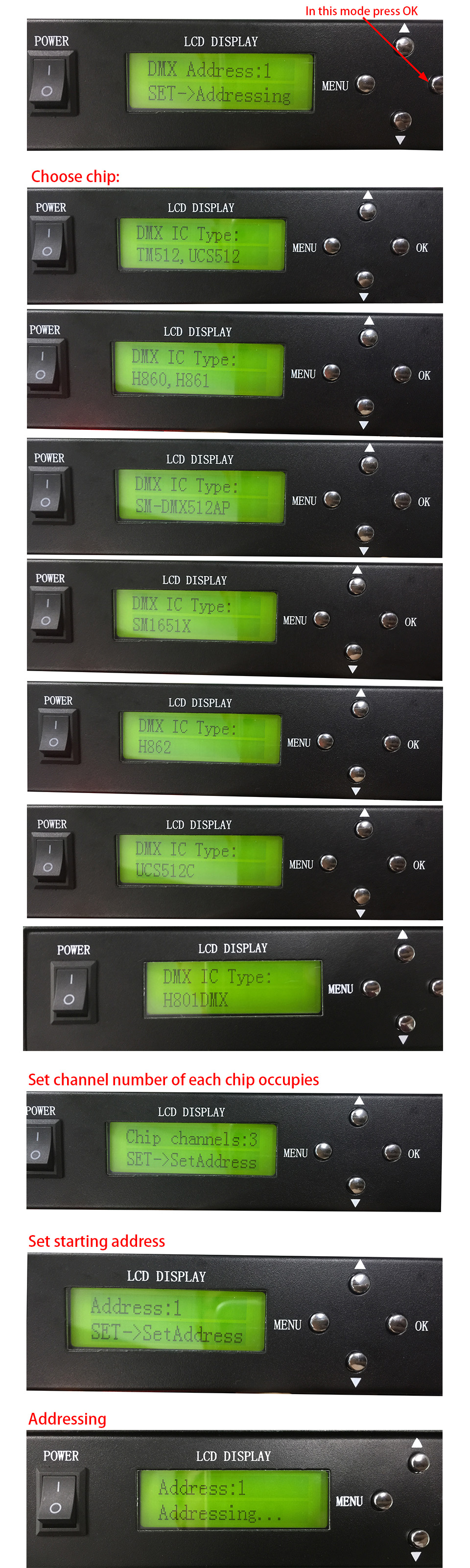

    Step2. Set address with four buttons

    5. Specifications

     Power Consumption:   1W

     Control Pixels Number:   40960

     Control Slave Controllers Number:   64

     Weight:   1.1KG
