APA102 Narrow 5mm/0.19in Wide 2020SMD High Density 200LEDs/M DC5V Individually Addressable RGB LED Strip Lights
Related Products
APA102 Narrow 5mm/0.19in...
$66.98 $58.9812% off
40W8A DC5V Plastic Shell...
$11.49
DC5-24V Mini WiFi Music...
$16.98
DC5-24V SP108E WiFi LED...
$21.99
SP601E LED Music...
$20.98 $12.9838% off-
Special Price: $66.98 $58.9812% off
Features
1. APA102 LED is a new type of smart full-color RGB built-in IC SMD, which has the data wire and the independent clock wire, it makes the signal travels pretty rapid and stable quality. Even to display these large videos with fast data transmission on the LED, it also performance smoothly and won't be stuck.

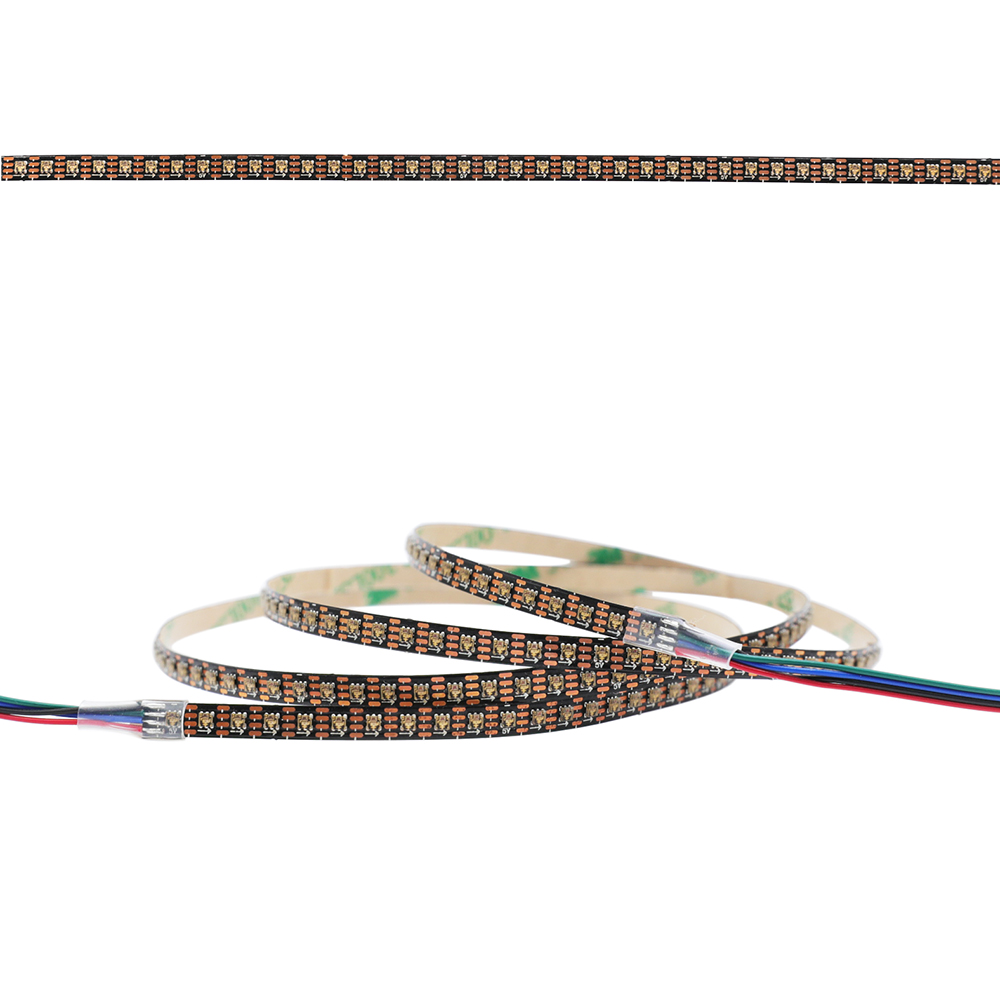

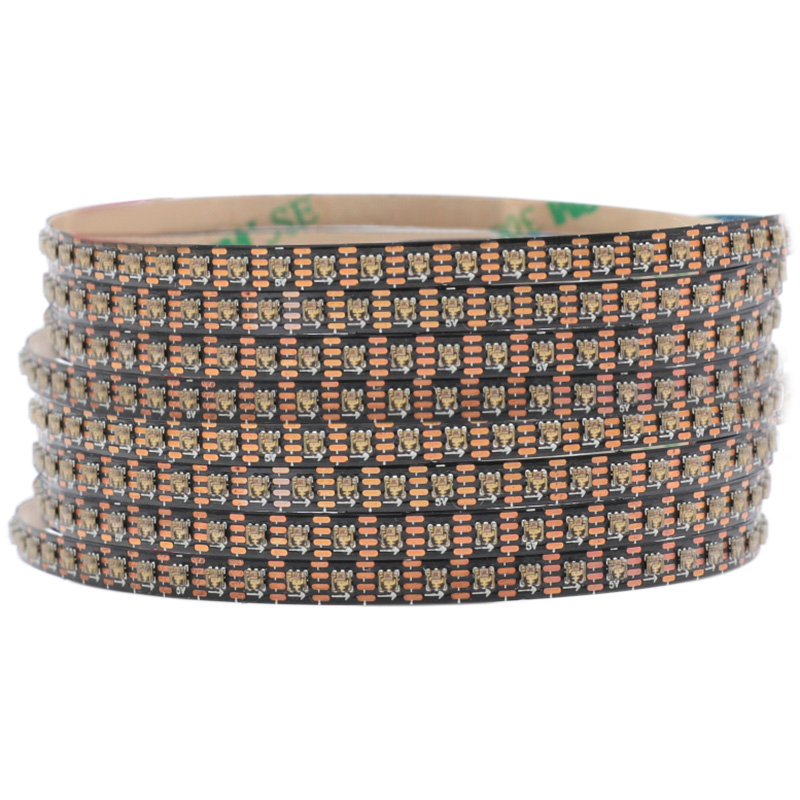

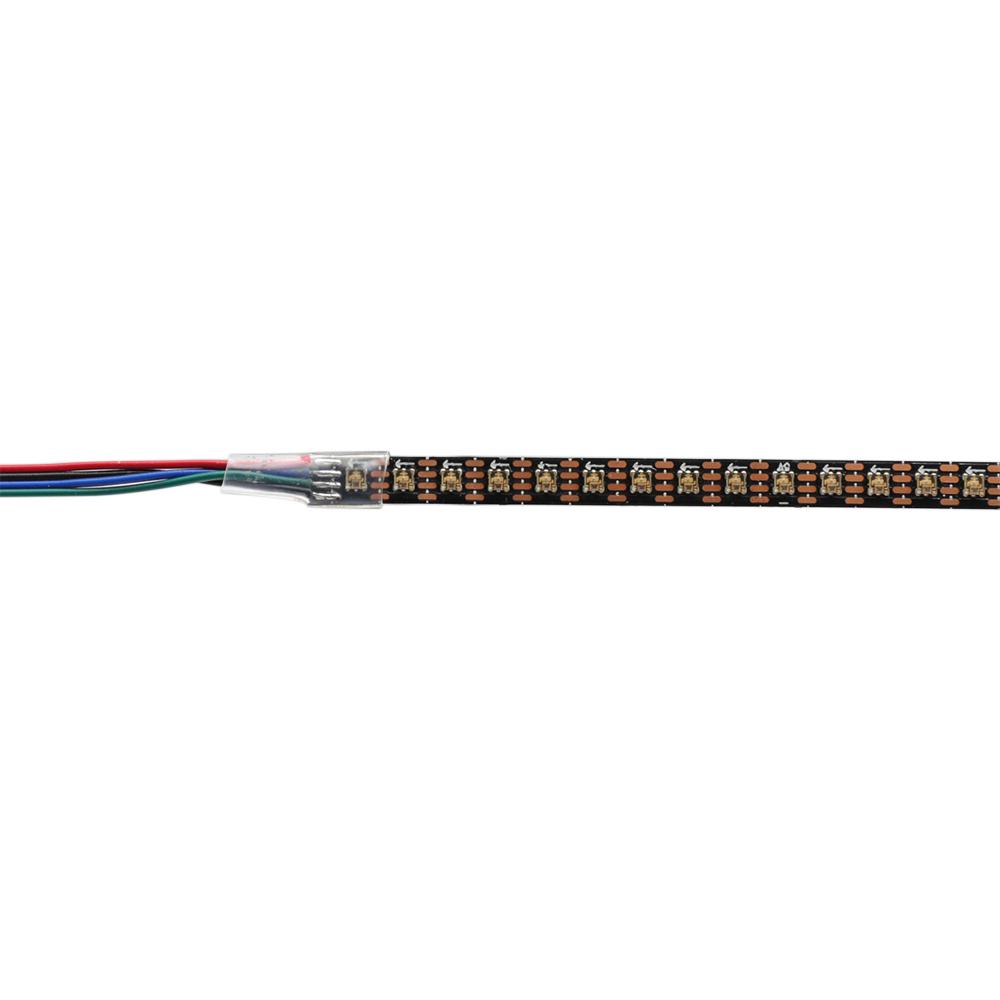

2. High density of 200 LEDs per meter, combine the smallest size 2020SMD with the individually addressable APA102 IC, provide you the narrow 5mm digital RGB LED strips, suitable for tiny place LED lighting projects.
3. Our APA102 programmable LED lights are compatible with kinds of SPI LED controllers on the markets, offer you more choices to control the dream color LED tape light.
4. 5V low voltage, less power consumption, save energy but high bright.
5. Widely used for cabinet led lighting, backing lighting, full color LED pixel display screen, and so on.
APA102 -2020 SMD Specifications
APA102-2020-256-8-V2 LED Chip Description:
1) APA102-2020 SMD LED is a new type of APA102 integrated led for three channels RGB color emitting.
2) It has very little size with 2.0mm*2.0*0.75mm, which has much more advantage for the smaller than 5050 led with 5.0*5.0mm. many new applications will be available for the tiny size.
3) APA102 2020 also uses the APA102 as the driver IC to control color dimming, Also high brightness too.
4) It can be widely used in apa102 2020 digital RGB led strips, apa102 2020 dotstar, apa102 led pixels, and full color led display.
5) Good thermal dissipation & optical uniformity
6) RoHS2.0 Compliant
7) Preconditioning: accelerate to JEDEC level 3
8) Serial data transmission signal by (DATA CLK) two-line
9) ESD level 2kV(HBM)
Standards and Certifications
Specifications
Input voltage: DC5V
Power: 20watt/meter
LED Chip Model: SMD2020
LED resource: APA102 LED
IC Type: APA102 IC (1 IC drives 1 led chip)
Q'ty of LED: 200 leds/Meter Available
Q'ty of IC: 200 pixel /Meter
Cuttable: every LED are cuttable

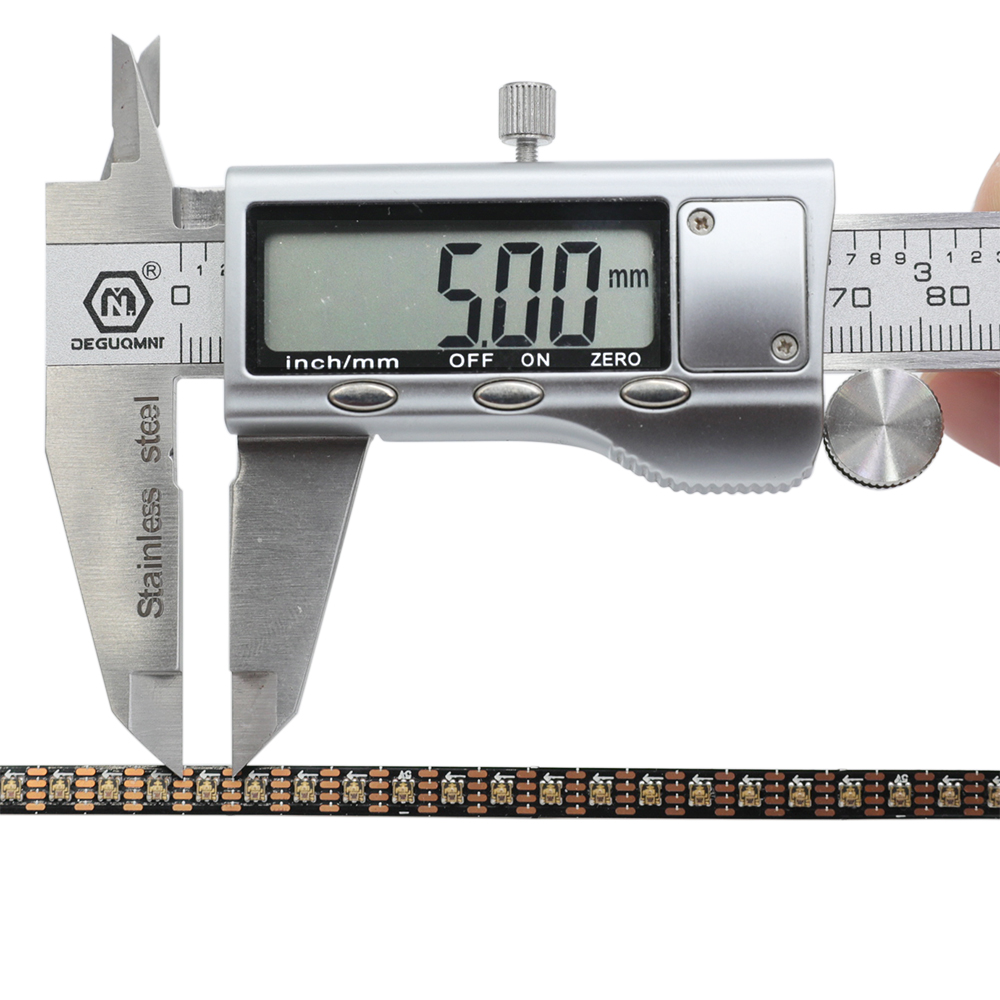

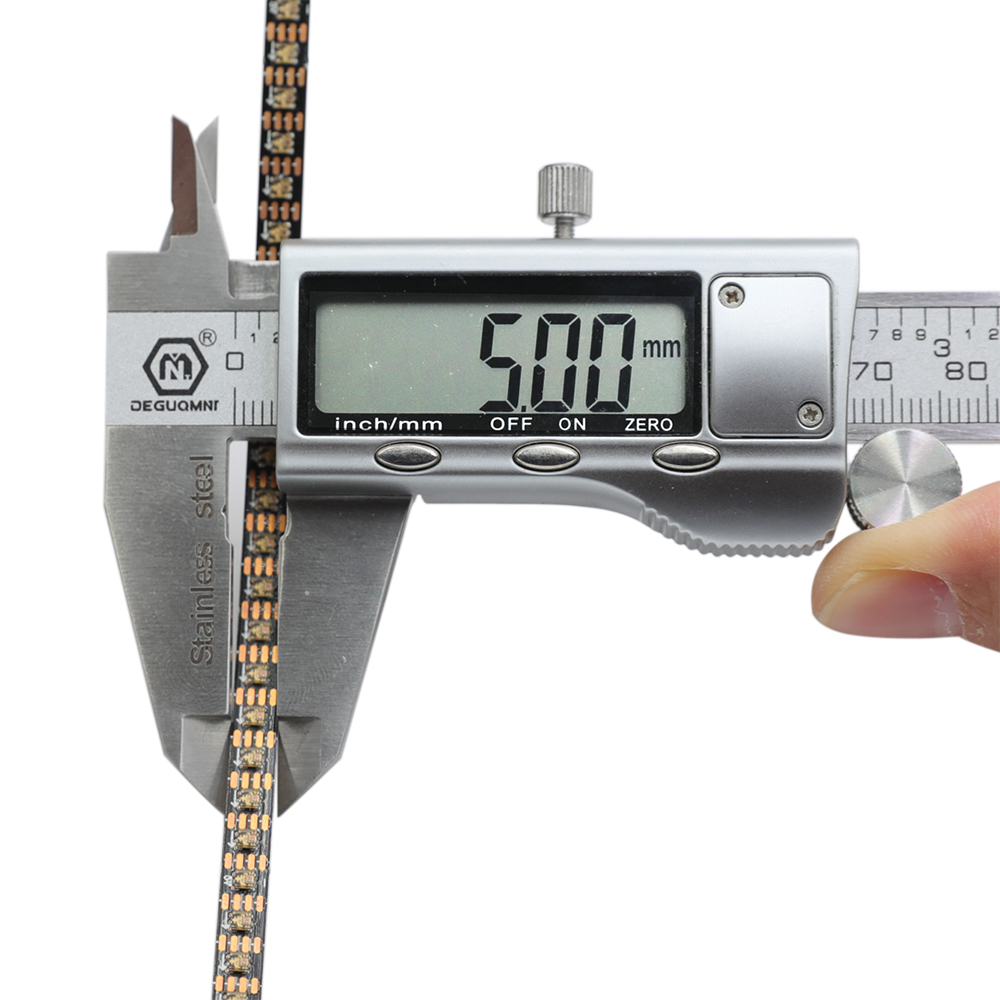

Dimensions: L100cm(39.37 in ) x W0.5cm(0.19 in ) x H0.15cm(0.06 in )
PCB color: BLACK Available
Protection rate: Non-waterproof IP20 or waterproof IP67
Beam Angle: 170°
Colors: Full color RGB, dream color chasing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
LED wavelengths: 630nm/530nm/475nm
Average Life (hrs): 50000Hours+
Certification: CE,FCC,GS,SAA,RoHS,CCC
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Villa model lighting

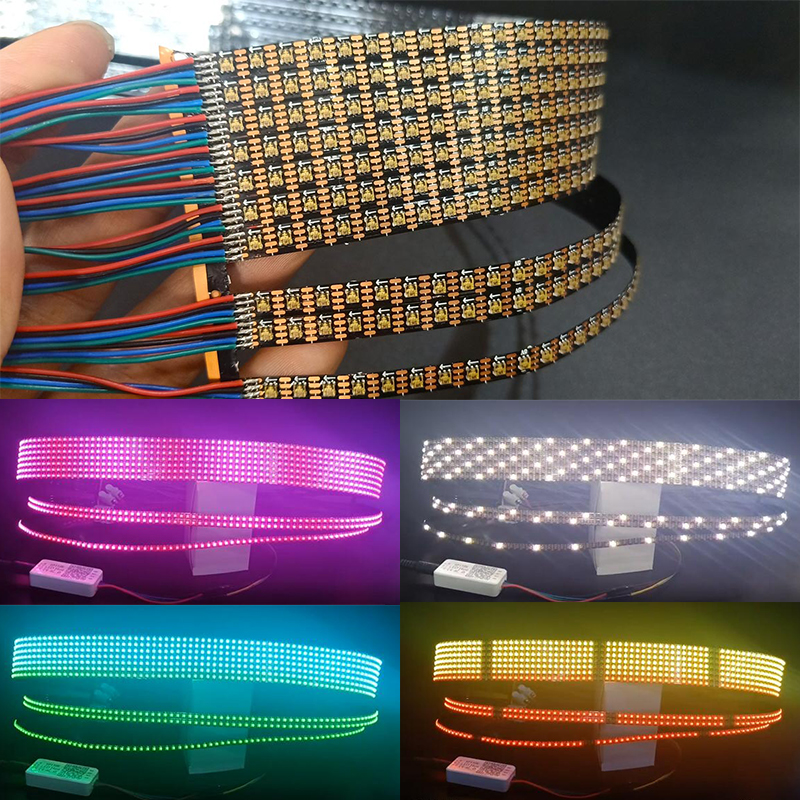

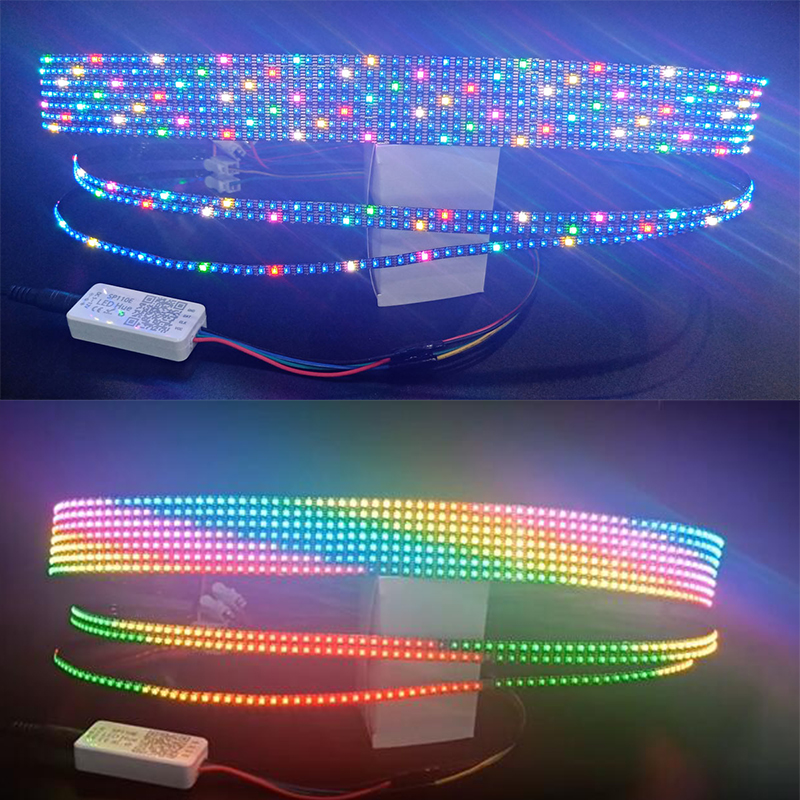

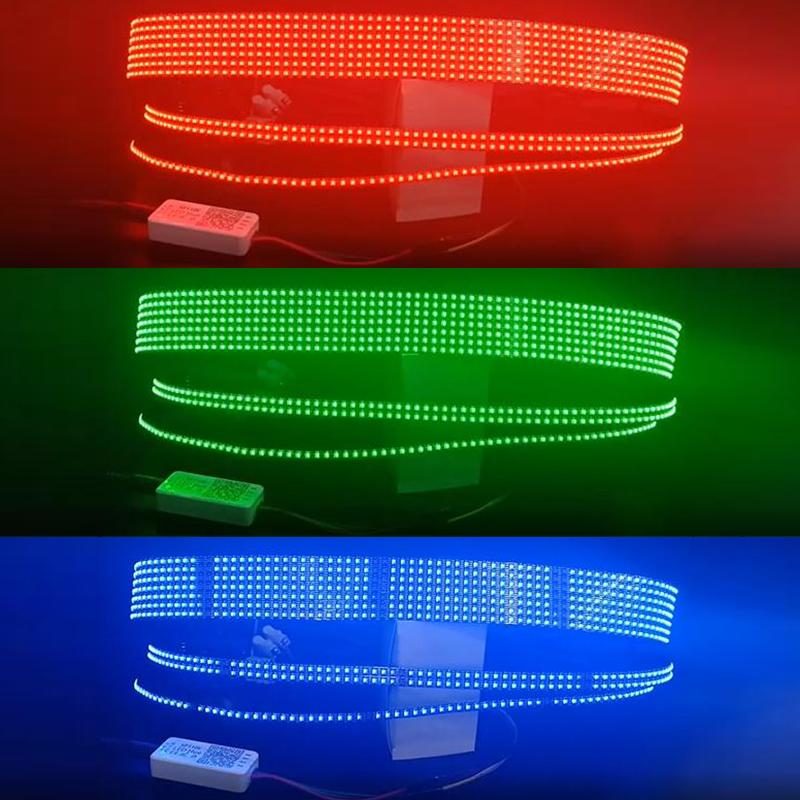

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
