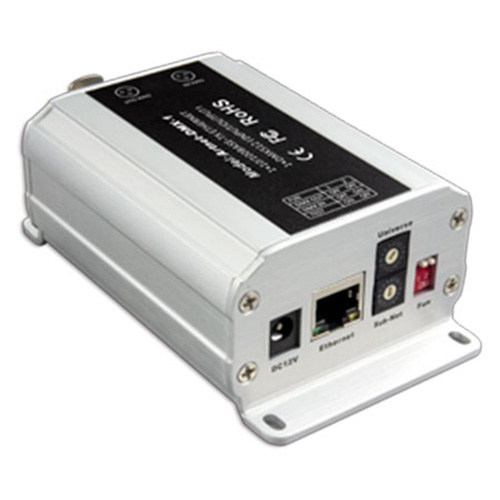

Artnet-DMX converter Artnet-DMX-1
Brief introduction
Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into a DMX512 date, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it supports RJ45 network interface and standard DMX512 output interface.

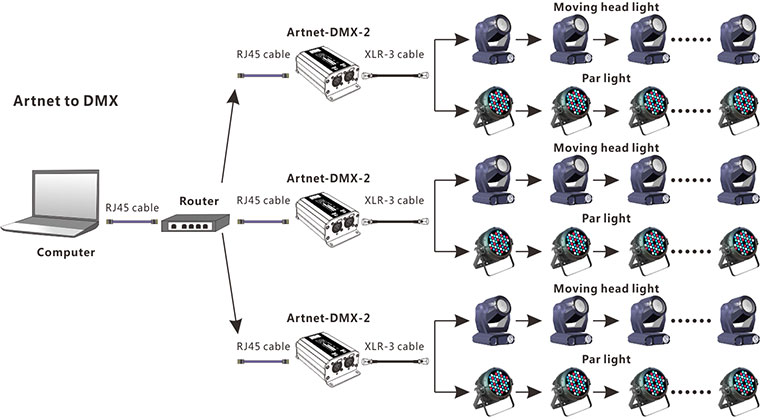

Artnet-DMX-1 can be configured in one of two ways: Artnet converts into DMX512 or DMX512 convert into Artnet. Artnet-DMX-2 has two standard DMX512 date output port, output 1024 data in total.
It is compatible with all the effects lighting control software which support the Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded the scene, stage performances, entertainment and so on.
Performance Features
● Based on Artnet protocol network data communication, accept network DMX data;
● IP address is bound to Subnet, no need to reset, plug and play.

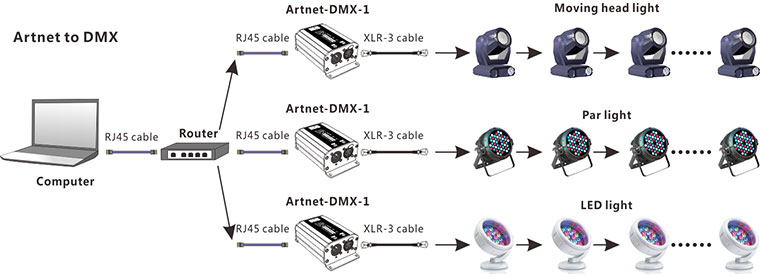

● Artnet-DMX-1 could be configured for either Artnet-DMX512 type or DMX512- Artnet Type.

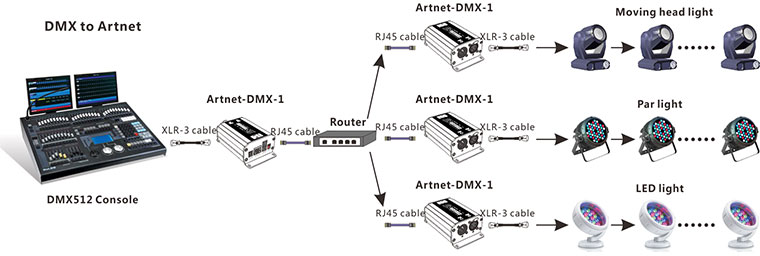

● When configured for DMX -Artnet type. Data packets will be sent over the network by broadcast Mode.
● Manage Artnet on broadcast mode or unicast mode.
● One set DMX512 data-out for Artnet-DMX-1, two for Artnet-DMX-2.
● Set different network segments to avoid multiple sets of Artnet data interference.
● Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.
Product parameter
Artnet-DMX-1 bidirectional converter 512 channels
Power input: 12Vdc (with a power adapter)
Input signal: Artnet/DMX512
Output signal: DMX512/Artnet
DMX channels: 512 channels
working temperature: -20℃～65℃
Dimension: L120×W73×H45mm
Package Size: L200×W80×H50mm
Software Download: https://www.superlightingled.com/PDF/Madmapper 5.1 Install.zip
https://www.superlightingled.com/PDF/madrix-5.0.zip
https://www.superlightingled.com/PDF/MadrixWygInstall.exe
https://www.superlightingled.com/PDF/2021-LedEdit_setup.rar
https://www.superlightingled.com/PDF/ArtnetSettingTools.exe
Madrix Offline Program Recording Software Download
https://www.superlightingled.com/PDF/CaptureArtnetTools%20V1.49.1-EN.rar
Products Specifications ： Artnet-DMX-1
