Bendable Silicone LED Light Diffuser Outdoor LED Channel 120° Top Emitting 20*10mm

Model: FLNLT-T2010-S
Bendable Silicone LED Light Diffuser Outdoor LED Channel 120° Top Emitting 20*10mm
  • Bendable Silicone LED Light Diffuser Outdoor LED Channel 120° Top Emitting 20*10mm
  • Bendable Silicone LED Light Diffuser Outdoor LED Channel 120° Top Emitting 20*10mm
  • Bendable Silicone LED Light Diffuser Outdoor LED Channel 120° Top Emitting 20*10mm

Select Specifications:

Starting at: $5.99

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

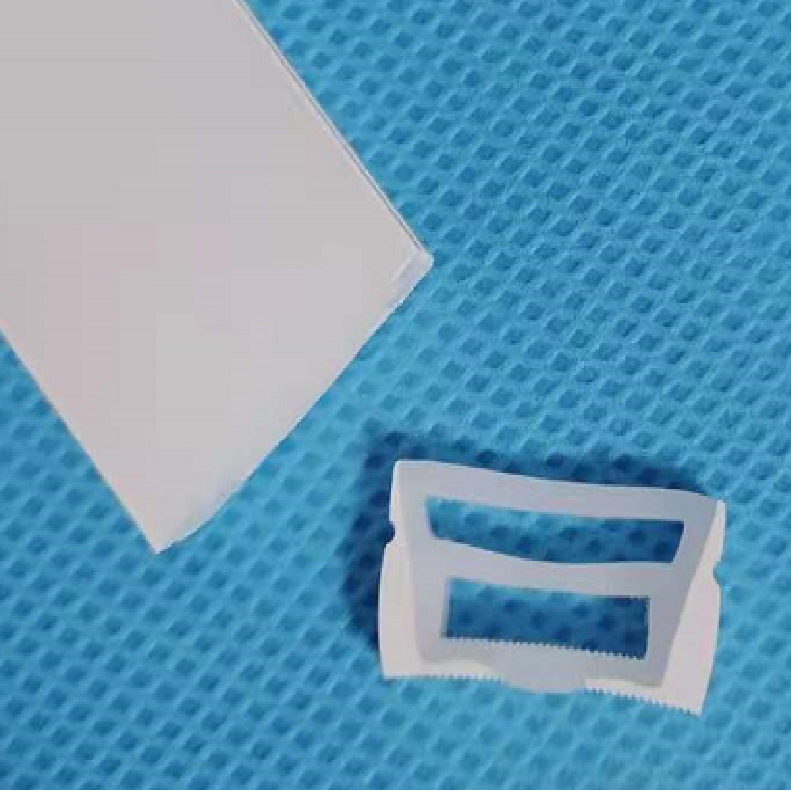

    20*10mm silicone led light diffuser for 10mm led strip lighting, you can match this silicone led chanenl with single color led strip lights or color changing led strip lights for your home decor, wall decor, or outdoor decorations. Made of high quality food grade silicone material, the led silicone tube has good light transmittance and a large light-emitting angle, does not change yellow or crack, waterproof grade is IP67 and above, and it is flexible and bendable. It is usually matched with LED strips to make LED neon signs or neon ligting, which are deeply loved by customers.



    The product structure is mainly divided into shading surface and diffusion surface, the light refracted from the light source through the conduction of silicone diffuser to produce the ultimate lighting effect which is more artistic and practical.





    Model:  FLNLT-T2010-S
    Tube Material:  Food-grade Silicone
    Lighting Direction:  Top-emitting

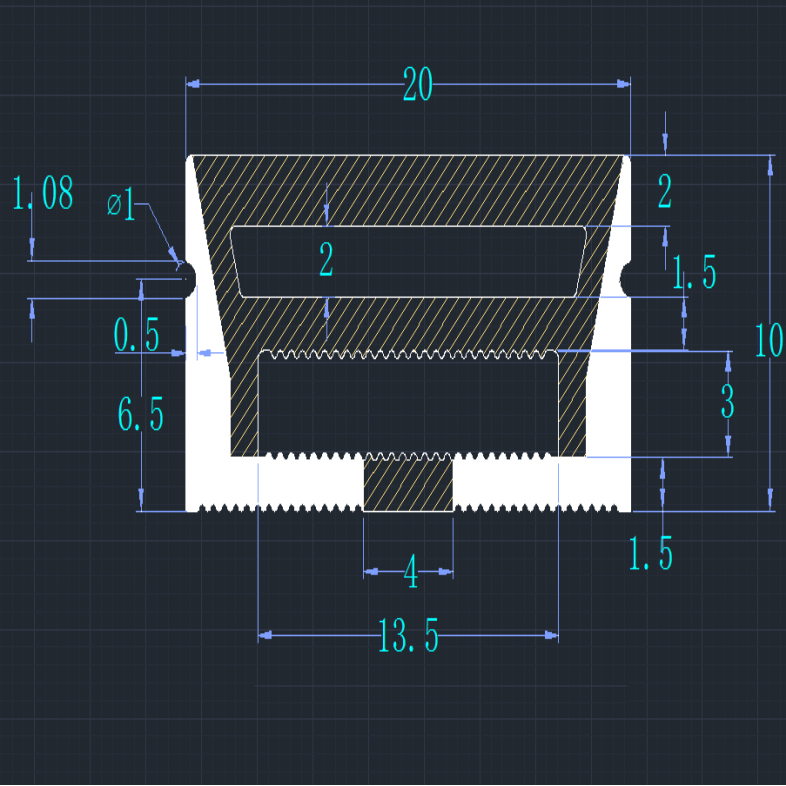

    External Width:  20mm/0.79in
    External Height:  10mm/0.39in
    Inner Width:  13.5mm/0.53in
    Max LED Strip Width:  0.39" (10mm), 0.47" (12mm)
    Available LED Strip Type:  Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip
    Length:  1m/3.28ft, 2m/6.56ft, 5m/16.4ft
    Beam Angle:  120°
    Accessories:  End Caps (come with), Mounting clips (Please choose in the "Kit" option)
    Waterproof Rating:  IP67
    UV Resistant:  Yes
    Working Temperature:  -50°C to 200°C
    LED Neon Light Knowledge Source:

    What Are LED Neon Lights?

    Flexible LED Neon Lights: Silicone Tube VS PVC Tube



    warm tips Note:

    The product does not include led light strips.

    If you buy our LED strips at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.

    If you insist on completing the production of neon lights by yourself, you can read: How To Put  A Flexible LED Strip Light Into A Silicoen Tube?

    We are not responsible for any damage caused by your own operation!

    how to make led neon lights by yourself





    Flex LED Neon Tube Installation:

    There are three installation methods for neon silicone tubes, one is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.

    The second is to put the flex led neon tube into the aluminum channel, this installation method is suitable for linear lighting projects.

    And the third is to use flexible profiles for curved path lighting, which has great bending freedom.

    Three Ways to Fix LED Neon Tube Lights





    Using Application:

    LED neon tube with Single color/CCT/RGB/RGBW/RGBCCT/Addressable LED strip has wide applicability. It can be applied to the following scenes.

    1.Building outline lighting
