What Is DALI Dimming?

DALI dimming technology has developed into the mainstream standard for digital dimming due to its powerful features. This blog will introduce DALI dimming technology from the ground up, explaining how it works and why it has revolutionized modern lighting systems. We sincerely hope that this guide will be of help to you!

What is DALI?

Digital Addressable Lighting Interface (DALI) is a lighting control protocol that enables digital LED control and communication between lighting systems. It is a two-way communication system that allows users to control and monitor individual lighting fixtures or groups of fixtures using digital signals.

It was founded to build on the functionality provided by the Tridonic DSI protocol to enhance 0-10V lighting systems. The DALI system facilitates a bi-directional communication channel with each LED driver and lighting device group, allowing the user to control and monitor individual lighting or groups of lighting systems using digital signals, and is designed to provide a flexible, accurate, and scalable solution for a wide range of LED applications.

The DALI uses digital protocols to provide more precise control of the lighting system, resulting in improved energy efficiency, user comfort, and system maintenance.

The history of DALI

The birth of DALI dates back to the 1990s when four pioneering ballast companies came together to propose to the International Electrotechnical Commission (IEC) that a standardized approach to ballast communication be established.

By the late 1990s, the first DALI LED drivers and ballasts were introduced in the United States. The subsequent release of DALI 1.0 in 2000, known for its individual fixture addressing and bi-directional communication capabilities, gained popularity in the 2000s, spurring the formalization of DALI as a digital communication protocol for lighting control; DALI 2.0 was released in 2014, with improved interoperability and functionality, and became a global standard.

Meanwhile, as technology advances, the DALI protocol is being updated and expanded to accommodate new LED lighting technologies and smart buildings.

The definition of DALI dimming and its purpose

DALI dimming is a lighting control technology that refers to the ability of a DALI system to control the brightness (dimming level) of an LED lighting fixture.

This digital communication protocol enables centralized control of lighting while providing control and feedback on the status of individual lighting fixtures, allowing brightness levels to be easily adjusted, and providing precise, flexible, and energy-efficient control of lighting systems in various venues such as commercial buildings, museums, and theaters.

With DALI dimming, users can specify light levels, create scenes, and monitor energy consumption using a digital communication protocol that allows LED lights to be individually addressed and controlled. This promotes intelligent and sustainable lighting solutions by improving user comfort, saving energy, and simplifying system maintenance.

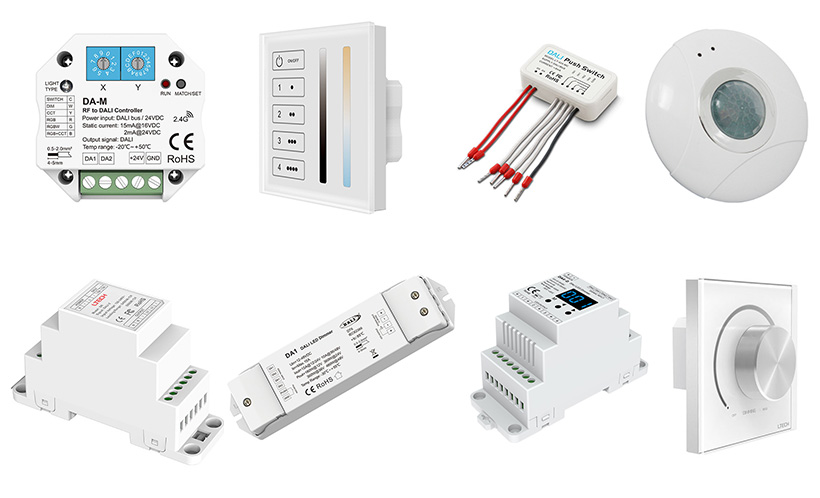

What are the components of a DALI system?

DALI systems consist of various interconnected elements that work together to provide precise lighting control. Some of the key components include:

DALI dimmer

The DALI dimmer receives commands via the DALI protocol, converts the DALI signal into a signal recognized by the LEDs, and regulates the lighting fixture, enabling the DALI system to control the brightness of the LED lights in each area and ensuring smooth, flicker-free dimming.

DALI controller

DALI controllers are devices that issue commands to DALI-compatible LED lighting fixtures, enabling the user to control and monitor the lighting system.

DALI sensor

DALI sensors feed data on factors such as occupancy and daylight levels back into the lighting system, allowing the DALI system to optimize energy use and ensure the best lighting conditions for the user.

DALI ballast and driver

DALI ballasts or drivers are important components that control the electrical output of a fluorescent or LED fixture. These LED devices receive dimming commands from the DALI controller and adjust the light output accordingly.

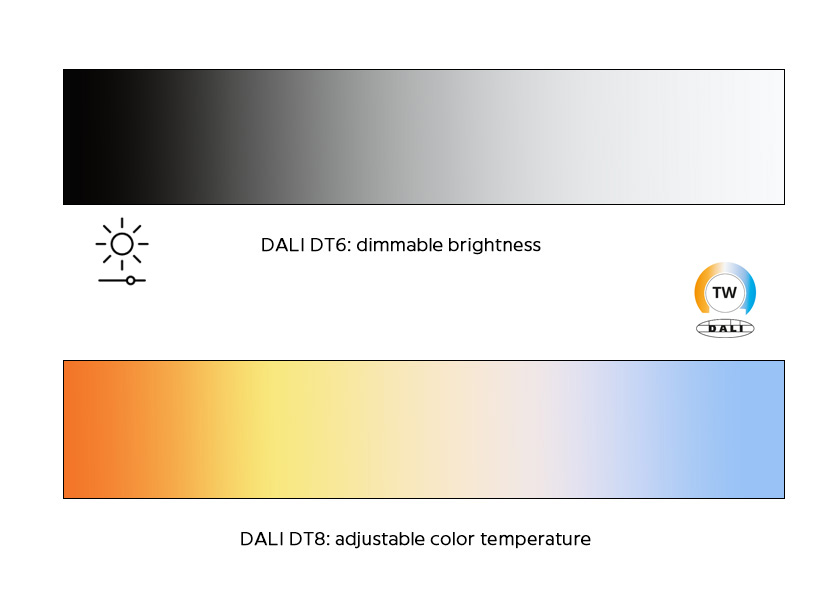

DALI DT6 and DT8

DT6 (Device Type 6): DT6 devices refer to LED driver power supplies, product forms are constant current and constant voltage LED driver power supplies. DALI DT6 is mainly used for single-channel dimming of ordinary LED lamps and lights, using a single address to regulate the brightness and color temperature of the light. If you want to regulate the color temperature, you need to use two addresses. DALI DT6 supports the protocols of IEC62386-102 and IEC62386-207 protocols.

DT8 (Device Type 8): DT8 devices are LED driver power supplies with dual outputs to support adjustable color temperature fixtures, or more outputs to support RGB color-tuned fixtures. The DT8 uses a single address to control multiple channels, is compatible with the DT6, and endorses the IEC62386-102 and IEC62386-209 protocols. The DT8 enables color temperature and RGBW color control, providing greater flexibility and creativity in the lighting system.

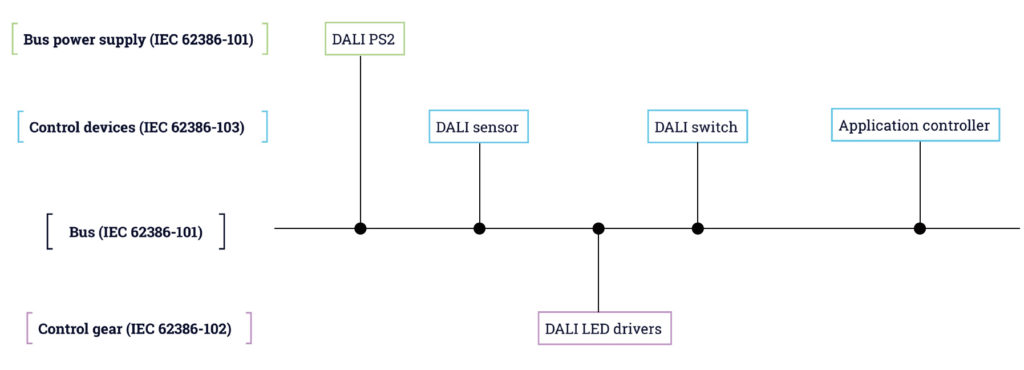

What is a DALI Bus?

The DALI bus is a two-wire communication network that connects all DALI devices in the system. It is used to transfer digital signals between the controller and DALI-compatible lighting fixtures.

The DALI bus enables LED devices to communicate with each other and perform different tasks and each control device on a single DALI bus can have up to 64 unique addresses.

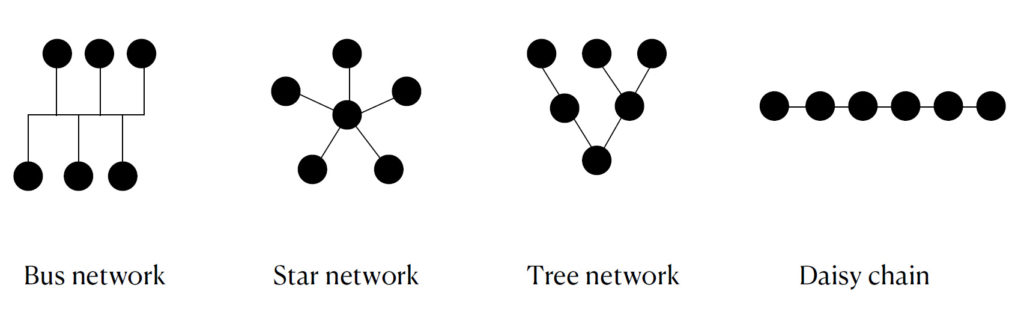

The main advantage of DALI is the flexibility of the bus cabling topology. You can arrange your devices in a bus, daisy chain, star or tree network, or any combination of these, and you can insert controllers and sensors anywhere in the arrangement.

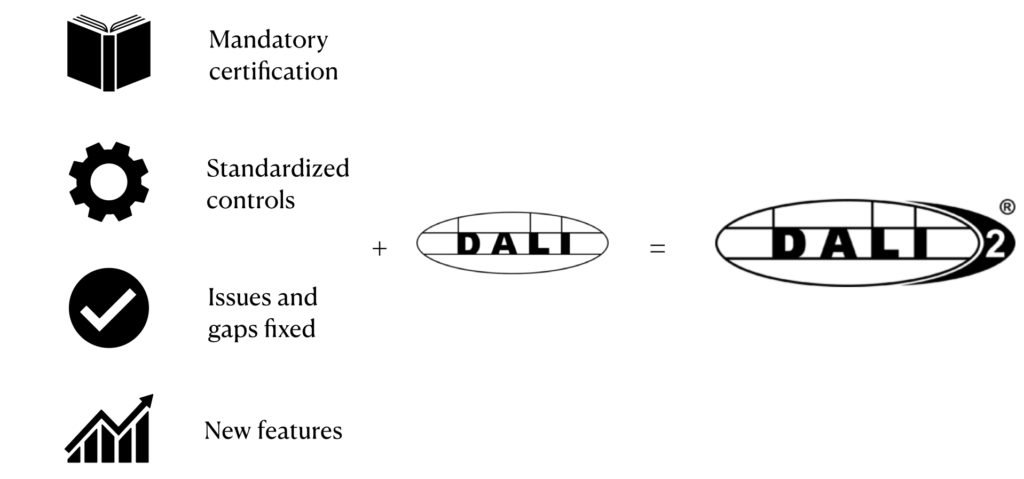

DALI 1.0 or DALI 2.0?

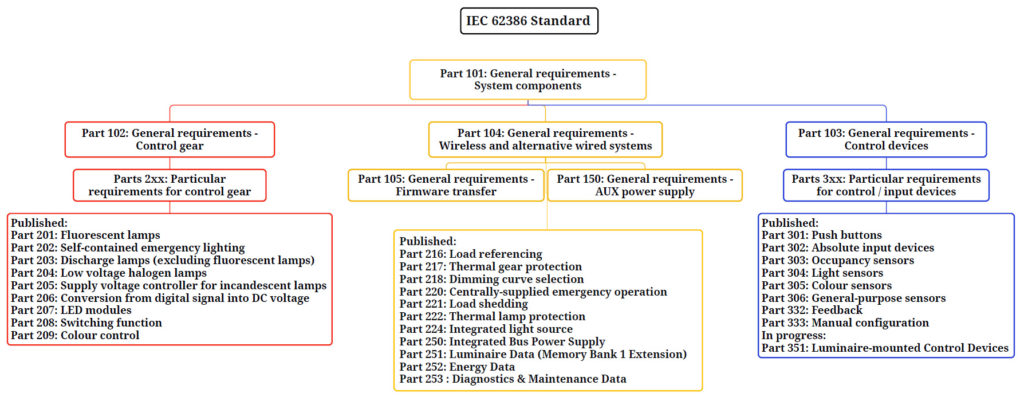

DALI 1.0 refers to an older version of the DALI protocol that includes only control devices; DALI 2.0 is a certification scheme based on the latest version of the DALI protocol, known as version 2 of the DALI standard IEC 62386.

DALI dimming VS other kinds of dimming

Phase dimming

Phase dimming, also known as TRIAC dimming, is divided into two types of dimming methods: leading-edge dimming and trailing-edge dimming. Its working principle is to generate a tangential output voltage waveform after the waveform of the input voltage is cut through the conduction angle. Thus the brightness is controlled by changing the shape of the AC sine wave to dim the light. Phase dimming is the simplest and most basic method to reduce the brightness of the LED light, but the effect is not the best, commonly used in incandescent and halogen lamps.

DMX dimming

DMX modulator is the abbreviation of Digital Multiplex, which means multiplex digital transmission for remote control of up to 512 fixtures. It is an integrated circuit chip that controls the brightness and color of the signal by adjusting the digital potentiometer to control the brightness and tone of the signal. However, its high installation cost makes the alternative solution more attractive.

DALI dimming

With individual addressability for each LED dimming fixture, DALI dimming enables LED downlights, LED spotlights, and LED linear lights to provide customers with bespoke lighting solutions and significant energy savings. They also have the widest dimming range available. Meanwhile, in line with ongoing developments, the latest DALI models can manage RGBW and modulate white light. Precise control, smooth LED dimming, and interoperability between devices make the two-wire DALI system an effective and adaptable method of dimming.

How does DALI dimming work?

DALI dimming is a cutting-edge technology that brings advanced control and efficiency to lighting systems. This section will explore the inner workings of DALI, its wiring techniques, and the many places where it enhances lighting performance.

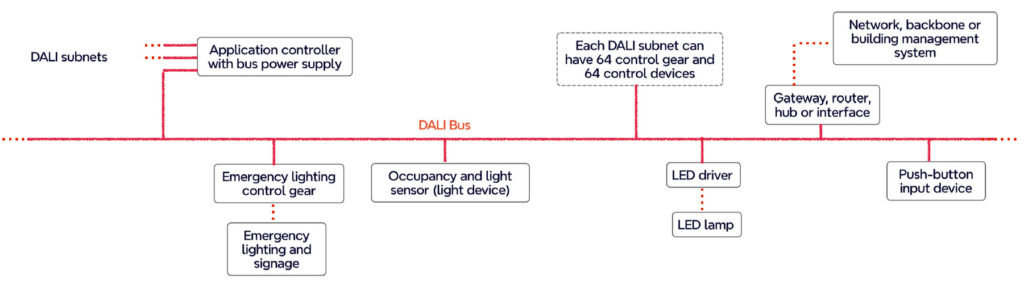

How are DALI lighting systems wired?

DALI lighting systems are wired using a simple two-wire bus system to which all control devices (such as LED drivers or ballasts) and sensors are connected. The DALI lighting system uses a master-slave model, positioning the controller as the central hub and the lamps as slave devices, with digital signals transmitted over a two-wire control line or bus. A distinctive feature of the DALI system is that there are no wiring clusters; all cables can be run in parallel with the bus. Unlike conventional lighting systems, each LED device on the DALI bus has a unique address for individual control.

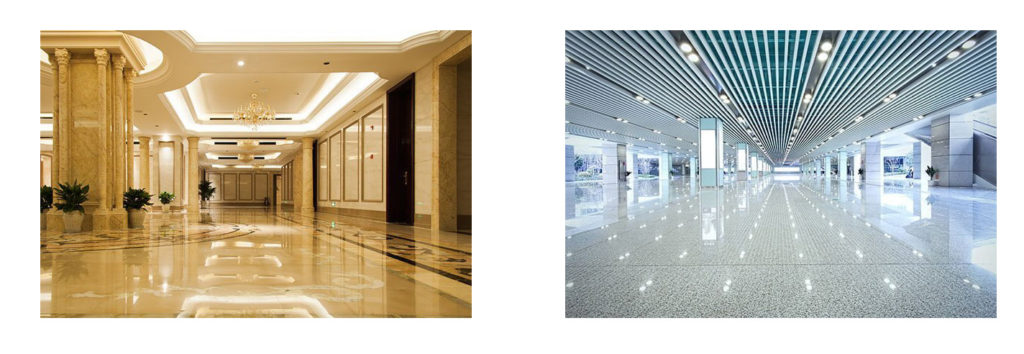

Where are DALI lighting systems used?

DALI dimming systems are used in a wide range of applications thanks to their high level of controllability, precise dimming functions, and good system scalability. Whether for commercial, industrial, public, or outdoor lighting, DALI dimming provides reliable and efficient lighting solutions.

What’s the difference between DALI and 0-10V?

Are DALI products compatible with each other?

DALI is designed to be an open protocol and products from different manufacturers should be compatible with each other; this interoperability is one of the main advantages of using DALI in LED lighting control systems. The original version of DALI had some compatibility issues, with only 16 bits per DALI data frame: 8 bits for addresses and 8 bits for commands.

This has been resolved with the introduction of DALI 2.0, which is more ambitious in scope, includes many features not found in the original version, and complies with IEC62386 standards.

Although DALI 2.0 improves the interoperability of DALI components, its functionality is not unlimited. Please follow manufacturers’ guidelines and industry best practices to minimize potential problems.

Should you consider DALI dimming?

The decision to implement DALI dimming should be based on a thorough analysis of the potential benefits and drawbacks.

Advantages of DALI dimming

• Universal compatibility: DALI is an open standard that ensures consistent performance across devices from different manufacturers.
• Easy to install: DALI systems are easy to install using mainly two wires for power input and output.
• Versatile control panel: A single DALI control system can control multiple zones simultaneously, saving energy.
• Reliable data: The bi-directional nature of DALI provides real-time updates on each component, allowing users to monitor the status and energy consumption of each light.
• Customizable lighting control: DALI allows users to customize lighting effects.

Disadvantages of DALI dimming

• Initial cost issues: DALI dimming can be expensive to install initially, but long-term maintenance costs are typically lower.

• Maintenance requirements: To keep a DALI system in top condition, the LED addresses must be linked to the correct controller via the database, i.e. it is essential to keep the system in top condition.

Summary: Is DALI dimming right for you?

The decision to use DALI dimming should be based on a multi-dimensional consideration of the advantages and disadvantages of DALI lighting, combined with the specific requirements of your lighting system and luminaires. To find out more about other lighting systems or LEDs, please follow the link.
