CS2803 Individually Addressable RGB Light Strips, 5050 LED, Upgraded WS2812B
Related Products
CS2803 Individually...
$29.98
DC5-24V SC+R9 RF 2.4G...
$20.98
Mean Well LRS-75-5 DC5V...
$28.00
Black Diffuser LED...
$8.99
Black Extruded Aluminum...
$10.00 $7.9920% off
DC5-24V SP108E WiFi LED...
$21.99
LC-2000B SPI LED WIFI...
$80.00 $44.9844% off-
Special Price: $29.98
Featuers:

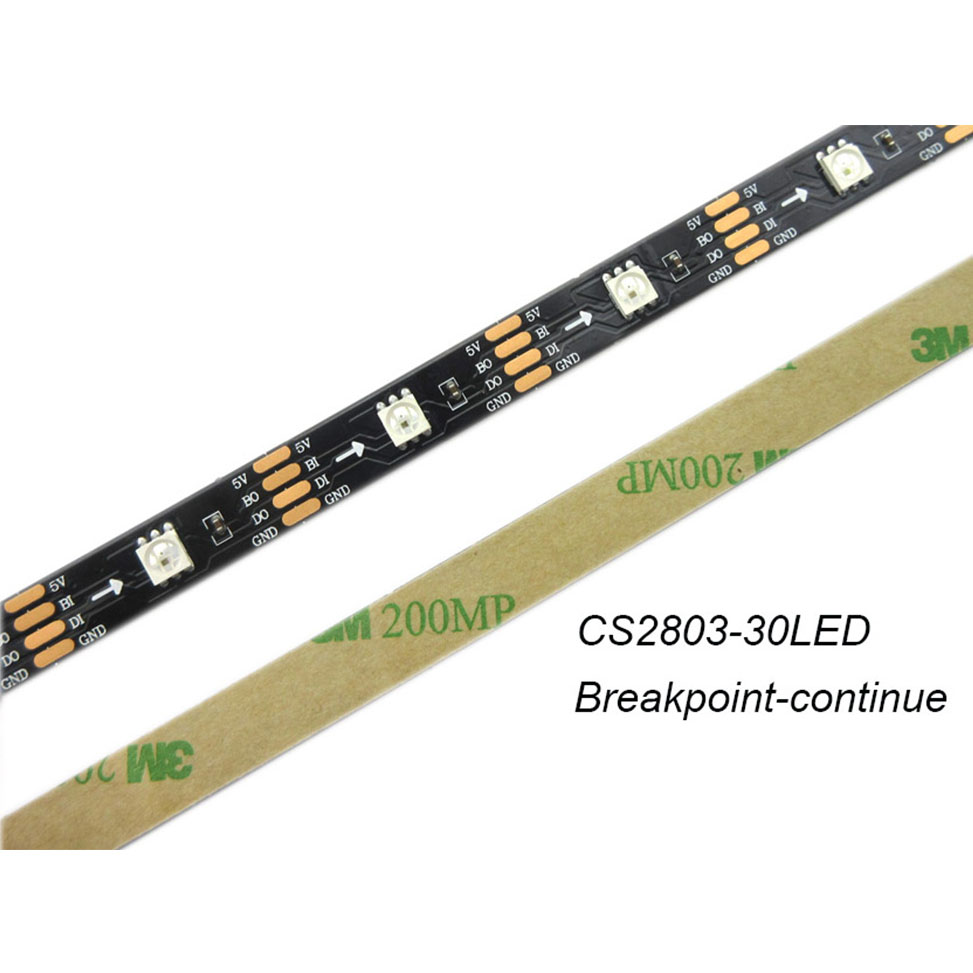

1. CS2803 LED chip has two data signals, one is DI, the other is BI, so when you use those LED chips to make LED strips, one LED disconnection will not affect LED unless the two LEDs in a row are broken, so CS2803 LED is more reliable in making digital LED projects .
2. CS2803 LED chip is controled by IC, each LED can be individually addressable, enabling a new lighting possibilities.
3. CS2803 is superior to WS2812b,SK6812,WS2813.
4. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. Flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection ofthe auxiliary material more flexible, installation energy-saving installation,lower heat, higher brightness, cleaner, lower energy consumptionand and more beautiful.
5. Adopt the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.
6. with the DC5V power supply, the protection ratinglevel is more secure: IP20 IP65 IP67, no-radiation,wide range of use, strong impact resistance, multi-color , it is a completely new generation of green high-tech products.
Engineering type vs Regular type
The engineering type CS2803 LED pixel strip adds resistance in the LED chip, compared with the regular addressable LED strip, under the same ultra-long running length and weak SPI signal, it will not flicker.
Engineering addressable RGB led strip supports MCU control board, compatible with all SPI controllers on the market, WS2811, SK6812, WS2812B, SM16703 protocol, and compatible with MK2 long-distance isolated pixel driver board controller.
The regular digital LED strip is sufficient for general use, and the price will also be relatively cheap.
Standards and Certifications
Specifications:
Input voltage: DC5V
Power: 9watt/meter, 45watt/roll
LED Chip Model: SMD 5050 RGB
LED resource: CS2803 LED
IC Type: CS2803 IC (1 IC drives 1 led chip)
Q'ty of LED: 30leds/meter Available
Q'ty of IC: 30 pixel /meter

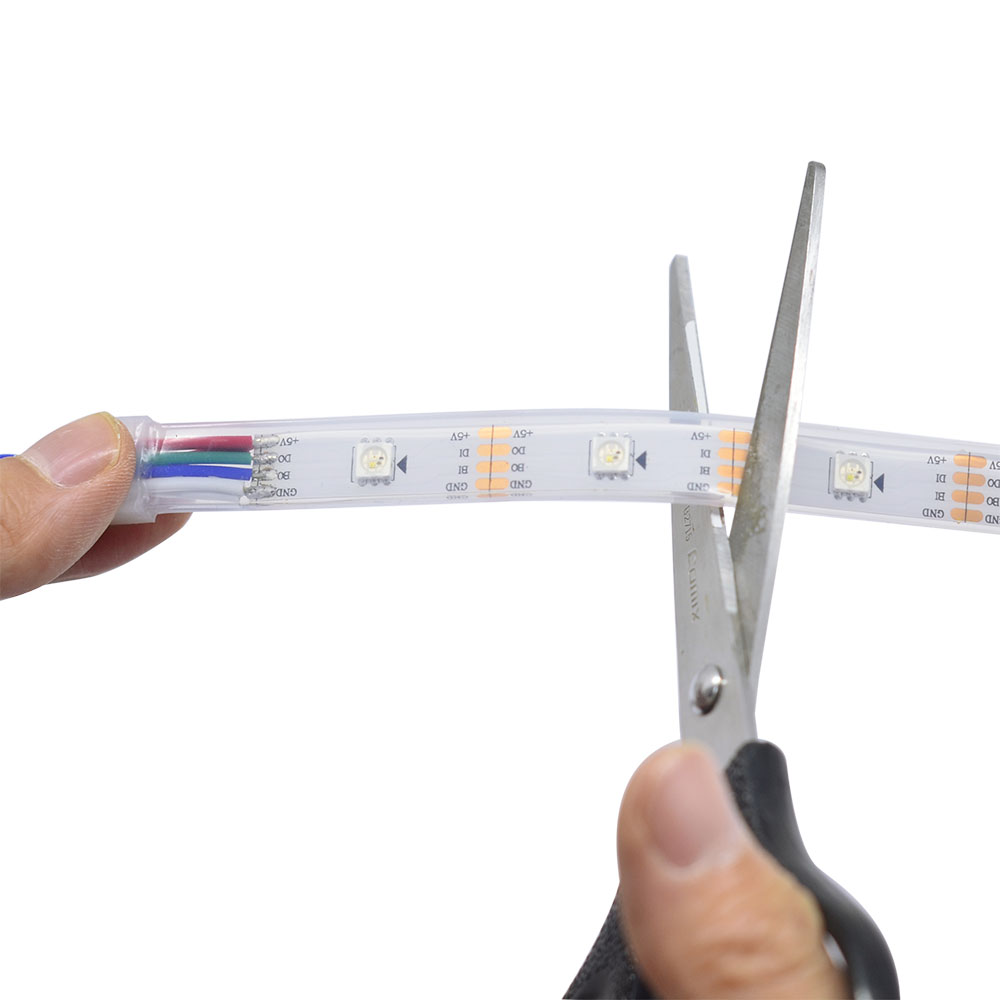

Cuttable: every LED is cuttable
Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )

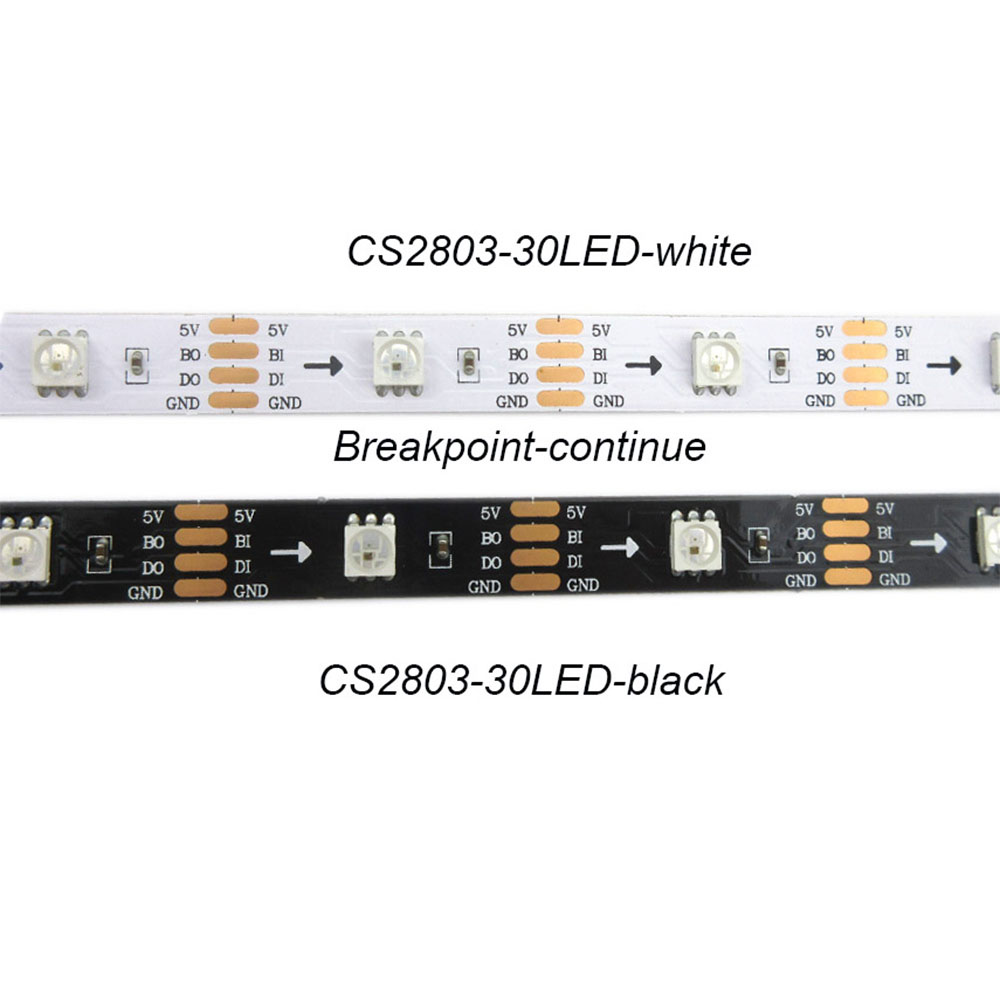

PCB color: WHITE/BLANK Available

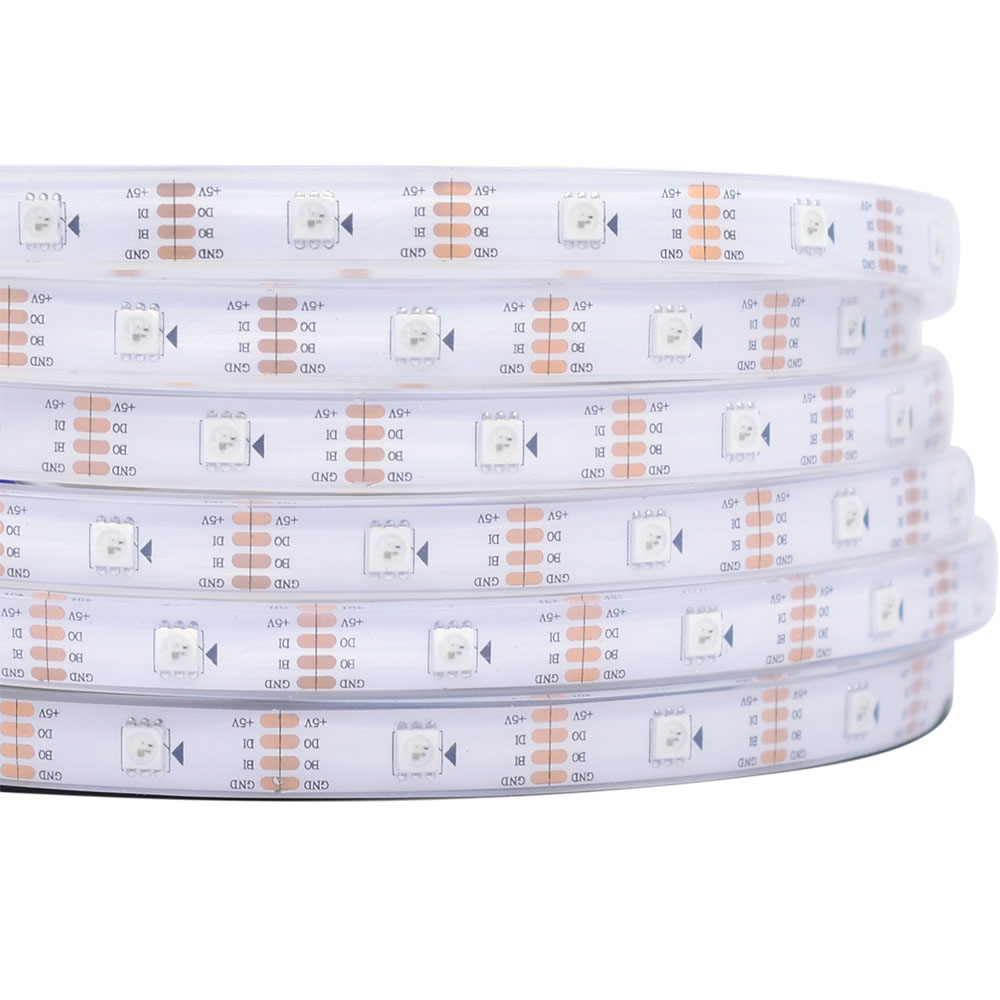

Protection rate: Non-waterproof or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)
Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
Average Life (hrs): 50000Hours+
Certification: CE,FCC,GS,SAA,RoHS,CCC
Beam Angle: 120 degrees
Dimesion
Pin Function
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Strip cut schematic
LED strip wiring diagram
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
