DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack

Model: LED Car Bulb-1156
DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack
  • DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack
  • DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack
  • DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack
  • DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack
  • DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack

Select Specifications:

Select Power:

Select LED Color:

Select Input Voltage:

$19.95

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-49
$19.95
50-499
$18.95
500-999
$15.96
1,000+
$12.97
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Product Features :

    Product Details

    Input voltage is DC10-30V

    Power consumption is 3.5 Watts

    Uses 18pcs 5050 SMD LEDs

    Luminous flux up to 350 lumens maximum

    Nearly equivalent to standard 35W halogen/incandescent bulb

    Optional color is cool white

    360-degree wide beam floodlight

    Not dimmable

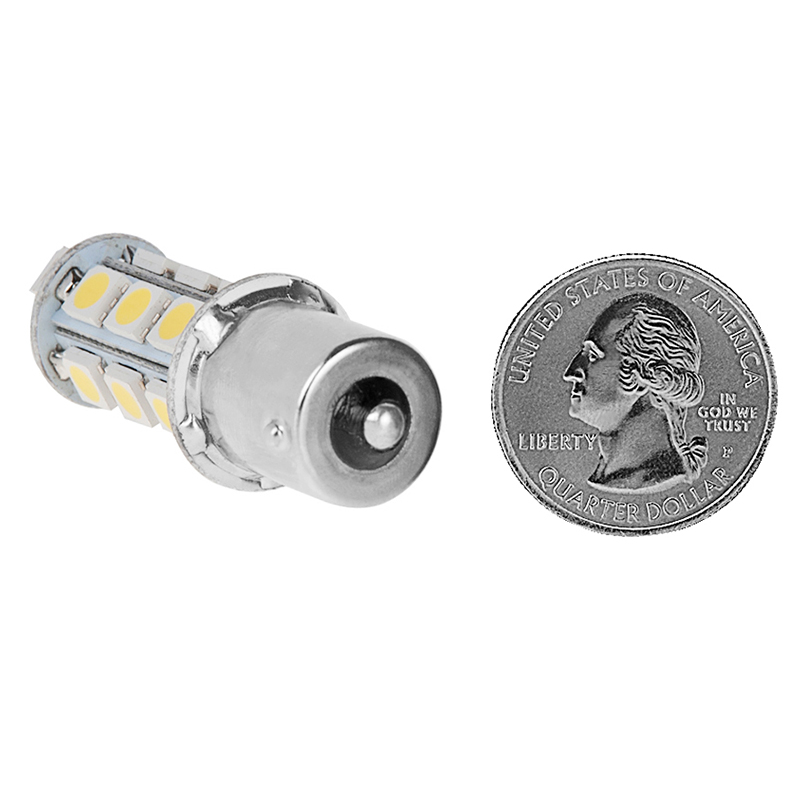

    0.63-inch diameter x 1.97-inch total length

    Single Contact, Inline Pins, #1156 LED navigation lamp replacement bulb

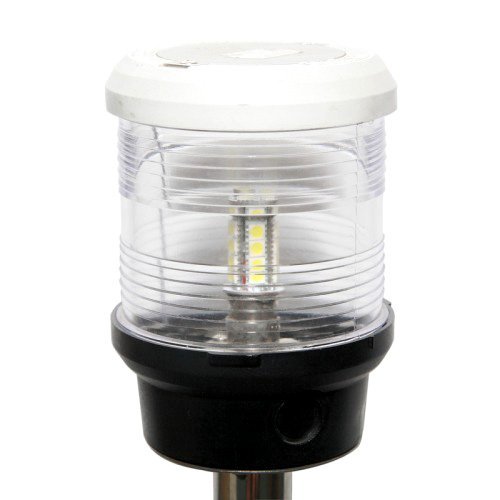

    Numerous boat and RV applications such as navigation lights, cabin lights, ceiling lights, dome lights, tail lights, brake lights, reverse lights, turn signals or side marker lights.

    Replaces Stock Bulb: 1073, 1095, 1141, 1156, 1156A, 1156NA, 1195, 12088, 1295, 1295NA, 199, 2396, 3497, 631, 7506, 93, 97, 97A, 97NA.

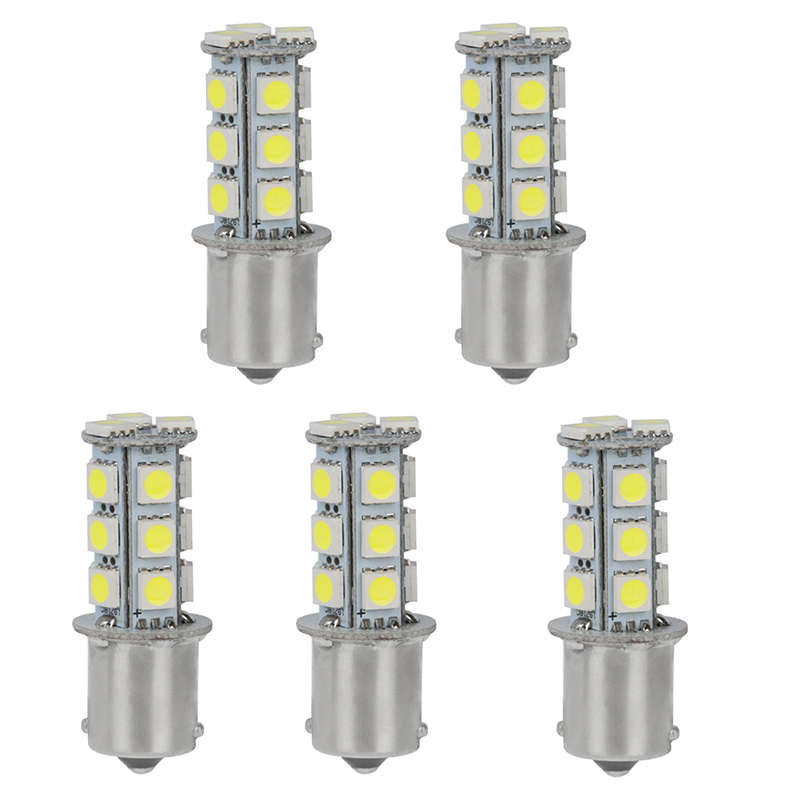

    The package includes 5 pcs bulbs



    Standards and Certifications

    CE FCC UL RoHS ISA SGS ISO LIFETIME warranty



    Product Specification

    Specifications

    Wattage: 3.5 Watt

    Halogen Equivalent: 35 Watt

    Voltage: DC10-30V

    Bulb Base: BA15S DC Bayonet

    Bulb Shape: T3/T4/C7/S6

    Luminous Flux: Max.350 Lumen

    Beam Angle: 360 Degree

    Dimmable: No

    LED Brand: Epistar

    LED Type: 5050 SMD LEDs

    LED Quantity: 18 Pcs

    LED Color(s): Cool White

    CCT or Wavelength: 6000K

    Color Rendering Index: 80

    Diameter: 16mm (0.63 in.)

    Length (M.O.L.): 50mm (1.97 in.)

    RoHS Compliant: No

    LED Lifetime: 50,000 Hours





    Color Temperature

    led strip color temperature and color compare



    Available

    1. LED energy saving bulbs can apply in high-class stores, super market, offices, hotel, meeting room.

    2. LED energy saving bulbs can apply in multi-function hall, exhibition, coffee room.

    3. LED energy saving bulbs can apply in commercial theater, museum, living room etc.

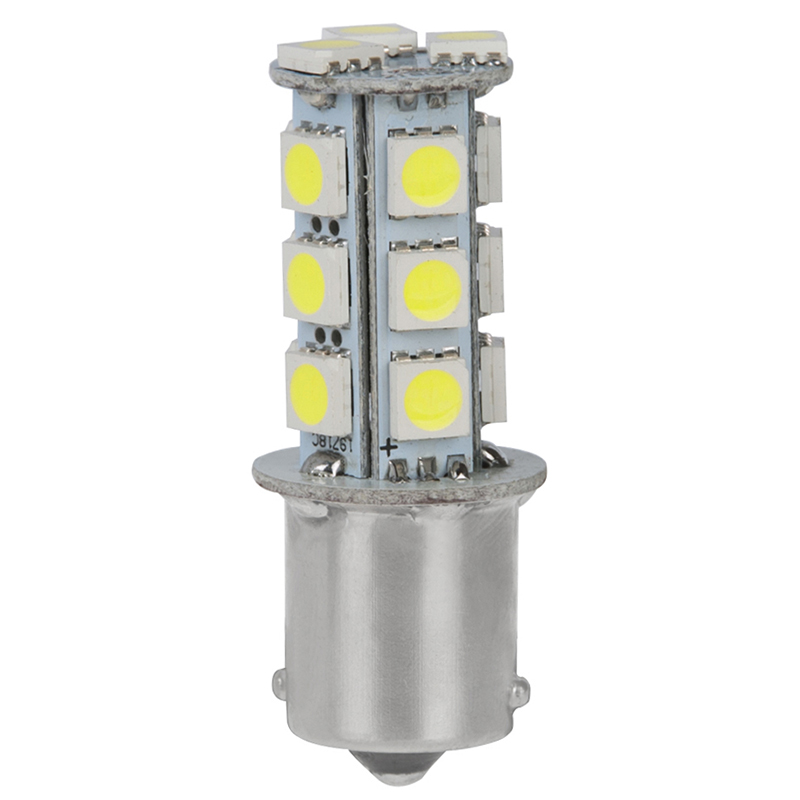

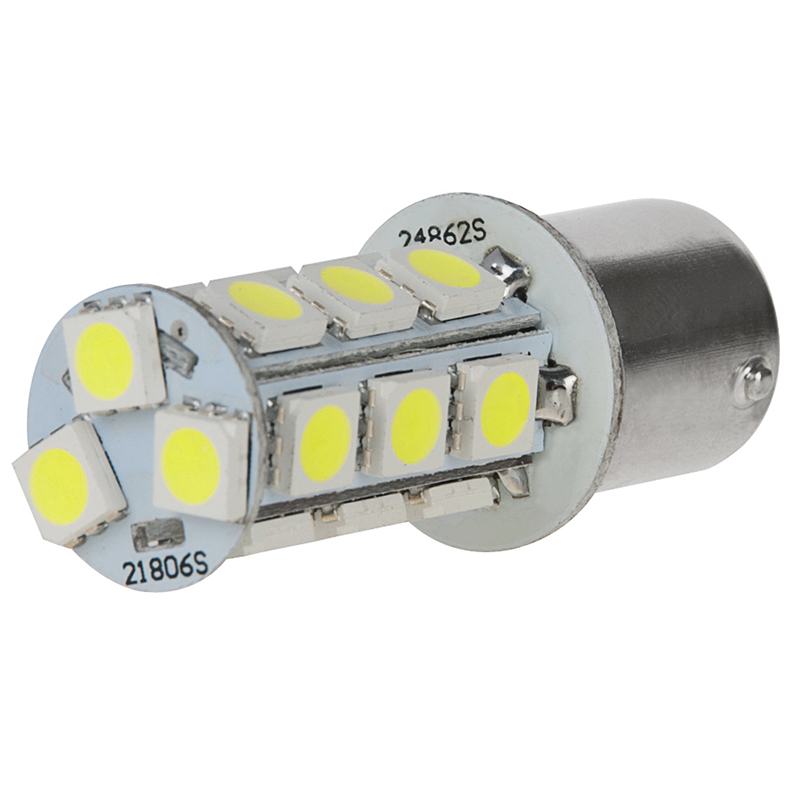

    DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    DC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-PackDC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-PackDC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-PackDC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-PackDC10-30V 3.5W BA15S 1156 Single Contact Bayonet Base LED Bulb, 5-Pack
