Working Temperature: -25~50 °C.
Input Voltage :DC12-24V.
Output Voltage :DC12-24V.
Output Channel: 3 (RGB Common Anode).
Output Current :4A (each channel) * 3 = 12A.
Product Size: L42mm * W28mm * H16mm.
Waterproof :Yes (IP65).
If the input voltage is 24V, use the lamp with 24V lamp with.
Input DC 5V， output DC 5V， strip lights must DC 5V.
Input DC 6V ，output DC 6V，strip lights must DC 6V.
Input DC 12V ，output DC 12V ，strip lights must DC 12V.
Input DC 24V ，output DC 24V ，strip lights must DC 24V.
They plug connection,No soldering.

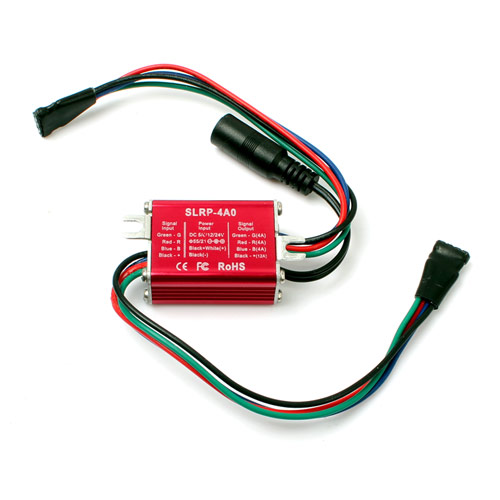

The RGB amplifier applies to the voltage-controlled LED controller, it receive PWM (Pulse Width Modulation) signal and extend your lights quantity. Mainly it use for RGB LED strips to double the strips length.
Caution: *Work With 5.5x2.1mm DC plug 5/6/12/24V power supply.
Not suitable for Common Cathod type RGB LED Strips.
Not suitable for Chasing type LED RGB strips.
