Amplify the red, green, blue three group signal of 3 channel controller, improve the system with load capacity, and has minimal delay, but can keep synchronism in cascade.
The outlet should be connected correctly according to the color shown in the wiring diagram.
Can't be wrong attached, in order to avoid short-circuit.
Standards and Certifications
Working temperature： -20-60℃
Input voltage： DC12-24V
Signal voltage: DC 12V-24V
Input signal: RGB common anode PWM dimming signal
Output： 3 channel
Connection mode: Common anode
Output current: max 8A (each channel) Output power: max 288W(12V), max 576W(24V)
Delay time: 20NS
Dimming range: 0.1%-100%
Net weight: 130g
Gross weight: 150g
Packing size: L155Χ W85 Χ H26 mm
Connect terminal: screw connect mode, terminal caliber 7mm
Output current: <24A
Output power: 12V:<288W, 24V:<576W
Mode of connection

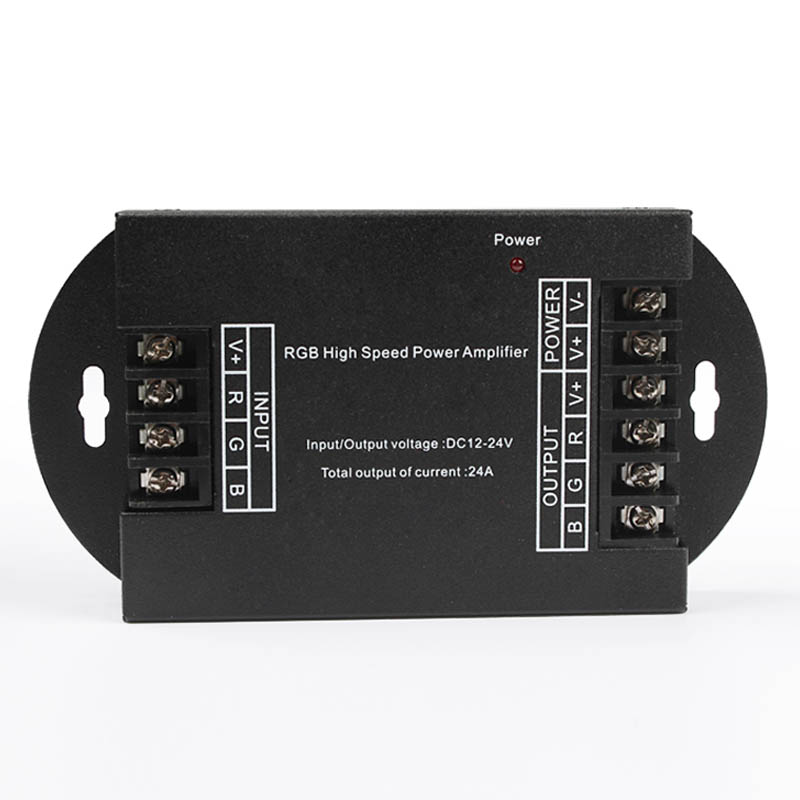

1x RGB high speed power Amplifier
1x LEDENET Logo Cleaning Cloth
