DC12/24V Double Row Series 2835SMD High CRI 95 1200LEDs Waterproof Optional Lighting Flexible LED Strip Lights, 5m/16.4ft Per Reel By Sale
Related Products
DC12/24V Double Row...
$39.98
DC12-24V 20A 1CH*20A...
$24.98
Mean Well RSP-240-12...
$79.98
15A*1CH Brightness LED...
$22.98
Mean Well SP-240-24...
$99.98-
Special Price: $39.98

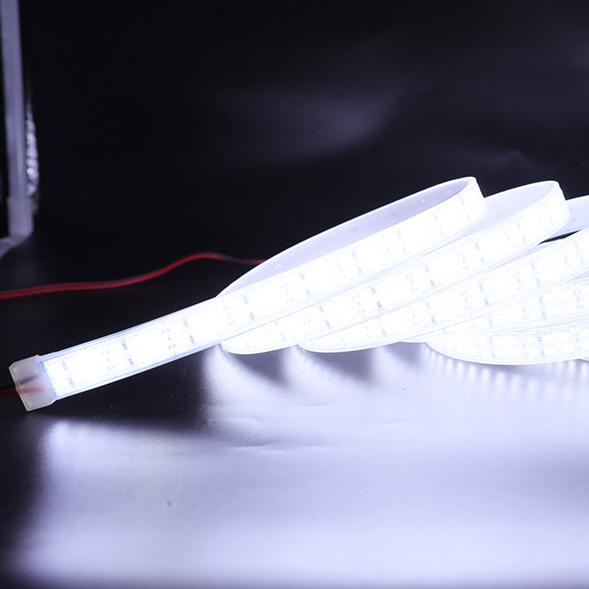

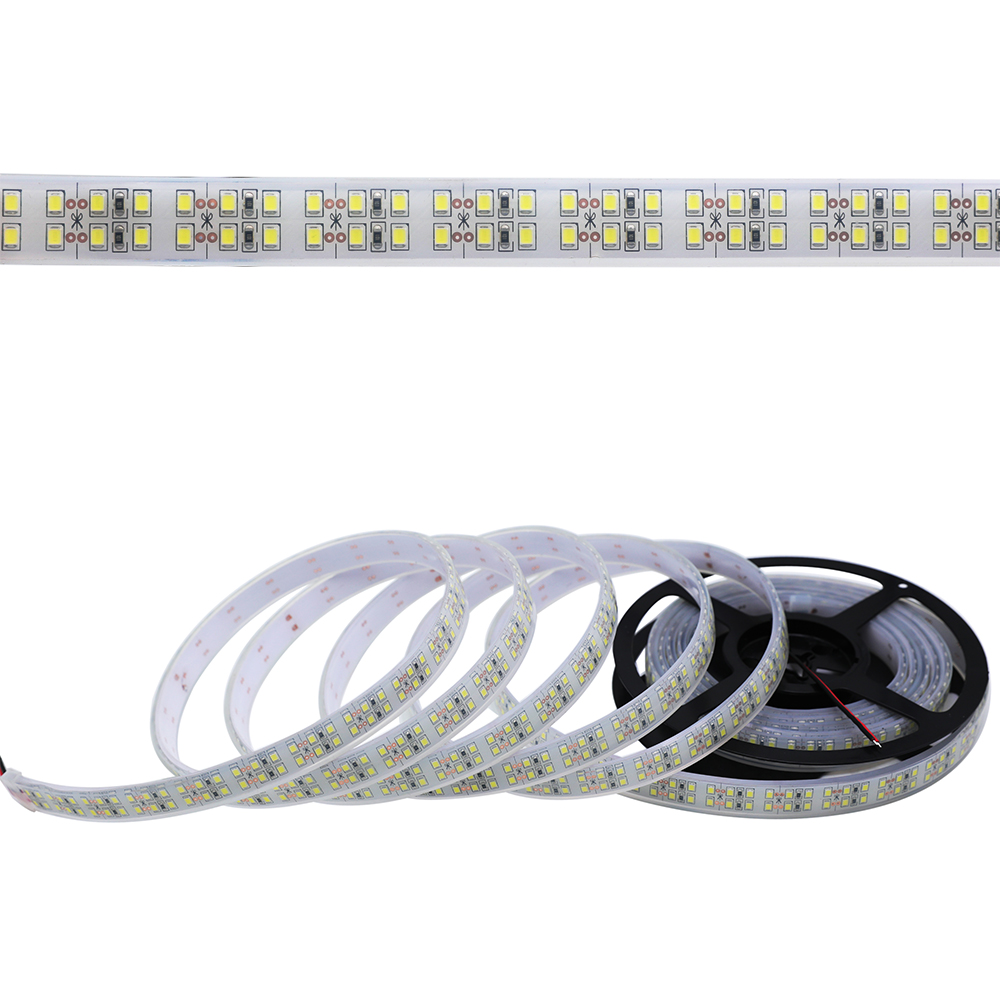

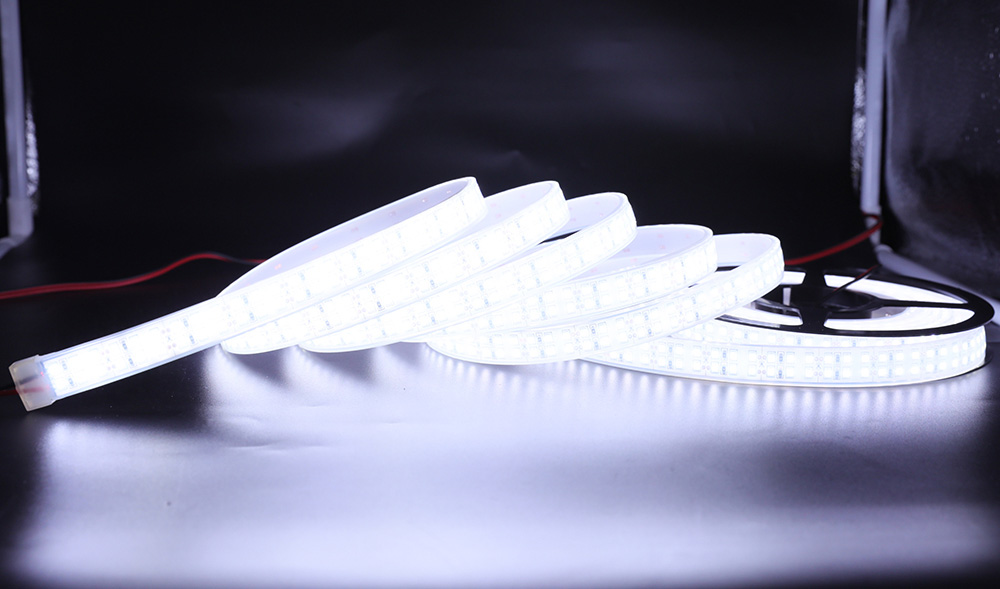

Our flexible 2835 LED strip lights operates on 12/24VDC. It emits 598lumens of daylight, natural, or warm white illumination per foot. And with a high CRI (color rendering index) of 95, light from the LEDs will show the true colors of any object or surrounding. The 16.4' high-density LED tape light can be easily cut into separate 3LEDs(DC12V)/6LEDs(DC24V) segments and installed with its peel-and-stick 3M™ adhesive backing. This strip is covered by a 50000hrs+ warranty. It's great for retail shops, jewelry cases, supermarkets, food and meat cases, museums, galleries, videography, under-cabinet lighting, or any indoor application where presentation, appearance, and depth of color are critical. See the standard-density version. See compatible LED dimmers.
Standards and Certifications
Product Specification
LED Chip: SMD2835 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
LED Quantity: 240 LEDs per 1meter (3.28 ft), 1200LEDs/Roll
Length: 5m/16.4Ft

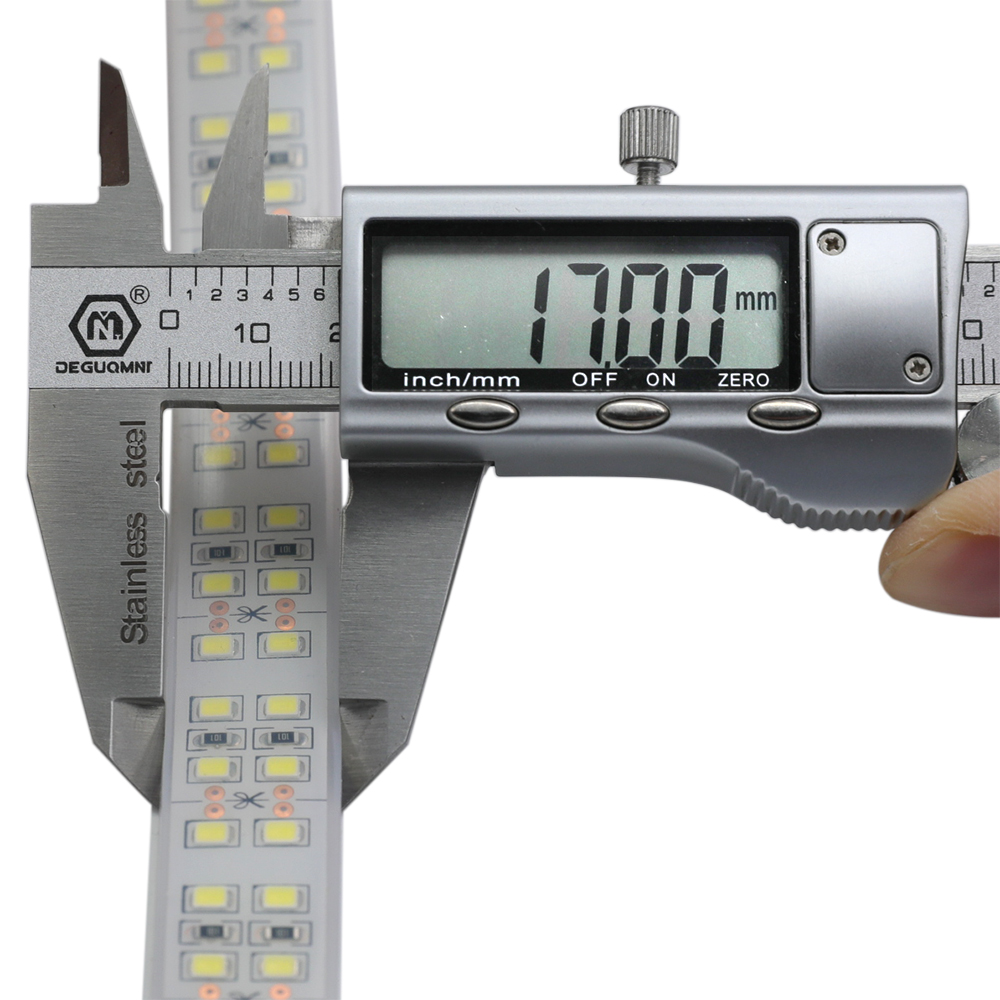

PCB Width: 17mm/ 0.75in
Lifespan: 50,000+hours
Warantty: 3 years
Input Voltage(V): 12/24VDC
Working Power: 180W/16.4ft Max
Beam Pattern: 120 degree
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(4000-4500k), Cool White(6000-6500k)
Water Proof: Waterproof IP20/IP67/IP68
CRI (Ra>): 95
Package List:
1*5m SMD2835 240LEDs/m LED Strip Light
Caution:
1.Storage temperature:-40°to +80° operating temperature:-25°to +60°
2.installation surface must be smooth,clean and dry.
3.the part of LED components can not be fixed on the surface of the sharp edge.
4.strip should not be collided or crushed.
5.strip can be cut following the cutting lines.
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
Installation Instruction

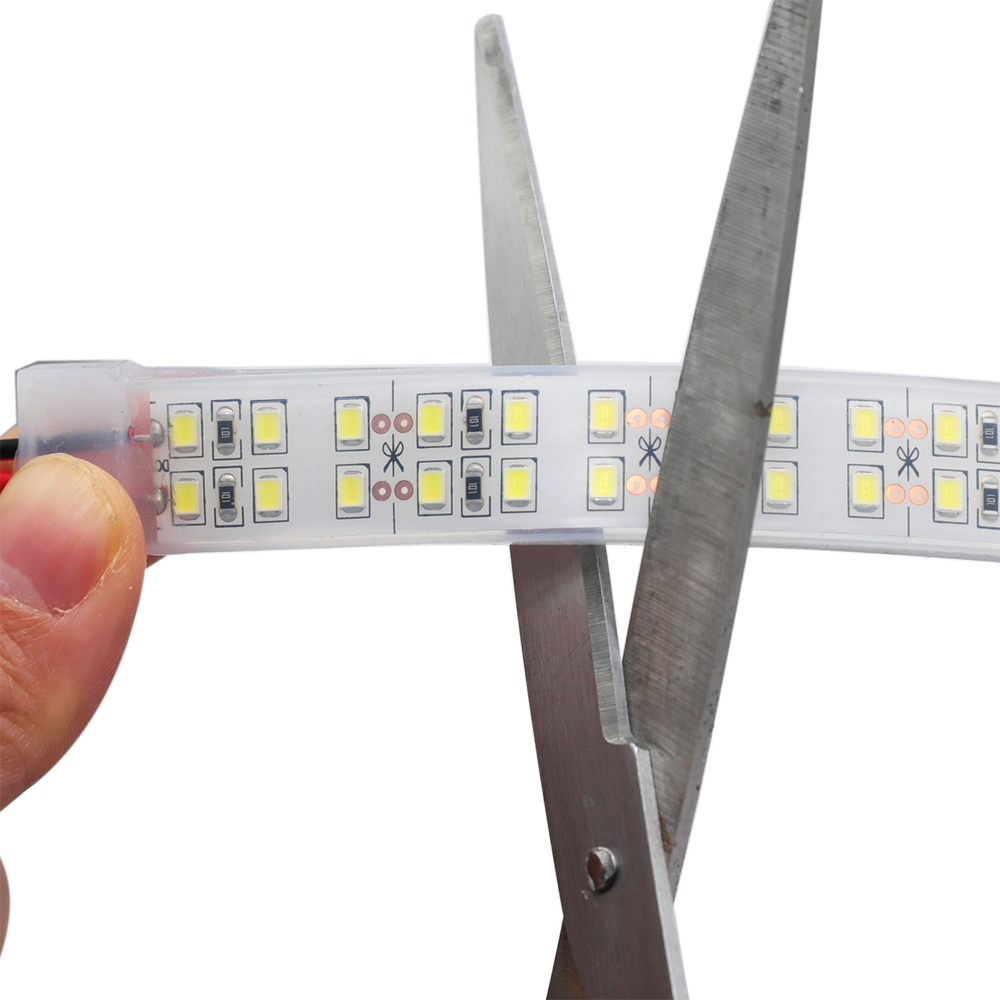

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will need

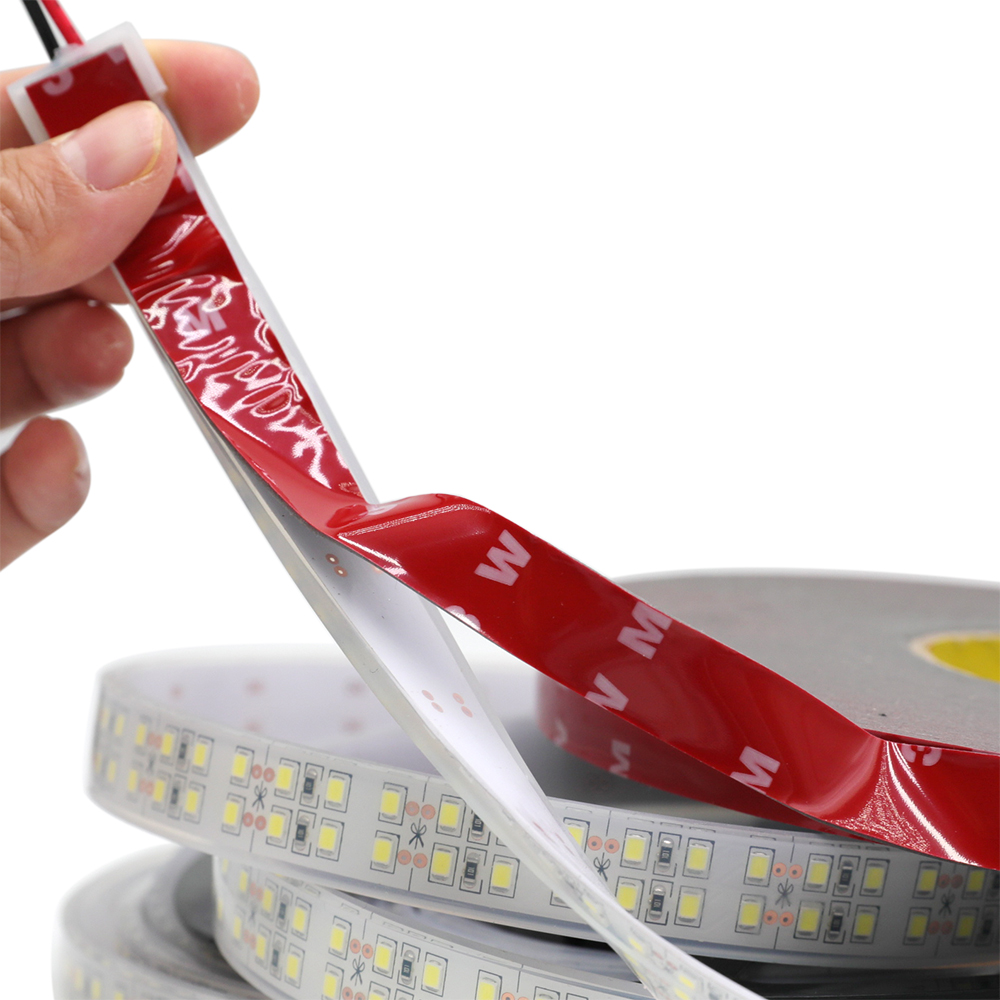

allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
Application
Trademark lighting Logo lighting
Channel letters lighting Lightboxes lighting Landscape layout lighting Stage decoration lighting Sign cabinets Channel lights Cove LED lighting Edge lit signs Canopy illumination Off-grid lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
