Special Price: $34.99
This is Wall Install Series Glass panel change color temperature controller DC12-24V 2.4GHz (pulley) for single color led lighting. Full toughened glass panels, generous, fashion, durable. Combine touch –key and touch remote control method, control modes various, simple and flexible. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for controlling a variety of lamp whose source of light is LED. Support lighting fixture integrate dimming, and compatible with all the lighting. Various control panels, multiple output interface, compatible with different lighting fixture, flexible choice. Comply with international standard installation method and dimension, convenient for user installation.
Fixture Features: Easy to Install,Wall-Mounted Design, Acrylic Touch Panel, DC12V-24V, Be noted that the working Voltage is 12v to 24v, cannot be connected directly to DC 220v power. Work with DC Power Supply 12V to 24V., Dimming Controller to adjust LED Light Brightness.
Product Specification
Item Type: LED Strip Dimmer Controller
Applicable Lights: Single color LED Strips, Bars, Module
Warranty: 3 years
Working Temperature: -20 ~ +60°C
Color: White/Champagne
Craft materials: glass panle
Input Voltage: DC12~24V
Output power: DC12V/144W~DC24V/288W
Controled Method: RF Remote
Remote Distance: 20meter at open area
Controlable distance: >20m
Remote controller battery: AAA battery x 3pcs ( not included )
Installation Battery of The Remoter
This remoter is used 2pcs AAA batteries ,each voltage is 1.5V.
Open the cover of the battery;load 2 pcs AAA batteries correctly as per the positive and negative instructions in the battery pack.
Notice:
If the indicator lights on the remote controller flash regularly without touch,please note the battery should be changed.
For occasions
Interior Decoration, hotel, shopping mall and square, restaurant, bar and home. Building decoration, business place, airport, subway station.
Outdoor decoration: billboards, park, bridge, road transport, tourist attractions.
Other: sample reveals ark decoration and other places need RGB lamps and lanterns.
Interior Decoration, hotel, shopping mall and square, restaurant, bar and home. Building decoration, business place, airport, subway station.

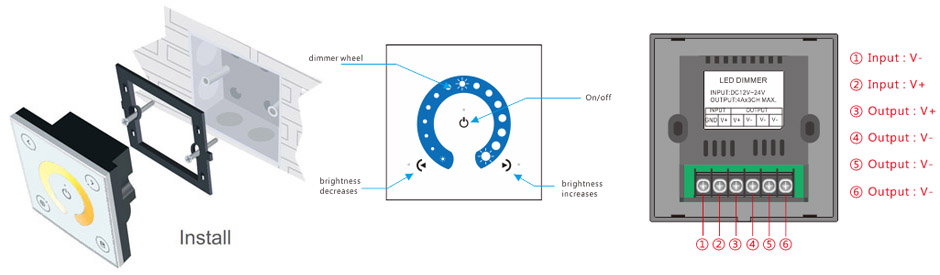

Installation Instructions

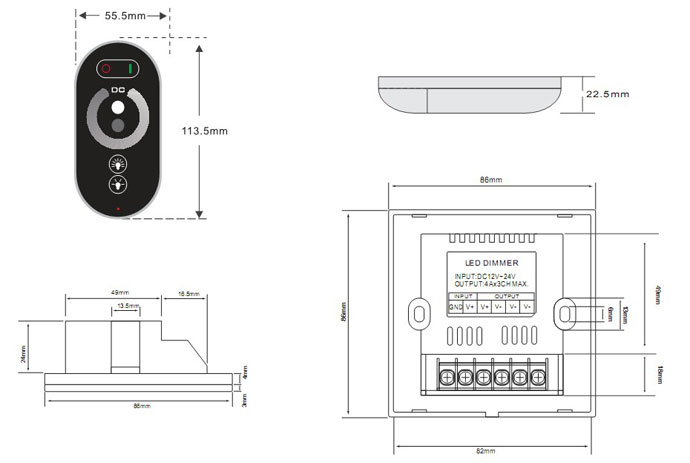

 size.jpg)

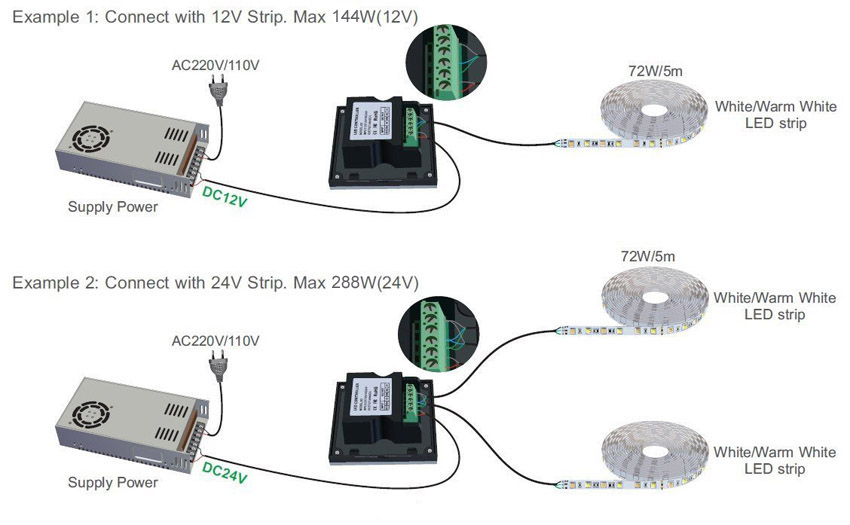

 connection diagram.jpg)
Packaging
1 x led glass touch panel dimmers
1 x RF Remote control
1x Piece of User's Manual
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
 for single color led lighting_1.jpg "DC12/24V Max 12A 4A3CH, Wall Install Series Glass touch panel Touch Wireless dimmer 2.4GHz (pulley) for single color led lighting")
 for single color led lighting_2.jpg "DC12/24V Max 12A 4A3CH, Wall Install Series Glass touch panel Touch Wireless dimmer 2.4GHz (pulley) for single color led lighting")
