DC12-24V Universal LED Built-in 24 Patterns Wireless Outdoor Waterproof Controller with 17Keys RF Remote For RGB LED Strips Lights or Modules
Overview:
RF controller adopts the advanced micro control unit, with 433MHz wireless signal to do the controlling. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers’ needs, it can realize gradual change, fadein dimming, jumping change, strobe, quick flash and other kinds of model. It is easy to take, simple to use, etc.
Technical Parameters:
Working temperature: -20-60℃
Power supply voltage: DC12-24V
Output: 3 channels
Connection method: common anode
Controller size: L70×W40×H40mm
Remote control size: L85.9×W39.6×H6.9mm
Packing bag size: L200*W147mm
Static power consumption: <0.5W
Output current: <4A(each channel)
Output power: 12V<144W, 24V<288W
Package list
1*RGB led dimmer controller
1*17Keys RF remote controller

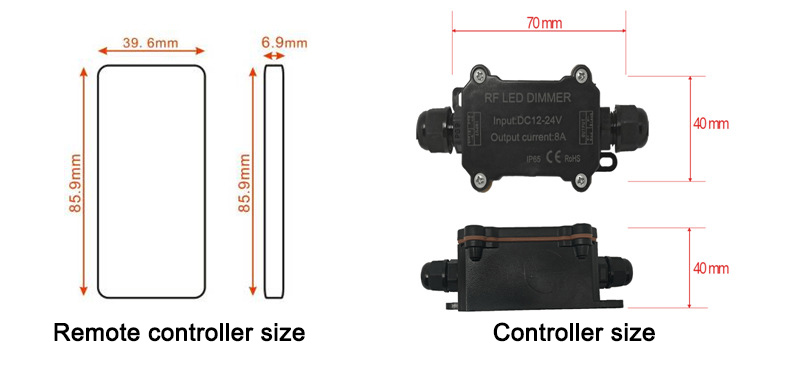

Dimensions:

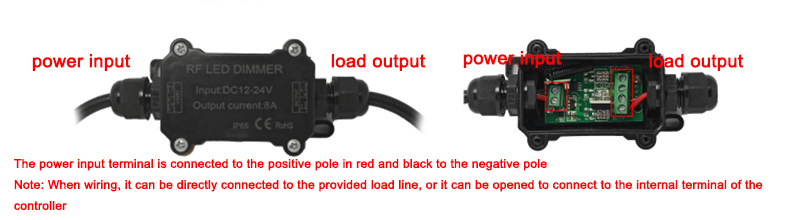

Iinterface Description：
Using Instruction:
Match code operating instructions:
Power on controller, press ”Power" key in 3 seconds can match code, the load light will flash 3 times when match code successfully, it only can match the code 1 time before power off. If you need match code again that need to power off and than power on.

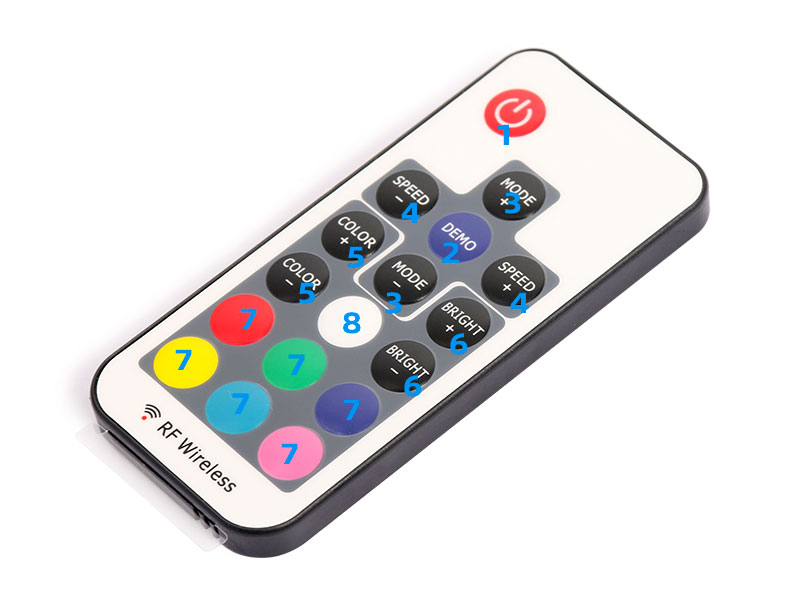

Remote instructions:
1. Turn on/off key.
2. Automatic play key, press this key, each dynamic mode will run three times in turn.
3. Switch to dynamic mode from static color mode, and change the dynamic mode
forward/reverse direction.
4. Switch to dynamic mode from static color mode, and change the speed forward/reverse direction, it has 10 levels.
5. Switch to static color mode from dynamic mode, and change the static color
forward/reverse direction.
6. Switch to static color mode from dynamic mode, and change the brightness
forward/reverse direction, it has 5 levels.
7. Press the color key in any mode to jump to the corresponding seven static color modes
8. Short press：Switch to white in normal mode, exit line order mode in line order setting mode, long press: switch to line order setting.
Dynamic mode:
1 Red quick flash
2 Green quick flash
3 Blue quick flash
4 Yellow quick flash
5 Cyan quick flash
6 Purple quick flash
7 White quick flash
8 Three colors quick flash
9 Seven colors quick flash
10 red colors flash
11 Green colors flash
12 Blue colors flash
13 Three color jump change
14 Seven colors jump change
15 red fade in and fade out
16 Cyan fade in and fade out
17 Green fade in and fade out
18 Cyan fade in and fade out
19 Blue fade in and fade out
20 Purple fade in and fade out
21 White fade in and fade out
22 Three colors fade in and fade out
23 Seven colors fade in and fade out
24 Seven colors gradual changing
Static mode:
1 Red
2 Orange
3 Dark yellow
4 Yellow
5 Light yellow
6 Green
7 Light green
8 Cyan
9 Light blue
10 Sky-blue
11 Blue
12 Dark blue
13 Blue-purple
14 Purple
15 Brown
16 White
17 Ivory
18 Pink-white
19 Yellow-white
20 Blue-white

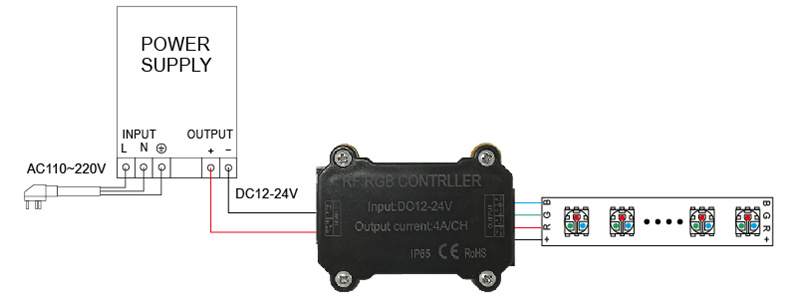

Typical Applications
Note: The line on the picture is only for demonstration, not including the line, please be careful when you purchase
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
