DC12/24V Waterproof Color Changing RGB Flexible LED Neon Rope Light For Edge Decorative Lighting

The DC 12V and 24V LED neon rope light adopts high quality SMD5050 LED, with high brightness and pure color; the 10*23mm wide dome top LED neon tube is made of food-grade silicone material, which is longer and softer than traditional LED neon light, and can be bent at will to make advertising signs lighting, etc.; waterproof grade is IP67 and above, suitable for indoor & outdoor environment use.

High efficiency and energy saving, support DC12/24V low voltage input, safe and stable, high efficiency in converting electric energy into light energy, harmless to human body and environment, silicone LED neon tube has good light transmittance, effectively diffuses the brightness of LED, and the whole LED neon tube without light spot lighting.

Matching the color changing RGB LED controller can achieve precise colors, the mode is adjustable, including dimming, blinking, fade in and fade out, and speed control to achieve static decorative lighting effects. For ultra-long-distance lighting, it is recommended to supply power at both ends to avoid voltage drop affecting visibility Effect.

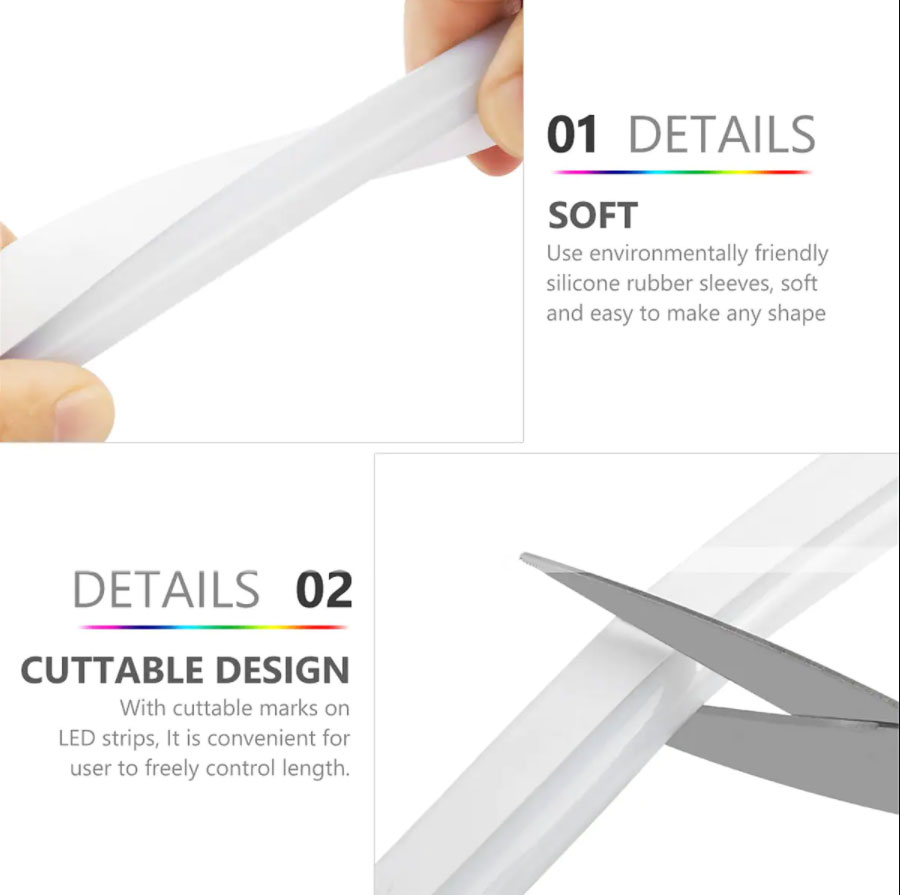

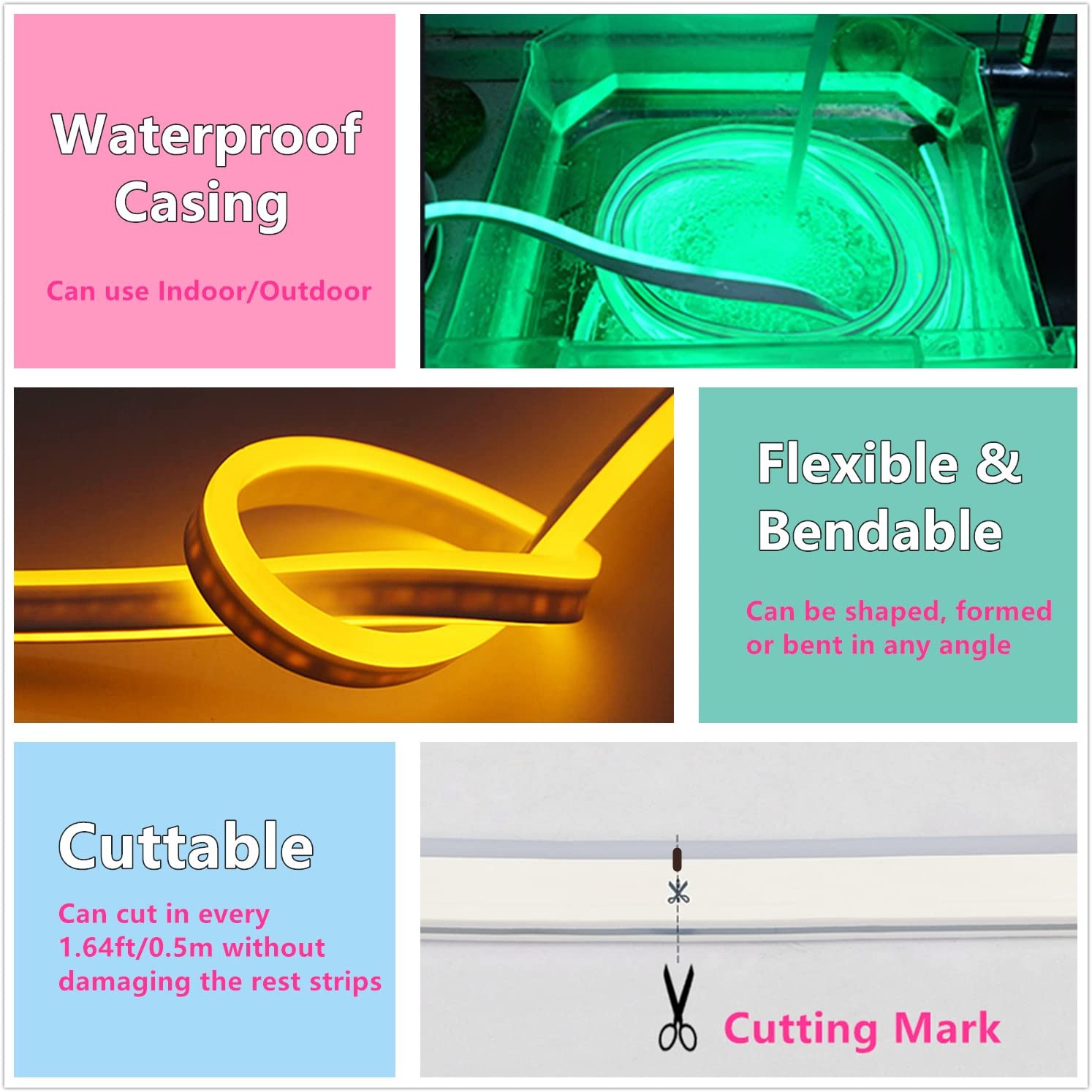

Our LED neon lights have a variety of strip lengths to choose from, cut along the cutable line, and the length of LED neon lights can be customized (we can customize the length for you). For complex installation environments, you can purchase extra LED mounting brackets.

Product Feature

• Silicone material housing

• Bend at will to make advertising signs lighting

• Waterproof rating up to IP67 and above

• DC12/24V input voltage

• Multiple Lengths optional

• No spot lighting per whole roll

• High brightness SMD5050 LED

• Match the color changing LED controller to adjust the color and mode

• Length can be customized

• Indoor & outdoor environment use

What is the difference between LED neon lights and ordinary LED strips?

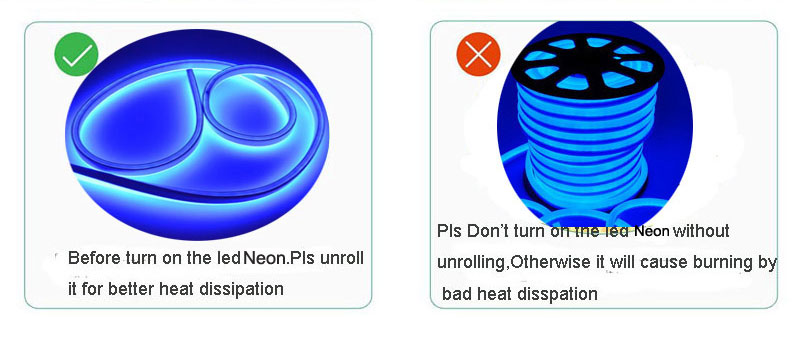

LED neon strip light (silicone sleeve) differs from ordinary LED strip light with flexible tube on the outside, which has good waterproof and heat dissipation.

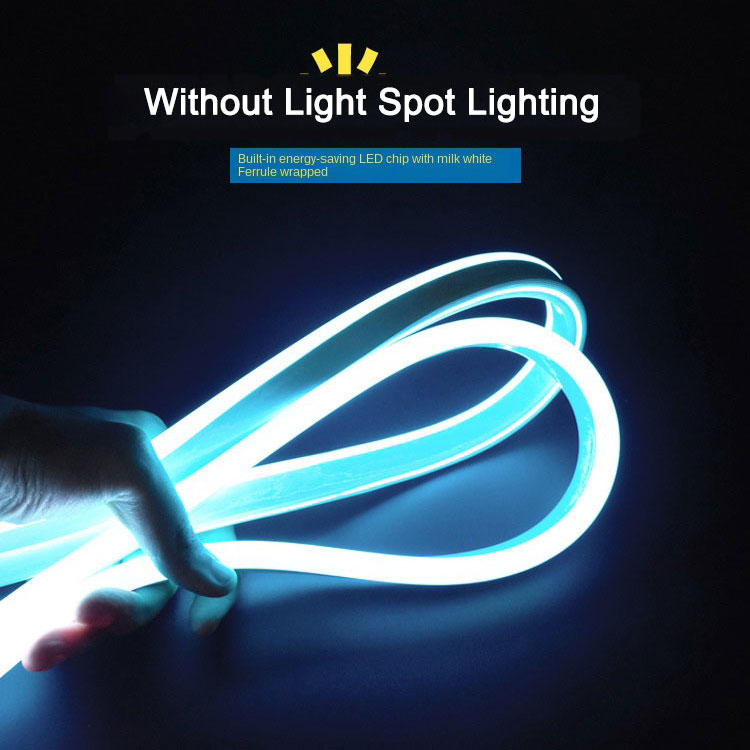

Flexible neon light strip emits soft and delicate light, not blinding, with a strong sense of three-dimensionality and perspective in working and non-working states, and no light spot at high density.

Flexible LED neon tube light line has the characteristics of energy saving, environmental protection and health. No heat radiation is generated when working, no extra energy is lost, and LED neon lights do not produce any environmental pollution when used or discarded.

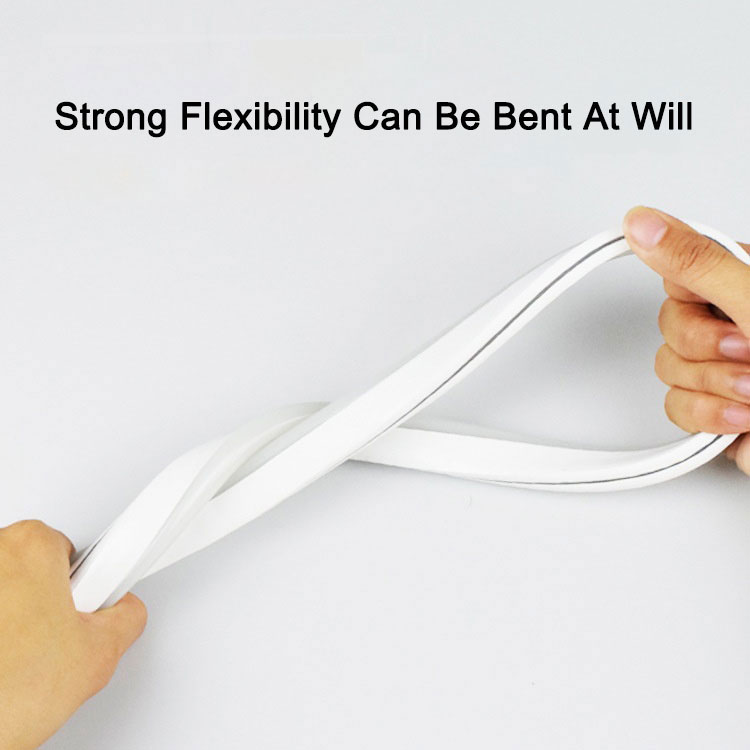

Flexible LED neon light is soft, bendable, knotted at will, and can be bent at will to make LED signs for exterior decoration and billboards, etc.

Long working life, low environmental dependence, can work normally below 60 degrees Celsius, can be lit in daylight without yellowing, and works normally in rain and other environments.

What is the difference between high voltage LED neon light and DC12/24V LED neon light?

High voltage RGB LED neon strip light is plug and play, for the ultra-long lighting, high voltage RGB LED neon light can achieve 100m/328Ft without voltage drop, but the DC12/24V led neon light, need to choose the correct power supply to power at both end to achieve without voltage drop for max 20m/65.6Ft LED strip light.

The input voltage is different, the high voltage RGB LED neon light with a good lighting effect, support AC110V/220V input. DC12/24V LED neon light support DC12/24V input voltage, more stable, safe and high effiency.

LED controller type is different, high voltage RGB LED controller(we recommend) is LED controller and LED power 2in1, but the DC12/24V need the alone LED controller and LED power supply.

Standards and Certifications

Product Specification

LED Strip Type:   SMD 5050

LED Chip:   Super bright Chip

Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

Dimension:   10m/32.8Ft per roll by default, you can choose the length of LED strip light, every 3.28ft can be cut

LED Quantity:   120 LEDs per meter (single color)     72LEDs per meter (RGB)

Lifespan:   50,000+hours

Warantty:   3 years

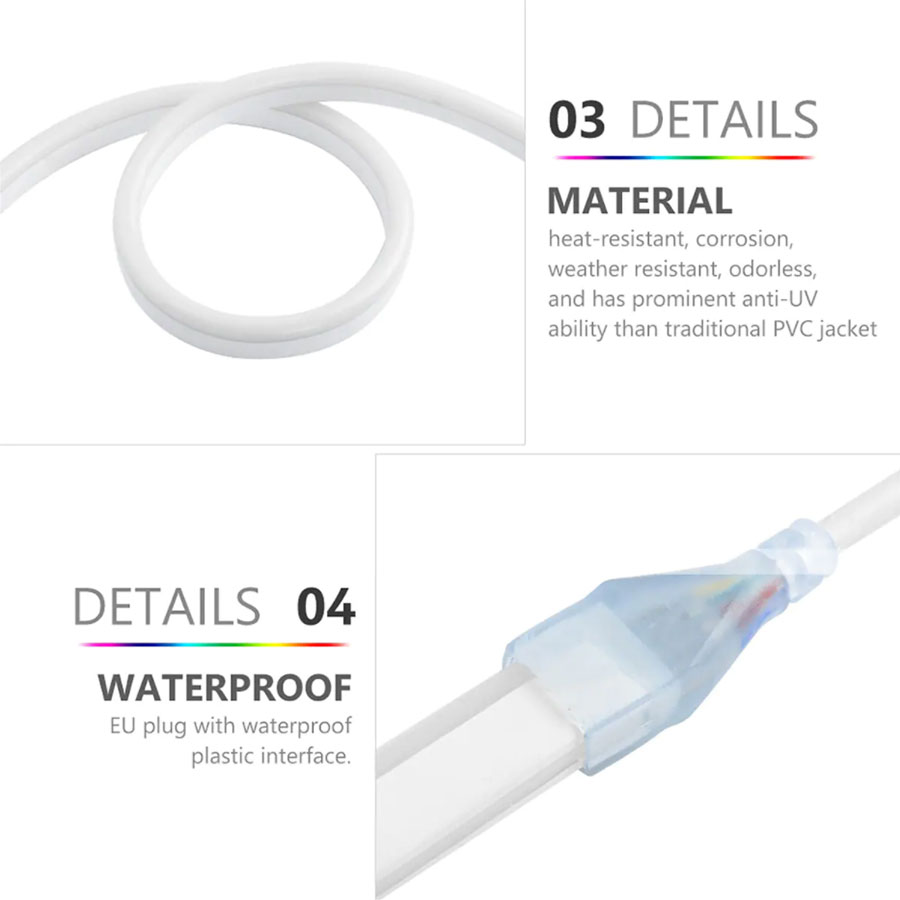

LED neon tube material:  Food-Grade Silicone

Dimensions:     L5000cm(197 in ) x W1.0cm(0.39 in ) x H2.3cm(0.9 in )

Input Voltage(V):   DC12/24V

Working Power:   18W /meter (RGB); 14.4W/meter(single color)  Max

Lamp Luminous Flux(lm):   22~24lm/LEDs    439lm/1feet

Wavelength NM:   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

Beam Pattern:   120 degree

Water Proof:   Waterproof IP67

Product List:

1* 5m/16.4Ft RGB LED Neon light (By default, you can choose the length and color temperature of LED strip light)

If you choose LED strips + controller + power supply, we will send you a complet non-waterproof led strip light kit.

If you choose LED strips + IP67(controller + power supply), we will send you a complet waterproof led strip light kit.

For LED Controller and Power Supply Option Description

For LED Controller

For indoor environment, If you choose the LED controller in the kit, we will send you YL5/WL5 (support samrtphone app, Amazon Alexa, Google Assistant control)

For outdoor environment, if you choose the waterproof LED controller in the kit, we will send you WL5-WP(waterproof 5in1 RGBCCT, support Amazon Alexa, Google Assistant control)

If you have some requirements for other led controllers, you can visit our Color Change RGB Controller Series

5m/16.4Ft LED neon light

10m/32.8Ft LED neon light

Note:

To avoid the power load, the power of LED power supply is 1.2 times of the power of LED strip light

Otherwise it will affect the brightness of the LEDs and the service life of the power supply.

In order to ensure that you use this light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each roll led strip lights.

How to choose the correct LED power supply?

You can choose DC24V led neon light which is 10m/32.8Ft without voltage drop, you only need to power at one side. For DC12V LED neon light is 5m/16.45Ft without voltage drop.

As the length of the LED strip increases, its power will decrease a little. The power supply of MeanWell UL-Listed LED power supply and waterproof LED power supply is the actual power, so 218W power can be selected as 200W LED power supply but needs to be greater than the rated power.

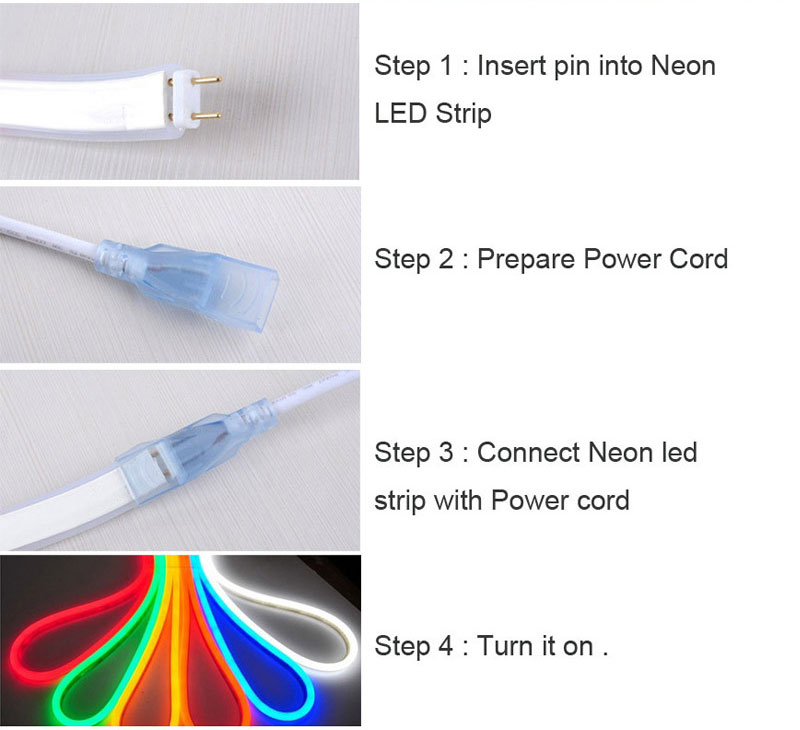

How to connect the whole LED strip light kit /LED neon light kit?

Please Note:

Applications

1. Back/task lighting

2. Cove LED lighting

3. Retail LED lighting

4. Display case LED lighting

5. Accent LED lights

6. Under cabinet lighting
