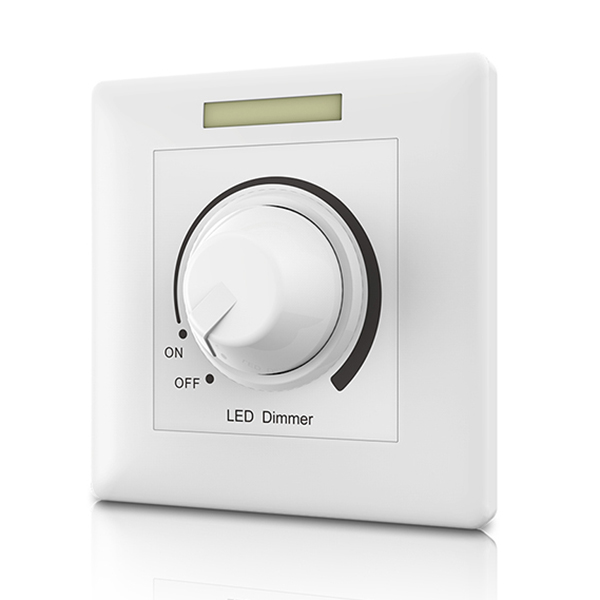

DC12-48V Knob Panel Constant Current Dimmer KC For Single Color LED Strip Light

DC12-48V Knob Panel Constant Current Dimmer KC For Single Color LED Strip Light

Model: KC

$25.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Input Voltage:



Applies to:



Qty Discounts Off Price
1-4
$25.98
5-9
$25.46
10-14
$24.68
15+
$23.64
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

      Summary

     PWM constant current dimmer, 150mA-1800mA customized current.

     Mechanical knob switch and dimming, easy to use.

     Reliable and stable switch and dimming control without flicking.

     256 level brightness adjustment.

     Can match remoter optional, realize remote dimming.

     Adopt 2.4GHz wireless technology, compatible with a variety of remoter, up to 10 remoter control.

     Work with power repeater to expand output unlimitedly.



    Standards and Certifications





    Specifications Download



    Safety information

     The product shall be installed and serviced by a qualified person.

     The product is non-waterproof. Please avoid the sun and rain.

     Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.

     Please check if the output voltage of any power supplies used comply with the working voltage of the product.

     Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.

     If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.



     Technical parameters

     Working voltage: 12-48VDC

     Output type: PWM constant current

     Output current: 1CH*150mA-1800mA

     Output power: 350mA: 12V<4.2W , 24V<8.4W, 36V<12.6W,48V<16.8W

                             700mA: 12V<8.4W , 24V<16.8W,36V<25.2W,48V<33.6W

                             1050mA: 12V<12.6W , 24V<25.2W,36V<37.8W,48V<50.4W

     Grey levels: 4096

     Dimming range: 0-100%

     Remote distance: 30m

     Work temperature: -30℃~55℃

     Product size: L87×W87×H38mm

     Net weight: 80g



    Dimension

    Warranty Agreement

    1. 5-year warranty:

     The warranty is for free repair or replacement and covers manufacturing faults only.

     Do not include fees of on site maintenance and consumable parts.

    2.Limited Warranty

     Artificial damage caused by improper use, such as use inappropriate power supply, improper accessories, improper installation, did not follow the instructions, error using or negligence.

     Any damages caused by force majeure, such as  natural disaster, abnormal voltage.

     The normal use of products caused by aging, wear and tear, but it does not affect the normal use.
