DC12V LED Car Tailgate Strip Light Universal LED Brake Reverse Rear Turn Signal Running Flowing Emergency Tail Strip Light Bar with Dual Color Waterproof Flexible Multifunction Driving
Related Products
DC12V LED Car Tailgate...
$59.98
DC5/12/24V, SP105E New...
$12.98
Mean Well LRS-200-5 DC5V...
$49.00 $39.9818% off
DC5-24V, LED Digital WIFI...
$59.98
DC5/12/24V, SP103E LED...
$6.98 $3.9843% off-
Special Price: $59.98

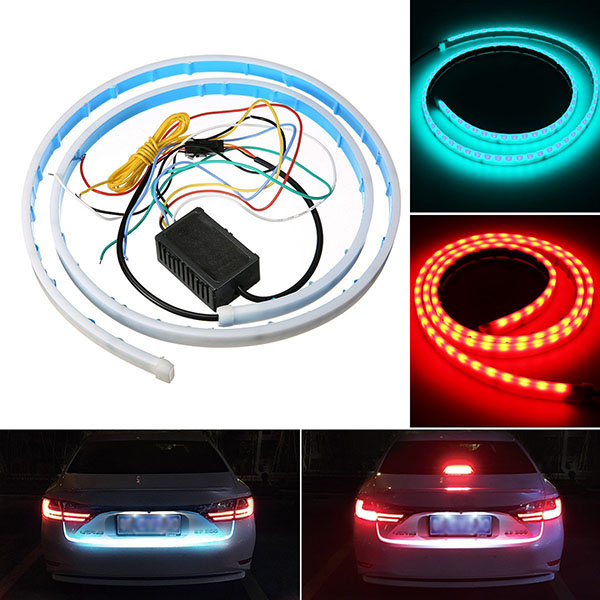

FEATURE: This Red/Ice blue LED tailgate lighting bar is universal fit for car, trucks so that you can mount them along the tailgate as taillights, left/right turn signal lights, brake lights, and backup reverse lights. Overload protection, short circuit protection and over temperature protection. Waterproof, universal fit for most car and truck.
MULTI-FUNCTIONS: 4 Flash Modes: Brake; Running; Turn Signal; Hazard Light(Double Flash). LED light stays in Red when brake. LED Light keeps in Ice Blue during normal running. Red LED light 25% brightness streamer mode right to left when car turns left. Red LED light 25% brightness streamer mode left to right when car turns right. LED Light flows from middle to ends when use Hazard Light (Double Flash).
SIZE & LED：The tailgate light strip approx L*W*D: 47''*0.4''*0.2''. LED Type: 5050. LED Color: Ice Blue & Red. Voltage: DC12V.
EASY INSTALL: Plug and play connectivity for taillights, left/right turn signal lights, brake lights, and backup reverse lights. With sticker self-adhesive tape included, easy to use, professional installation is highly recommended (With instruction is included).
COMPATIBILITY: Can completely compatible with most Cars ,Trucks, SUV, RV, VAN, Trailers This LED tailgate light bar supply to 4 kinds functions, tail light, reverse light, turn signal, brake light.
WS2811 Chips Specifications Download
Standards and Certifications
Features
-Condition: 100% Brand New.

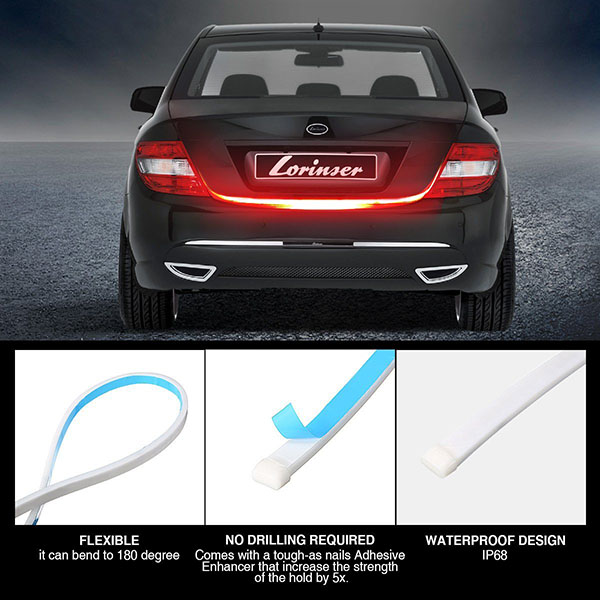

-Easy Installation. Self-adhesive tape included.
-Waterproof.
-4 Flash Modes: Brake;Running;Turn Signal;Hazard Light(Double Flash)
-LED light stays in Red when brake.
-LED Light keeps in Ice Blue during normal running.
-LED Light flows from left to right when car turns left and from right to left when car turns right.
-LED Light flows from middle to ends when use Hazard Light (Double Flash).
-Size: Approx L*W*D: 47''*0.4''*0.2''
-LED Color: Ice Blue & Red

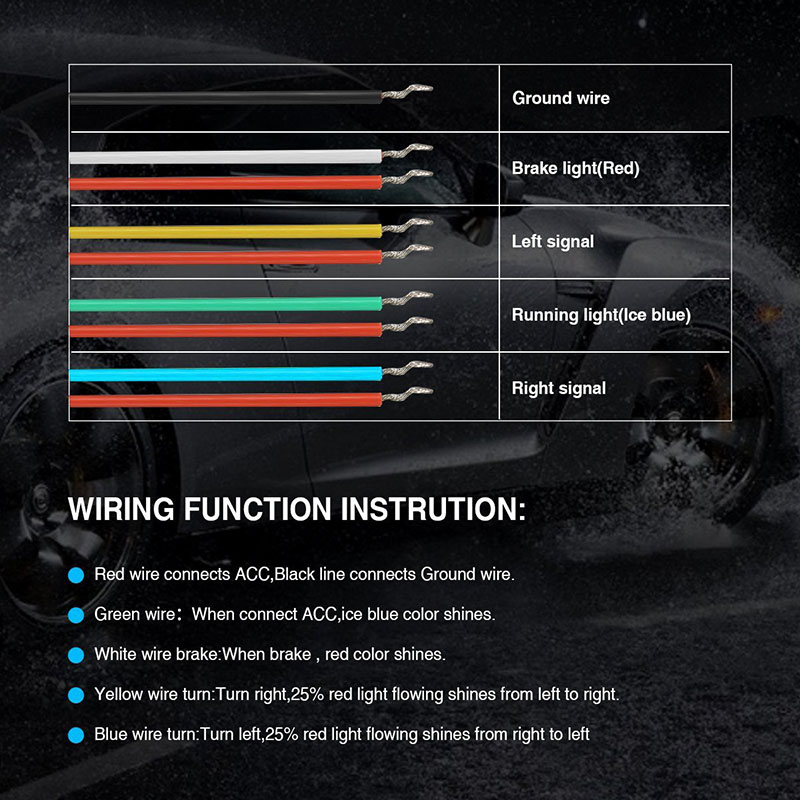

Wiring Instruction
-Red wire connects ACC,Black line connects Ground wire.
-Green wire:When connect ACC, ice blue color shines.
-White wire brake:When brake , red color shines.
-Yellow wire turn:
-Blue wire turn: Turn right, 25% red light flowing shines from left to right.
-Yellow wire turn: Turn left, 25% red light flowing shines from right to left.
-Doule flash: Red light flowing shines from middle to sides,the middle is red light.
-Brake+ turn: When brake and turn have signal at the same time, all red light flowing.
Package including
2 Set of Ice blue + red Car Rear Tail Box Light Streamer Brake Turn Signal LED Strip DRL lamp
