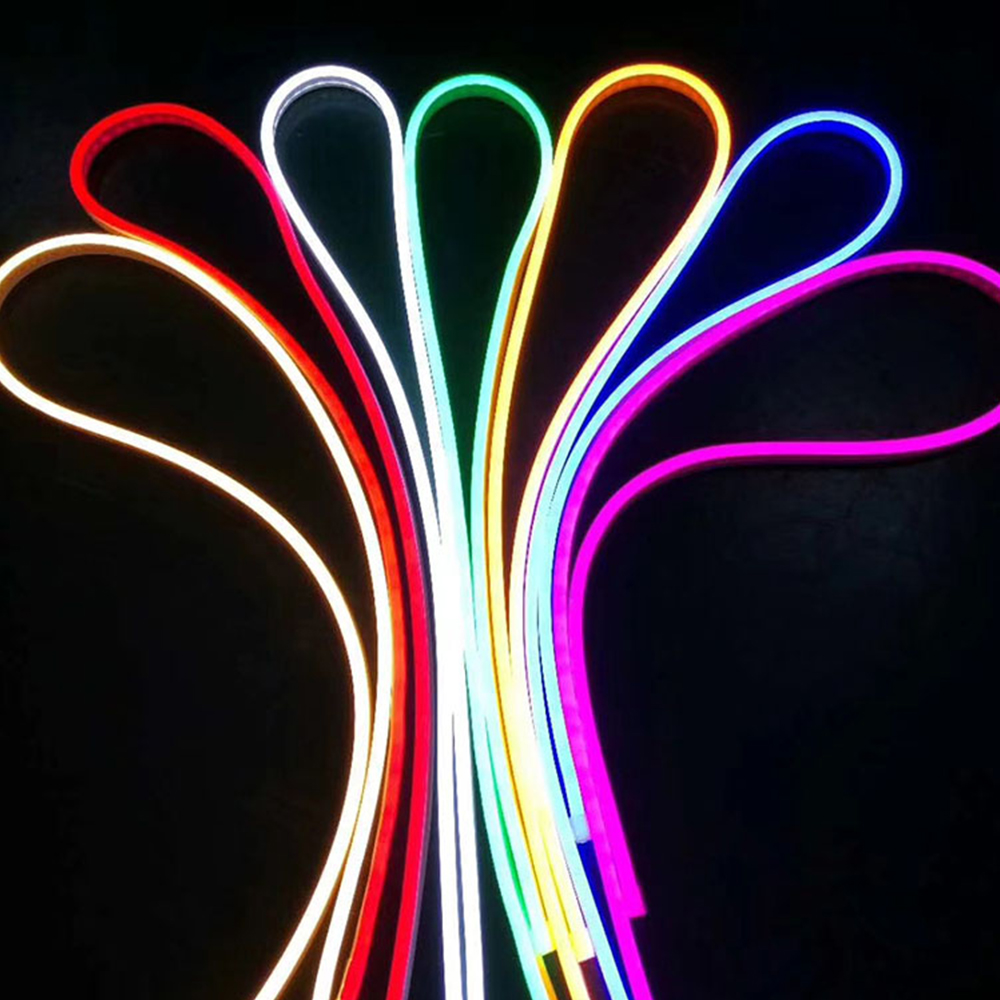

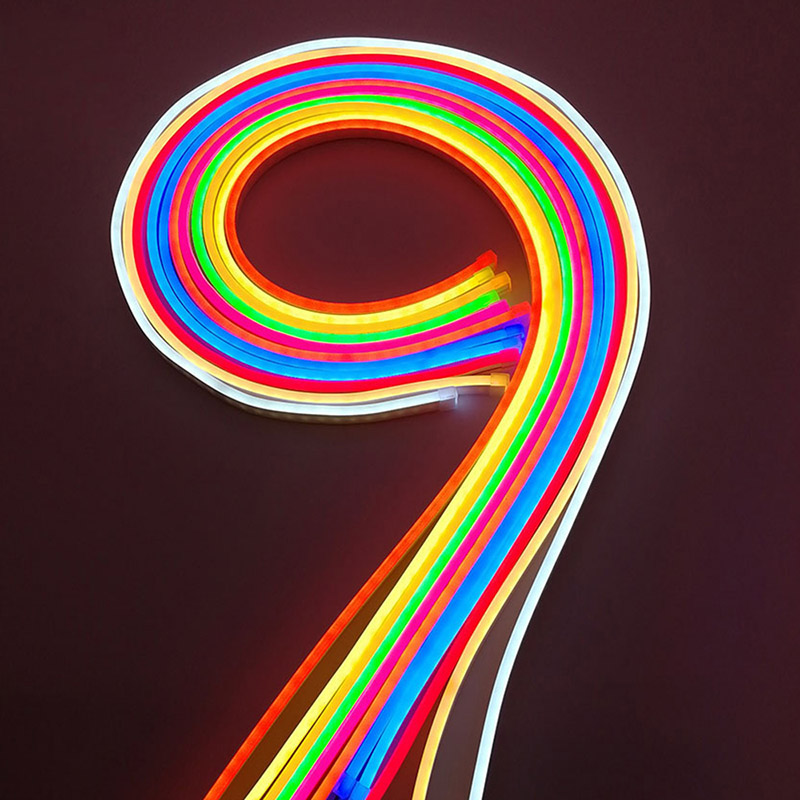

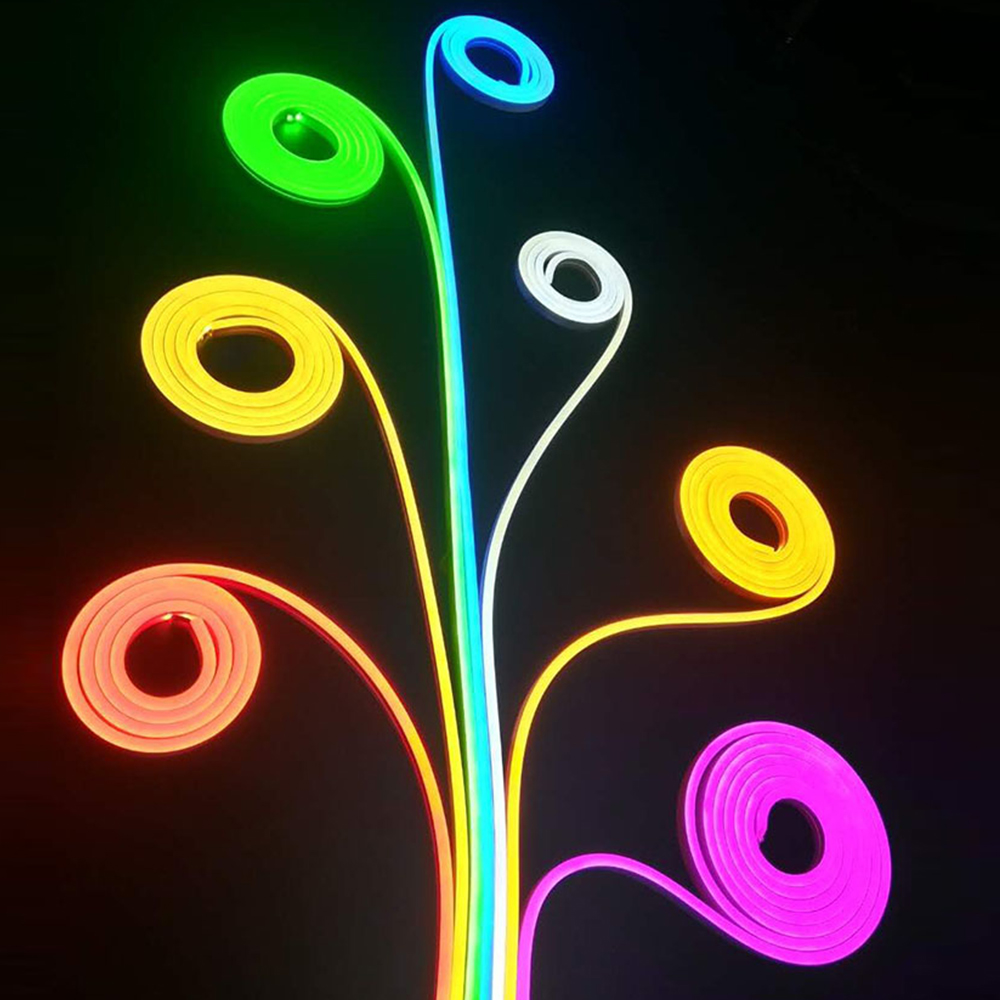

DC12V Super Narrow 6*12mm SMD2835 Single Color Flexible Neon LED Tube Lights, 120LEDs/m 1m/3.28Ft Per roll
1. Single color LED Neon Tube Light Flexible LED Strip Lights with 120 LEDs super bright 2835SMD(Surface Mounted Devices).
2. Dome and flat Shape, Soft and easy bent for installation.
3. DC12V, a drop voltage of more than 5meters requires a separate power supply or use an amplifier.
4. Outdoor Use Waterproof IP67(silicone resin), food-grade silicone, safer and more environmentally friendly.
5. Life is longer than ordinary PVC Rubber Tube. Weather Resistance, Anti-UV, perfect heat dissipation.
6. 1 meter(3.28')/2 meter(6.56')/5meter(16.4')/10 meter(32.8')/20 meter(65.6') and 50meter(164') Per Reel By Sale.
DC12V 5-meter no voltage drop, but if you need a 20-meter DC12V neon light, in order to ensure that you use this light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each 10-meter.
Standards and Certifications
LED Strip Type: SMD 2835
Color: R/G/B/Y/W/WW/CW/Pink/Ice Blue
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: every 25mm/0.98'' can be cut
LED Quantity: 120 LEDs per meter
Dimensions: W0.6cm(0.24 in ) x H1.2cm(0.47in ) / W0.8cm(0.31 in ) x H1.6cm(0.63in )/ W0.9cm(0.35in ) x H1.8cm(0.71in )
Input Voltage(V): 12VDC
Working Power: 8W/3.28ft
Lumen Per LED: 22-24Lumen
Beam Pattern: 120 degree
Water Proof: Waterproof IP67
Warantty: 3 years
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
