DC12V WS2811 0.72W Waterproof 5050SMD Full Color Digital RGB Injection Moulding LED Pixel Modules String, 20PCS/String
Related Products
DC12V WS2811 0.72W...
$14.99
SPI LED Bluetooth...
$14.98
SP501E LED WiFi...
$29.98 $12.9857% off
SP611E DC5~24V Music...
$13.98
DC5-24V SP107E Wireless...
$16.98
DC5/24V,Max 2048...
$29.98 $21.9827% off
SP601E LED Music...
$20.98 $12.9838% off-
Special Price: $14.99
Product Description

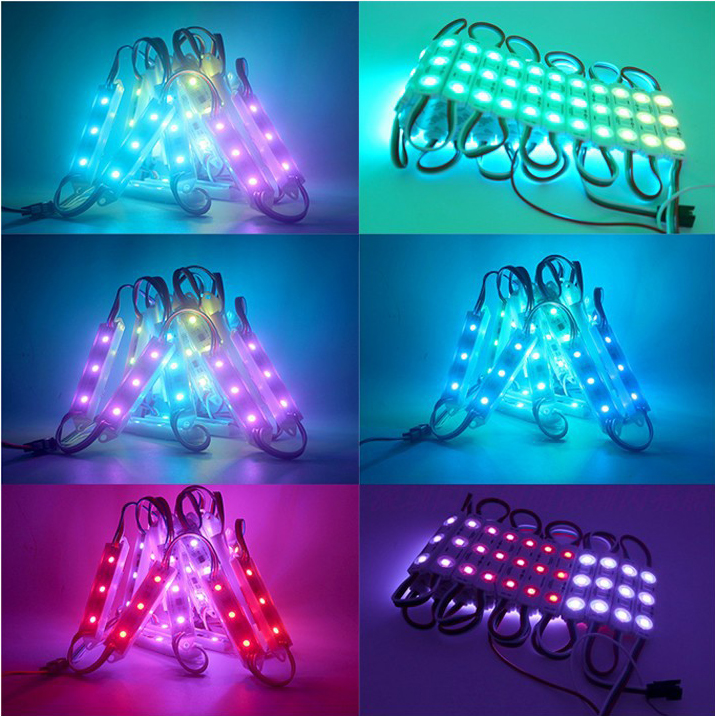

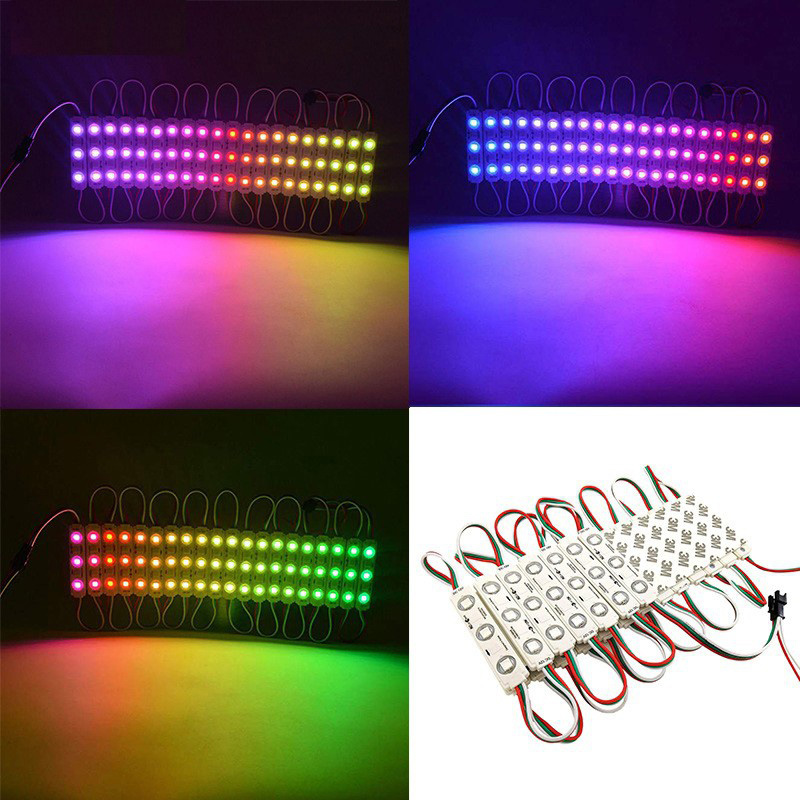

This is Full-color 12V Super Bright High-Efficiency SMD5050 WS2811 IC LED Pixel Modules. 3LEDs per piece, 0.72W per LED, 20pcs per string.
This LED module string light uses high-quality WS2811 IC, which has a good cost performance. The IC is integrated into the SMD5050 module. It has a large light-emitting surface area, high brightness, 24-bit full color, constant current drive light spot, low light attenuation, and good consistency.
Narrow injection-moulded PVC design, each module block has 3 LEDs, 0.72W/pcs, 20pcs/string, a single module can be cut, the back uses high-quality 3M tape, which can be installed quickly.
3-channel single signal transmission mode, 20AWG 3pin wire, the red wire connected to 12v positive/+, the green wire connected to the data signal, the blue wire connected to 12v negative/-, signal transmission speed is fast, color consistency is high, and stability is strong.
IP65 waterproof, windproof and dustproof, suitable for indoor humid lighting environment, usually used as LED advertisement lighting and LED sign lighting.
Support DC12V low voltage input, low power consumption, high brightness, long life, maintenance-free, safe and reliable; works with LED controller, it can support remote control/mobile APP and other control methods.
The differences between WS2801 and WS2811 led modules
WS2811: 3 wires, (V+,DATA,GND/V-),DC12V,SMD5050,0.96W/PCS, use WS2811 IC, the controller do not need to supply power separately.
WS2801: 4 wires, (V+,DATA,CLOCK,GND/V-),DC12V,SMD5050,0.96W/PCS, use WS2801 IC, the controller and modules need to supply power seperately.
On the whole, their appearance, material, weight, brightness, power, function, waterproof rating are the same, Just IC and wire number are different.
WS2811 suitable for general lighting projects, such as luminous characters, signs lighting, high CPU occupancy, cheap price
WS2801 suitable for large-scale lighting projects, such as architectural lighting, led screen, Can cascade, low CPU occupancy, Expensive than WS2811
Standards and Certifications
Product Specification
LED Module Type: Full Color 5050 LED Pixel Module
LED Type: Injection moulding
IC Type: WS2811
LED Quantity: SMD5050 3pcs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)
Lamp Spacing: 15cm
Number of lights: 20pcs per string
Total Length: 3-meter/10ft per string
Lifespan: 50,000+hours
Standards And Certifications: CE/FCC/ISA Approved/ROHS
Red Wiring colors: 12v Positive / +
Green Wiring Colors: Data Signal
Black Wiring Colors: 12v Negative /-

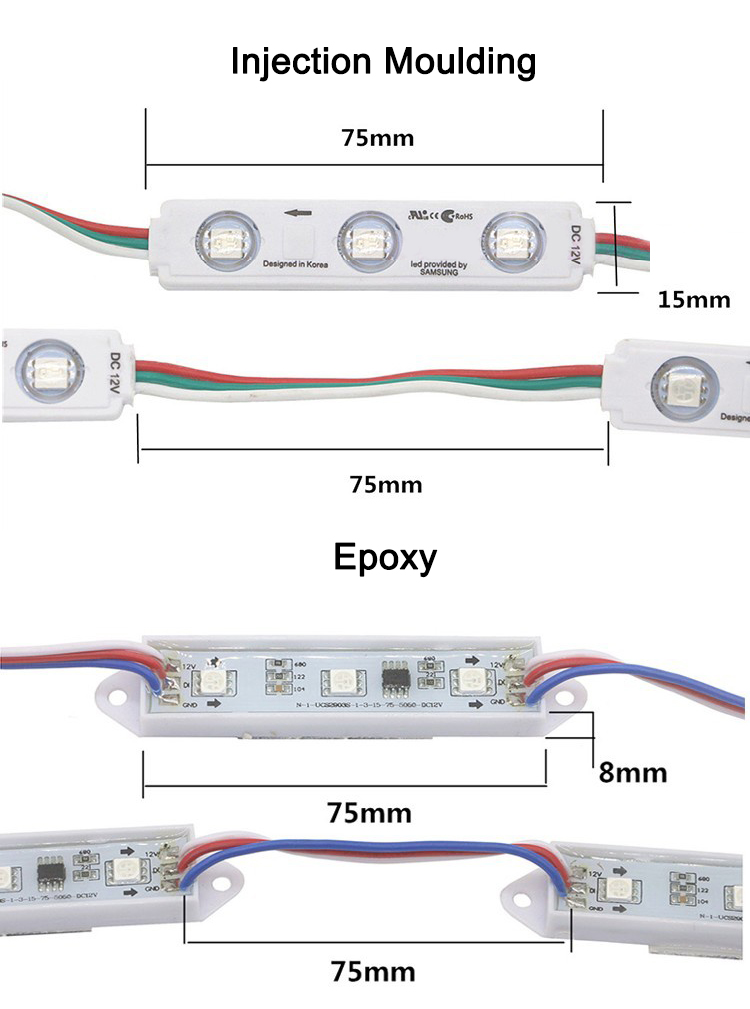

Wire Length: 75mm(2.95in)
Dimensions: L75mm x W15mm x H5mm
Input Voltage(V): DC12V
Working Current: 60mA / piece
Output Power: 0.72W / piece
Grey Scale: 256 levels
Bit: 8
Wavelength: R 470 nm/G 520 nm/B 620 nm
Lumen: 22 Lumen/pcs
Warantty: 3 years
Beam Pattern: 160 degree
MCD Per Foot: 6500 mcd/ft
With Controller: Full Controller T-1000S/T-4000/T-8000
Product List
1* 20pcs LED module string light
Available
-
three-dimensional light-emitting word
-
Trademark lighting
-
Logo lighting
-
Channel letters lighting
-
Lightboxes lighting
-
Landscape layout lighting
-
Stage decoration lighting
-
Sign cabinets
-
Channel lights
-
Cove LED lighting
-
Edge-lit signs
-
Canopy illumination
-
Off-grid lighting
Installation Instruction
Phone control led module string lights by WIFI controller.
Programmable controller control led module string lights.
DMX 512 CCTV manual operation console. Connected with DMX512 computer console ,use the console to manage the controller.
DMX USB converter, Connected with DMX512 computer console to realize DMX decoder functions.
