DC12V WS2811 0.72W Waterproof 5050SMD Plastic 3 Super Bright LEDs Full Color Digital Programmable Individually Addressable RGB LED Pixel Modules String
Related Products
DC12V WS2811 0.72W...
$14.99
WiFi SPI Programmable...
$34.98 $19.9843% off
200W16.7A DC12V Constant...
$49.98
DC5-24V Multi-function...
$148.98
DMX512 to SPI Converter...
$40.98-
Special Price: $14.99
This is Full-color 12V Super Bright High-Efficiency SMD5050 WS2811 WS2801 UCS1903 IC LED Pixel Modules. 3LEDs per piece, 0.72W per piece, 20pcs per string.

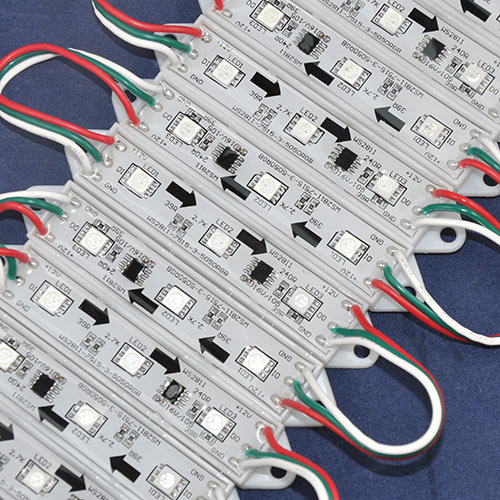

Our LED modules adopt TOP SMD5050 LED light source, these pixels use a WS2811(WS2811 WS2801 UCS1903) chip for full 24-bit color, constant-current driven light spot, low light decrease, and good consistency. 160 degree wide viewing separable flexible strip to be bent into any shape. Narrow injection molded PVC design has two 4mm/0.15" mounting holes and with double-sided adhesive foam tape for quick installation. 20pcs per string, a single module can be cut, so you could cut a different length for your project and request. 20AWG 3pin cable, Red cable to connect 12v Positive / +, Green cable to connect Data Signal, Yellow cable to connect Clk Signal, Blue cable to connect 12v Negative /-, over-current capability, lower attenuation. The shell is made of the injection molding process, aesthetic appearance, unique and excellent, aluminum PCB, good heat dissipation, heat dissipation. The LED strips Suitable for the commercial lighting as well as lighting professionals, Waterproof IP65, Suitable for both indoor & outdoor decorative application. 12VDC low voltage input operation, Low power consumption, high brightness, long lifespan, maintenance-free, safe and reliable. Quantity ordered will be wired together on a string with 20 modules maximum per strand.
Working with WS2811, WS2801 or UCS1903 full controller can download the programs in SD card, control Max 2048 Pixel, It has the single color running scene. 12VDC power supply Link.
The differences between WS2801 and WS2811 led modules
WS2811: 3 wires, (V+,DATA,GND/V-),DC12V,SMD5050,0.96W/PCS, use WS2811 IC, the controller do not need to supply power separately.
WS2801: 4 wires, (V+,DATA,CLOCK,GND/V-),DC12V,SMD5050,0.96W/PCS, use WS2801 IC, the controller and modules need to supply power seperately.
On the whole, their appearance, material, weight, brightness, power, function, waterproof rating are the same, Just IC and wire number are different.
WS2811 suitable for general lighting projects, such as luminous characters, signs lighting, high CPU occupancy, cheap price
WS2801 suitable for large-scale lighting projects, such as architectural lighting, led screen, Can cascade, low CPU occupancy, Expensive than WS2811
Standards and Certifications

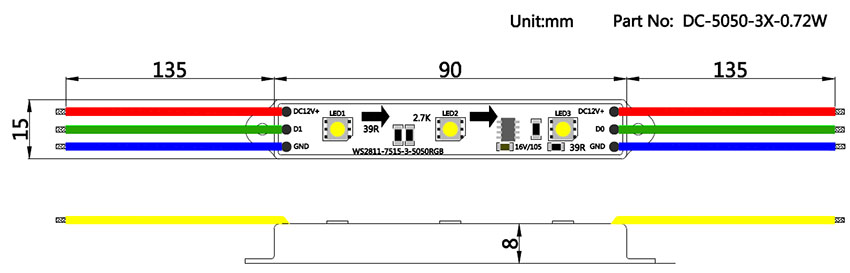

Product Specification
LED Module Type: Full Color 5050 LED Pixel Module
IC type: WS2811 WS2801 UCS1903(high mode)
LED quantity: SMD5050 3pcs
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)
Lamp spacing: 15cm
Number of lights: 20pcs per string
Lifespan: 50,000+hours
Standards And Certifications: CE/FCC/ISA Approved/ROHS
Red Wiring colors: 12v Positive / +
Green Wiring colors: Data Signal
Yellow Wiring colors: Clk Signal
Black Wiring colors: 12v Negative /-
Wire Length: 75mm(2.95in)
Dimensions: L90mm x W15mm x H5mm
Input Voltage(V): DC12V
Working Current: 60mA / piece
Output power: 0.72W / piece
Grey scale: 256 levels
Bit: 8
Wavelength: R 470 nm/G 520 nm/B 620 nm
Lumen: 22 Lumen/pcs
Warantty: 3 years
Beam Pattern: 160 degree
MCD Per Foot: 6500 mcd/ft
With Controller: Full Controller T-1000S/T-4000/T-8000
Available
-
three-dimensional light-emitting word
-
Trademark lighting
-
Logo lighting
-
Channel letters lighting
-
Lightboxes lighting
-
Landscape layout lighting
-
Stage decoration lighting
-
Sign cabinets
-
Channel lights
-
Cove LED lighting
-
Edge-lit signs
-
Canopy illumination
-
Off-grid lighting

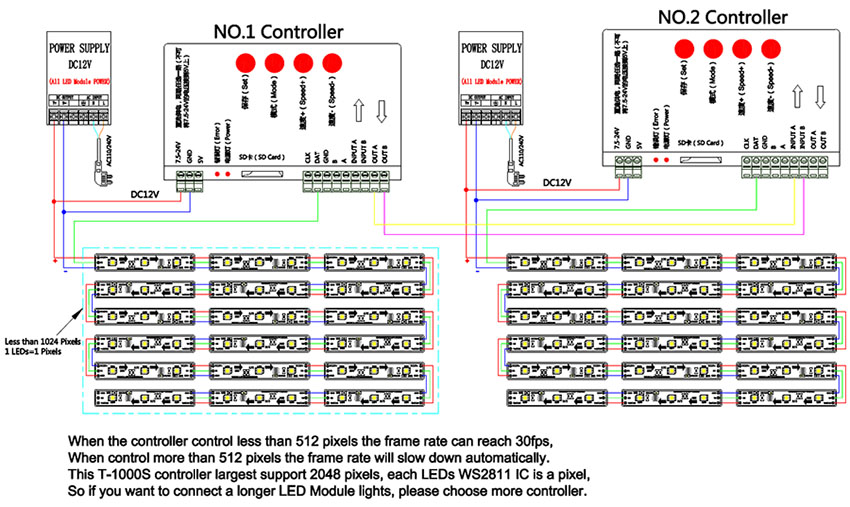

Installation Instruction

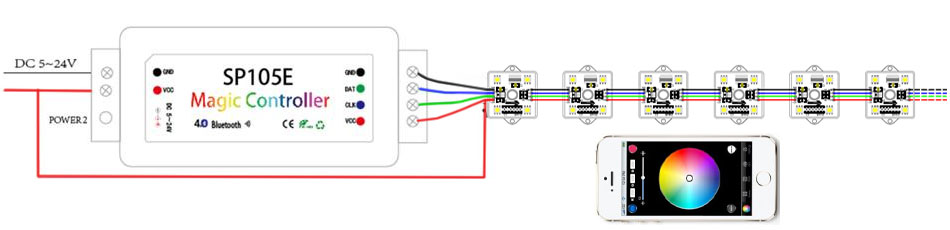

Phone control led module string lights by WIFI controller.

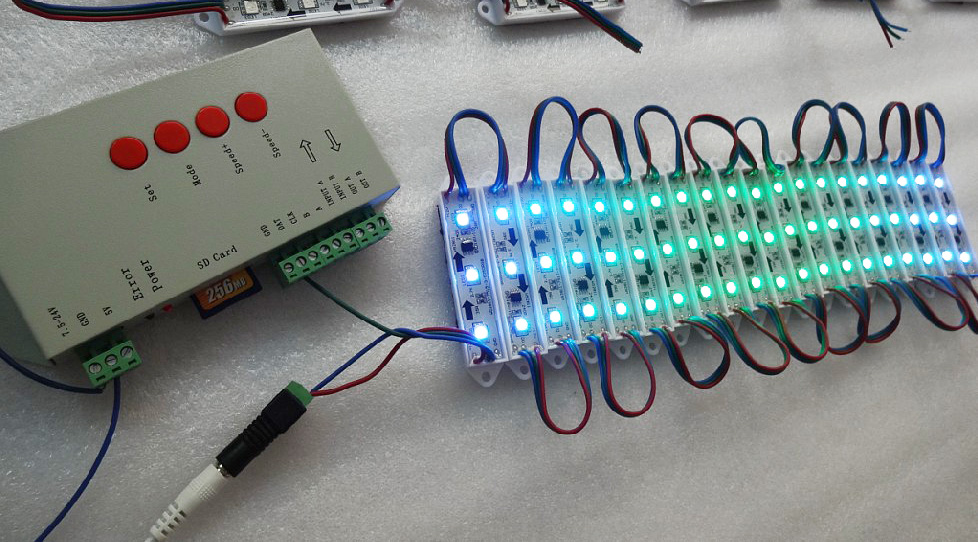

Programmable controller control led module string lights.

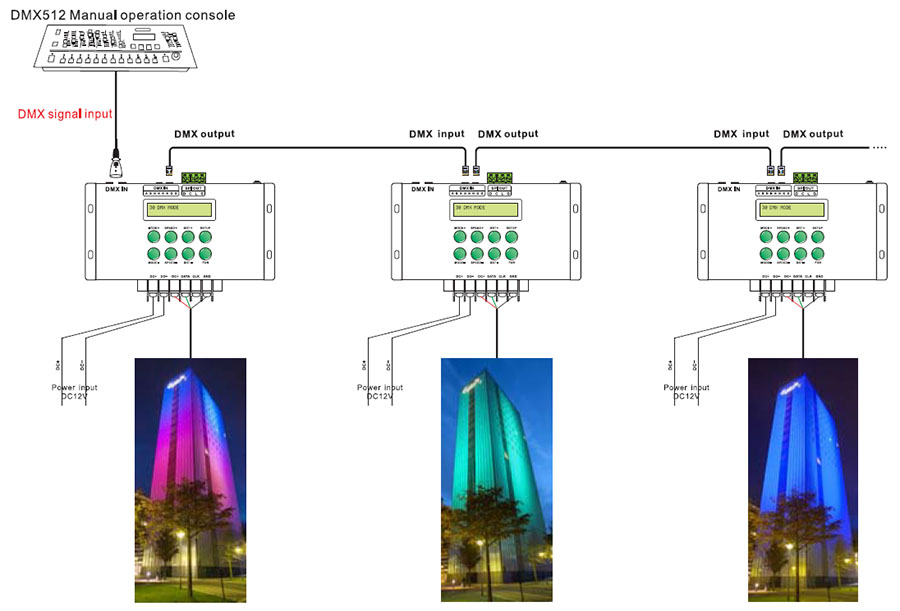

DMX 512 CCTV manual operation console. Connected with DMX512 computer console ,use the console to manage the controller.

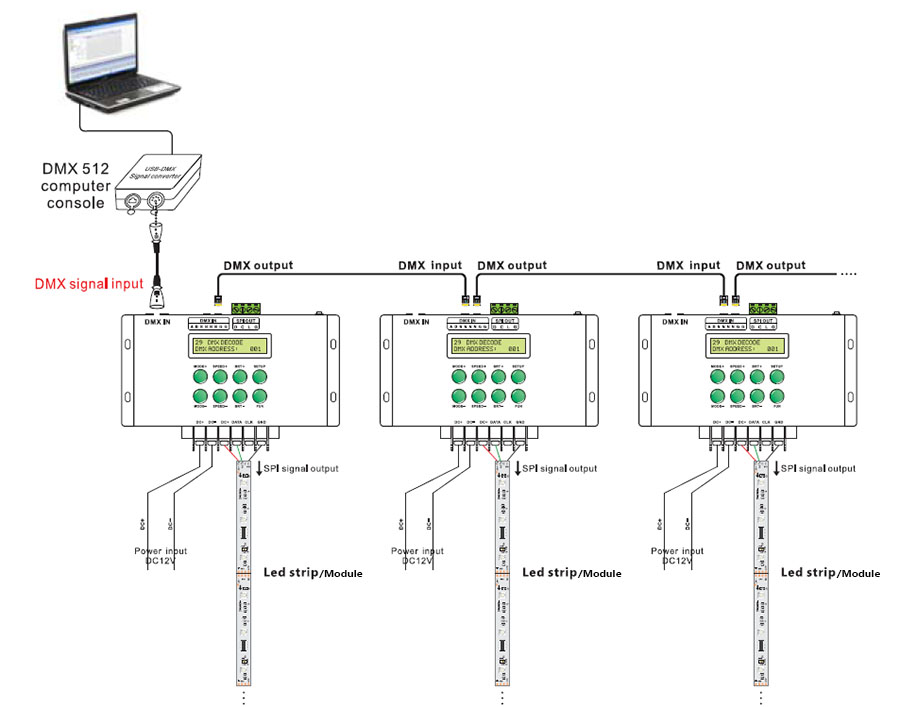

DMX USB converter, Connected with DMX512 computer console to realize DMX decoder functions.
