DC12V WS2811 150LEDs 16.4ft IP65 Waterproof Arduino Addressable Dream Color LED Strip
Related Products
DC12V WS2811 150LEDs...
$15.98
48W4A DC12V Plastic Shell...
$11.99
DC5-24V SP108E WiFi LED...
$21.99
SP602E SPI LED Music...
$22.98
DC5-24V SP107E Wireless...
$16.98
SP601E LED Music...
$20.98 $12.9838% off
Alexa SPI LED Controller...
$15.98-
Special Price: $15.98
The difference between WS2811 LED strip and WS2812B LED strip
Different voltages: WS2811 addressable LED light strip voltage has many options: 5/12/24V. WS2812B addressable LED strip light voltage currently only has the DC5V option.
The voltage drop is related to the length of the light strip and voltage options. The smaller the voltage, the longer the distance, and the greater the voltage drop. Therefore, WS2811 can be customized for ultra-long addressable light strips, LED neon lights.
IC location is different: WS2811 and ws2812 mostly use SMD5050 package components, but the IC location is different. WS2811 is an external IC; WS2812B is an internal IC.
IC quantity is different, WS2811: DC5V individually addressable, one LED and one IC DC12V: three LEDs and one IC DC24V: six LEDs and one IC; WS2812B is an individually addressable LED strip, one LED and one IC
Cutting distance is different: WS2811: DC5V: single LED can be cut; DC12V: three LEDs can be cut; DC24V: six LEDs can be cut; WS2812B: single LED can be cut,
Different light colors: WS2811 has Full Color and single white light; WS2812B has only Full Color

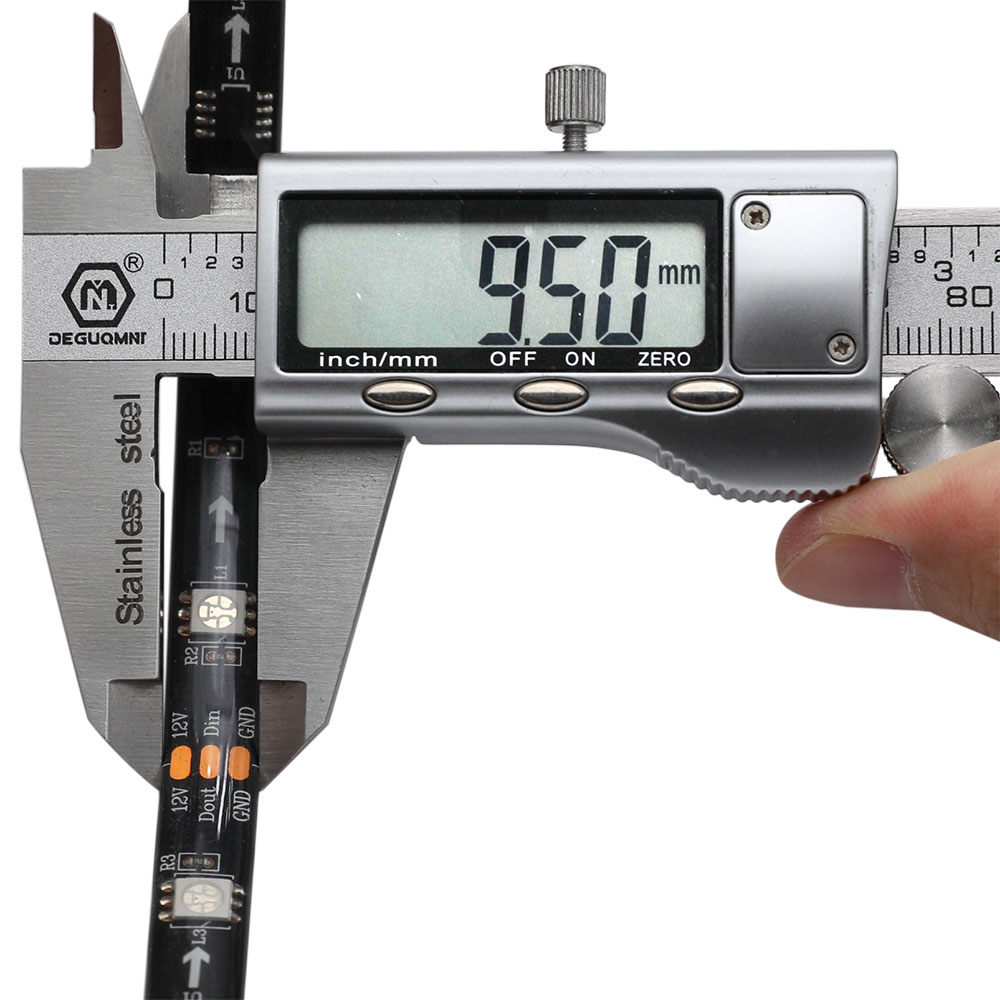

Different width: WS2811 light strip width is mostly 10/12mm, while WS2812B can achieve 4mm
Product description
Superlightingled focuses on the field of addressable led strip, provides customers with the most professional services and the most complete product selection and is highly praised by customers.
As the basic addressable light strip, WS2811 led strip light has been continuously researched and developed vertically, and currently has a variety of Arduino input voltage DC5/12/24V products.
We provide free product Q&A. You can obtain information such as LED quantity, width, voltage, etc. by consulting us or manually measuring the product.
The difference between DC5/12/24 lies in the different IC types (individually addressable, three LEDs can be cut, six LEDs can be cut), different cutting distances, and LED cuttable quantity.
Our WS2811 series products are all low-voltage, safe and stable, high-efficiency output, and harmless to the human body.

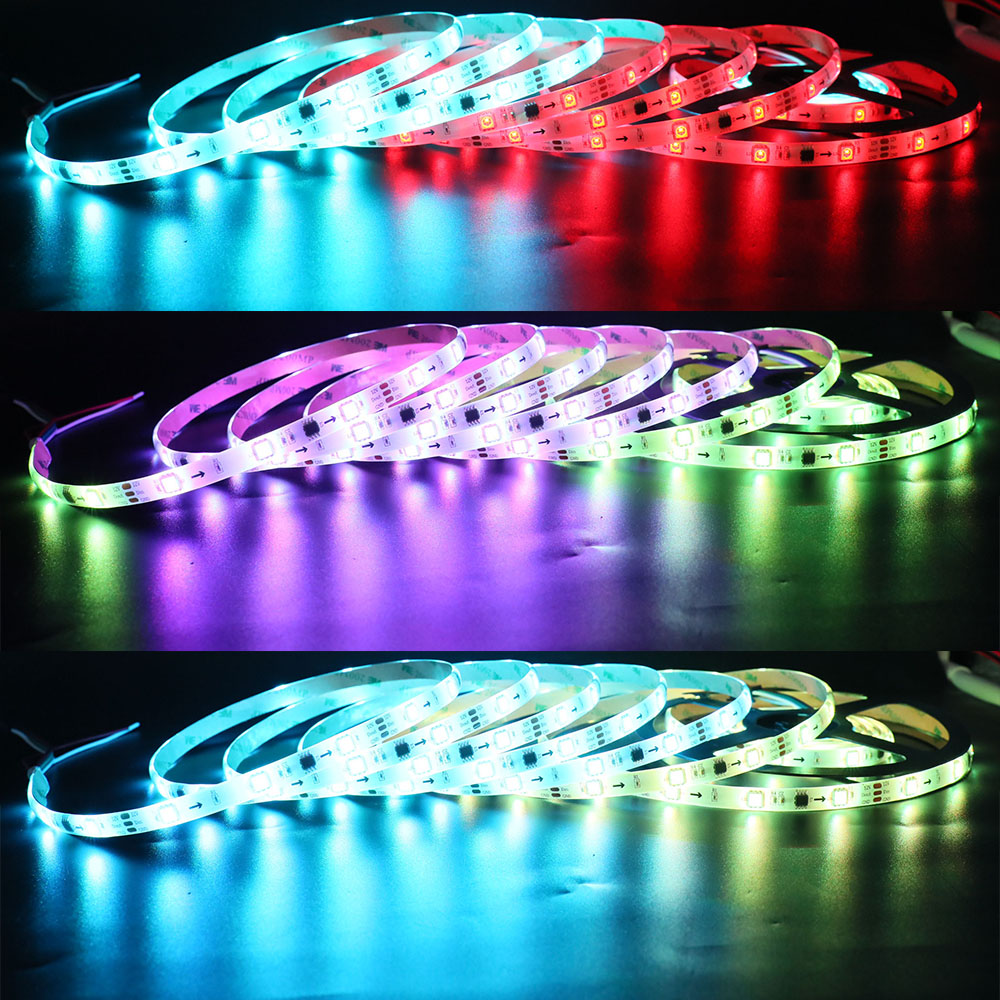

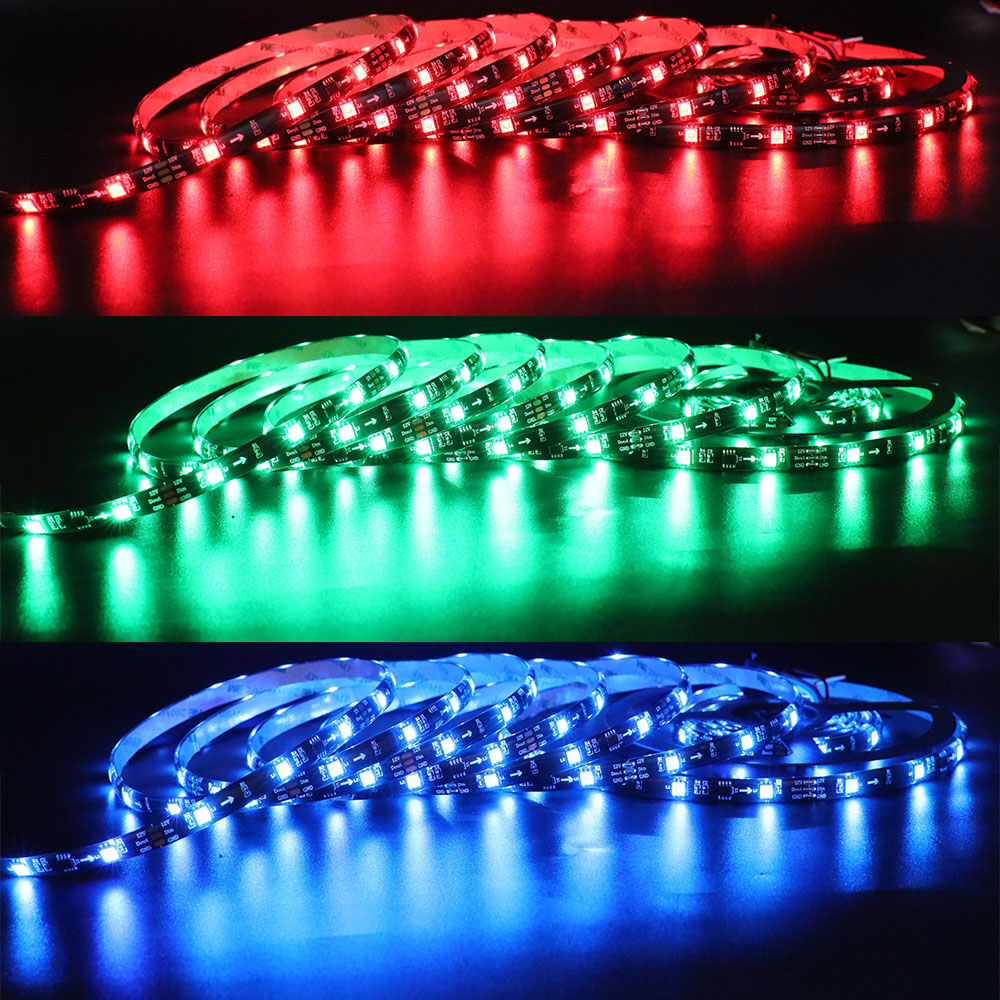

WS2811 lights have universal WS2811 dynamic color tracking, sorting, changing, and static color modes. You can use it with a Dream Color LED controller to adjust the color to coordinate indoor environment lighting and mood lighting.
You can choose light red color for kitchen. In the bedroom, lying down for a long time may cause the strength to decrease, you can adjust the light to green to protect your eyes.

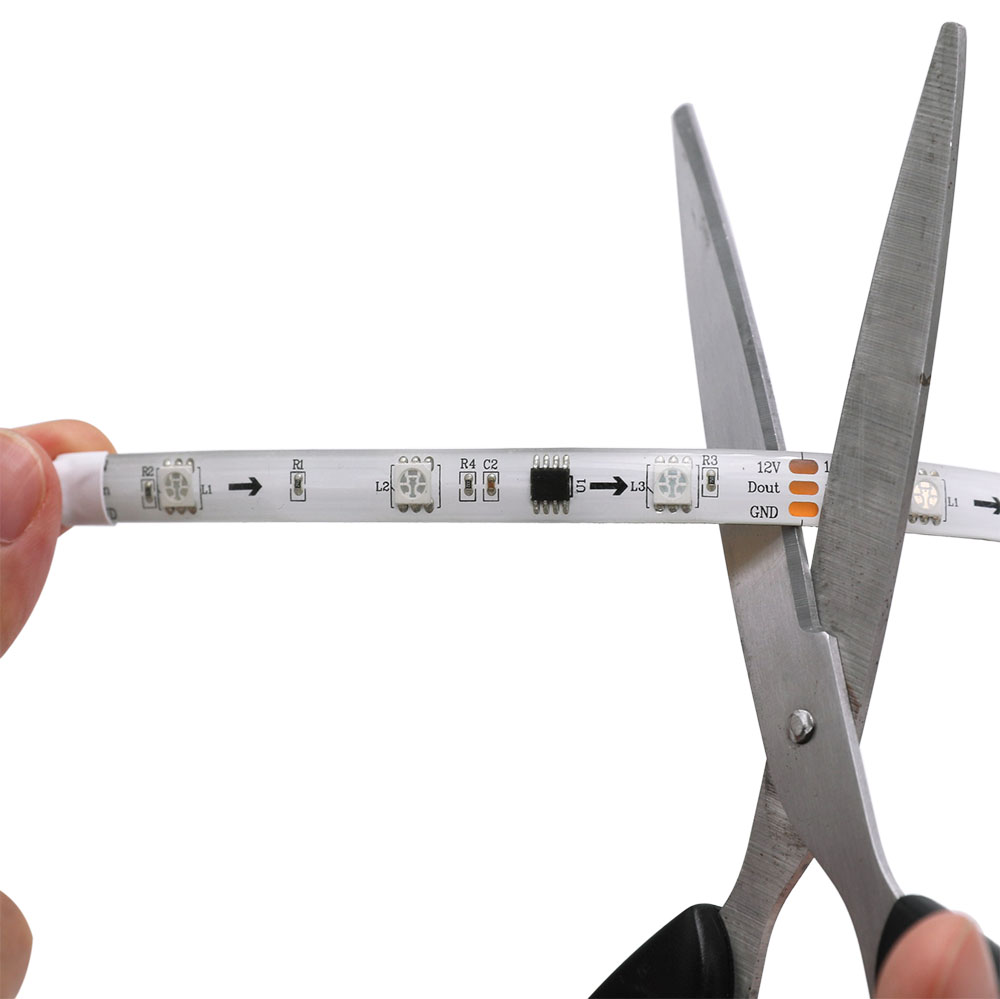

You can cut according to the cutting line and customize the length. We provide a variety of PCB colors options and IP65 waterproof led strip for indoor lighting.
Product Feature:
1. Low-power consumption, 80% energy savings

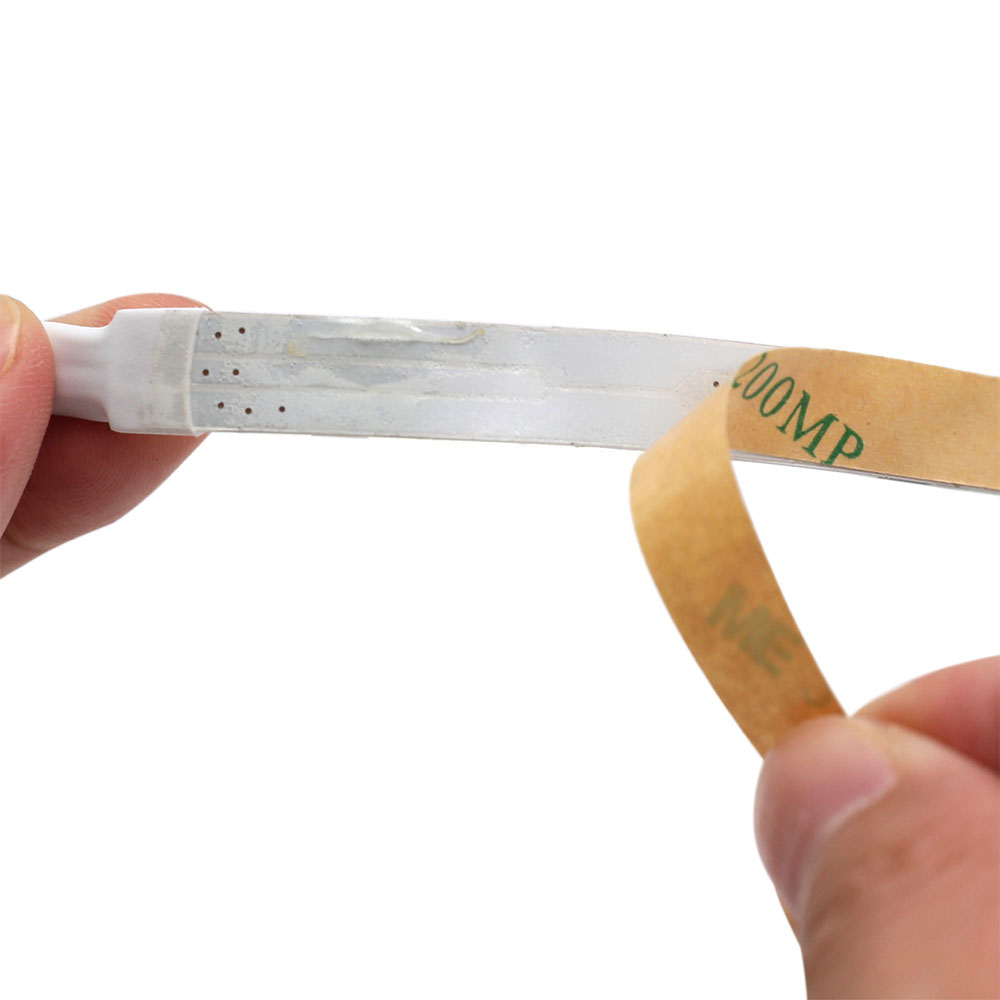

2. 3M tape, easy installation
3. IP65 indoor waterproof
4. DC12V input voltage, stablity and high efficient
5. Long lifespan, at least 50,000 hours
6. 3LEDs cuttable, customize the led strip light length
7. Compatible mostly dream color led controllers
8. 256 brightness display and 24-bit color display.
9. Works great with Arduino and Raspberry Pi, etc.
WS2811 Chips Specifications Download
Standards and Certifications
Product Specification

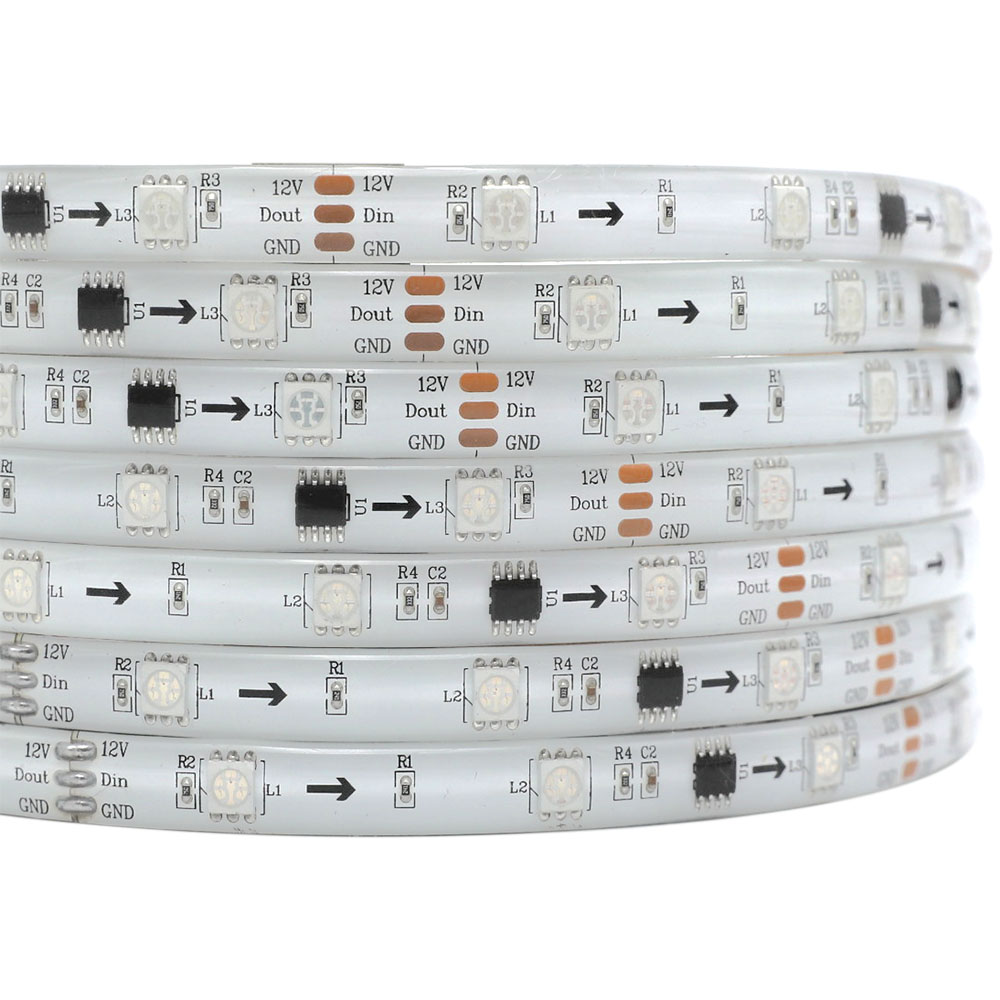

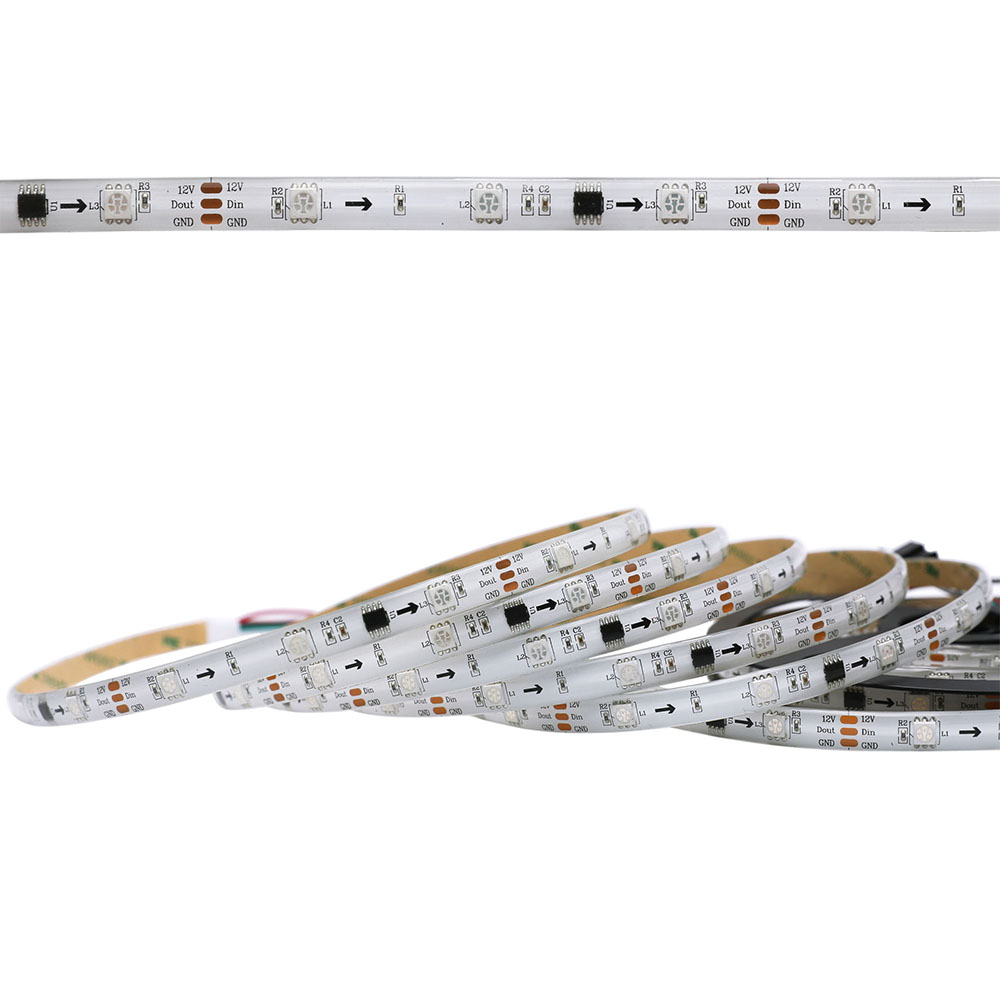

LED Strip Type: SMD 5050 DreamColor 150LEDs/16.4ft
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

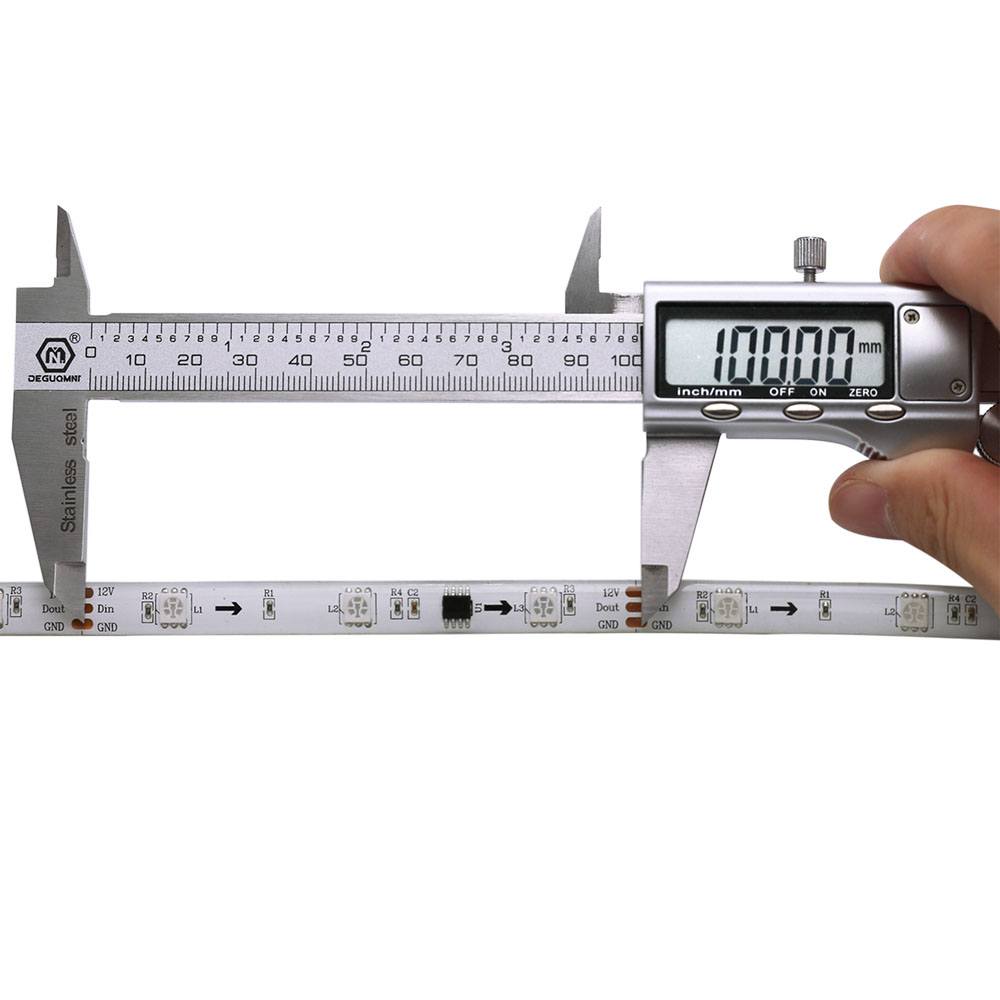

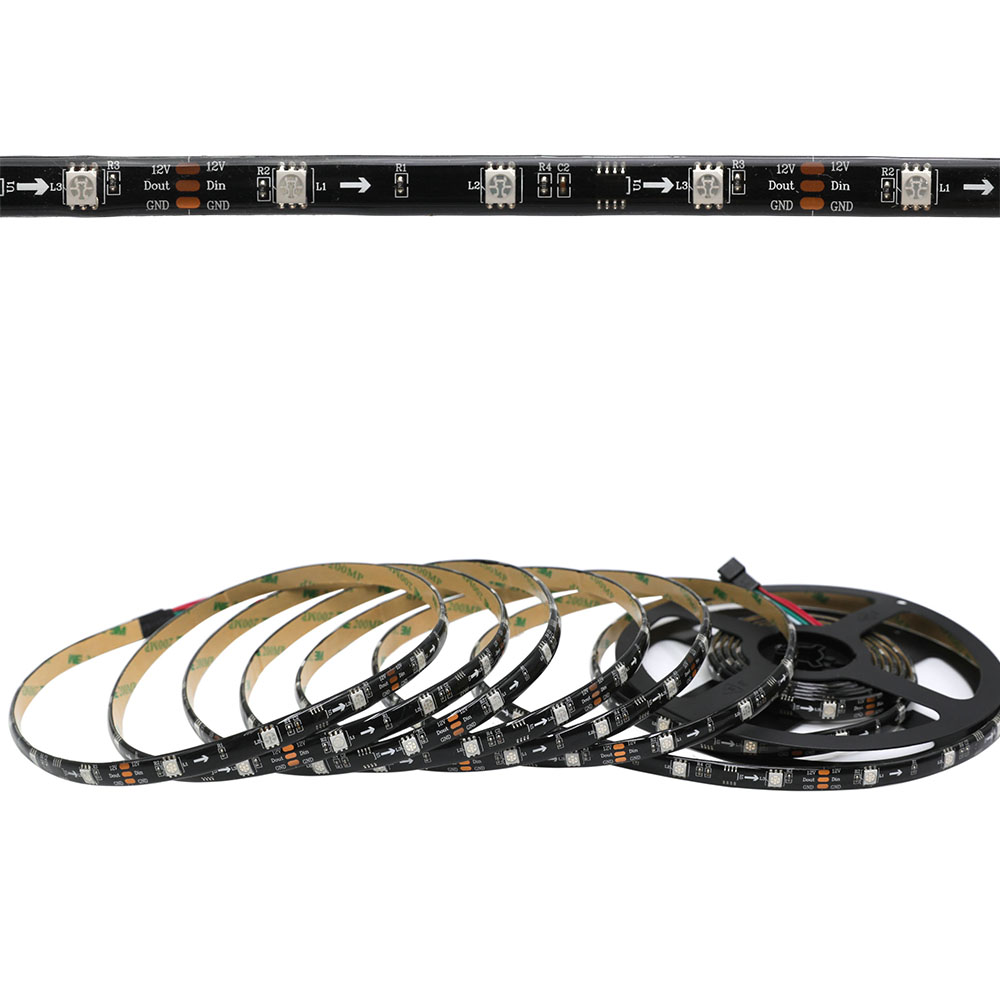

Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 30 LEDs per 1meter (3.28 ft)
IC Quantity: 10 ICs per 1meter (3.28 ft)
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 45W/16.4ft Max
Lumen Per LED: 20~22Lumen 3300lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degrees
WaterProof: Waterproof IP65
Lifespan: 50,000+hours
Warantty: 3 years
Product List
1* 5m/16.4Ft IP65 addressable led strip light
If you choose the controller in the kit, we will send you CONFULL-SP107E
If you choose the power supply in the kit, we will send you PSPS-12V-48W
Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Connection Diagram
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
