Special Price: $30.00 $19.9933% off

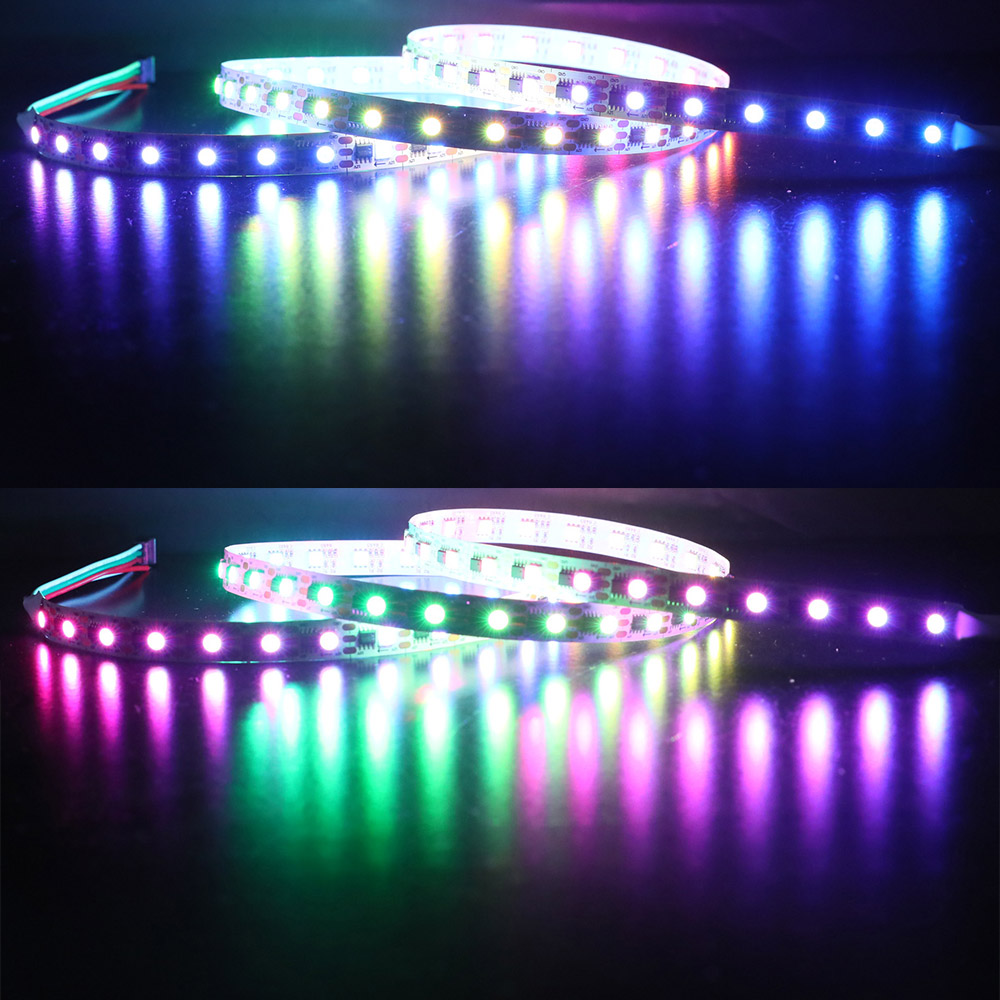

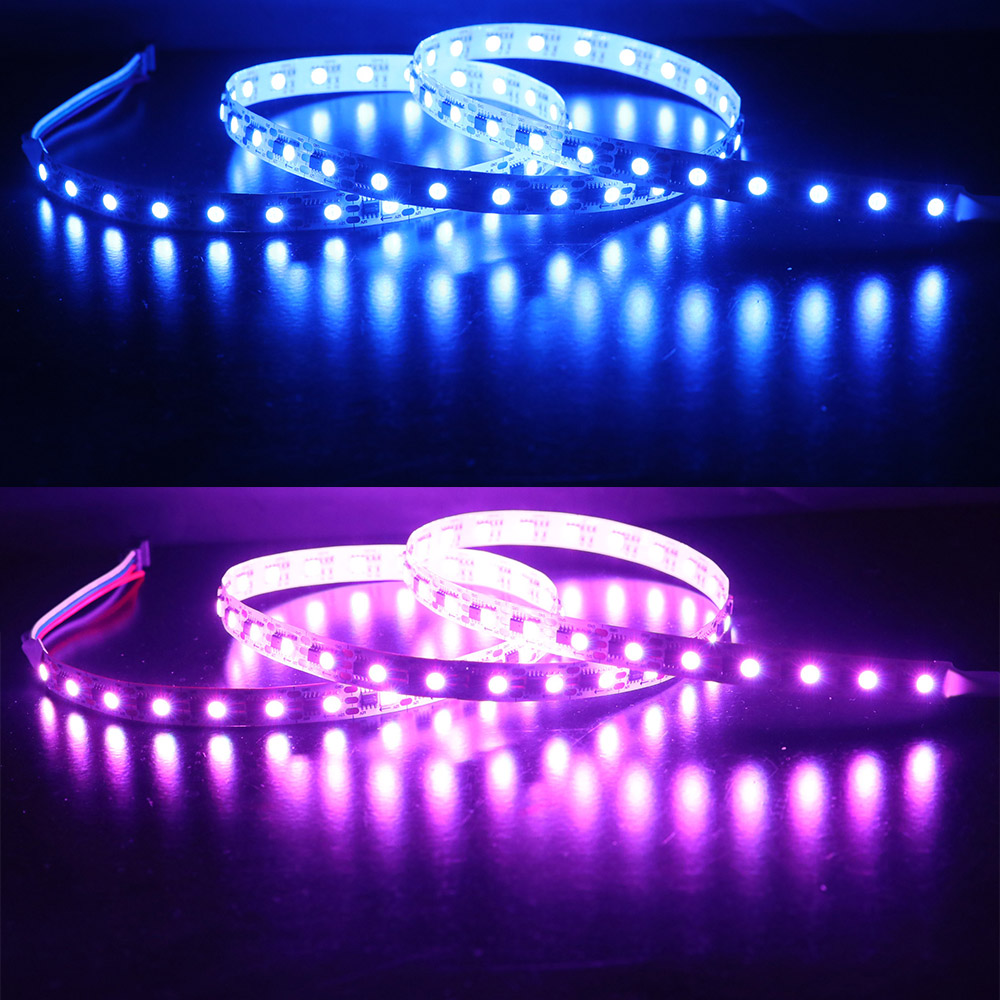

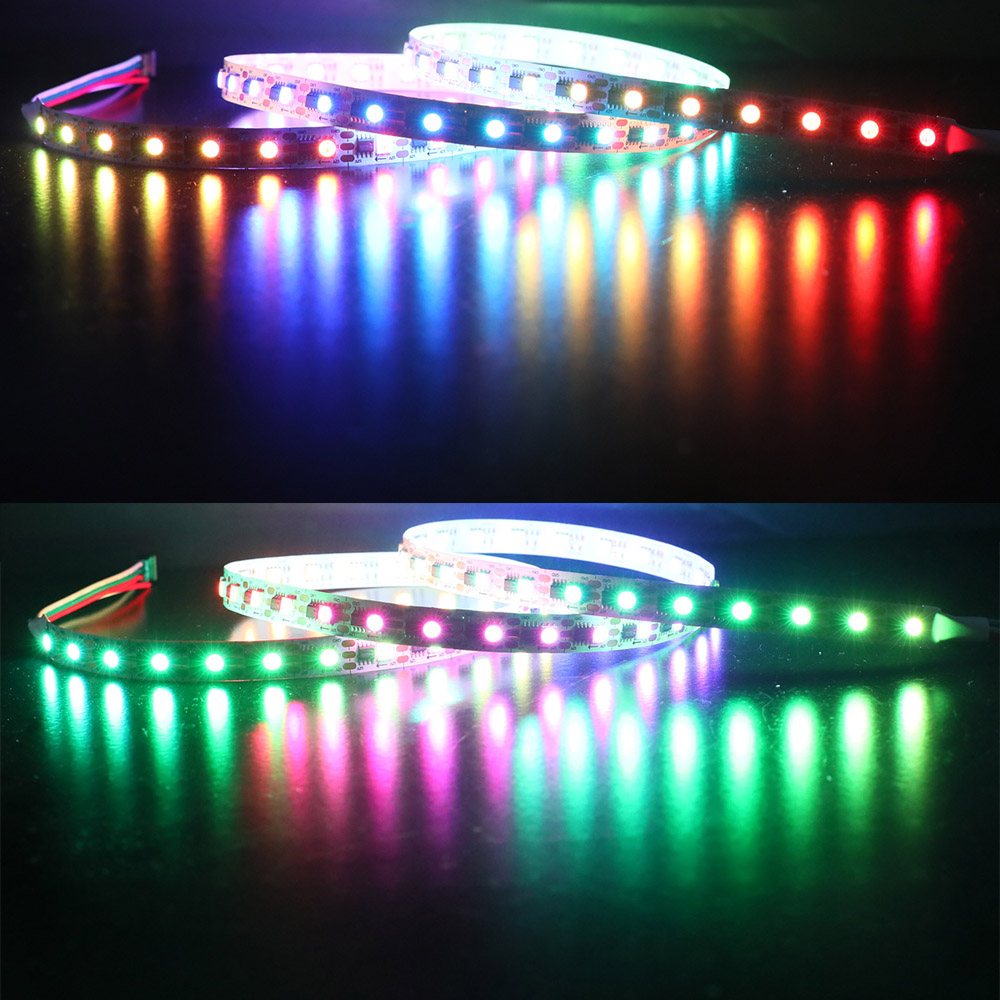

WS2811 addressable LED strip is one of the most cost-effective products we provide at present. It has an external IC double-sided structure and works with LED neon tubes to achieve 360-degree circular lighting. The LED strip can be illuminated as you can imagine Of any color.
This individually addressable LED light strip supports DC12V low voltage input. It is recommended that the maximum operating length is 5-7m when you power at one side. If it is too long, the voltage of the LED strip circuit will gradually drop, and there will be obvious color differences at the end.

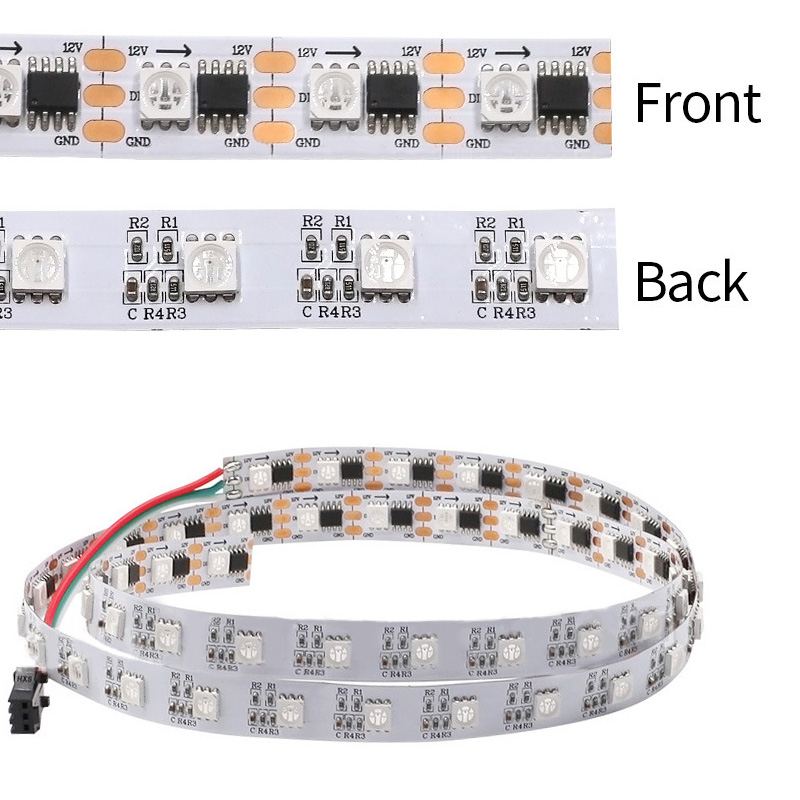

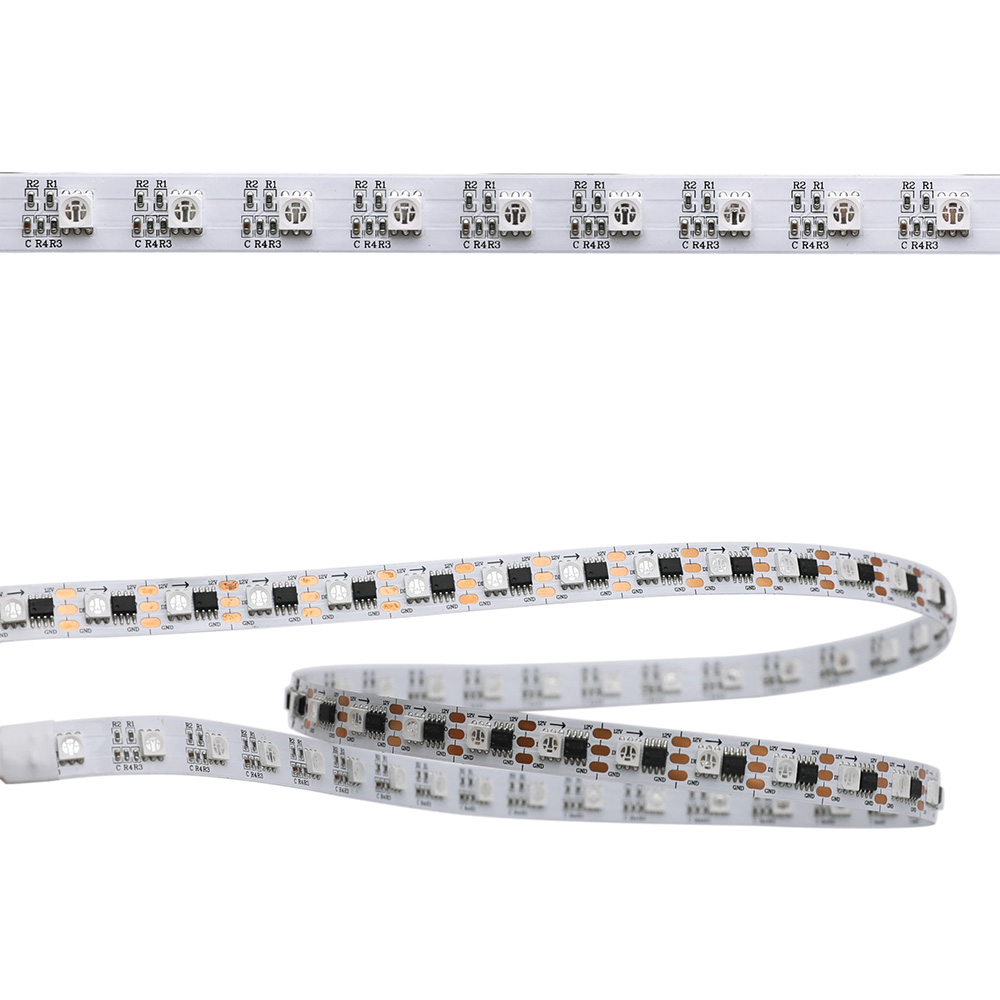

The double side of this dream color LED strip light adopts high-quality PCB with good electrical conductivity and obvious heat dissipation effect. The LED density is 60LEDs per meter, an IC can control double side 2 LEDs, output 256 brightness display and 24-bit color display, and the length of the LED strip can be customized.
Two ends of the LED strip light are connected to a 3-pin JST-SM connector, which brings the greatest convenience to the smooth implementation of the installation. It is compatible with most SPI LED controllers with built-in multiple dynamic modes, suitable for sign lighting and bars; KTV atmosphere lighting.
Please note: this dream color LED strip light can only work with 270/360 degrees round lighting LED neon tubes, don't use it separately, if you don't know how to insert it, you can contact us to customize for you.
The following is the LED neon tube you can choose:
Product Feature
-
Double sides 120LEDs/m
-
DC12V input voltage
-
5-7m without voltage drop
-
360-degree lighting
-
One IC control double side 2 LEDs
-
Customize length
-
SMD5050 high brightness
-
16 millions color changing
WS2811 Chips Specifications Download
Product Specification
LED Chip Model: SMD5050
Input voltage: DC12V
Power: 25.5 watt/meter
IC Type: WS2811IC
Q'ty of LED: Double sides 120LEDs/meter
Q'ty of IC: 60ICs/meter (1 IC drives 2LEDs)

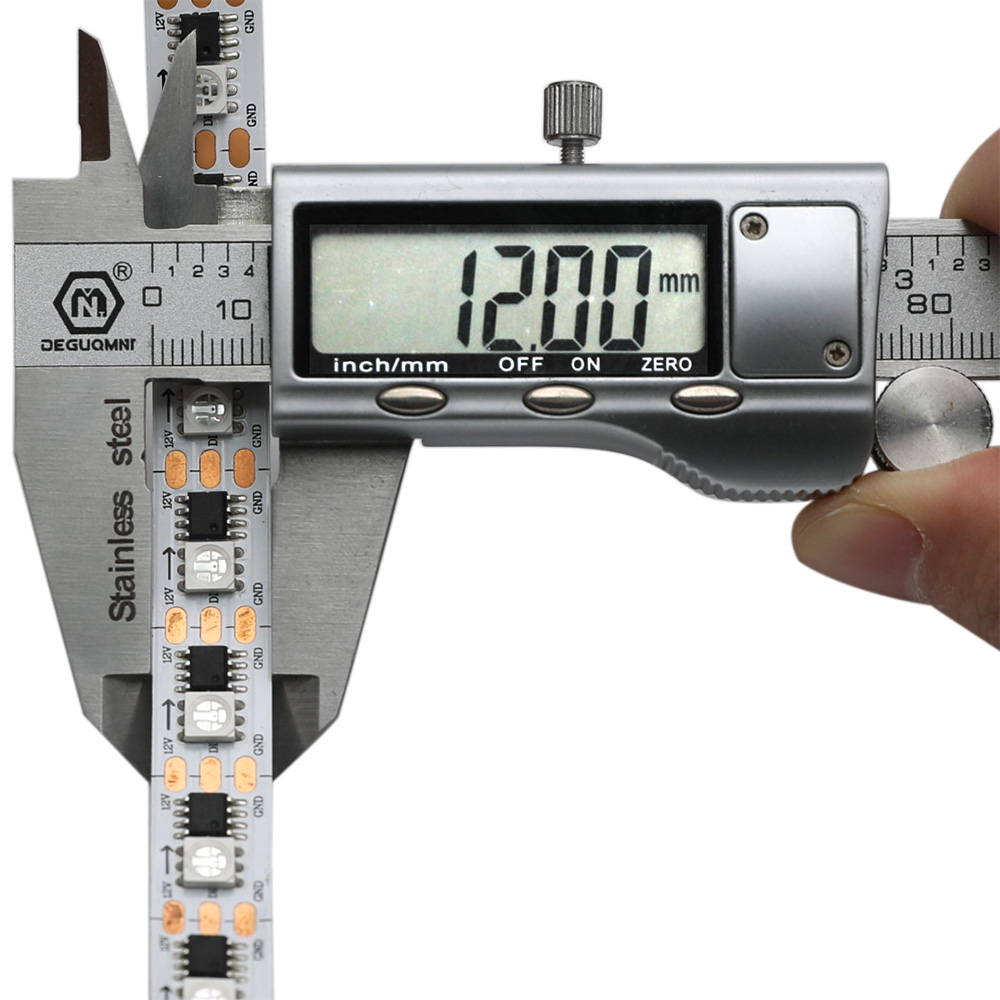

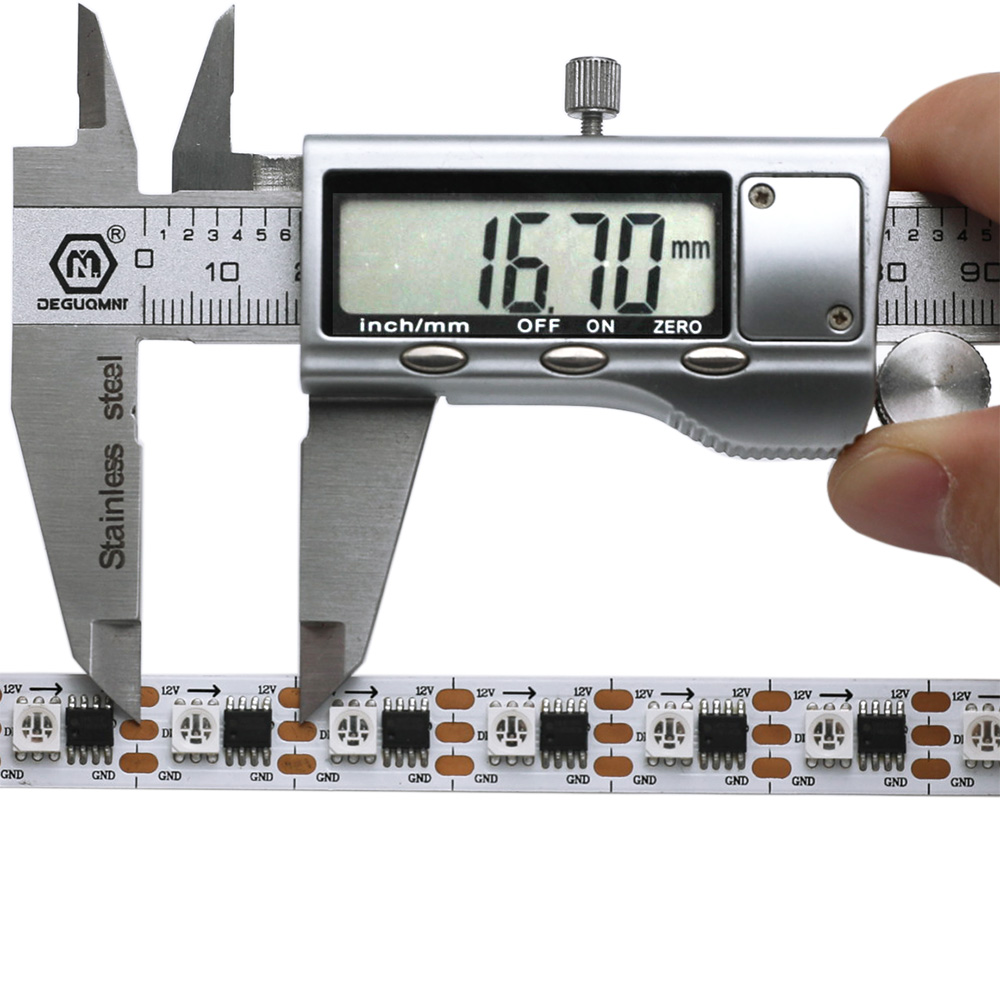

FPC size: Width: 12mm/0.47in, High: 2.5mm
Protection rate: Non-waterproof IP20
Colors: Full color RGB, dream color changing;

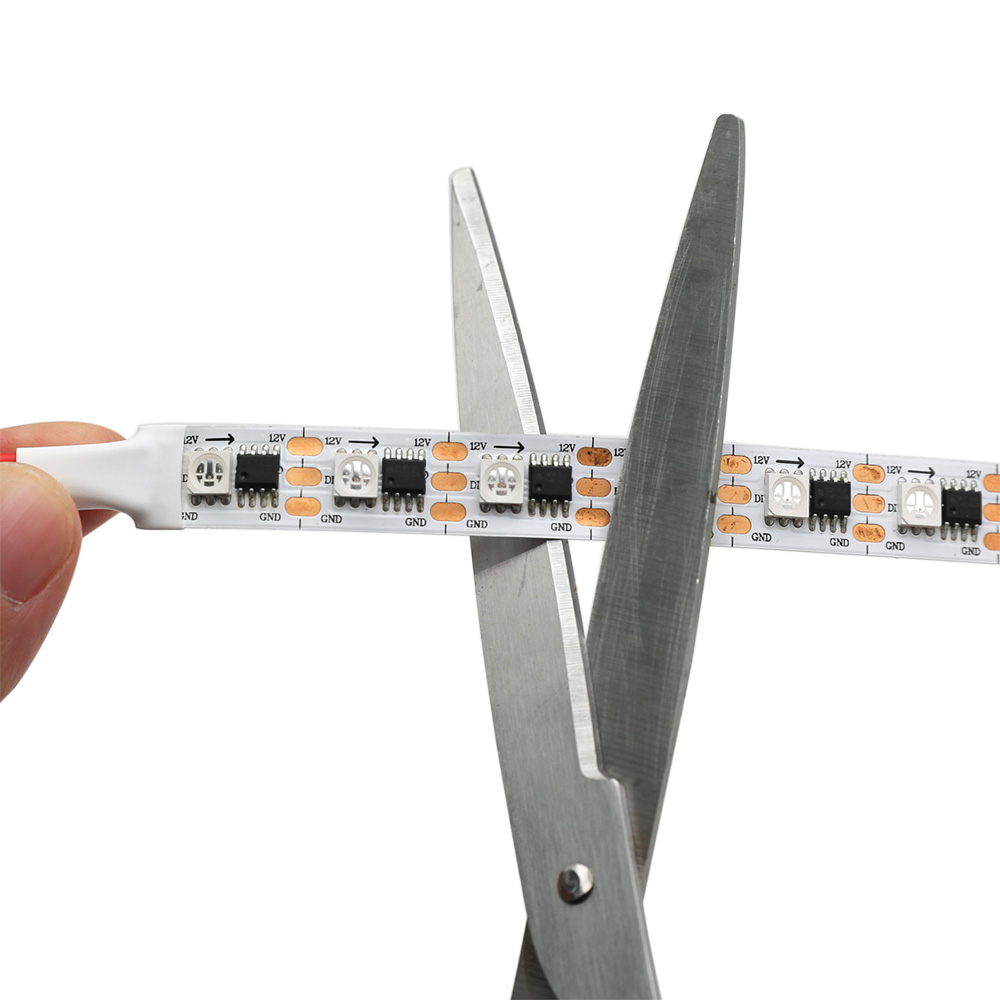

Cuttable: 2 LED is cuttable;
Package: 5meters/reel in anti-static bag;with adhensive tape on the back
Average Life (hrs): 50000Hours+
Grey scale: 256
Bits/color: 8-bits/color;24bit for RGB
Beam Angle: 360 degrees
Product List:
1* 1m/3.28Ft WS2811 RGBCCT LED strip light
If you choose the LED controller and LED power supply in the kit, we will send you the following product:
| Indoor | Outdoor | |
| Controller | SP107E | SP107E+Waterproofbox |
| Power supply | PSPS-12V-36W | PSWP-12V-30W |
Note:
Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
