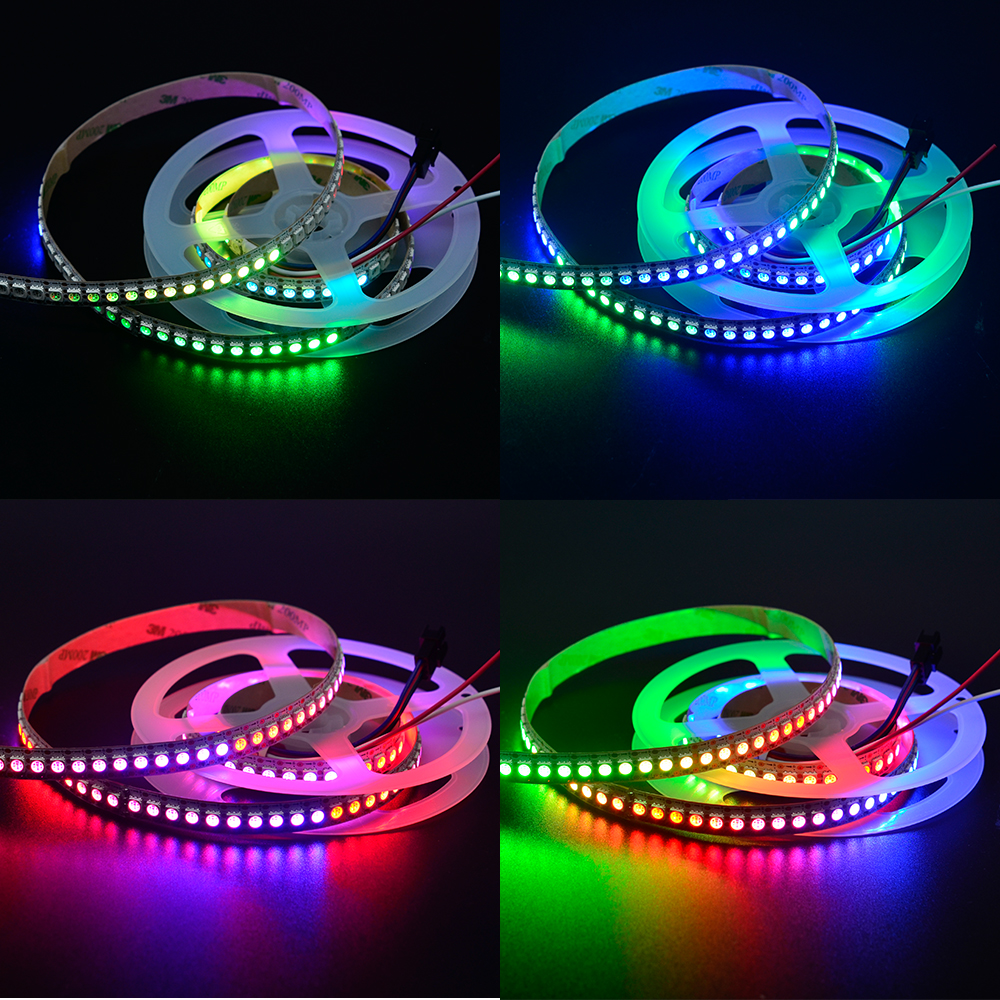

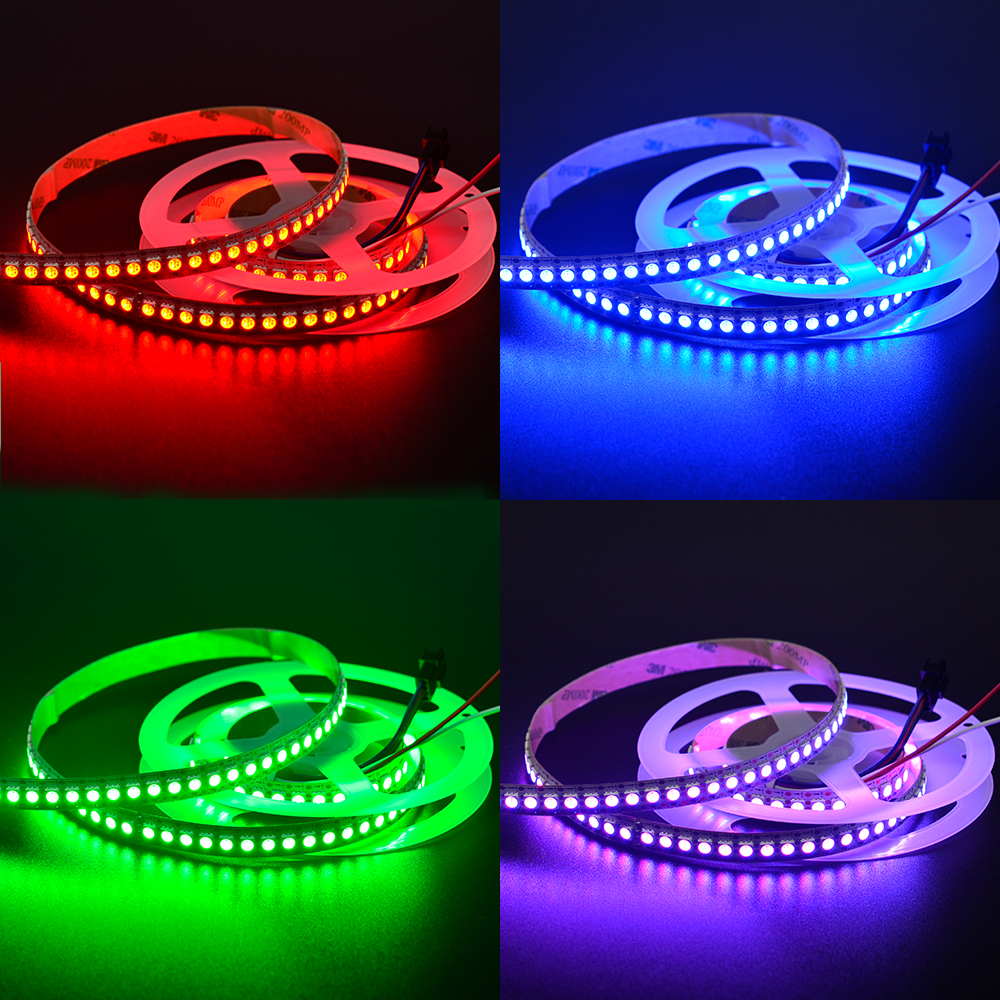

DC12V WS2815 (Upgraded WS2812B) 1M 144 LEDs Individually Addressable Digital LED Strip Lights (Dual Signal Wires), Waterproof Dream Color Programmable 5050 RGB Flexible LED Ribbon Light
1. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working.
2. With 4-pins male connector and separated power/ground wire at both ends for easy interconnection and power connection.
3. Waterproof IP67: the ribbon light is covered with silicone protective sleeve, which can protect it well and makes it easy to clean.
4. Individually addressable: Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. The strip can be cut off between every one LED without damaging the rest strip if you want it to shorten or lengthen, also can be re-connect by provided connectors.
5. The digital LED WS2815 fully color integrates all electronic components into a single 5050 luminaire, without the need for any other peripheral electronic components to assist in forming a complete internal control pixel.in the meanwhile，the WS2815 LED strip reduces resistance caused by inverting the product during installation.
6. Wide compatibility. Works great with LED screnn, LED wall, advertising board, and widely apply for KTV, hotel, bars, clubs, wedding party lighting, etc.
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Input voltage: DC12V
Power: 34.5 watt/meter, 172.5 watt/16.4ft
LED resource: SMD 5050 LED
IC Type: WS2815
Q'ty of LED: 144leds/meter,144leds/roll, each LED is separately controlled
Q'ty of IC: 144IC/meter (1 IC drives 1 led chip)

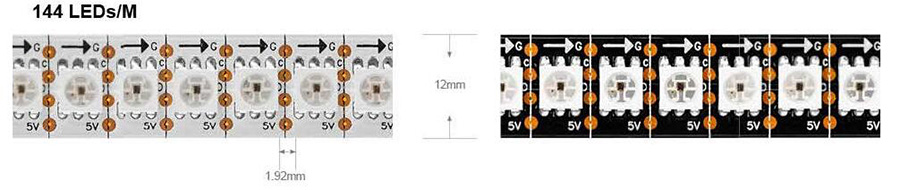

Dimensions: L100cm(39.37 in ) x W1.2cm(0.47 in ) x H0.3cm(0.12 in )
Color Temp(K): RGB full color
FPC color: WHITE /BLACK PCB
Waterproof: Non-waterproof or IP65/IP67/IP68
Colors: Full color RGB, dream color changing
Cuttable: every LED is cuttable
Grey scale: 256
Bits/color: 8-bits/color;24bit for RGB
Package: 1meters/reel in anti-static bag;with adhensive tape on the back
Average Life (hrs): 50000Hours+
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
How to connect and control
Besides this 144 LEDs/M version of WS2815 led strips, we have SMD5050 WS2812B density version as well.
The WS2815 led strip has 4 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 4 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.
This strip comes as a single full meter with a 4-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need 12V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work
Electronic products to ensure that there will not be after-sales quality disputes, please use qualified manufacturers.
LED lamp bead detection technology National leading: independent patent testing equipment in 3 minutes can be measured lamp light failure, color, life, and other important electrical parameters, the machine dead light rate of fewer than one hundred thousandths, finished lamps Anti-static up to 20KV, the factory solemn commitment to light bar warranty for 2 years.
Reduce more costs for customers: managers before the technical-based electronic components traders, the use of components without intermediate links, both genuine and inexpensive.
Waterproof to achieve the highest IP68 level: independent waterproof patented technology. Outdoor products in the hottest Hainan Sanya, the coldest Shenyang, the factory’s fish tank all-weather two years to run, there is no water phenomenon.
ISO9001 / 2 management model: to ensure that each product 100% qualified factory.
Service-oriented: by the number of electrical professional technicians composed of the installation of the steering group, at any time to listen to customers dispatch. The products have been sold to the United States, Britain, Italy, India, Russia, Iran, Nigeria, Israel, and other countries and regions. The company through the CCC certification, CE certification, ROHS recognition, PCC, ISO9001, SGS, UL certification, and other domestic and international related industry certification.
