DC12V-24V 3CH DALI Dimming Driver BC-343-LED
DALI dimming driver, which input standard DALI signal and adopted the most advanced DALI standard IEC62386. It can meet with any equipment in line with the DALI protocol on a bus control, and realize the LED lighting products and traditional lighting integrate within the same set of lighting system. We also add short circuit protection and over-current protection in the driver, which avoid the LED lamp from being damaged.
Feature function:
1. Automatically adapts input voltage DC12V-24V.

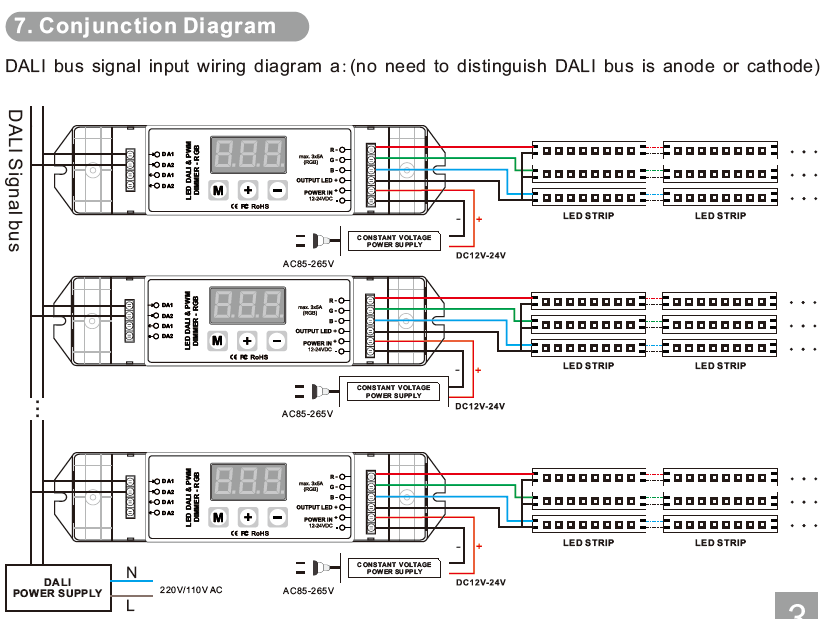

2. Can meet with any equipment in line with the DALI protocol on a bus control.
3. With the DALI signal input optical isolation protection.
4. With the function of the display and manually change the device address.

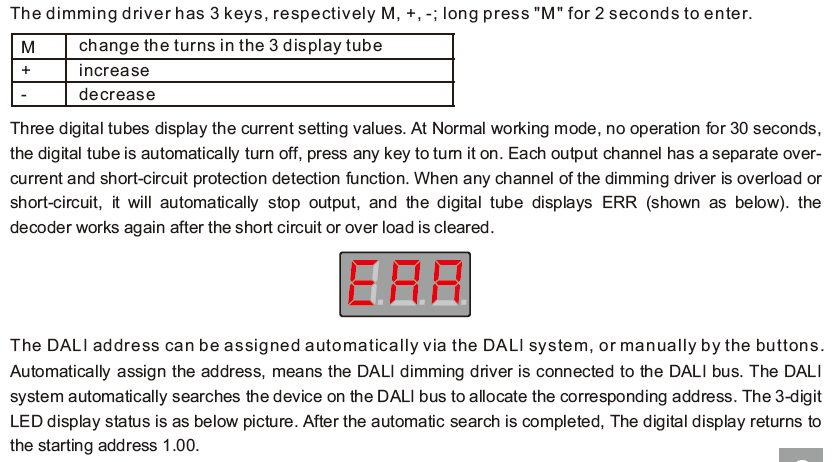

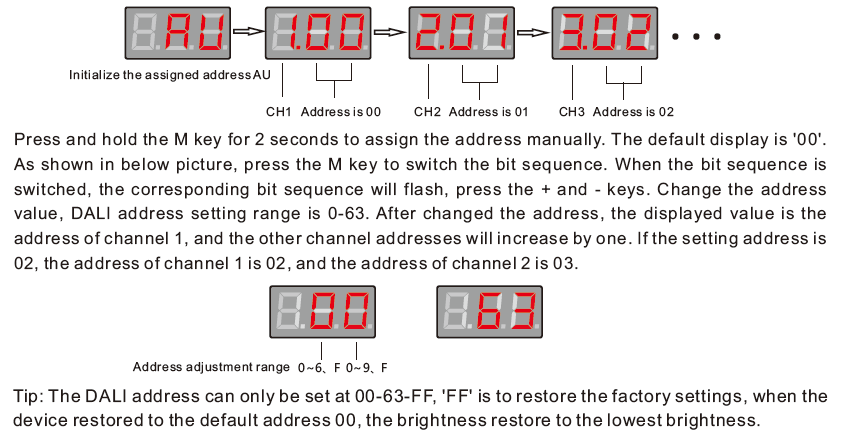

5. Overcurrent protection and short circuit protection.
Standards and Certifications
Specifications Download
Product parameter：
Model: BC-343-LED
Input voltage: DC12V-24V
Output current: 5A/CH×3
Output Power: 180W(12V)/260W(24V)
Input Signal: DALI Dimming signal

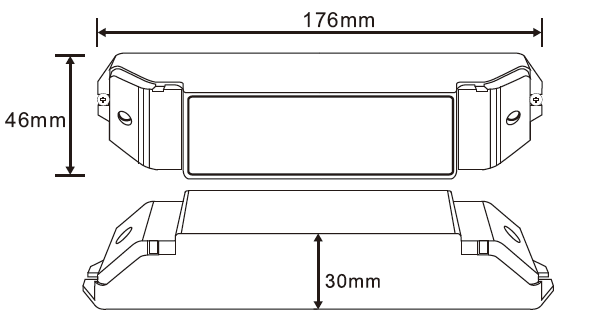

Dimension: L176×W46×H30(mm)
Weight (G.W): 160g
After-Sales
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction and quality problems occur, we provide free repair or replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
Safety warnings
1. To ensure your safety and product proper usage, please read the user manual carefully.
2. To avoid installed the product in a minefield, strong magnetic field, and high voltage area.
3. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause a fire.
4. Please install the product in a well-ventilated area to ensure appropriate temperature
environment.
5. The product must be worked with a DC constant voltage power supply. Please check the consistency of input power with the product, if the output voltage of the power complies with that of the product.
6. Connect the wire with the power on is forbidden. Ensure proper wiring first then check to ensure no short- circuit, then power on！
7.Dodon't repair it by yourself whenever an error occurs. Contact the supplier for any inquiry.
