DC12V-24V CT Controller M2+M3-3A
  • DC12V-24V CT Controller M2+M3-3A
  • DC12V-24V CT Controller M2+M3-3A

DC12V-24V CT Controller M2+M3-3A

Model: M2+M3-3A


Free Shipping Worldwide On Order Over $199
Qty: -+
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Mini series LED controller collected pithy research and development of LED controller for 12 years, abandon the past there are many disadvantages of infrared remote control, using advanced RF remote control, wireless signal with strong penetrating power, no longer restricted by all kinds of blockage.

    4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design:One receiver compatible with six different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.

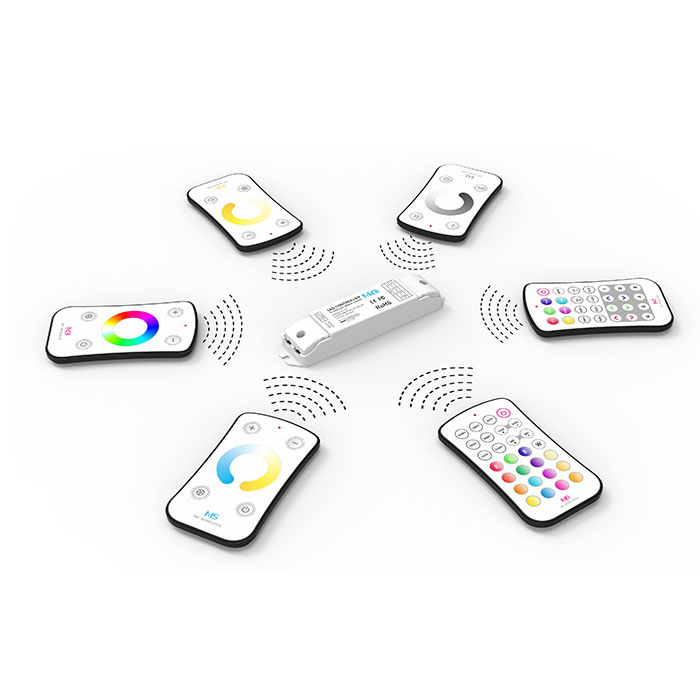

    M1, M2, M3, M5, M6, M7 Remote Control

    Working voltage DC3V(Battery CR2032 )

    Working Frequency 433.92 MHz

    Remote Distance 40-50m

    Working Temp. -20℃~55℃

    Dimensions L104×W60×H9mm

    Weight (N.W.) 42g

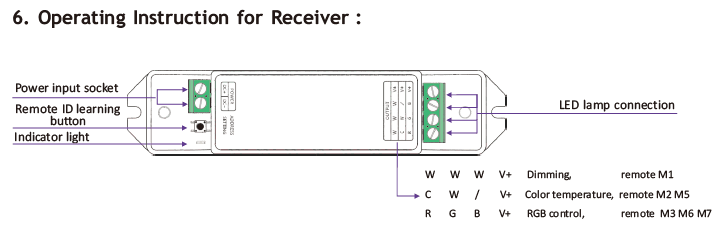

    M3-3A Receiving controller

    Power input :DC12V-DC24V

    Max Current load :Max 3A ×3CH

    Max Output power: 108W/216W (12V/24V)

    Compatible remote: M1/M2/M3/M5/M6/M7

    Working Temp. :-30℃~55℃

    Dimensions :L135×W30×H20mm

    Weight (N.W.) :47g

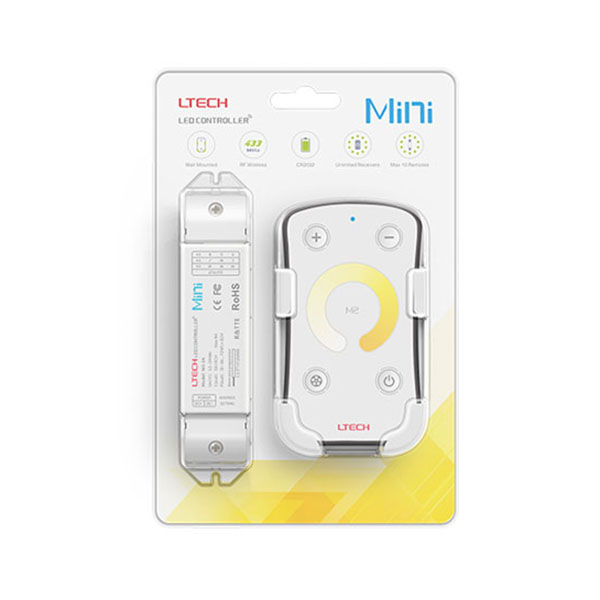

    Product details: M2+M3-3A



    DC12V-24V CT Controller M2+M3-3A

    DC12V-24V CT Controller M2+M3-3ADC12V-24V CT Controller M2+M3-3A

    . Guided by a belief that LED lighting would be an integral part of everyday life’s illumination, superlightingled.com came into LED industry and keep up with the advanced technoloty.

    We are committed to sales flexible single color,RGB, programmable pixel full color led strip and the accessories, LED controllers, dimmers, amplifiers, power supply are the main products.

    .Superlightingleds.com founded in 2011, 5 years’ development, our team is becoming stronger and stronger. we provide quality LED technology, great customer service, and superior technical support to our customers. superlightingled is your reliable partner for LED technology.

    If you are looking for high quality LED light Series or energy saving lighting solution, please do not hesitate to contact us, we are always more than happy to help in any way we can.at superlightingled offer LED Lighting for Everything.

    enlightened  Single Color Flexible LED Strip Lights Project Display


    enlightened  Color Change RGB Flexible LED Strip Lights Project Display


    enlightened  Programmable Pixel Dream Color Flexible LED Strip Lights Project Display
