DC12V~24V DMX512 rgb decoder three channels,each max 4A,constant voltage RGB decoder DMX512 protocol.For RGB LED strip light
  • DC12V~24V DMX512 rgb decoder three channels,each max 4A,constant voltage RGB decoder DMX512 protocol.For RGB LED strip light
  • DC12V~24V DMX512 rgb decoder three channels,each max 4A,constant voltage RGB decoder DMX512 protocol.For RGB LED strip light

DC12V~24V DMX512 rgb decoder three channels,each max 4A,constant voltage RGB decoder DMX512 protocol.For RGB LED strip light

Model: CONFULL-H805DMX

$24.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Applied to:



Qty Discounts Off Price
1-4
$24.98
5-9
$23.73
10-19
$22.48
20+
$19.98
* Discounts may vary based on options above
Qty: -+
ContactUs

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Item Type:RGB Controler

    Power Source:DC

    Features:DMX512 decoder

    Certification:CE,RoHS,CCC

    Model Number:H805DMX

    Voltage:12-24V

    Remote Distance:none

    Warranty:1 year

    Max. Load Power:200W

    Applicable Lights:rgb led

    Connection Mode:GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+)

    Controled Method:DMX512

    Material:metal

    Wattage:1

    is_customized:Yes

    Button Number:0



    1. Specifications

     (1). Input Voltage: DC12V~24V

     (2). External dimension: 166*67*41mm

     (3). Protocol: DMX512 protocol

     (4). Connection mode: Common anode

     (5). Output Current: <4A(each channel)

     (6). Control Mode: DMX512.  Without DMX input data, RGB colorful gradient. With DMX data input, controlled by DMX data.

     (7). Output Power: 12V:<144W (4 channels),  24V:<288W (4 channels)

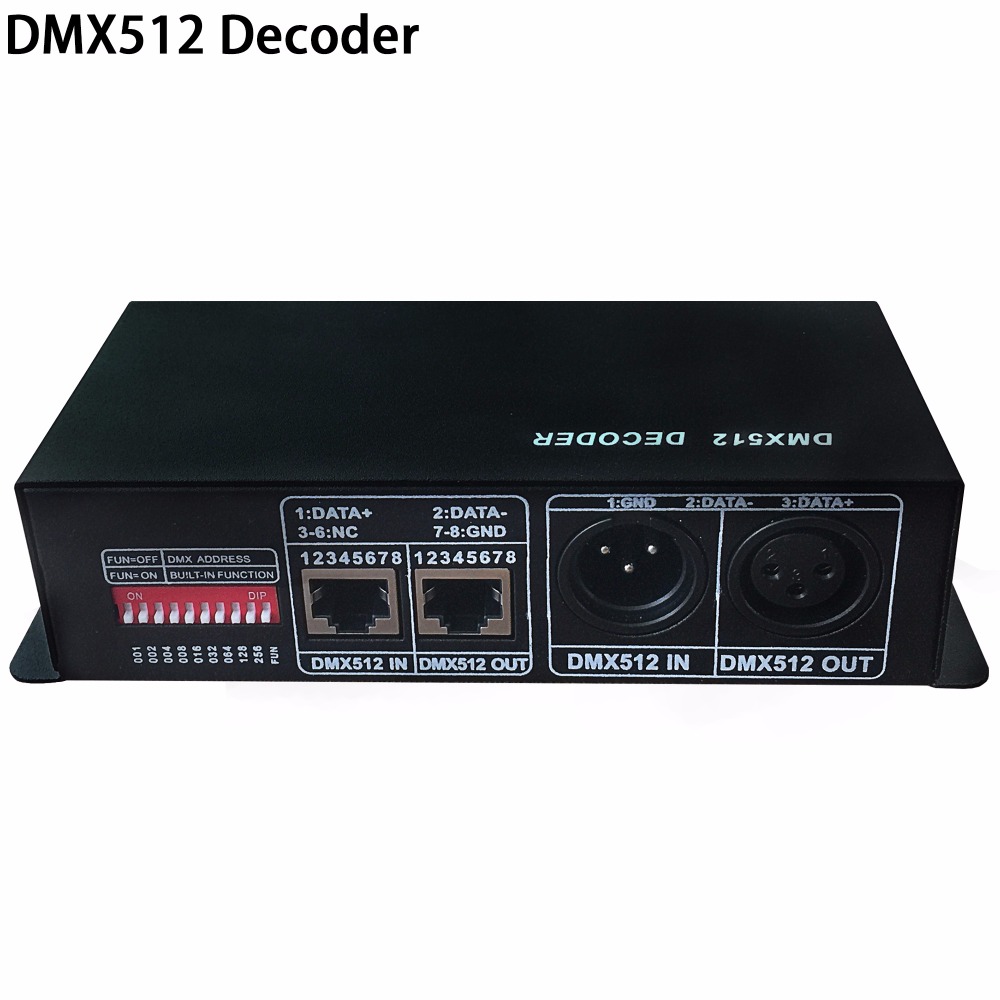

     2. Product Display

    3. Working Mechanism

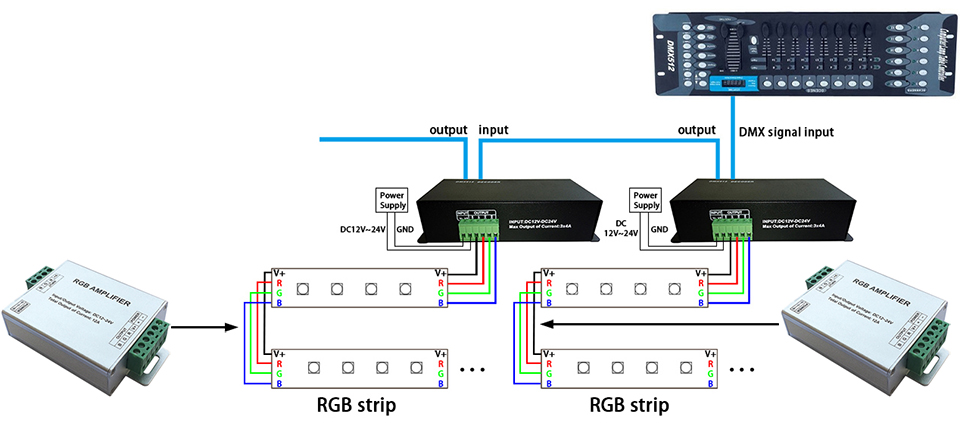

     Control RGB strip (without driver chip)

     Step1. Set them up

     Blue line is composed of XLR male and XLR female (1: GND, 2: D-, 3: D+)

    Step2. Set DMX address for each device

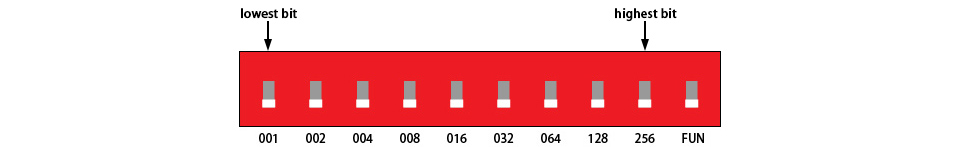

     Dip Switch
    From "001" to "256"
    Regarding "FUN"
    Example

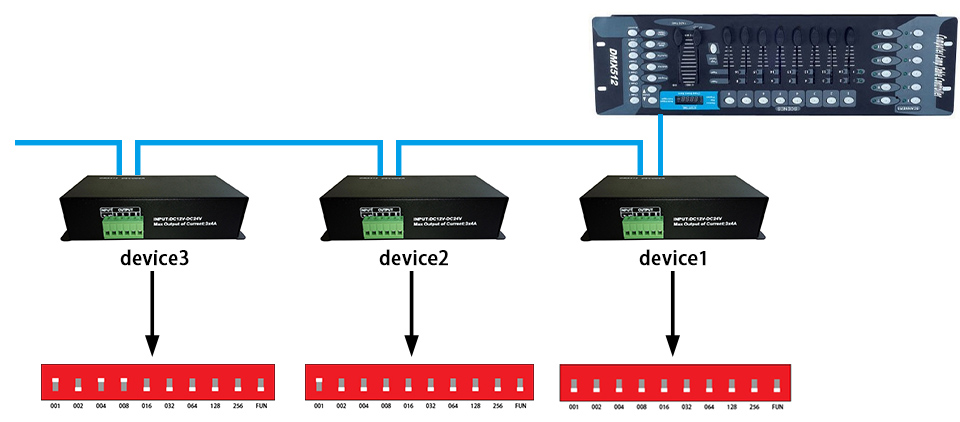

    Device1: 0x6+1=1(starting address), device1 occupies channel 1,2,3,4,5,6 on DMX Console.

     Channel 1: adjust brightness of red

     Channel 2: adjust brightness of green

     Channel 3: adjust brightness of blue

     Channel 4: adjust blink speed of single color

     Channel 5: adjust gradient speed of full color

     Channel 6: adjust breath speed of single color (gradient from brightest to dark)

     Device 2: 1x6+1=7(starting address), device2 occupies channel 7,8,9,10,11,12 on DMX Console.

     Function of these 6 channels are the same as the function introduced above.

     Device 3: 13(8+4+1)x6+1=79(starting address), device3 occupies channel 79,80,81,82,83,84 on DMX Console.

     Note:

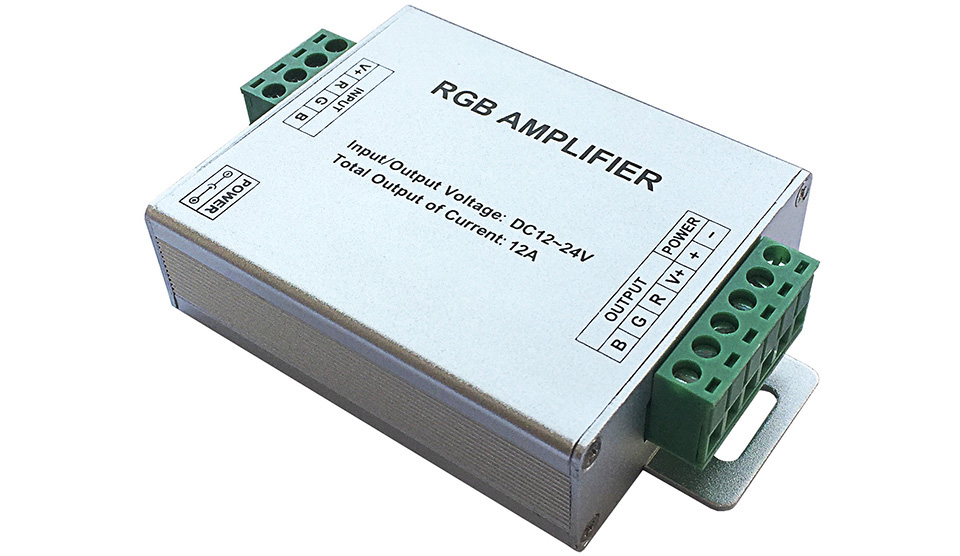

     (1). you can add RGB amplifier(Model: H801AM) to enhance drive ability.

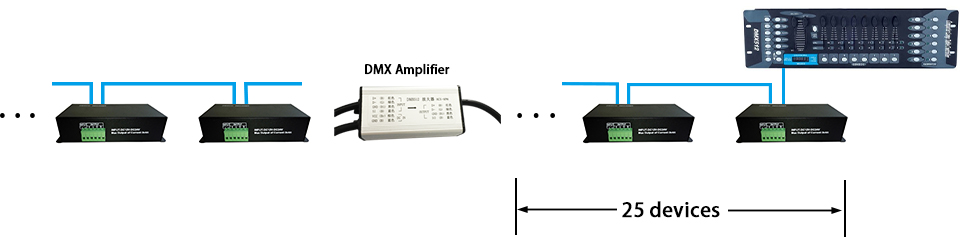

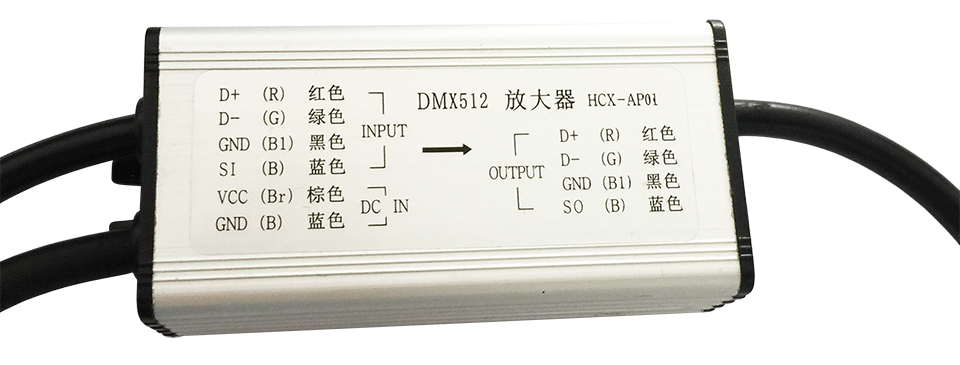

    (2). According to DMX512 protocol, every 32 devices need an amplifier (DMX512 signal amplifier), but in real project we recommend 25

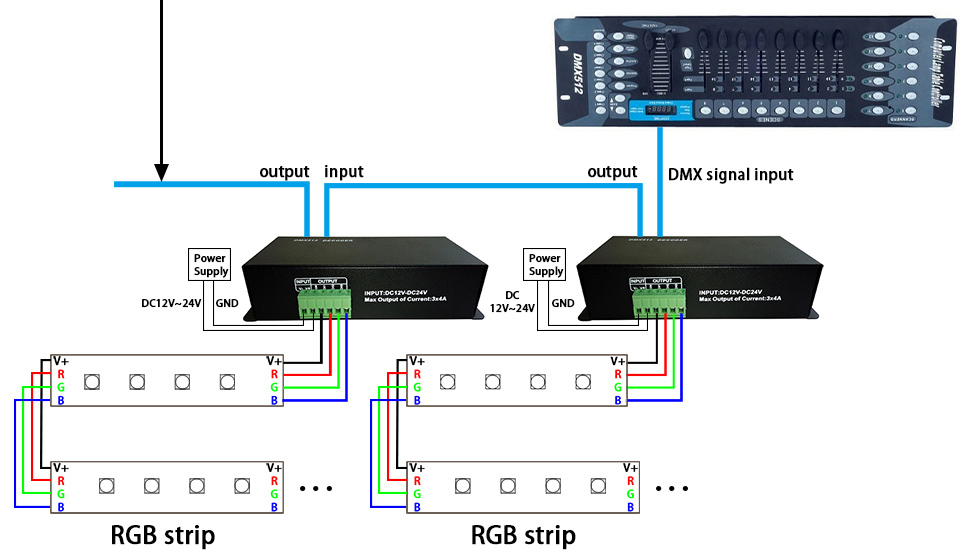

    Connection is simple, just connect D+ to D+, D- to D-, GND to GND. SI and SO(address line) are not needed because DMX address has been set.

     Control full color strip (with driver chip)

     Note: please tell me before you order if you need this because the internal hardware needs to be changed

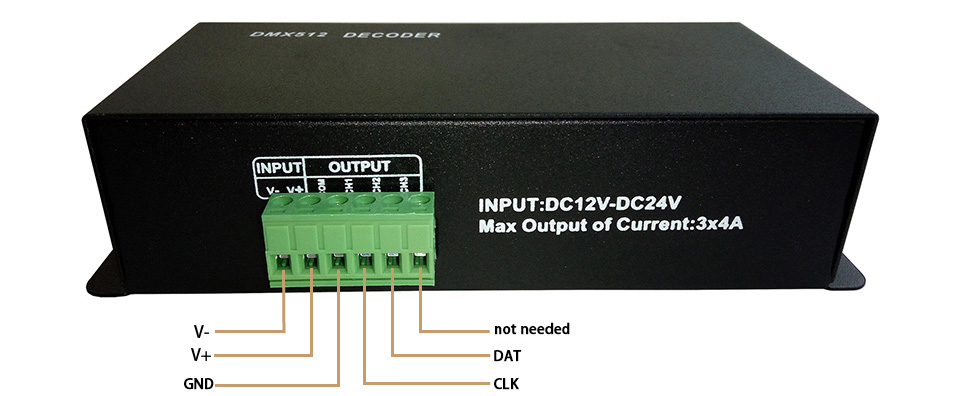

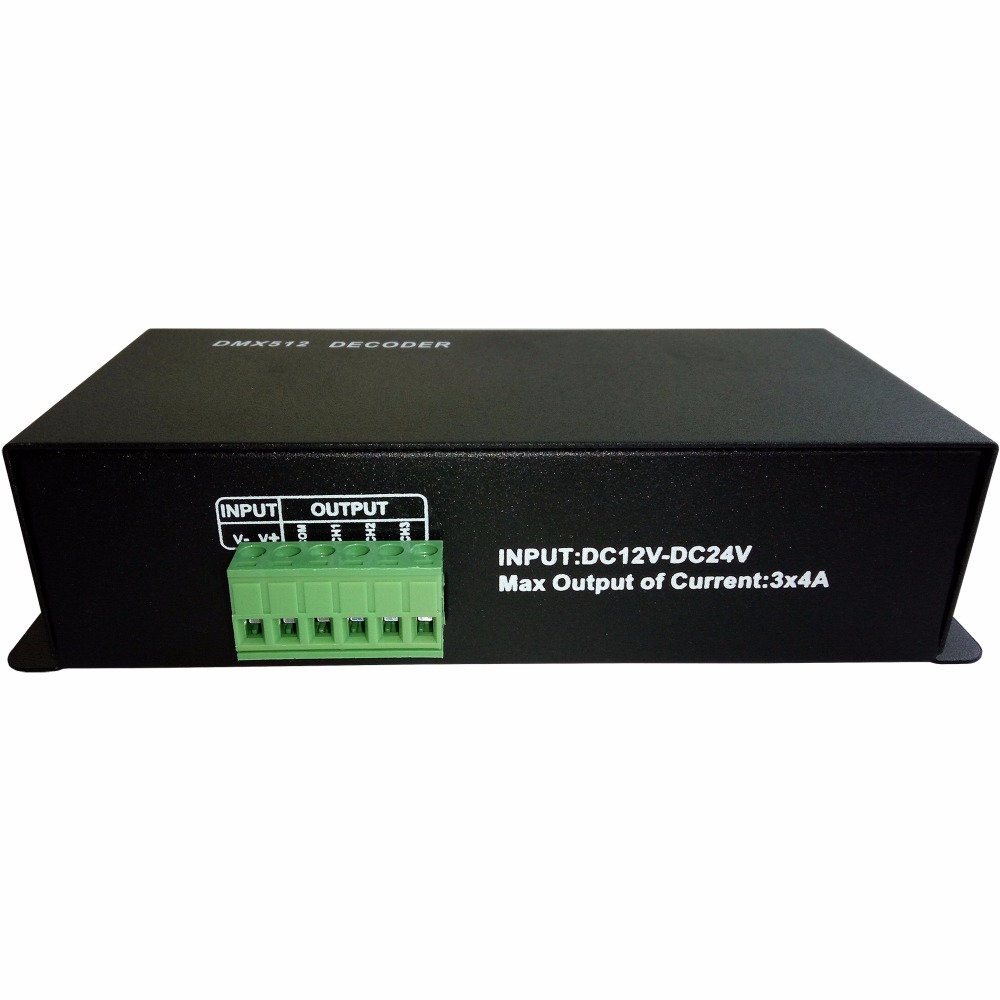

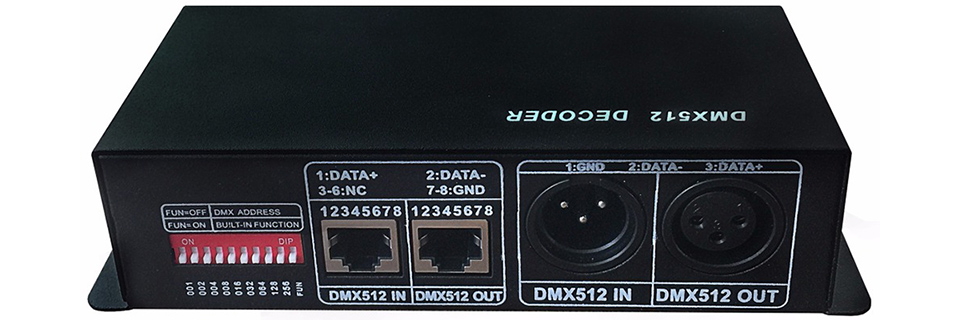

     Ports definition

    Dip Switch Settings

    Example

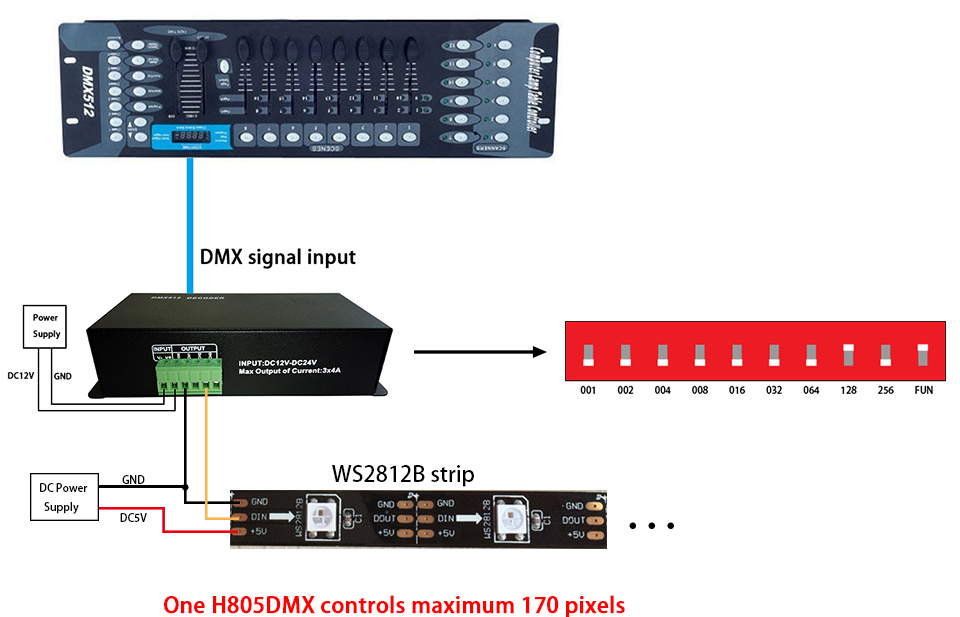

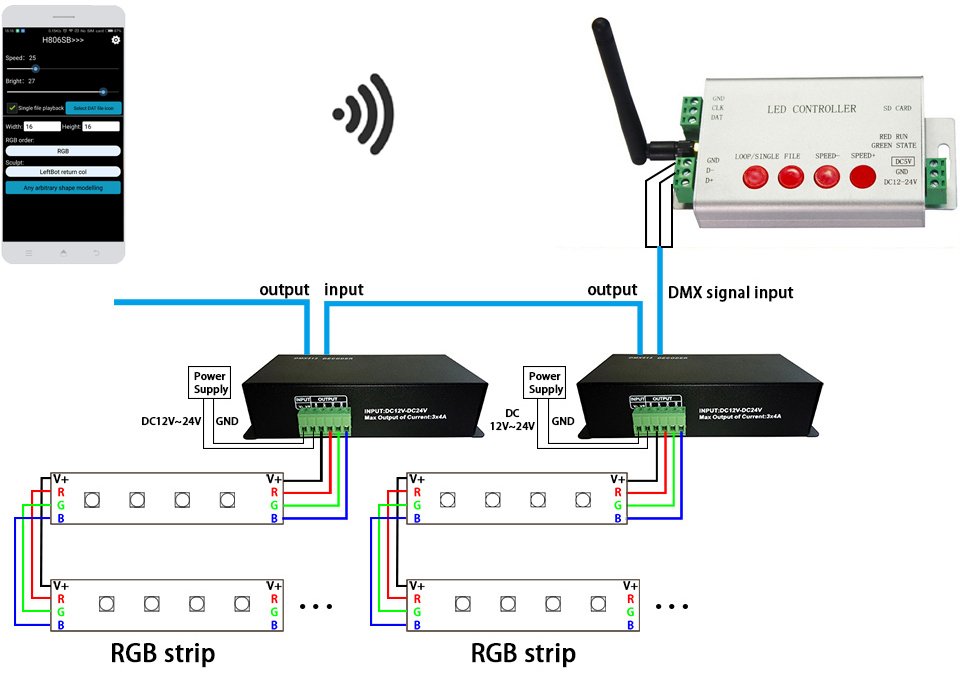

    4. You can also connect H805DMX to controller


    Each H805DMX is one pixel (include R,G,B)
