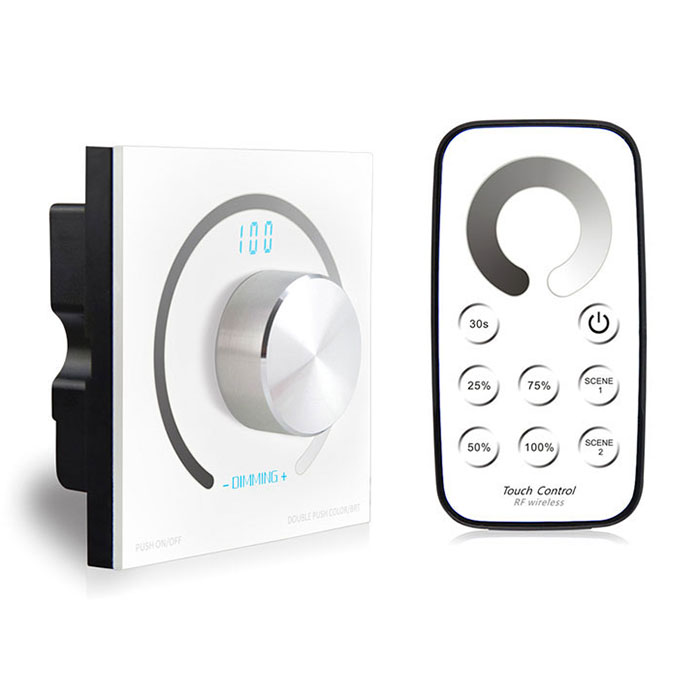

DC12V-24V LED Constant Voltage Dimmer K1+T1
K series rotary controller is widely used for commercial /office/household lighting, workable for dimming, color temperature, RGB control .with digital display, display status is clear when at a glance. It compatible with our T1, T2, T3 wireless remote control, realize remote control function, thus can meet the demand of various occasions.
Feature function:
1. Automatically adapt to LED light which works from DC12V-24V.
2. Fashionable appearance, simple operation, standardly 86 style socket, easy to install and disassemble.
3. Workable for dimming, color temperature, RGB control.
4. 2048 grey scales per channel, the led lamp is more rich and vivid without flash.
5. Optional output frequency 0.5K、1K、2K、4K、8K.
6. Three-digital-display indicates the current setting value, easy operation, the default parameter can be restored by manual.
7. Can compatible with T series wireless remote control in long distance.
8. Using Encoder rotary knob, instead of a potentiometer, more durable.
Standards and Certifications
Specifications Download
Product parameter：
Model: K1
Input Voltage: DC12V-24V
Load Current: 4A×3CH Max 12A
Optional output frequency: 0.5K、1K、2K、4K、8K
Grey Scale Level: 2048×3
Dimming Range: 1%-100%
Max Output Power: 144W(12V)/288W(24V)
Working Temperature: -20°C~55°C

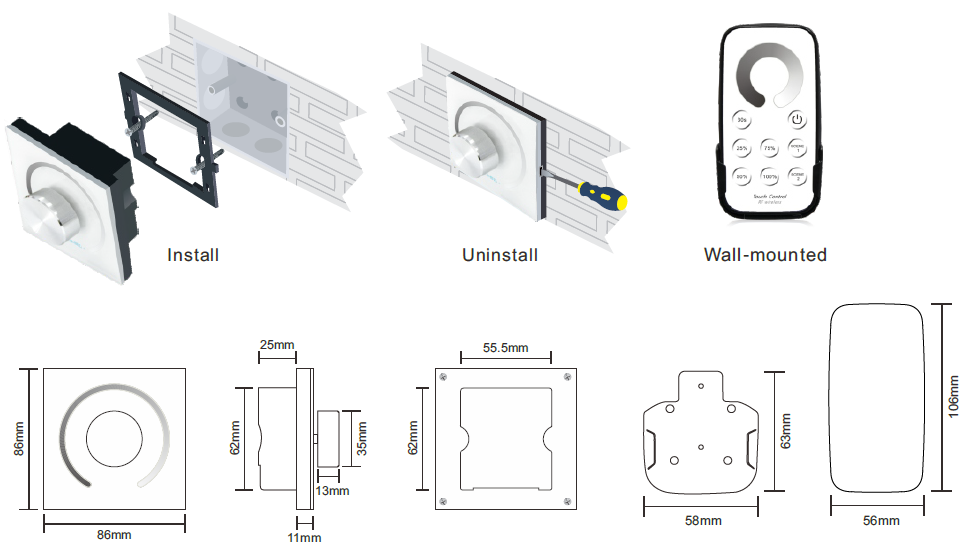

Dimensions: L86×W86×H36(mm)
Weight(N.W): 130g
Model: Wireless Remote(T1)
Input Voltage: 3V(CR2032)
Working Frequency: 433.92MHZ
Remote Distance: 30M
Working Temperature: -20°C~55°C
Dimensions: L106×W56×H9(mm)
Weight(N.W): 40g

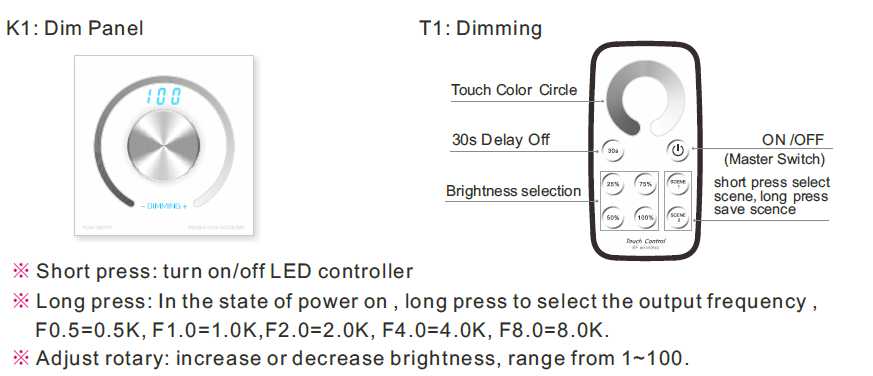

Rotary Functions:
The Learning ID Method of Remote Control:
The remote control has been matched to the receiver before delivery, if deleted accidentally, you can learn
ID as follows.
Learning ID: In the state of power off, long press rotary for 3 seconds, when the digital tube displays 'FF',
then press any key on the remote control. The digital tube flashes 3 times, and the controller is ON, the remote and controller is matched.
Note:
The controller only matches the same type of remote control, the controller is inactive if no settings are made to it after 1 minute, press any key to turn it on before normal operation.
Notice:
1. The digital tube is inactive if no settings are made after 1 minute, which does not affect the output effect. re-operate the rotary to turn it on.
2. Restore factory defaults: In the state of power off, long-press the rotary and power on, after 0.5 seconds, release the rotary, the controller is on. after restoring factory defaults, the K series controller and the remote need to rematch the ID.
After-Sales:
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
7.Product has been updated.
Kindly Reminder:
1.Power Source Selection
The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least a 20% higher output power supply than the consumption of LED lights.
