DC12V-48V LED Constant Current Power Repeater BC-990-700

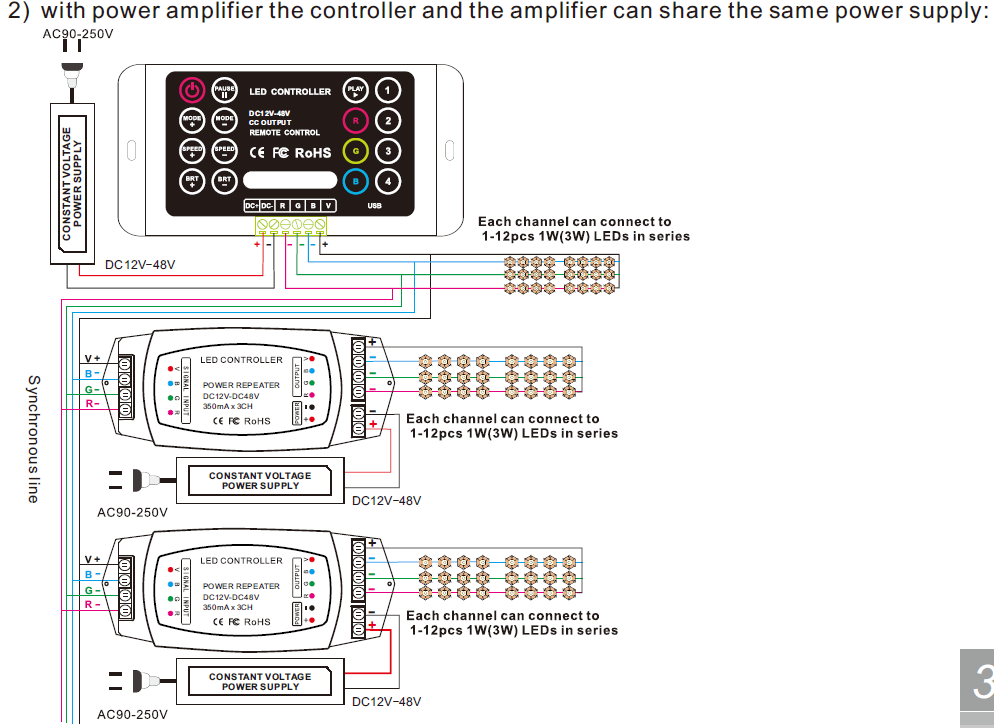

LED constant current power repeater is specially designed for our single color and RGB controllers to expand power output, it accepts PWM signal, double or three times more power can be reached by everyone more power repeater, and in theory, power repeater can be added unlimitedly. Also, the power repeater of constant voltage model and the constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
Feature function:

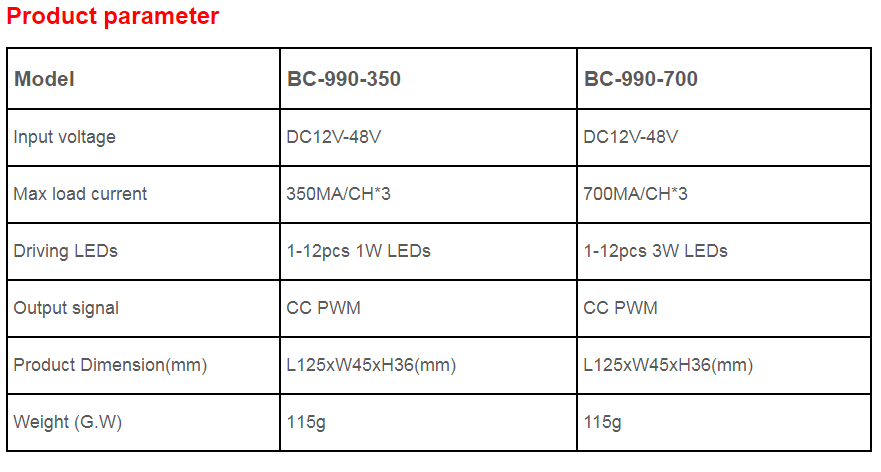

1. Total 3 channels, 350mA (700mA) per channel.
2. The wide voltage from DC12V-48V，can drives 1～12pcs 1W (3W)hi-power LEDs.
3. Accepts PWM signal.

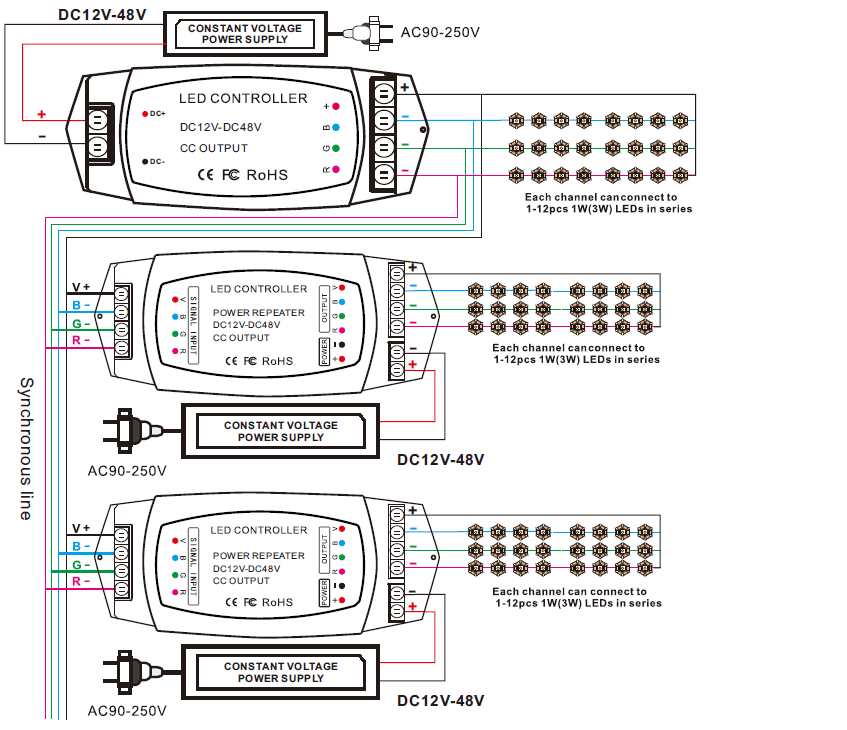

4. Unlimited quantities of power repeaters can be connected together to run unlimited quantities of leads.
5. Maximum length from controller to repeater can be 500meters.
6. Power loss memory function.
7. 3000V optoelectronic isolation.
Standards and Certifications
Specifications Download
Safety warnings
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC5-36V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior notice.
After-Sales
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
Kindly Reminder
Power Source Selection:
The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least a 20% higher output power supply than the consumption of LED lights.
