Special Price: $59.98 $44.9825% off

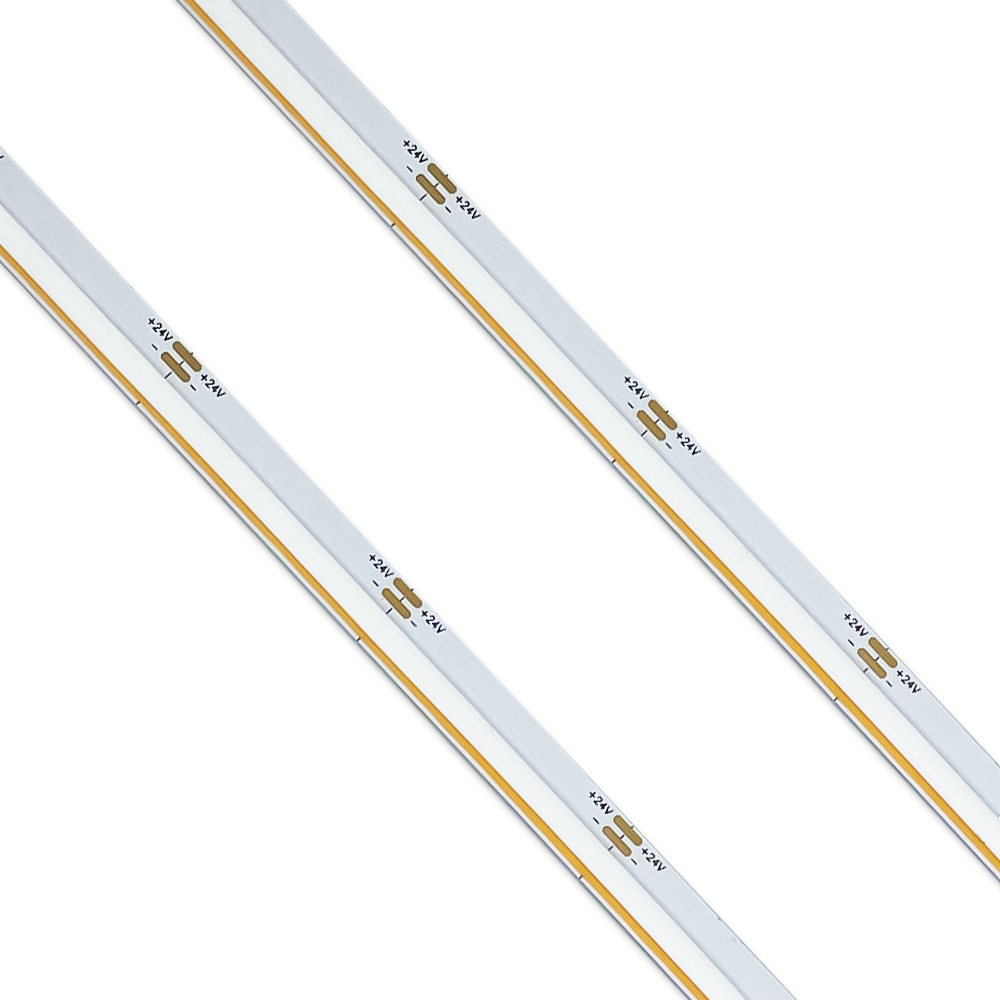

The COB (chip on board) led strip adopts high-quality SMD1021 chips to achieve 8mm/0.31in narrow PCB width, long service life.

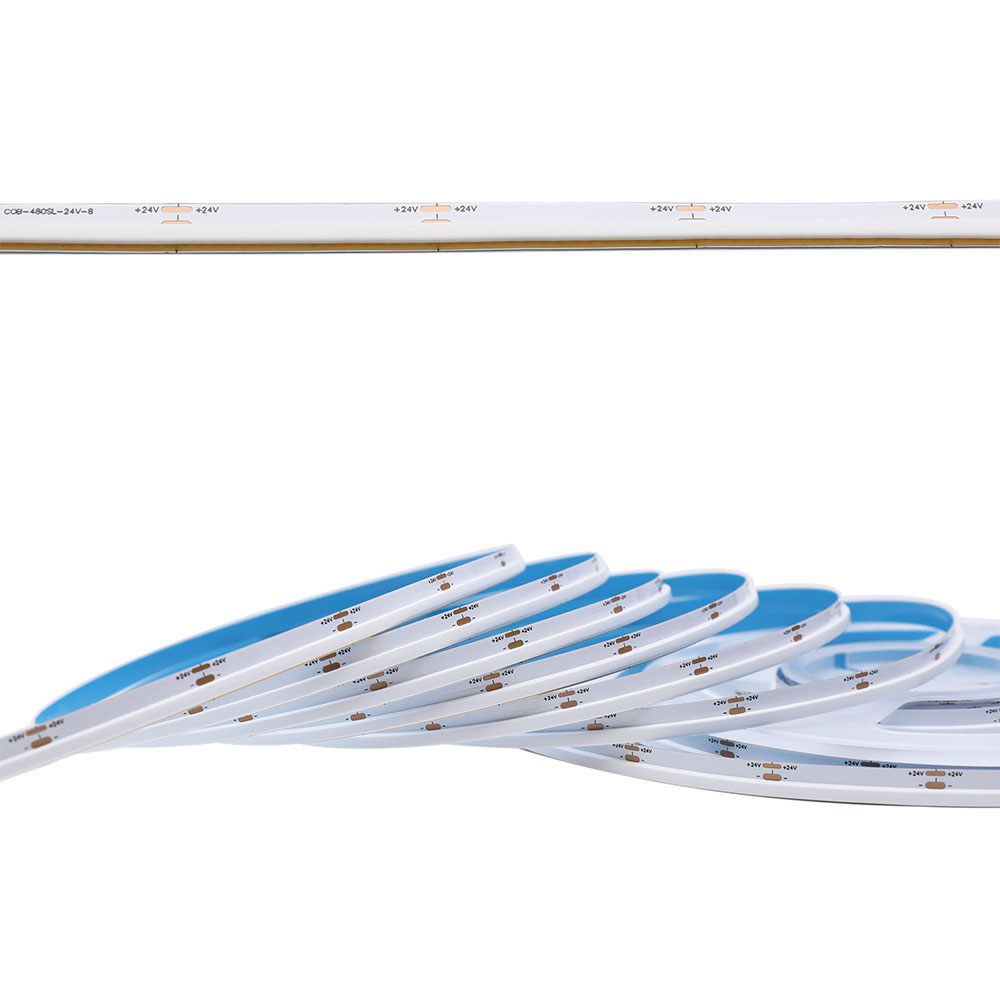

Unique side-emitting ensures the light perception of the LED light strip and has a wider applicability. Plastic surface of the light strip is smooth and beautiful, which is conducive to the effective diffusion of light, colour consistency and high luminous efficiency.

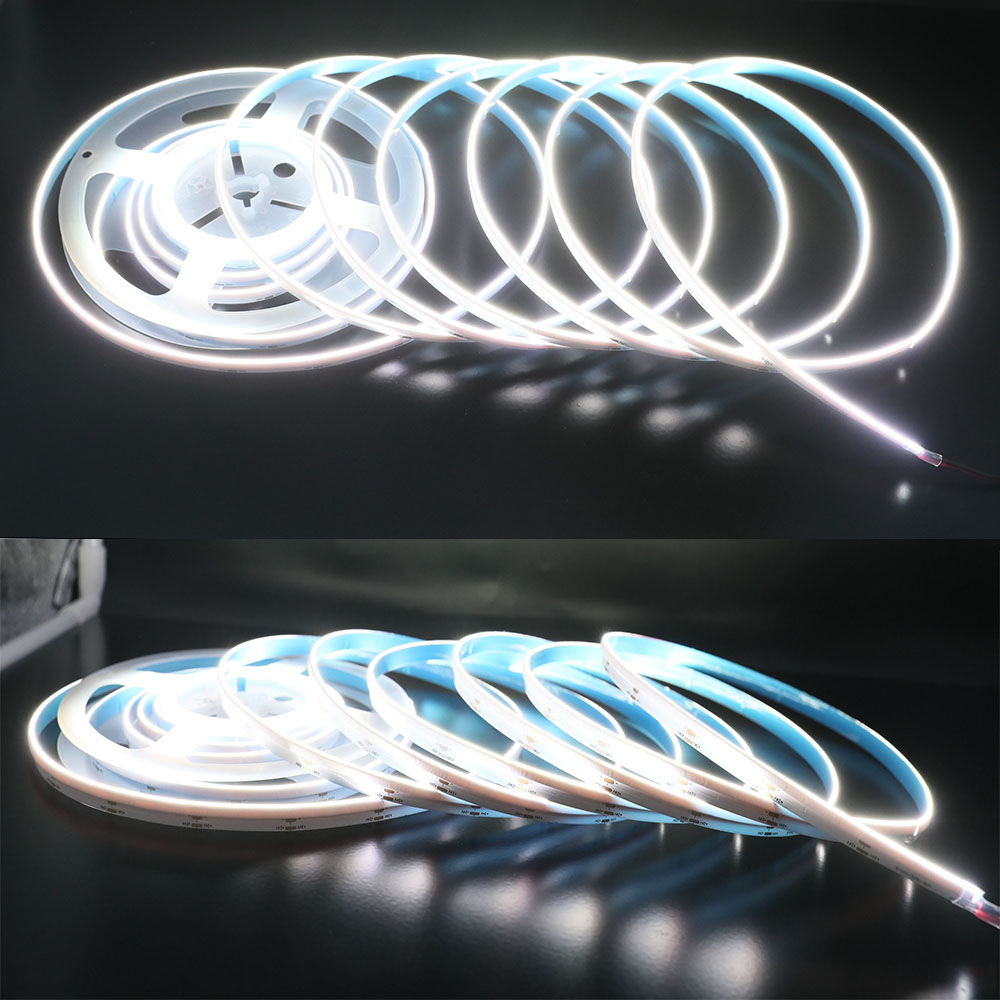

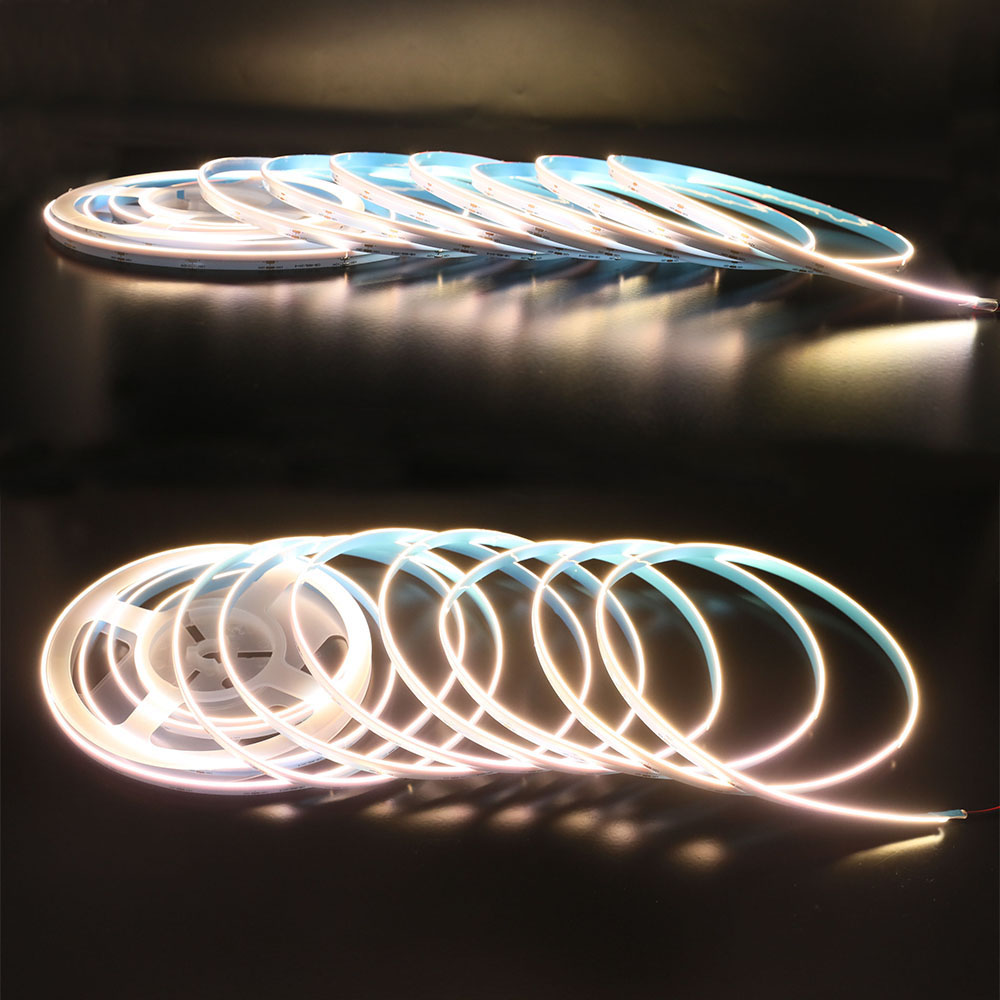

Uniform luminous colour, 480 Chips/m ultra-dense SMD LED with high brightness (CCT - 560LEDs/m), almost no spot on the light strip, also no flicker and no radiation.
DC24V low voltage input, safe, energy-saving and environmentally friendly, suitable for local lighting, ambient lighting, and mood lighting.
3000K warm white /4000K natural white /6500K daylight LED color temperature optional. Choosing the correct color temperature lights for your project is very important. Consider the look and feel you want.
90 high CRI LED lights. The CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Product list:
1* 5m/16.4Ft COB led strip light
If you choose the LED controller in the kit, we will send you V1 + RT1
If you choose the LED power adapter in the kit, we will send you a 24V power adapter PSPS-24V-72W
COB Flexible led strip light specification
FSLCOB-8MM-480SE
Standards and Certifications
Product Specification
| LED Strip Type: | 3000K/4000K/6000K COB LED Light Strip |
| LED Chip: | SMD1021 LED Chips |
| Input Voltage: | DC24V |
| Power: | 12W/m, 60W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | 3000K WarmWhite / 4000K Natural White / 6000K Daylight, CCT - 560LEDs/m |

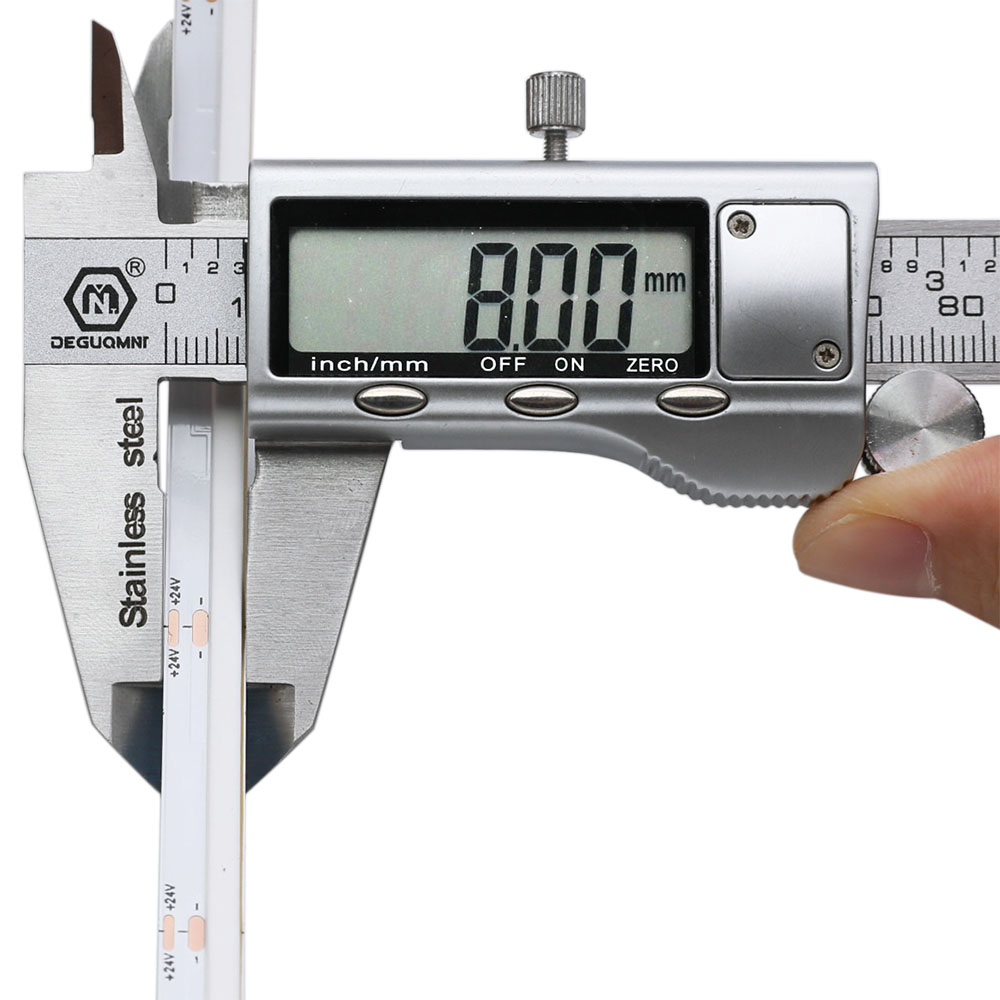

| PCB Width: | 8mm |
| LED Quantity: | 480 Chips/m, 2400 Chips/Roll |

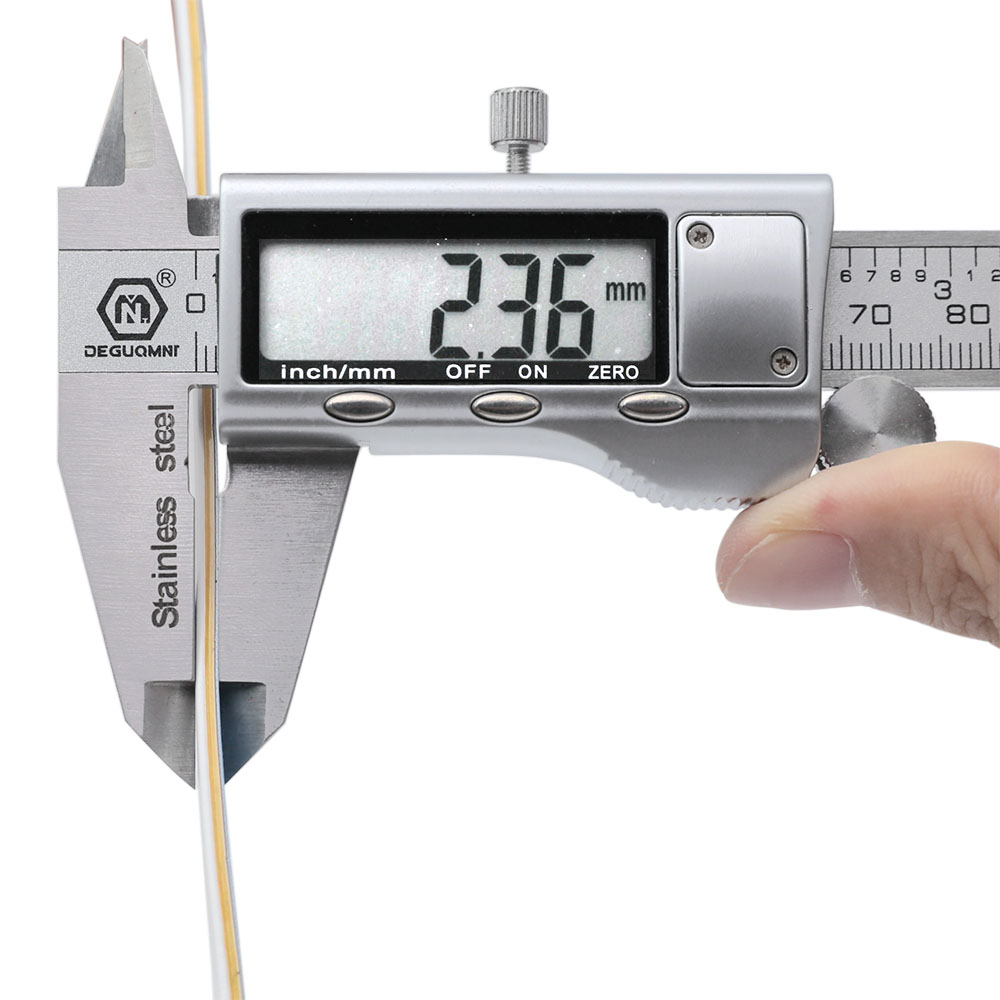

| Product Size: | L5000*W8*H2.36 (mm) |

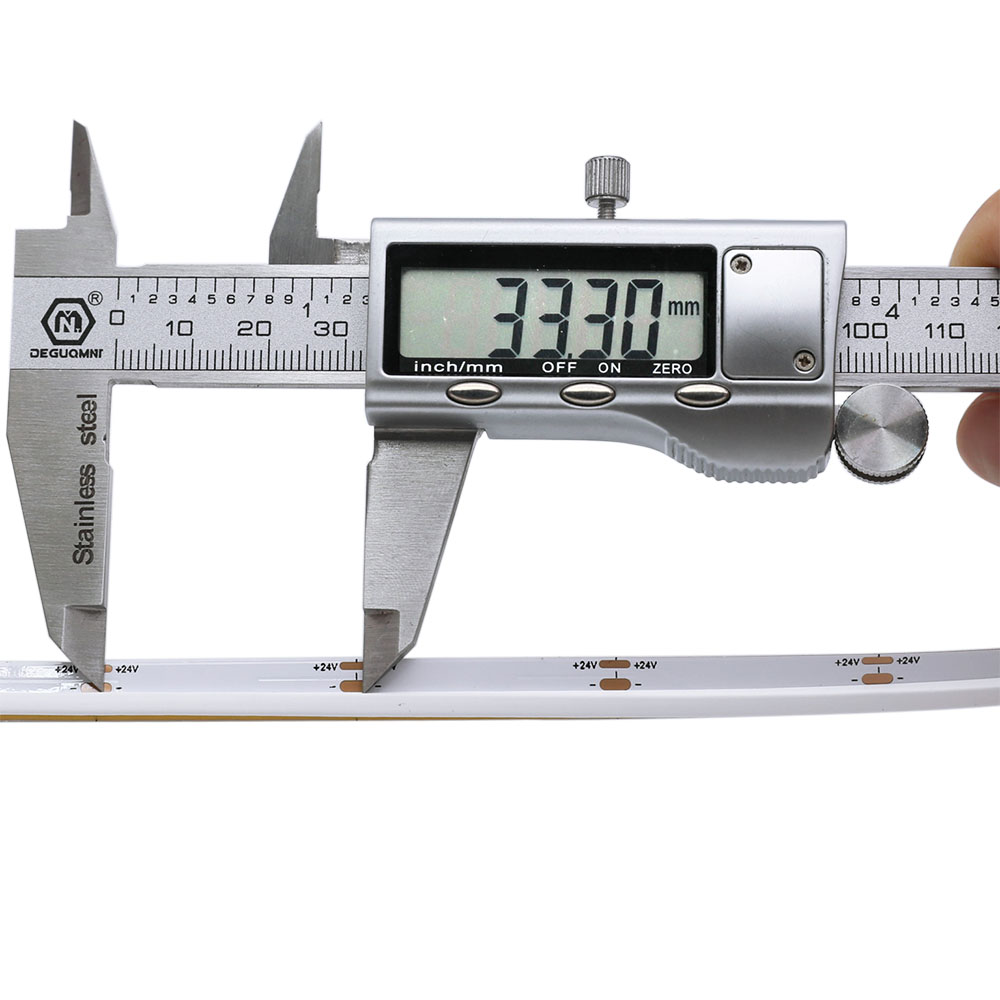

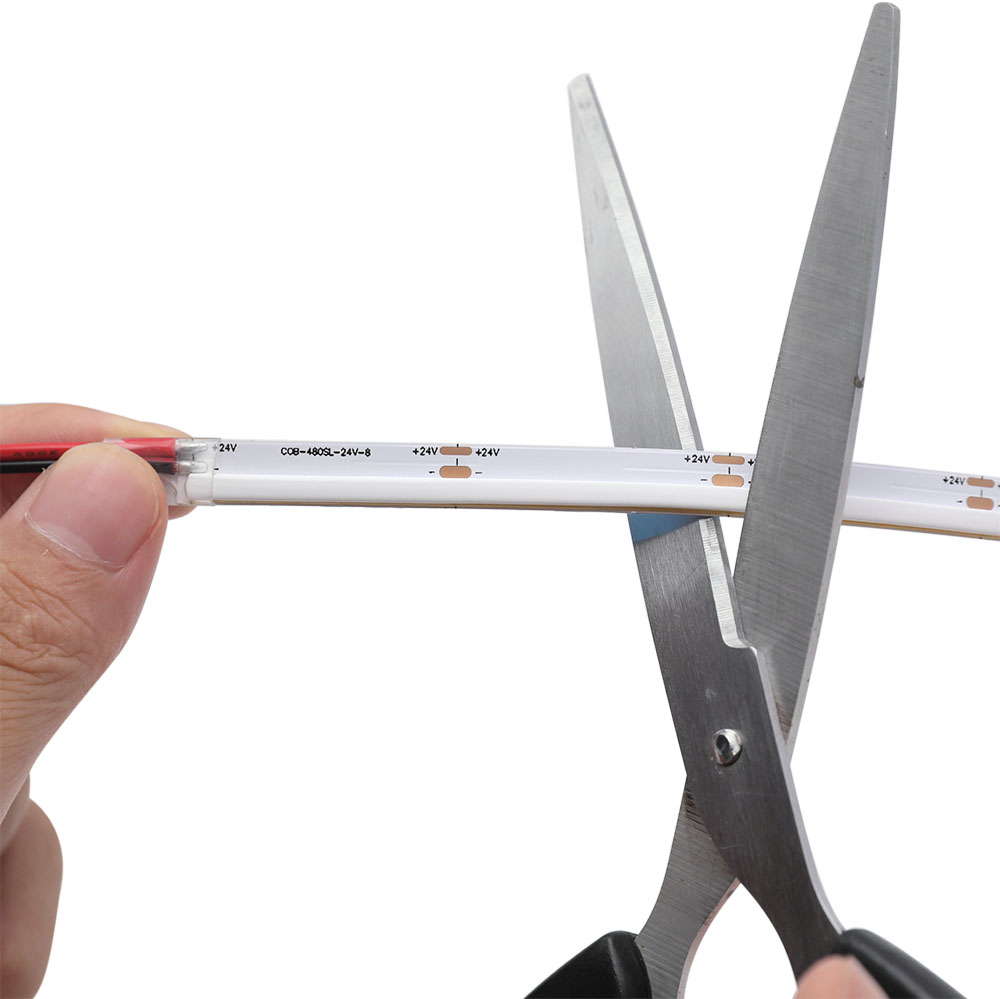

| Cut Unit: | 33.3mm |
| Waterproof Rating: | IP20(non-waterproof ) / IP67(waterproof heat shrink tube) |
| Substrate Material: | FPC |
| CRI: | 90 |
| Lifespan: | 50,000+hours |
| Beam Angle: | 120° |
| Luminous Efficiency: | 690-800 lm/m |
Product Description
1. Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.
2. We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters / roll.

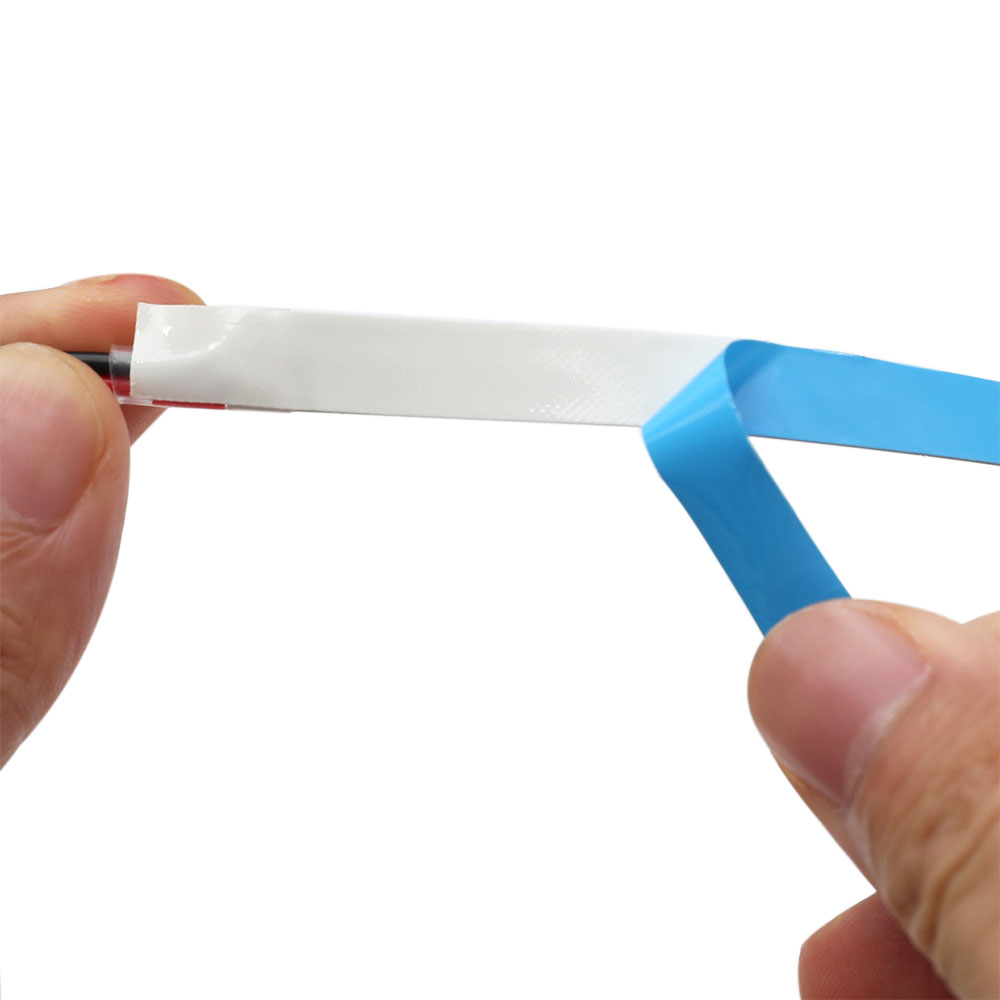

3. Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface.
But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.
4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip.
5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector,
it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection
6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
7. It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection
Installation Diagram:
Installation Note
1. Pay attention to handling with care.
2. Don’t install the product in corrosion, flammable and explosive places.
3. It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required.
4. In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and moving.
5. Ensure correct and reliable connection of all joints.
6. The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.
7. The LED strip and accessories can't be squeezed or folded.
8. PCB conductive parts can't be damaged when installation.
9. Installation must conform to electrical safety standard. The LED strip can only be installed by Professionals.
10. Ensure power supply transform operating load with transformer
11. When install on metal or conductor surface, insulation protection need to be provided to the contact area
12. Observe positive and negative polarity, ensure correct connection to avoid damaging LED strip.
13. When installation, please prevent static electricity.
14. If you have any questions about this product, please consult our salesman.

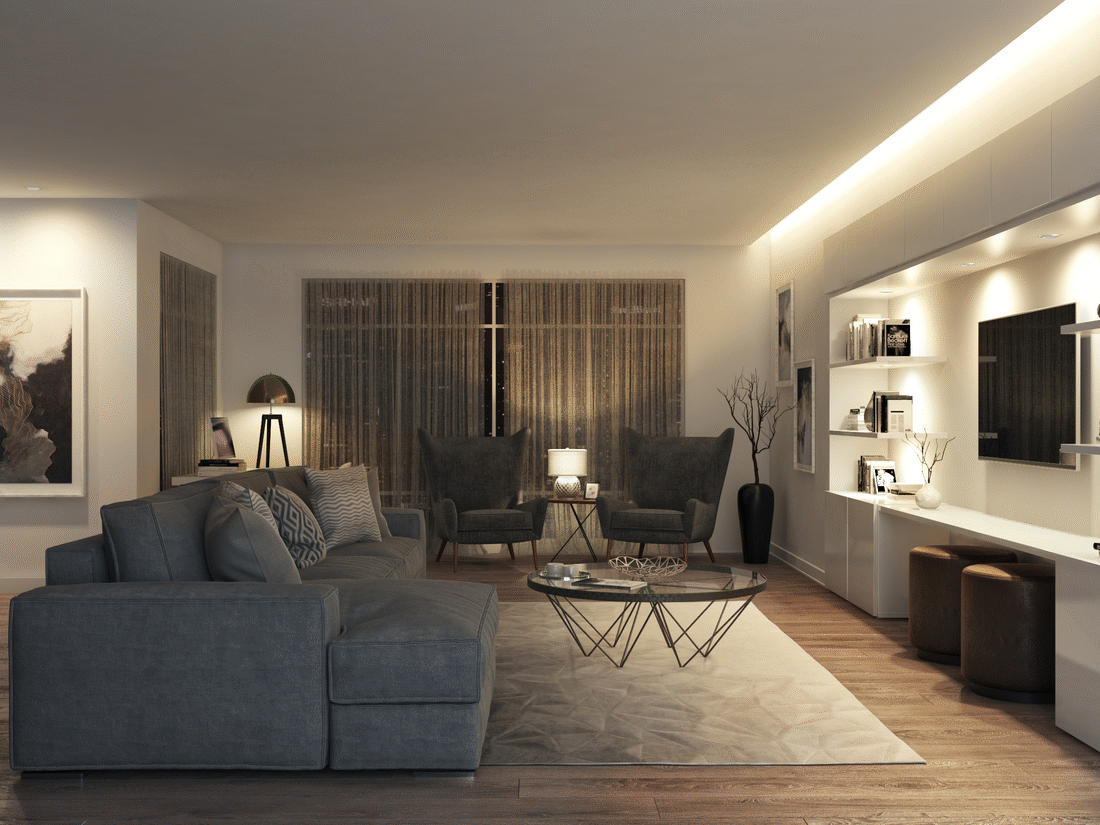

Applications
Trademark lighting Logo lighting
Channel letters lighting Lightboxes lighting Landscape layout lighting Stage decoration lighting Sign cabinets Channel lights Cove LED lighting Edge lit signs Canopy illumination Off-grid lighting
