Special Price: $59.98

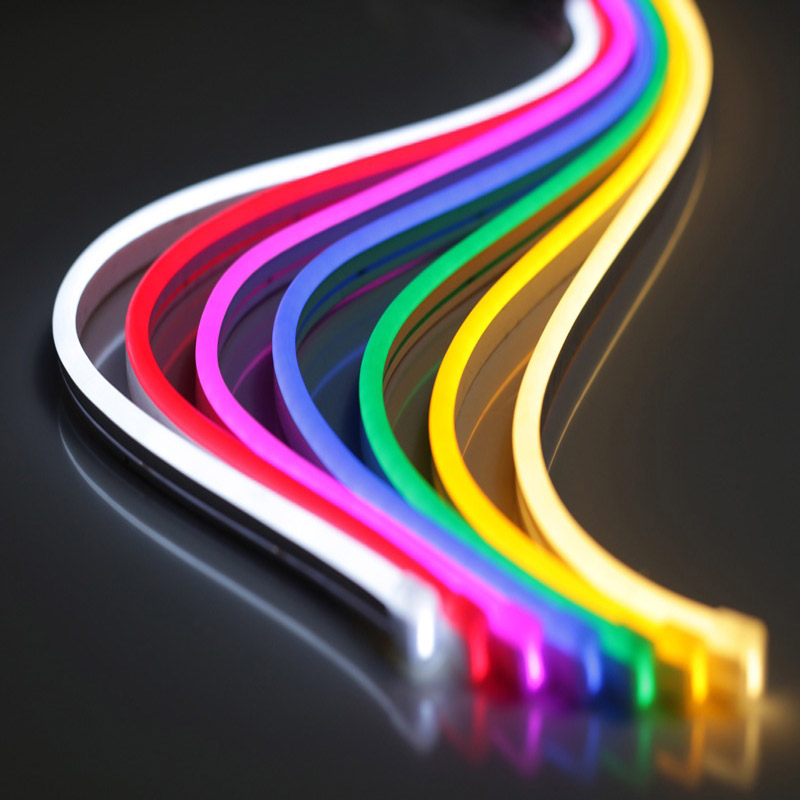

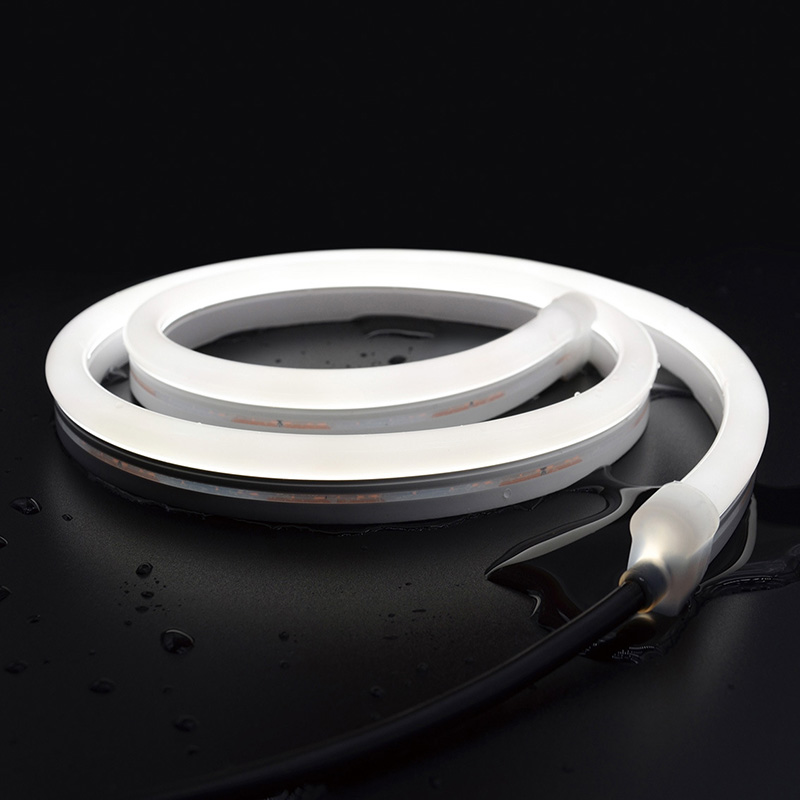

Here is the 08*17mm side-emitting dome top flexible led neon strip light with various solid and dynamic light colors (single color, CCT, and RGB). This neon flexible strip light adapts LED light source, energy-saving, and uses food-grade silicone as the housing material, IP67 waterproof and no light spot.
The dome shape of this flexible led neon strip provides a greater range of light and is ideal for neon signs and other outlining applications.
|
LED Neon Light Kit:
If you choose the LED controller in the kit, we will send you V1 + RT1 for single color LED strip lights or V2+RT2 for CCT led strips or VP+RT4 for RGB light strips.
If you choose the LED power supply in the kit, we will send you PSPS-24V-72W.
If you choose the LED strip + IP67(controller+power supply), we will send you a WL5-WP led controller for single color/CCT/RGB/RGBW/RGBCCT led light strips and PSWP-24V-60W (including an AC plug) waterproof led power supply.
Standards and Certifications
| LED Product Type: | DC24V 08*17mm Dome Flexible LED Neon Strip Light |
| Light Source: | 2835/4040 SMD LED |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Colors: | 2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow, CCT, multi color RGB |

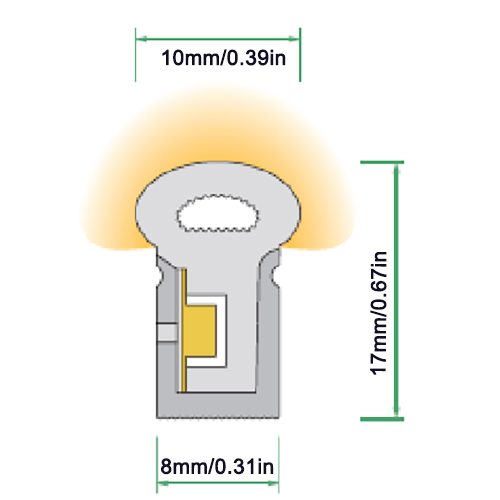

| Size: | 5000*08*17mm |
| LED Quantity: | 120 LEDs per meter, 37LEDs/Ft (RGB only 120LEDs/m) |
| Lifespan: | 30,000+hours |
| Luminous Way: | Side emitting |
| Input Voltage(V): | 24 VDC |
| Working Power: | 50W /16.4ft Max |
| Material: | Food grade silicone |
| Waterproof Rating: | Waterproof IP67 |
| CRI(Ra>): | 95 (single color/CCT) |
| Beam Pattern: | 120 degree |
| Lumen: | 12lm/LED |
How To Install LED Neon Lights?
1. Cut and install led neon sign light:

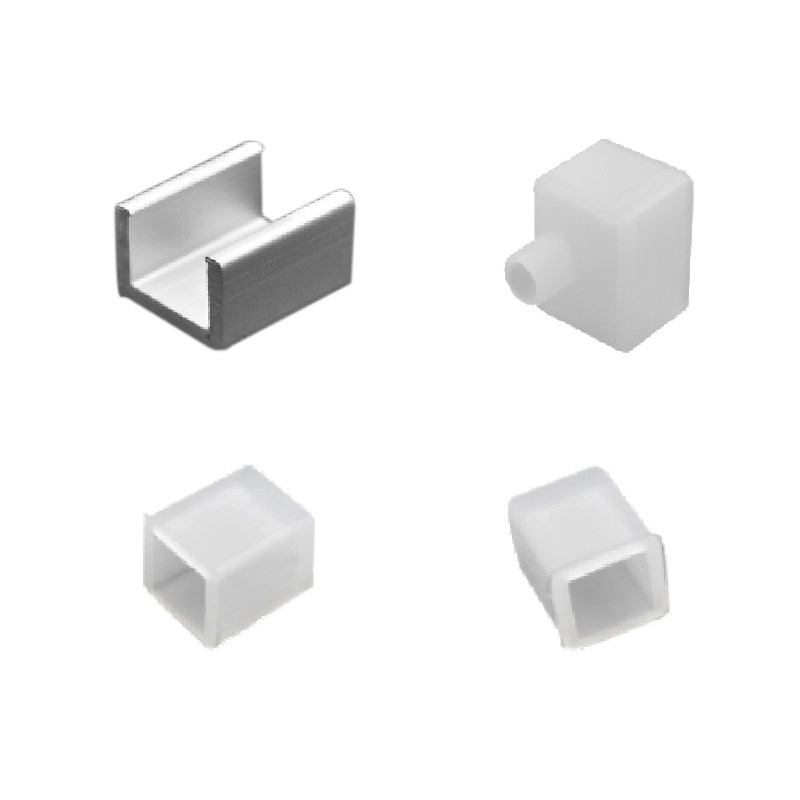

There are three installation methods for the led neon strip lights. One is to install with mounting clips, per meter 2 PCS (not included). The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?
a. Single color LED neon light signs wiring diagram:
b. CCT adjustable white neon light signs wiring diagram:
c. Multi-color RGB neon lights wiring diagram:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
